Kenmore Elite
Washer

Model # 11046752701 Official Kenmore Elite washer

Here are the diagrams and repair parts for Official Kenmore Elite 11046752701 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

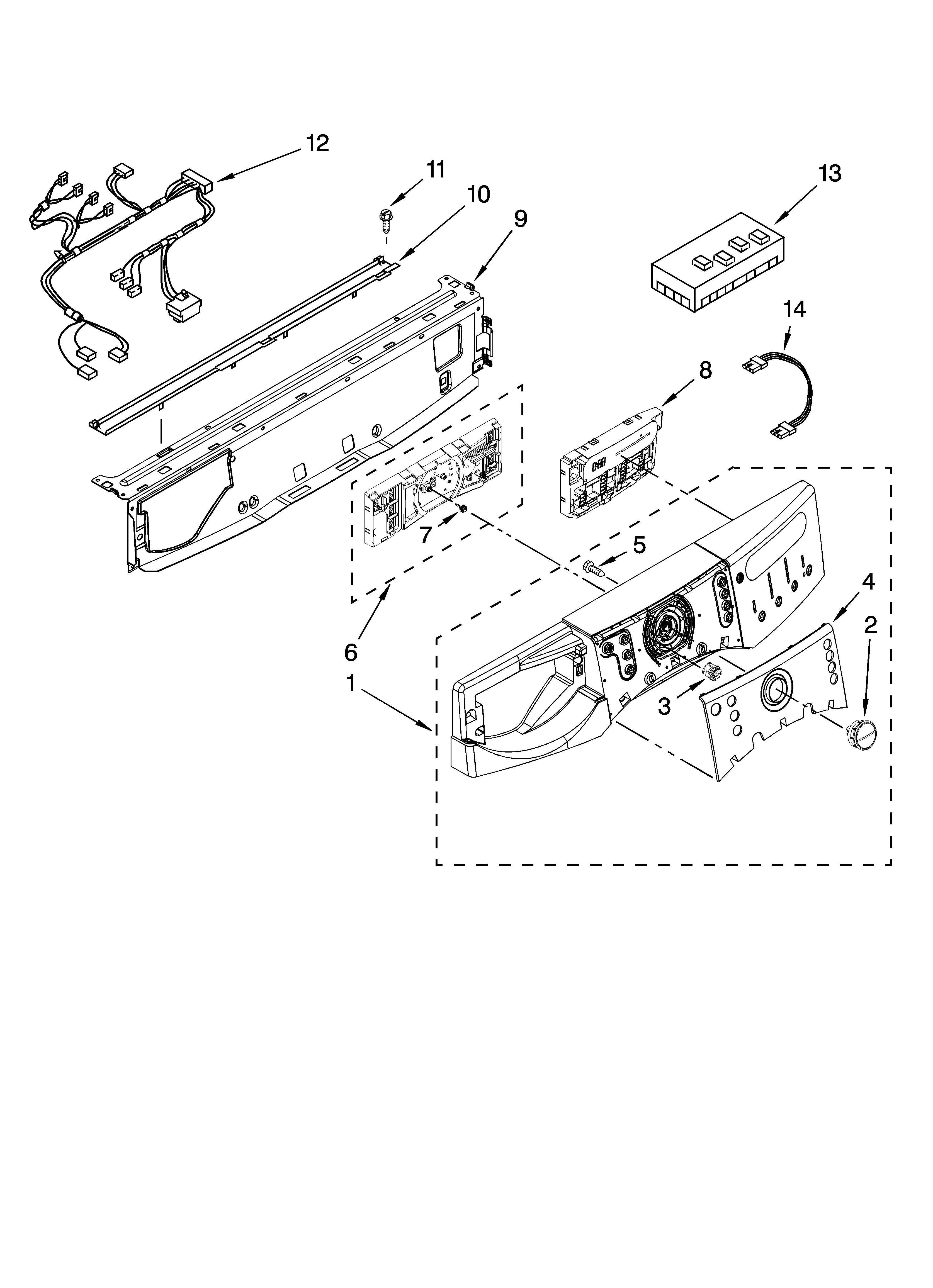

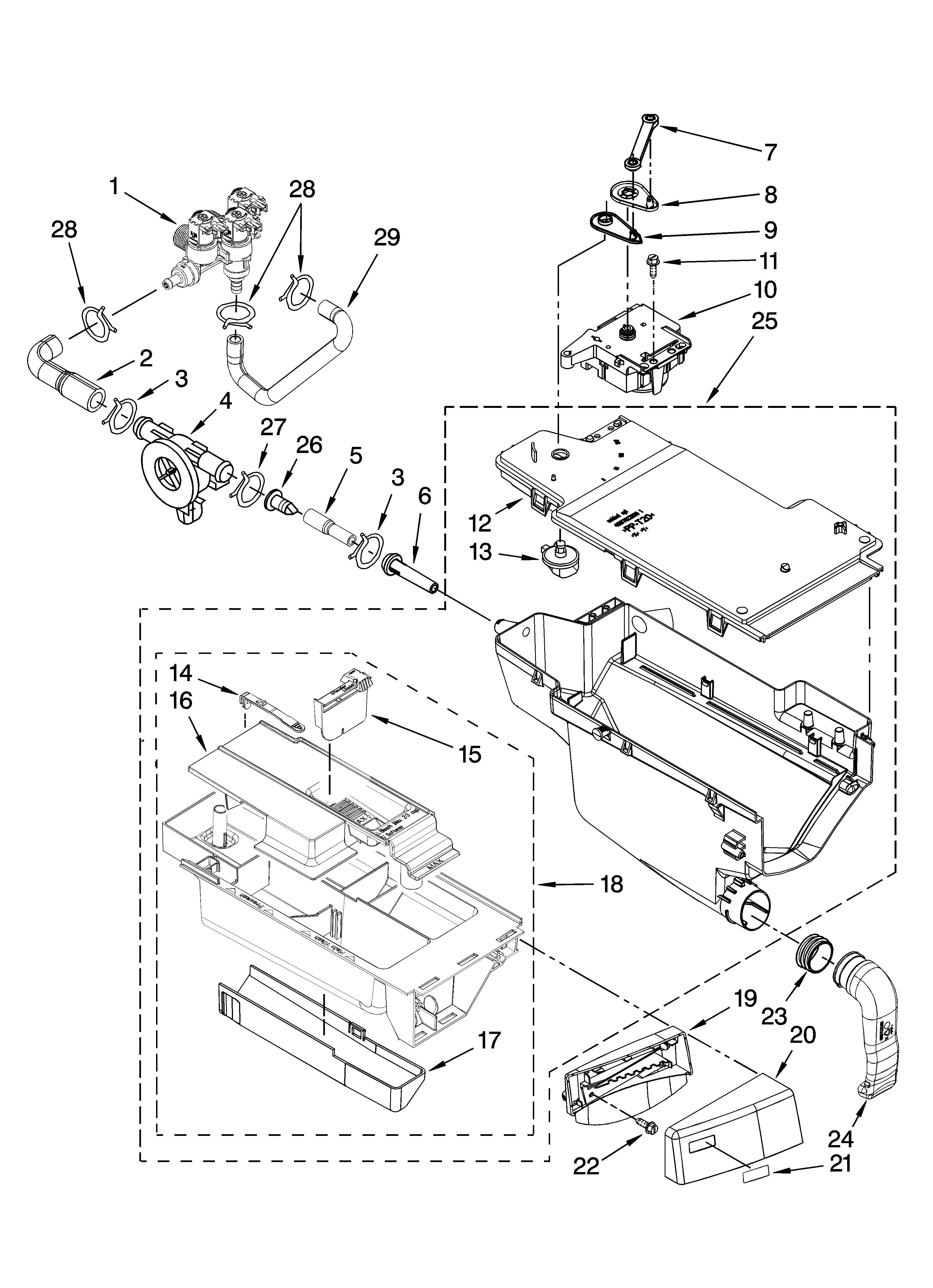

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 159 parts  |
Pump 8182821
#7

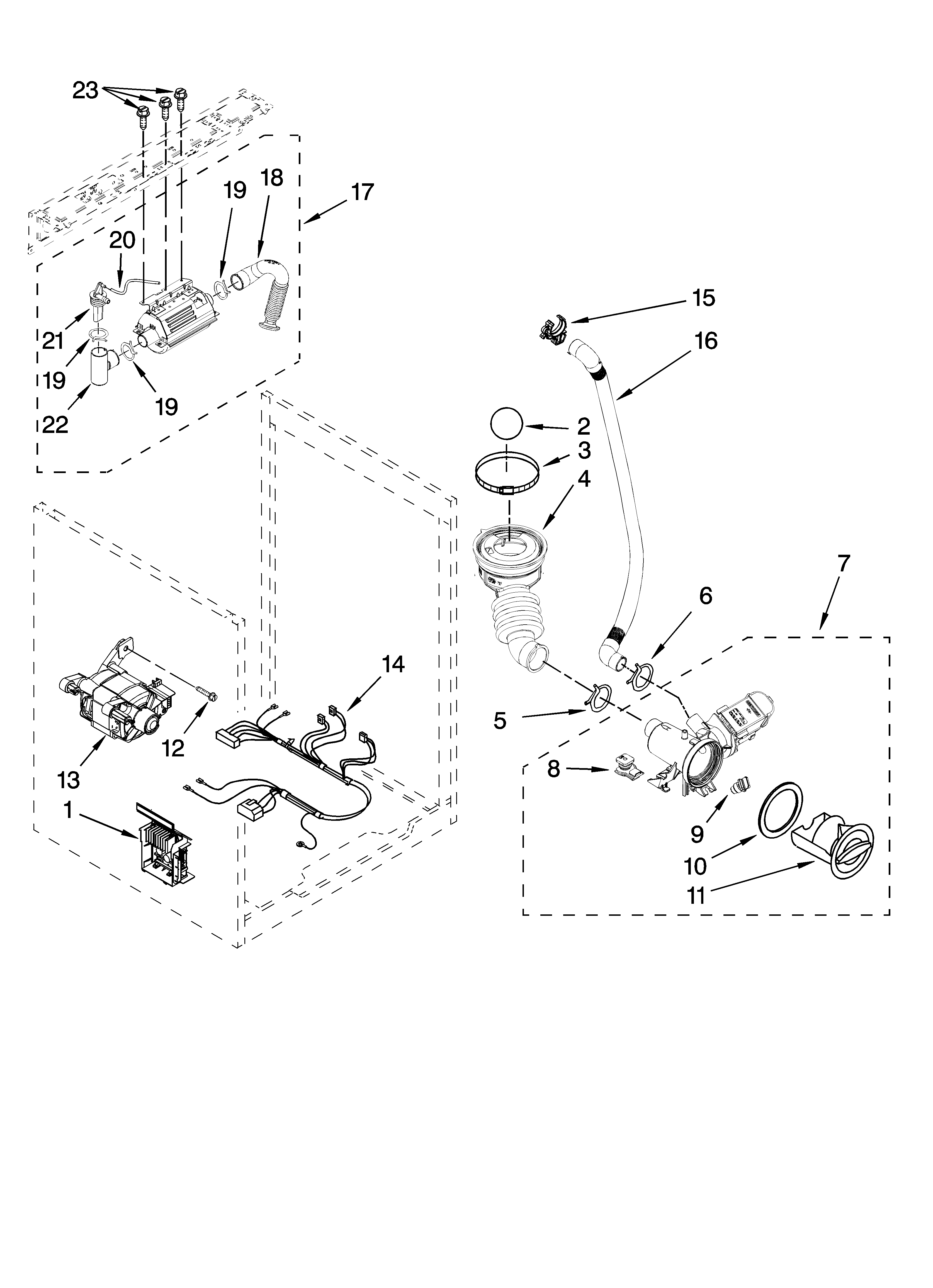

Steamer, pump and motor parts, optional parts (not inc diagram

Pump

Part #8182821

Replaced by #280187

?
Manufacturer substitution
This part replaces 8182821. Substitute parts can look different from the original.
BEST SELLER
$123.44 |
9% OFF Phone Price : $135.44
In Stock
Washer Door Boot 8182119
#2

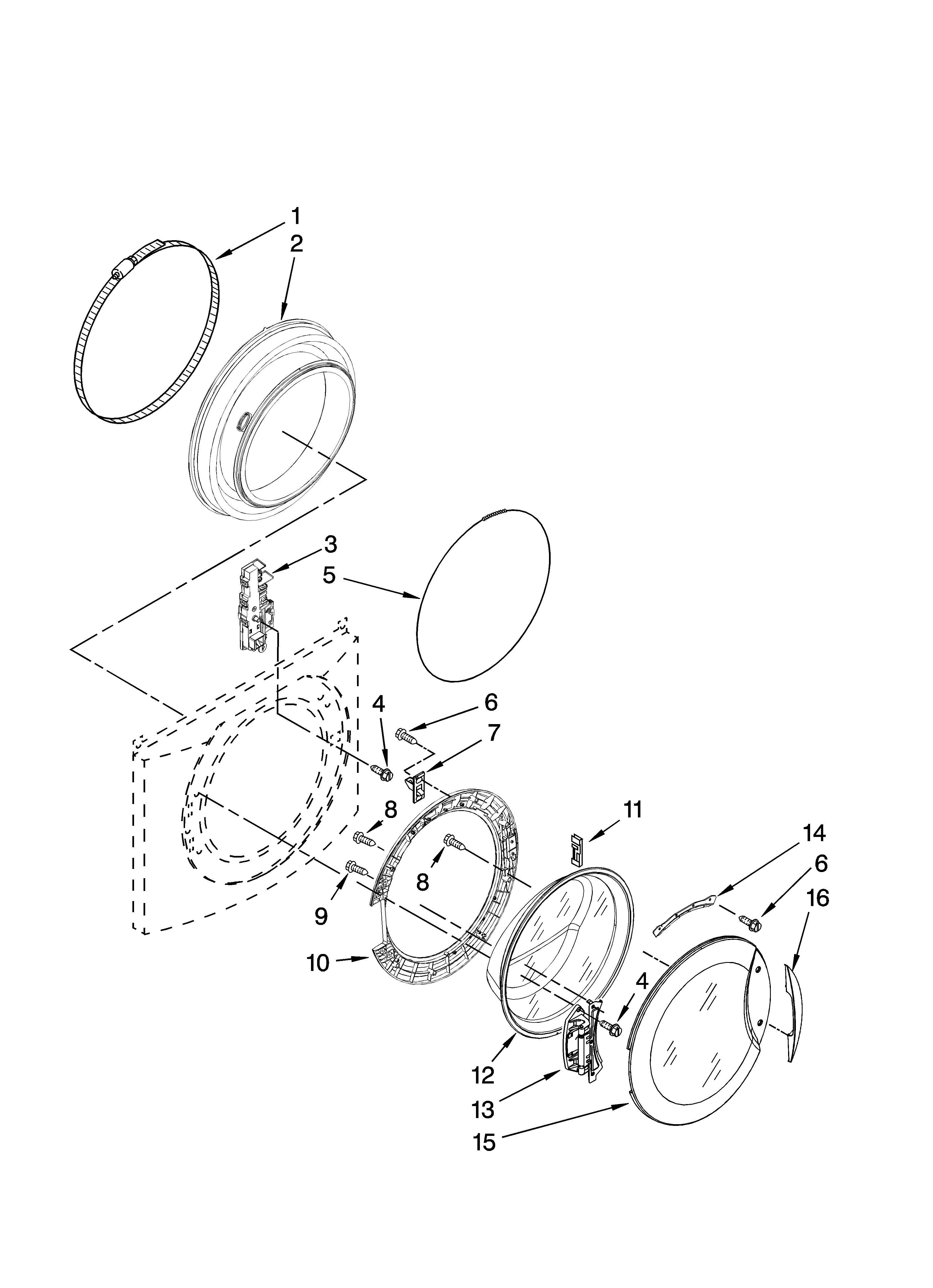

Door and latch parts diagram

Washer door boot

Part #8182119

Replaced by #WP8182119

?
Manufacturer substitution
This part replaces 8182119. Substitute parts can look different from the original.
BEST SELLER
$143.65 |
8% OFF Was : $156.14
In Stock
Washer Shock Absorber 8182812
#28

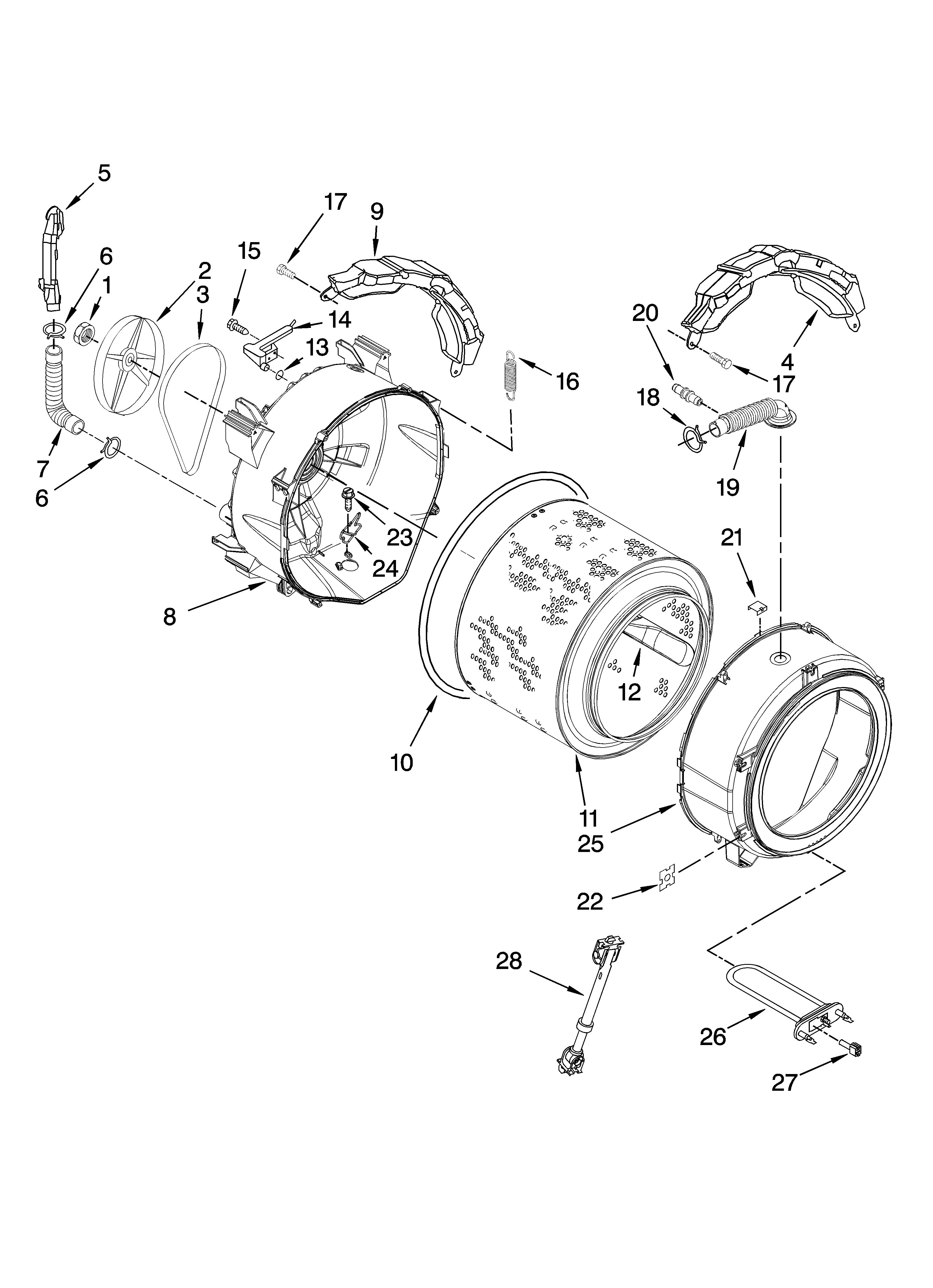

Tub and basket parts diagram

Washer shock absorber

Part #8182812

Replaced by #W10822553

?
Manufacturer substitution
This part replaces 8182812. Substitute parts can look different from the original.
BEST SELLER
$40.67 |
13% OFF Phone Price : $46.67
In Stock
Washer Door Boot Spring Clamp 8182211
#5

Door and latch parts diagram

Washer door boot spring clamp

Part #8182211

Replaced by #W10902779

?
Manufacturer substitution
This part replaces 8182211. Substitute parts can look different from the original.
BEST SELLER
$20.55 |
23% OFF Phone Price : $26.55
In Stock
Washer Drive Belt 8181670
#3

Tub and basket parts diagram

Washer drive belt

Part #8181670

Replaced by #WPW10388414

?
Manufacturer substitution
This part replaces 8181670. Substitute parts can look different from the original.
BEST SELLER
$32.15 |
16% OFF Phone Price : $38.15
In Stock
Washer Motor Control Board 8183196
#1

Steamer, pump and motor parts, optional parts (not inc diagram

Washer motor control board

Part #8183196

Replaced by #WP8183196

?
Manufacturer substitution
This part replaces 8183196. Substitute parts can look different from the original.
BEST SELLER
$275.00 |
$12.00 OFF Phone Price : $287.00
Back Order
Hose 8181739
#21

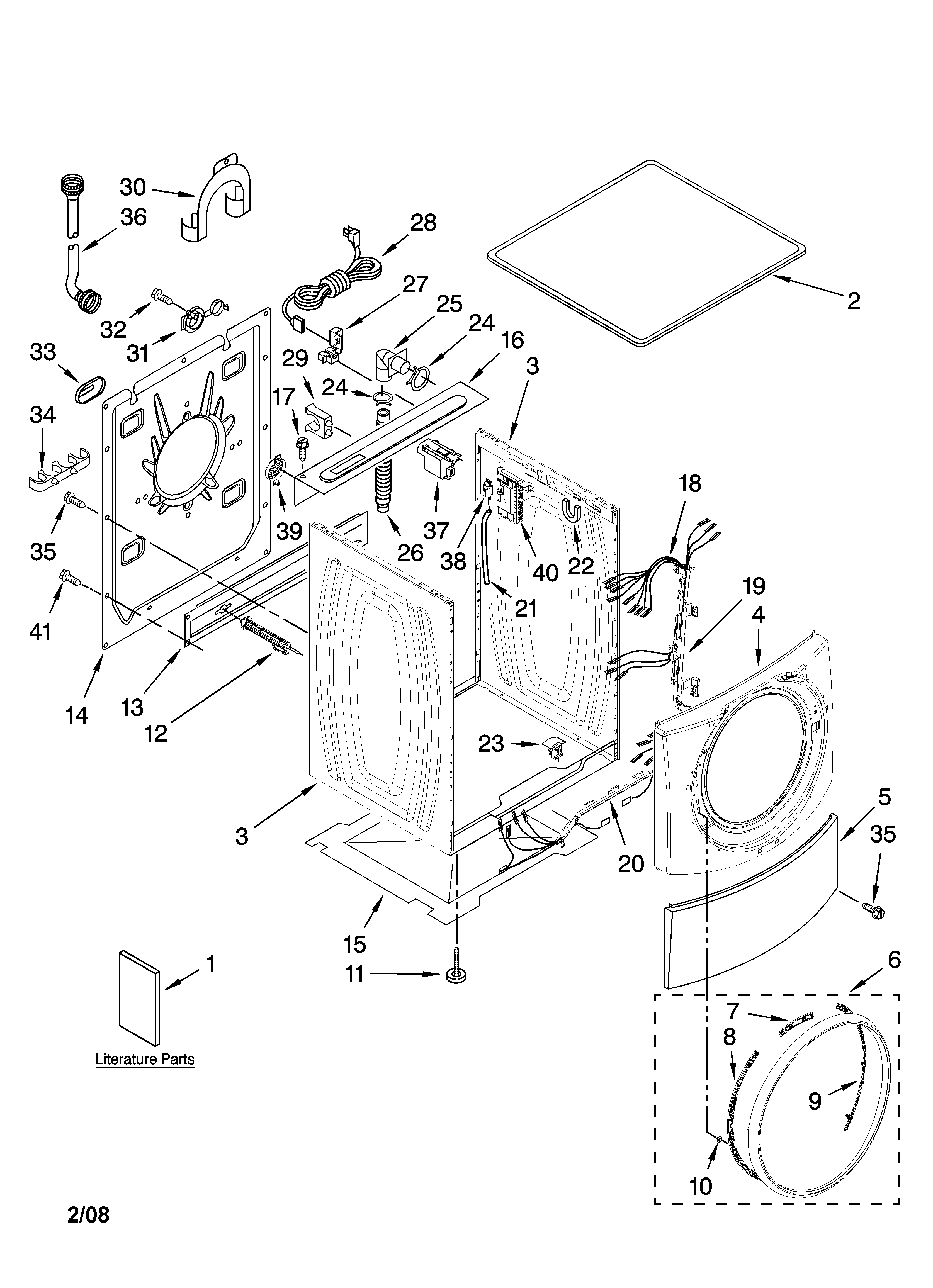

Top and cabinet parts diagram

Hose

Part #8181739

Replaced by #WPW10004260

?
Manufacturer substitution
This part replaces 8181739. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Steamer, pump and motor parts, optional parts (not inc diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Fill Hose (blue) 8182795
#36

Top and cabinet parts diagram

Fill hose (blue)

Part #8182795

Replaced by #WP89503

?
Manufacturer substitution
This part replaces 8182795. Substitute parts can look different from the original.
BEST SELLER
$14.49 |
12% OFF Phone Price : $16.49
In Stock
Fill Hose 8182792
#36A

Top and cabinet parts diagram

Fill hose

Part #8182792

Replaced by #WP89503

?
Manufacturer substitution
This part replaces 8182792. Substitute parts can look different from the original.
BEST SELLER
$14.49 |
12% OFF Phone Price : $16.49
In Stock
