Poulan
Gas Chainsaw

Model # PP4620AVL Official Poulan chainsaw

Here are the diagrams and repair parts for Official Poulan PP4620AVL chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Lawn & Garden Equipment Engine Fuel Filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649) 530095646
#40

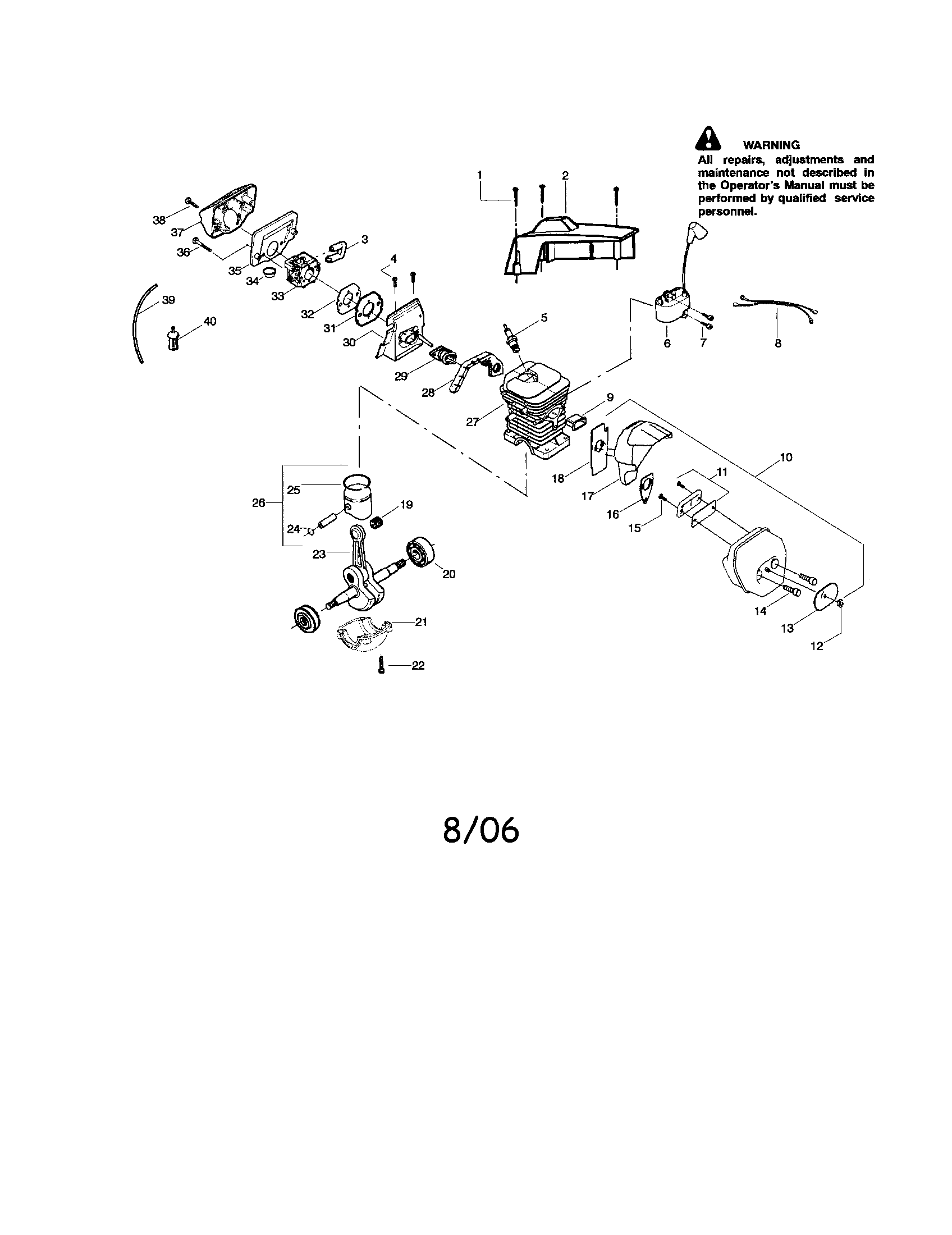

Cylinder/shield/crankshaft diagram

Lawn & garden equipment engine fuel filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649)

Part #530095646

BEST SELLER
$8.93 |
10% OFF Phone Price : $9.93
In Stock
Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#39

Cylinder/shield/crankshaft diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Air Filter 530036141
#37

Cylinder/shield/crankshaft diagram

Air filter

Part #530036141

Replaced by #545057701

?
Manufacturer substitution
This part replaces 530036141. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Chainsaw Recoil Starter Rope (replaces 530-022289, 530024451, 530042033, 5300692-32, 530-069232, 530069233, 530-069233, 530069339) 530069232
#12

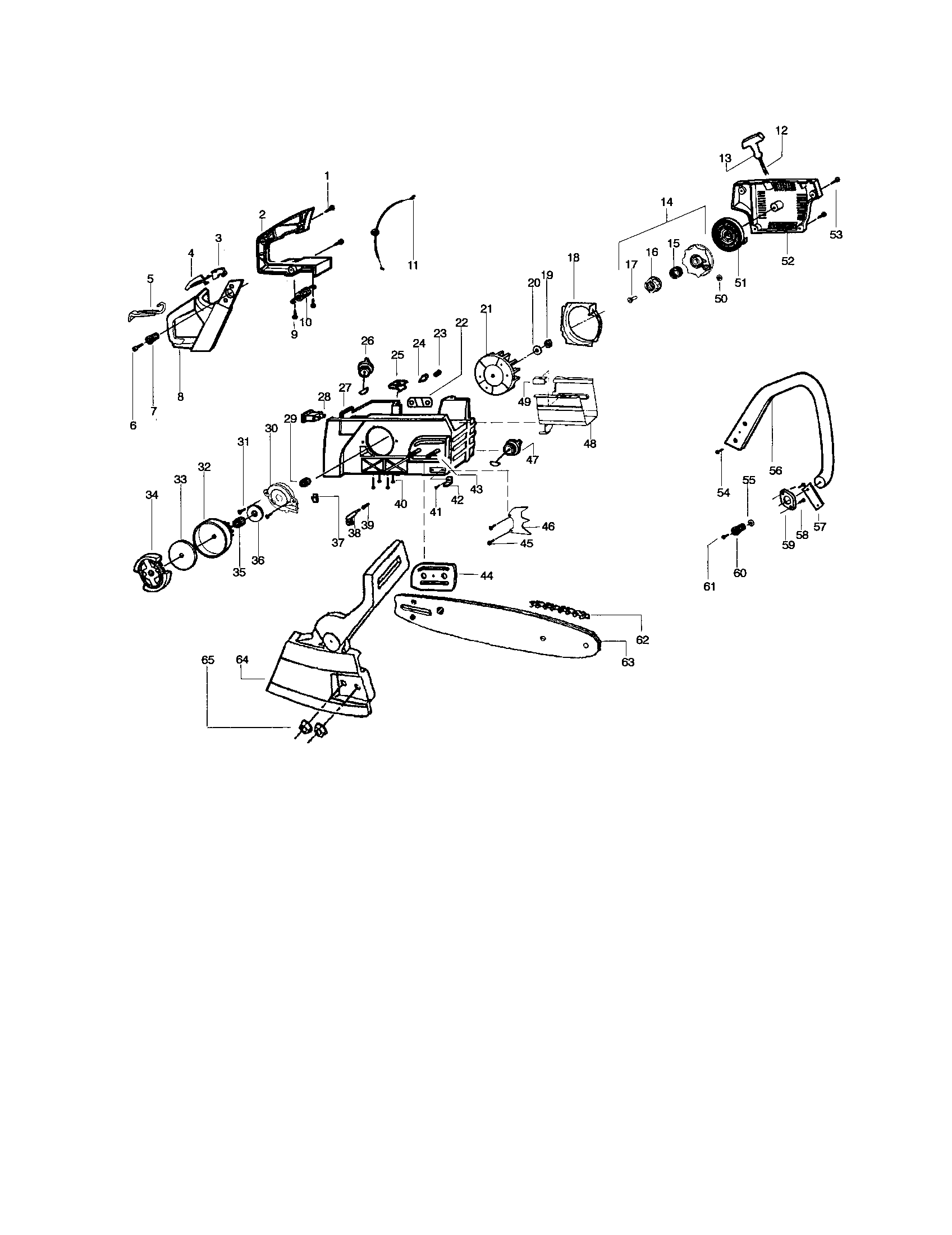

Chassis/bar/handle diagram

Chainsaw recoil starter rope (replaces 530-022289, 530024451, 530042033, 5300692-32, 530-069232, 530069233, 530-069233, 530069339)

Part #530069232

This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Start Spring 530042095
#51

Chassis/bar/handle diagram

Start spring

Part #530042095

Replaced by #545008013

?
Manufacturer substitution
This part replaces 530042095. Substitute parts can look different from the original.
This item is not returnable
$8.67 |
10% OFF Phone Price : $9.67
In Stock
Lawn & Garden Equipment Nut (replaces 5300159-17, 530-015917) 530015917
#65

Chassis/bar/handle diagram

Lawn & garden equipment nut (replaces 5300159-17, 530-015917)

Part #530015917

This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
Lawn & Garden Equipment Thrust Washer 530015611
#33

Chassis/bar/handle diagram

Lawn & garden equipment thrust washer

Part #530015611

This item is not returnable
$9.26
In Stock
Lawn & Garden Equipment Screw 530015814
Lawn & garden equipment screw

Part #530015814

Replaced by #503210619

?
Manufacturer substitution
This part replaces 530015814. Substitute parts can look different from the original.
This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
Chainsaw Engine Piston Pin Retainer 530015697
#24

Cylinder/shield/crankshaft diagram

Chainsaw engine piston pin retainer

Part #530015697

This item is not returnable
$5.54
In Stock
Chainsaw Recoil Starter Hub Spring 530021180
#15

Chassis/bar/handle diagram

Chainsaw recoil starter hub spring

Part #530021180

This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
