Haier
Chest Freezer

Model # BD120GLD Official Haier freezer

Here are the diagrams and repair parts for Official Haier BD120GLD freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Nut RF-4720-03
#29

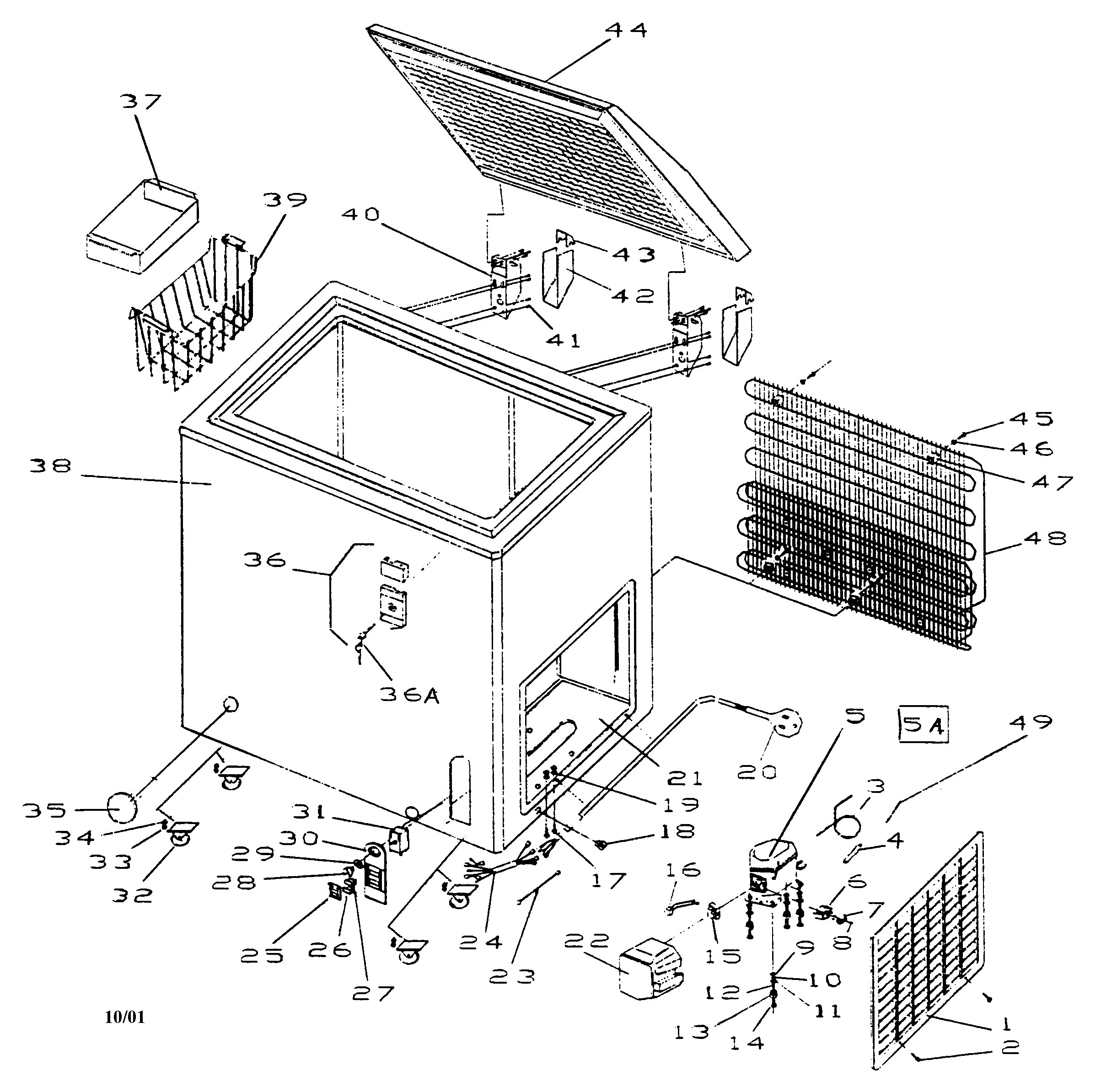

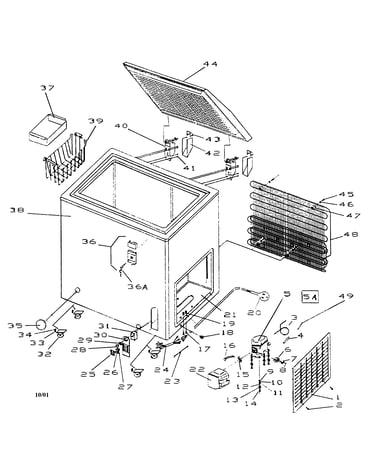

Freezer diagram

Nut

Part #RF-4720-03

This item is not returnable
$2.49
In Stock
Screw RF-6150-38
#33

Freezer diagram

Screw

Part #RF-6150-38

This item is not returnable
$2.99
In Stock
Washer RF-7950-11
#46

Freezer diagram

Washer

Part #RF-7950-11

This item is not returnable
$2.49
In Stock
Bulb,green RF-1050-18
#26

Freezer diagram

Bulb,green

Part #RF-1050-18

$88.99
In Stock
Tube RF-7750-01
#3

Freezer diagram

Tube

Part #RF-7750-01

$13.99
In Stock
Accessory RF-0010-30
#5A

Freezer diagram

Accessory

Part #RF-0010-30

This item is not returnable
$5.99
In Stock
Washer RF-7950-12
#47

Freezer diagram

Washer

Part #RF-7950-12

This item is not returnable
$2.16
In Stock
Screw RF-6150-41
#17

Freezer diagram

Screw

Part #RF-6150-41

This item is not returnable
$2.16
In Stock
Button RF-1200-01
#18

Freezer diagram

Button

Part #RF-1200-01

This item is not returnable
$2.99
In Stock
Compressor RF-1750-30
#5

Freezer diagram

Compressor

Part #RF-1750-30

$165.49
In Stock
