Model # KECT305VWH0 Official KitchenAid electric range

Here are the diagrams and repair parts for Official KitchenAid KECT305VWH0 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Cooktop Solid Surface Element, 6-in 3147131
#2

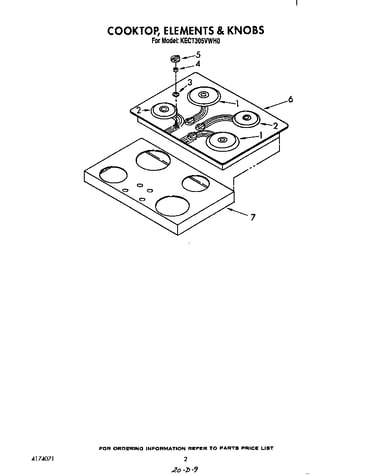

Cooktop diagram

Cooktop solid surface element, 6-in

Part #3147131

Replaced by #WP3147131

?
Manufacturer substitution
This part replaces 3147131. Substitute parts can look different from the original.
$114.42 |
9% OFF Phone Price : $126.42
In Stock
Range Surface Element, 8-in 3147132
#1

Cooktop diagram

Range surface element, 8-in

Part #3147132

Replaced by #WP3147132

?
Manufacturer substitution
This part replaces 3147132. Substitute parts can look different from the original.
$138.99 |
8% OFF Phone Price : $150.99
In Stock
Infinite Switch 4164370
#1

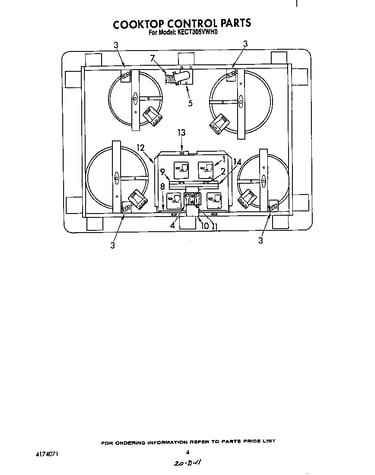

Control diagram

Infinite switch

Part #4164370

Replaced by #W10900107

?
Manufacturer substitution
This part replaces 4164370. Substitute parts can look different from the original.
$39.99 |
13% OFF Phone Price : $45.99
In Stock
Wire Harness 3179353
#14N

Control diagram

Wire harness

Part #3179353

The manufacturer no longer makes this part, and there's no substitute part

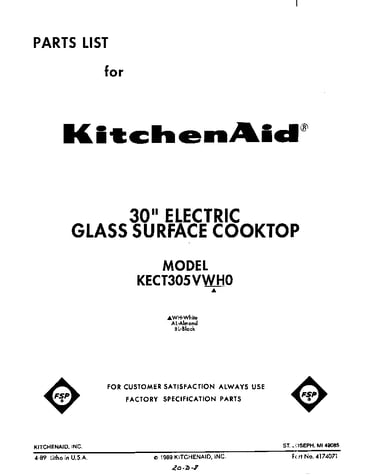

Repair Parts Lis LIT4174071

#NI

All parts diagram

Repair parts lis

Part #LIT4174071

The manufacturer no longer makes this part, and there's no substitute part

Light 3179236
#2

Control diagram

Light

Part #3179236

The manufacturer no longer makes this part, and there's no substitute part

Bracket Element 3147703
#5B

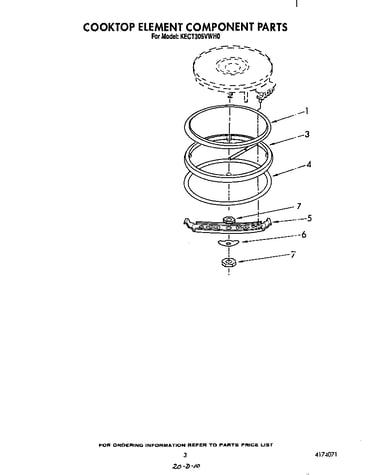

Element diagram

Bracket element

Part #3147703

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness 3179334
#14B

Control diagram

Wire harness

Part #3179334

The manufacturer no longer makes this part, and there's no substitute part

Surface Knob (black) 3179203
#5

Cooktop diagram

Surface knob (black)

Part #3179203

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Guide LIT3177087

#NI

All parts diagram

Use and care guide

Part #LIT3177087

The manufacturer no longer makes this part, and there's no substitute part
