Craftsman
Wet/Dry Vacuum

Model # 113170340 Official Craftsman wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 113170340 wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Filter 9-17816
#13

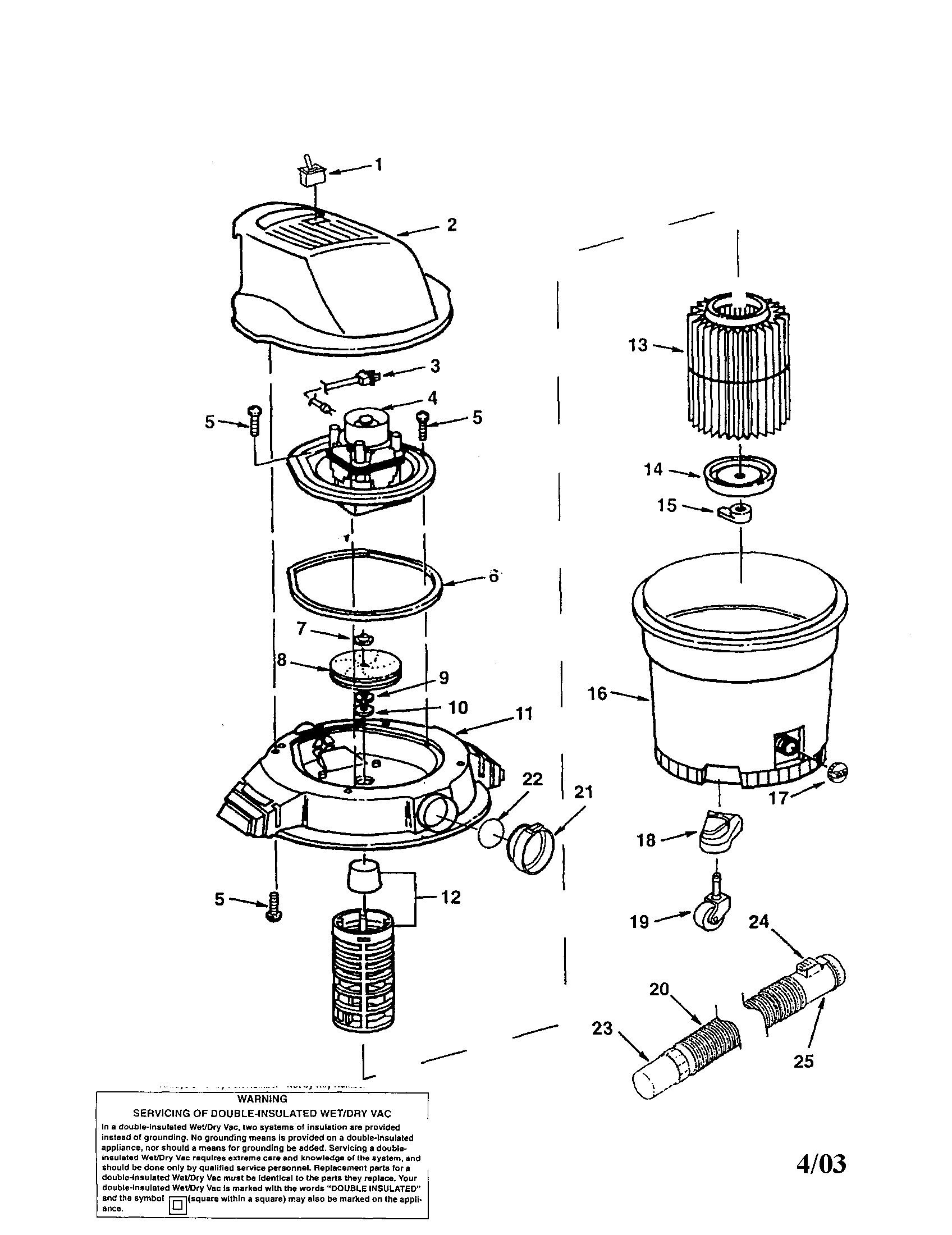

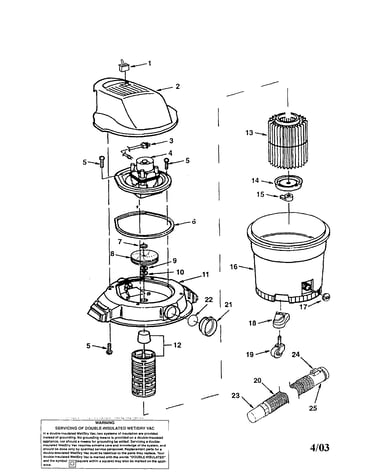

Motor cover/lid/dust drum diagram

Filter

Part #9-17816

The manufacturer no longer makes this part, and there's no substitute part

Filter 17816
#14

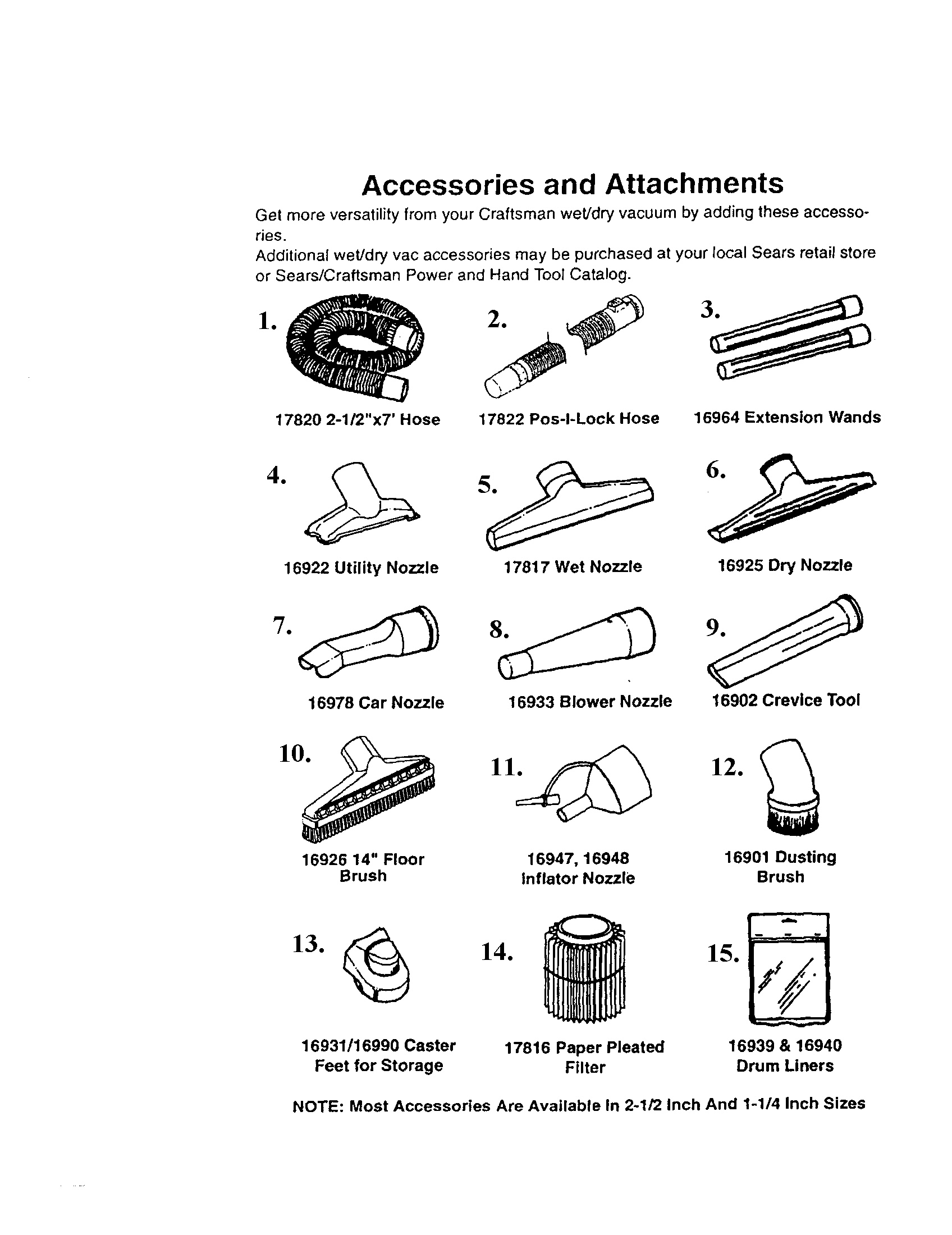

Accessories and attachments diagram

Filter

Part #17816

The manufacturer no longer makes this part, and there's no substitute part

Extension Tube 16964
#3

Accessories and attachments diagram

Extension tube

Part #16964

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 16902
#9

Accessories and attachments diagram

Crevice tool

Part #16902

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 17817
#5

Accessories and attachments diagram

Nozzle

Part #17817

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Blower Wheel 818413-2
#8

Motor cover/lid/dust drum diagram

Shop vacuum blower wheel

Part #818413-2

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Drain Cap (replaces 73107, 817465, 825881) 73185
#17

Motor cover/lid/dust drum diagram

Shop vacuum drain cap (replaces 73107, 817465, 825881)

Part #73185

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum On/off Switch (replaces 73370, 813213) 73180
#1

Motor cover/lid/dust drum diagram

Shop vacuum on/off switch (replaces 73370, 813213)

Part #73180

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Squeegee 822256

#NI01

All parts diagram

Shop vacuum squeegee

Part #822256

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Hose End Interlock 826354
#25

Motor cover/lid/dust drum diagram

Shop vacuum hose end interlock

Part #826354

The manufacturer no longer makes this part, and there's no substitute part
