Model # 580320971 Official Craftsman 3000-watt portable alternator

Here are the diagrams and repair parts for Official Craftsman 580320971 3000-watt portable alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Outlet 37807
#27

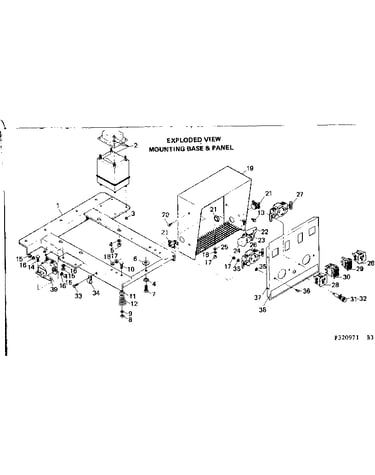

Mounting base & panel diagram

Outlet

Part #37807

Replaced by #705932

?
Manufacturer substitution
This part replaces 37807. Substitute parts can look different from the original.
$53.53
In Stock
Screw 24419
#19

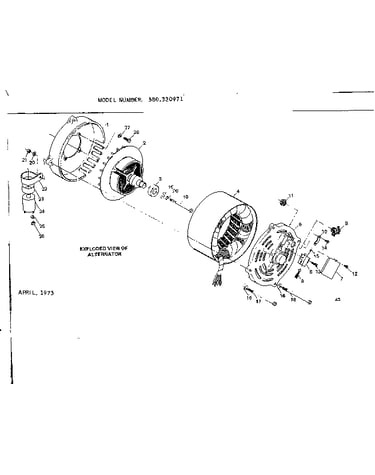

Alternator diagram

Screw

Part #24419

Replaced by #24419GS

?
Manufacturer substitution
This part replaces 24419. Substitute parts can look different from the original.
$24.27
In Stock
Lock Nut 26772
#12

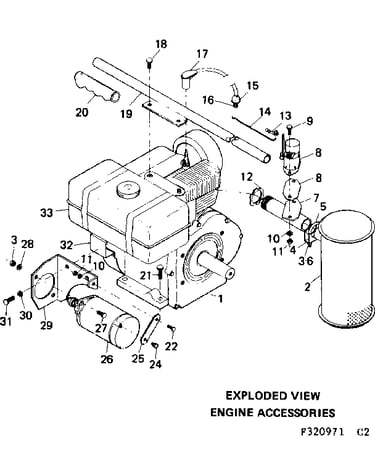

Engine accessories diagram

Lock nut

Part #26772

Replaced by #691808

?
Manufacturer substitution
This part replaces 26772. Substitute parts can look different from the original.
This item is not returnable
$14.34
In Stock
Cap Screw 38272
#17

Alternator diagram

Cap screw

Part #38272

The manufacturer no longer makes this part, and there's no substitute part

Solenoid 24492
#39

Mounting base & panel diagram

Solenoid

Part #24492

The manufacturer no longer makes this part, and there's no substitute part

Tank 38607
#33

Engine accessories diagram

Tank

Part #38607

The manufacturer no longer makes this part, and there's no substitute part

Choke Plate 38292
#7

Engine accessories diagram

Choke plate

Part #38292

The manufacturer no longer makes this part, and there's no substitute part

Spring 23594
#12

Mounting base & panel diagram

Spring

Part #23594

The manufacturer no longer makes this part, and there's no substitute part

Flywheel 38605
#34

Engine accessories diagram

Flywheel

Part #38605

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 37412
#38

Mounting base & panel diagram

Nameplate

Part #37412

The manufacturer no longer makes this part, and there's no substitute part
