Kenmore
Side-By-Side Refrigerator

Model # 59655653500 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 59655653500 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

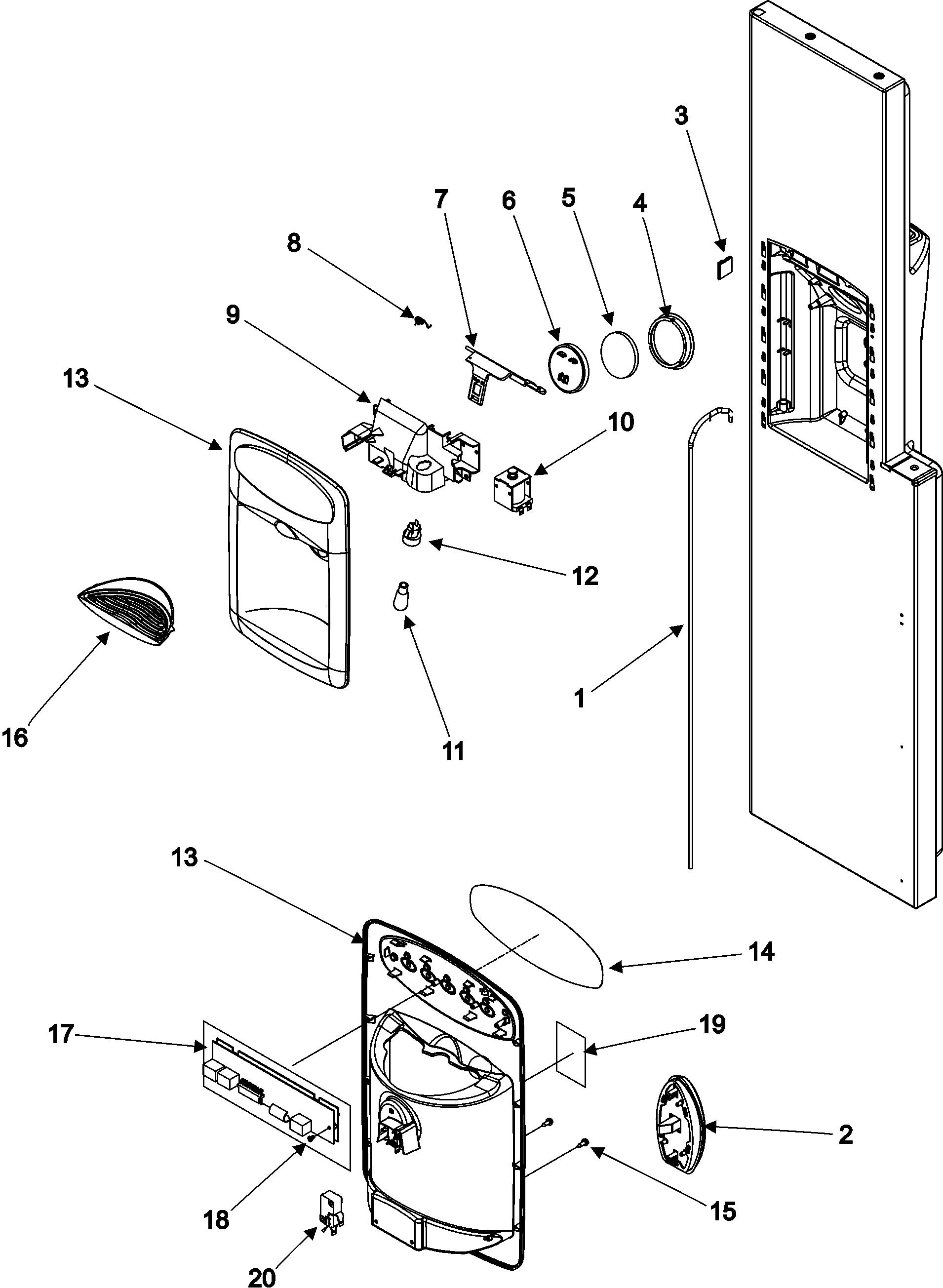

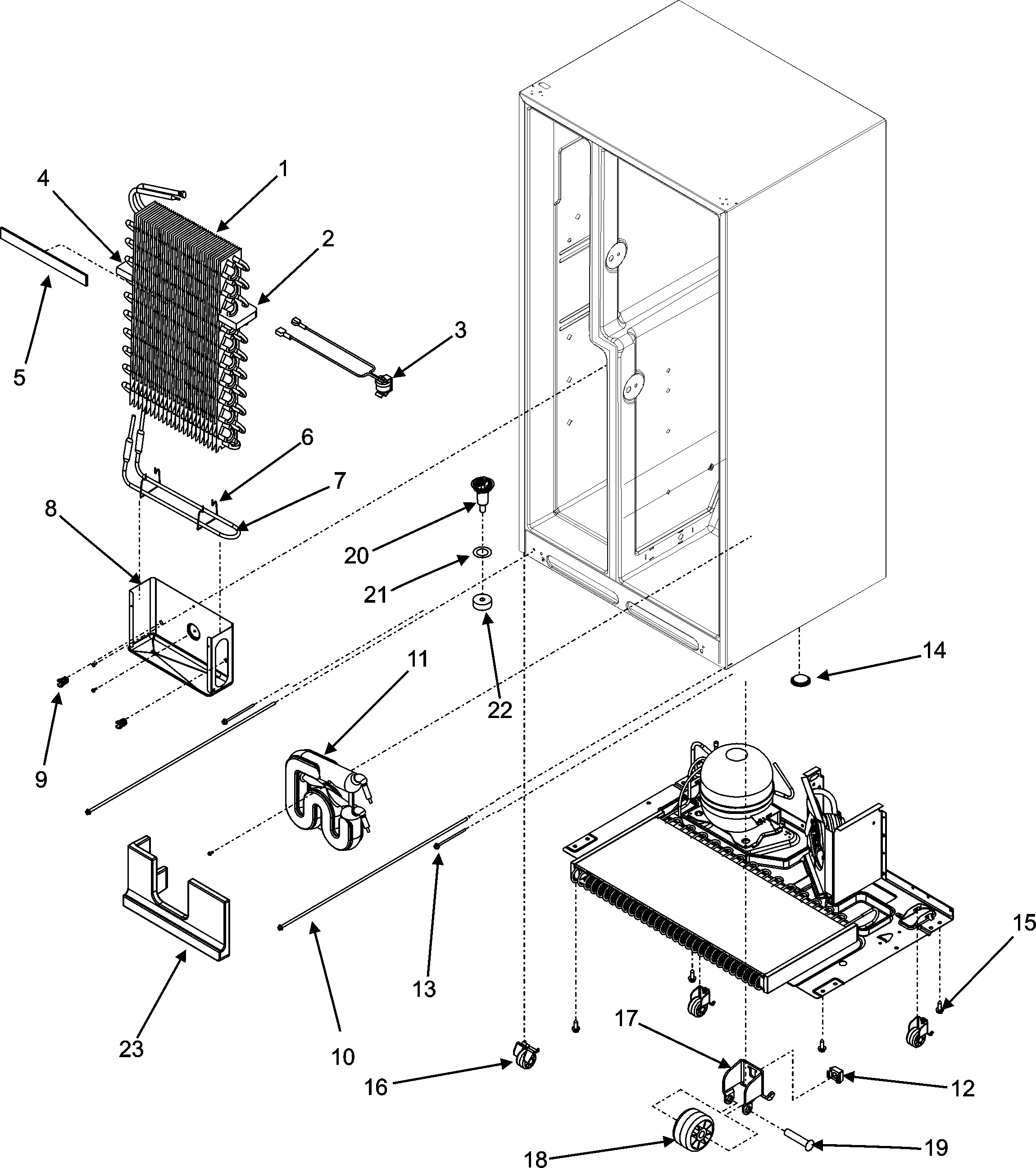

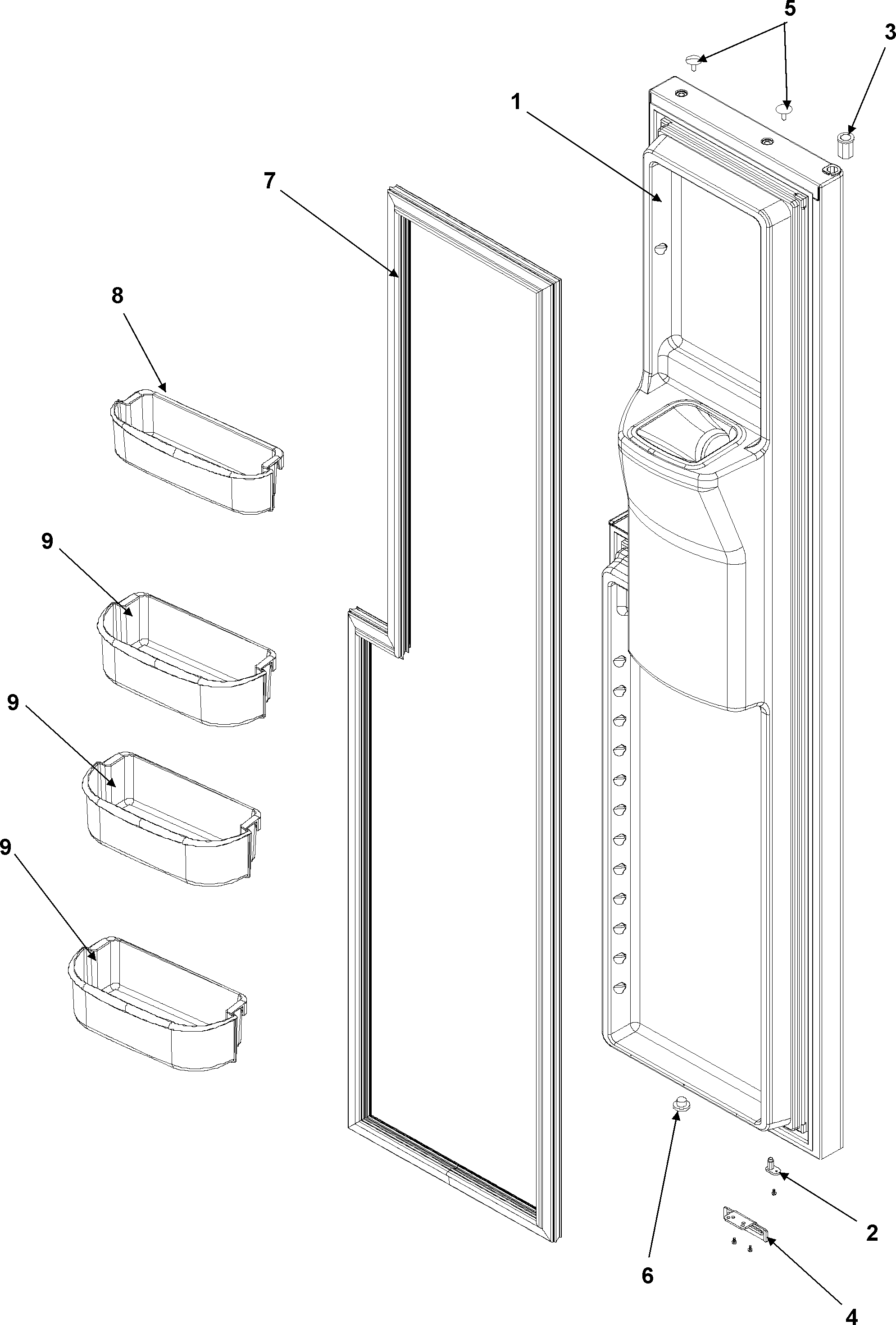

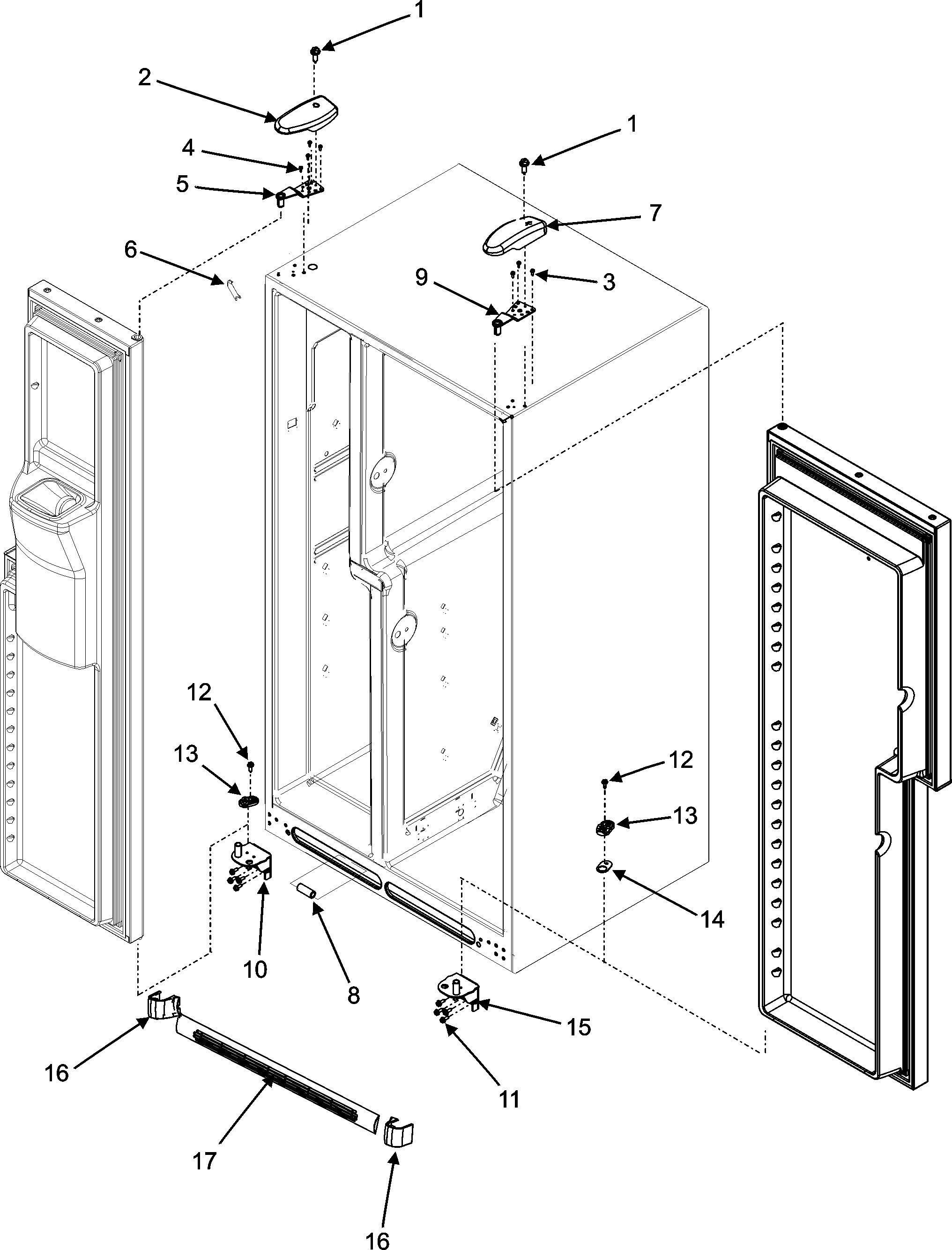

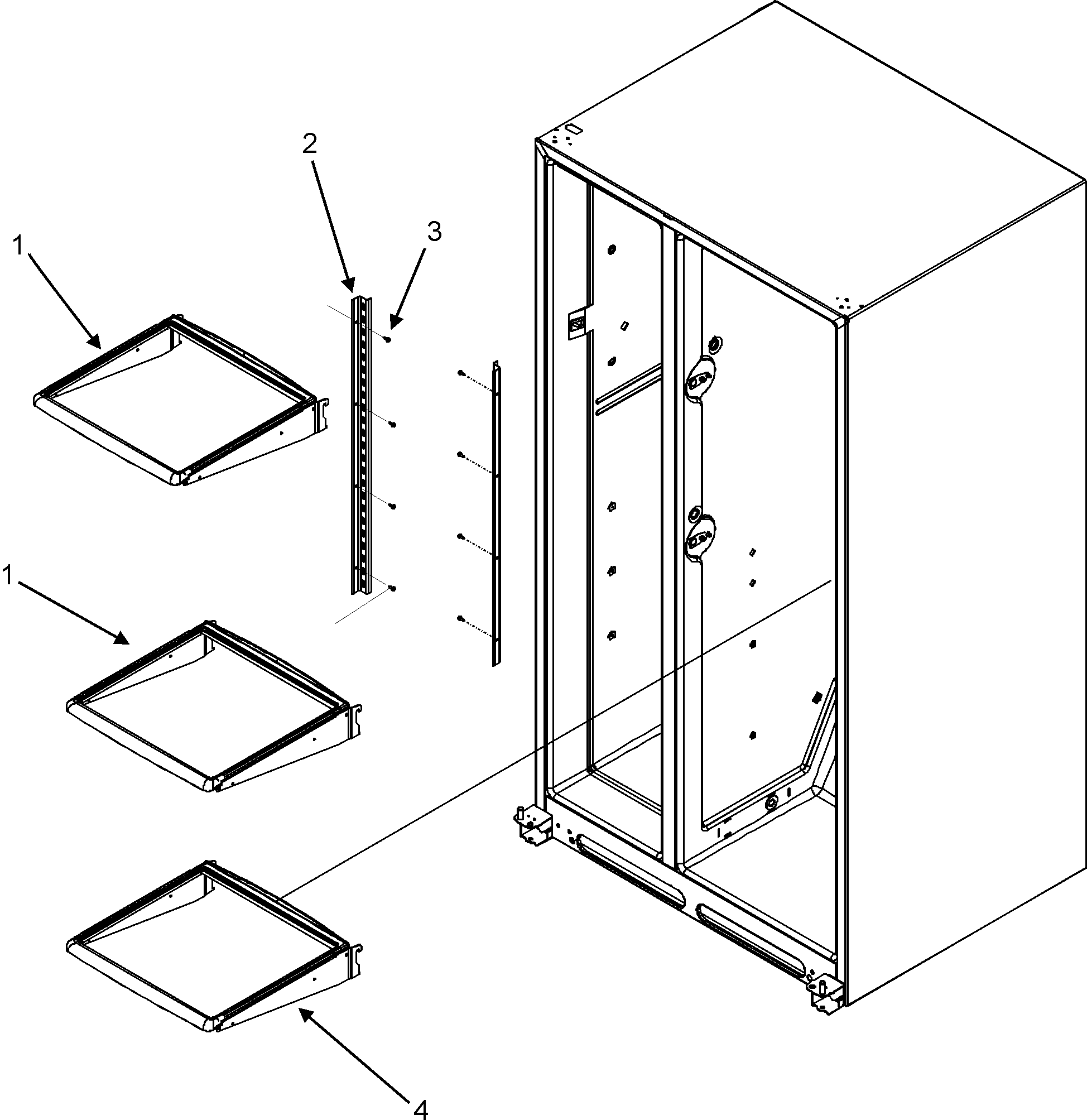

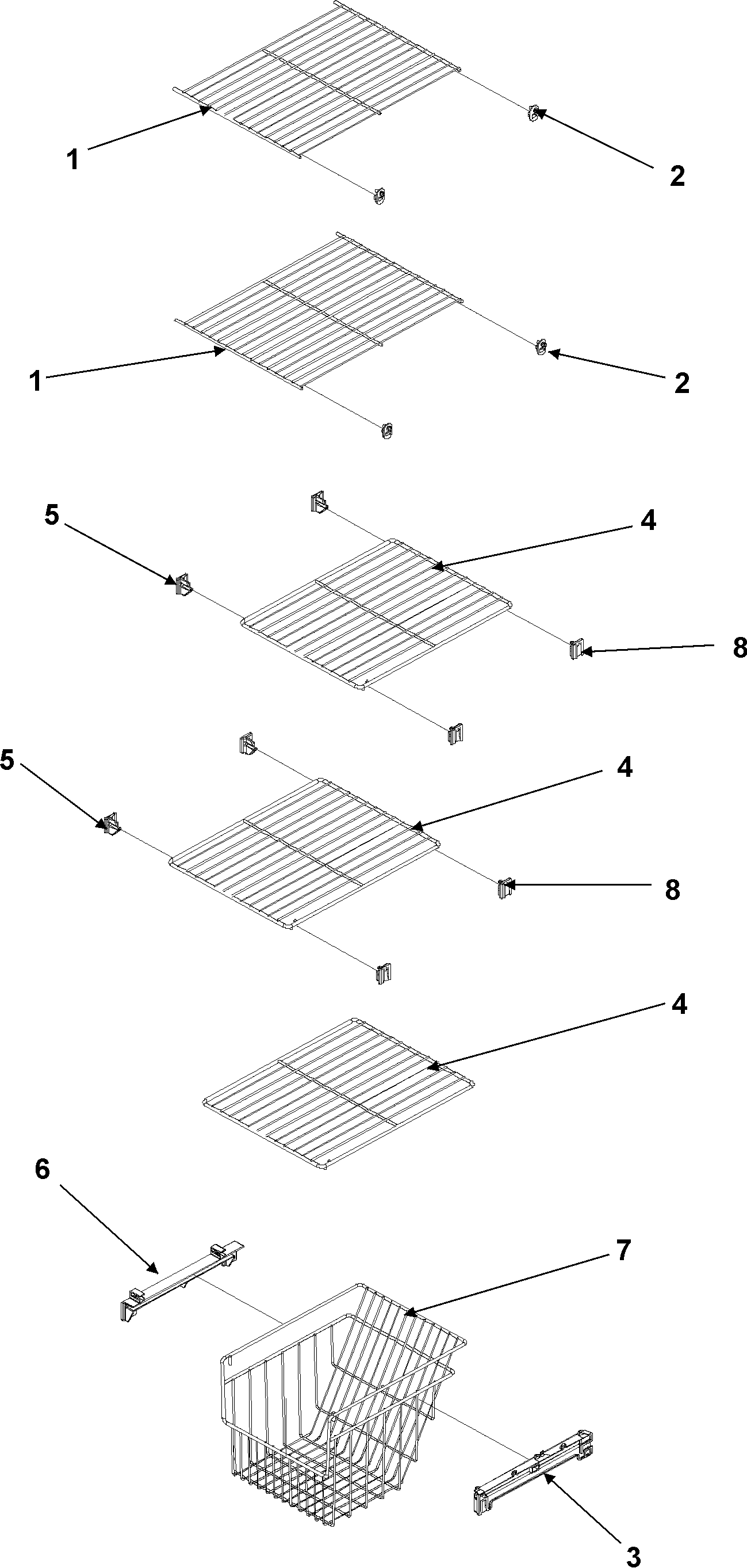

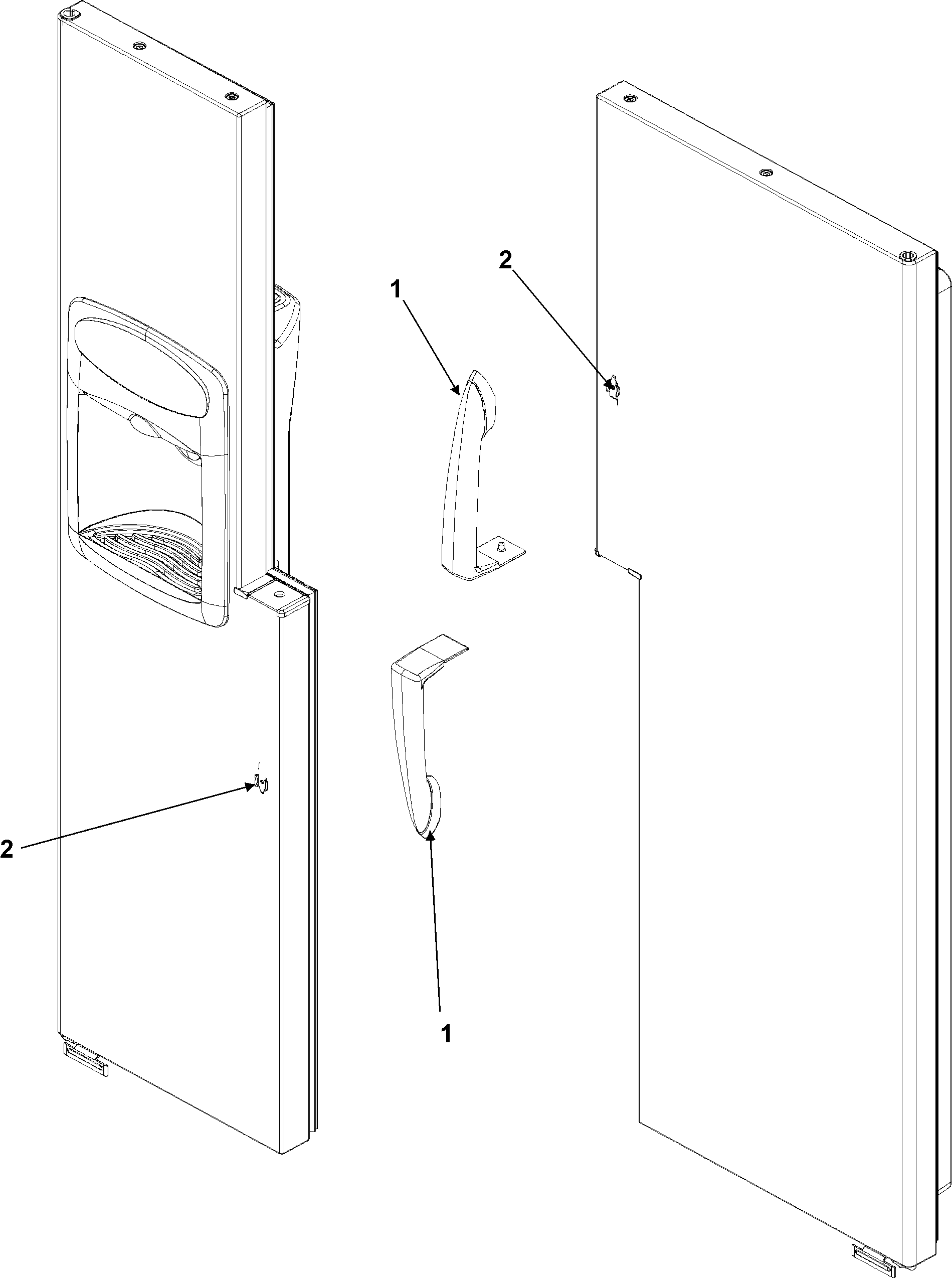

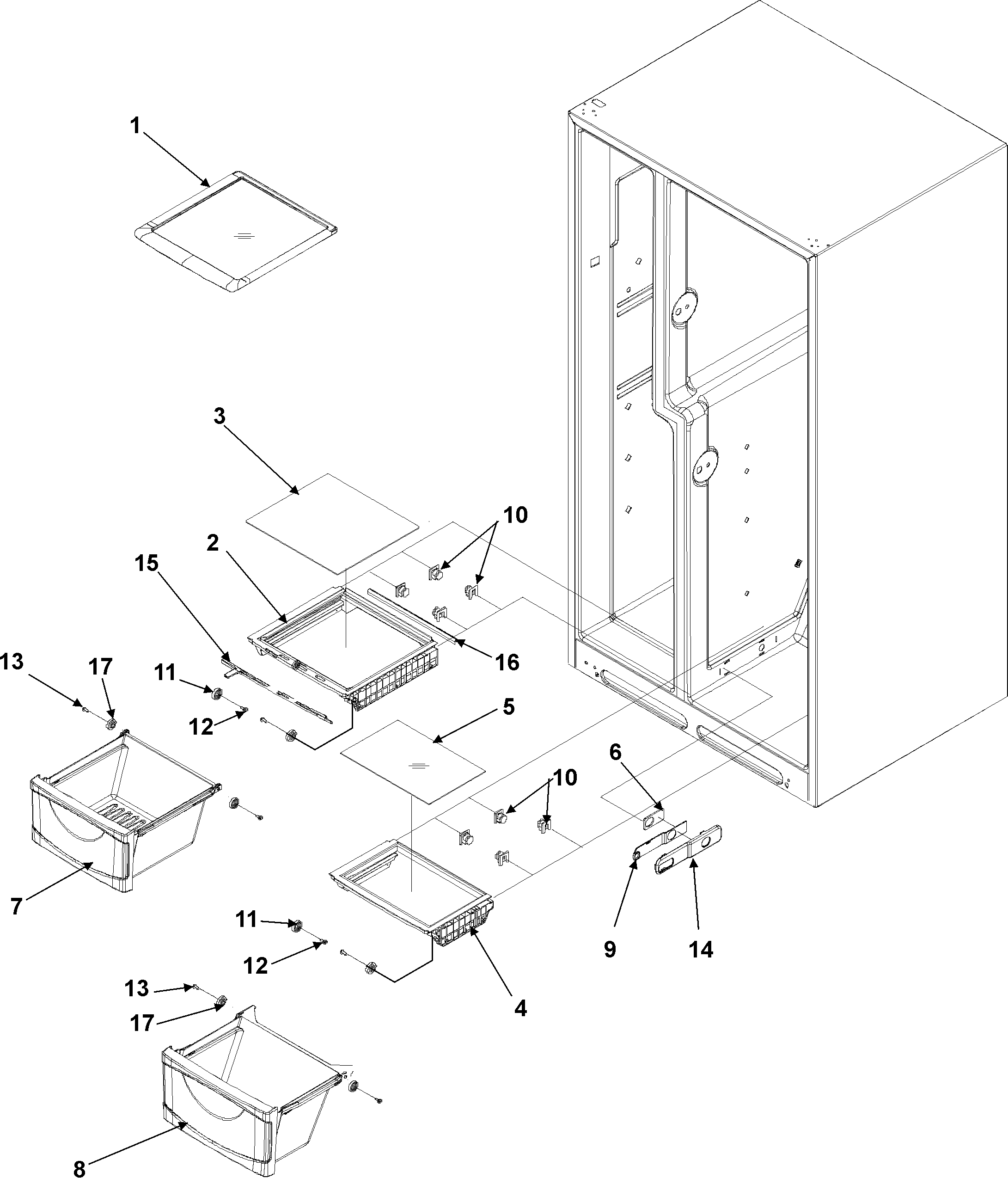

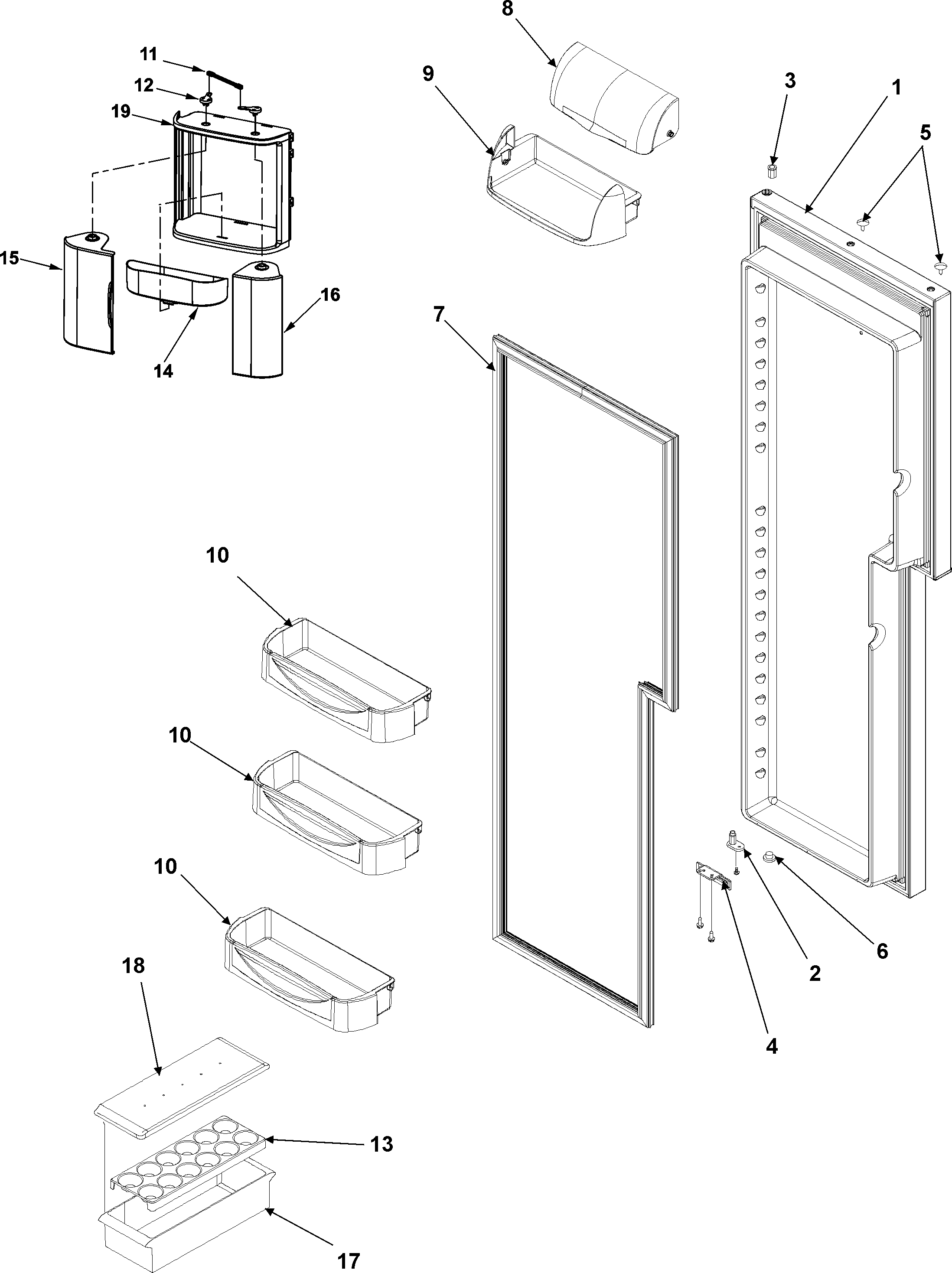

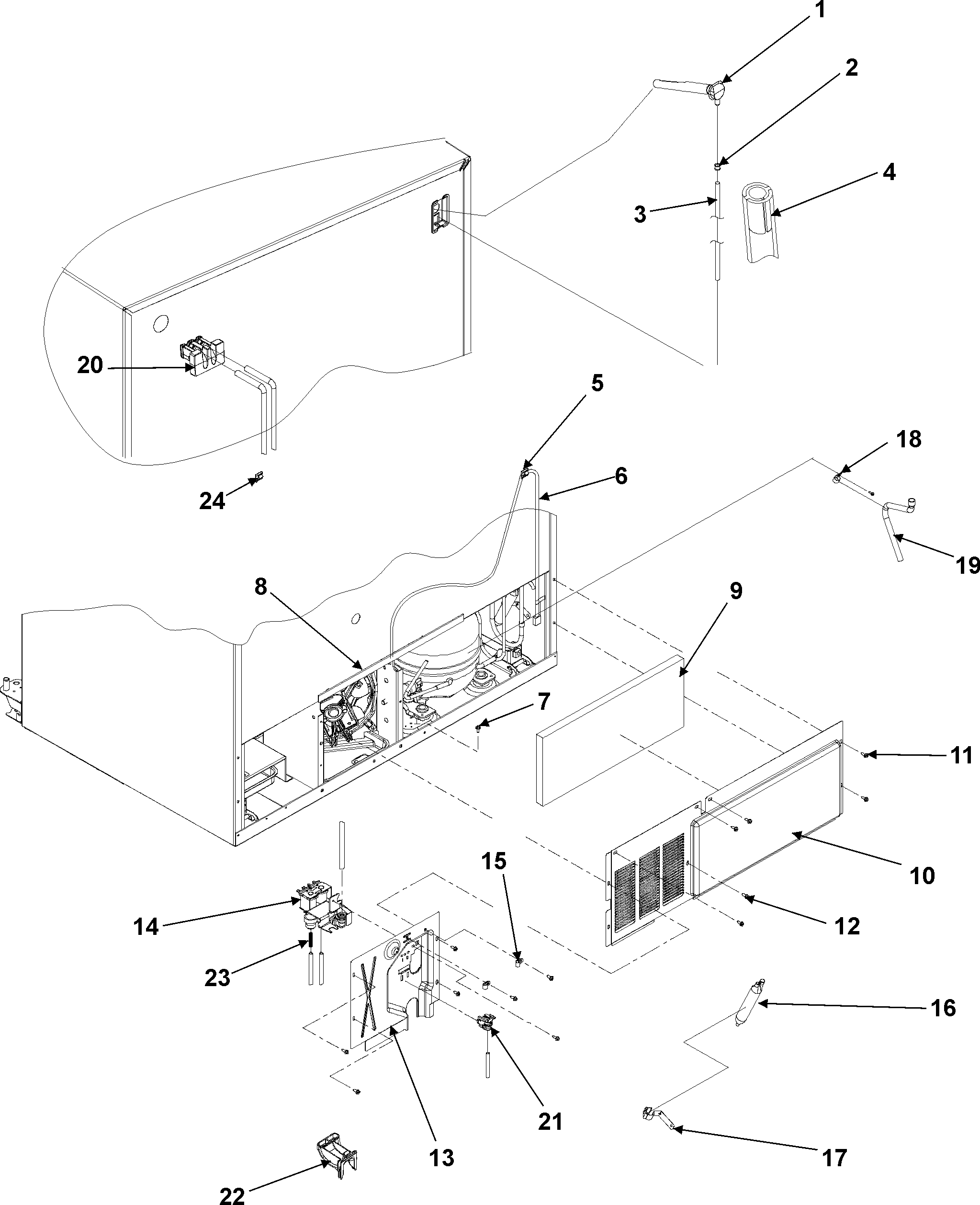

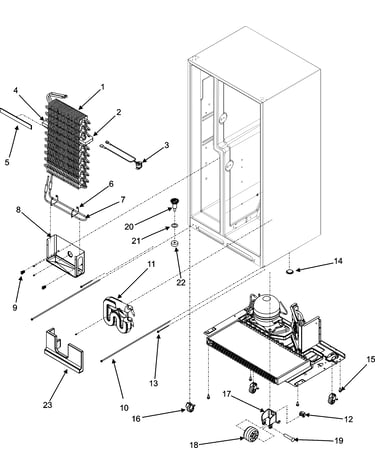

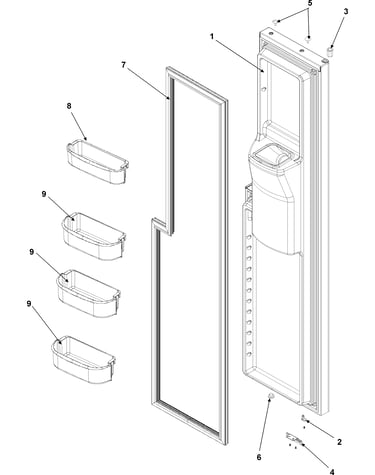

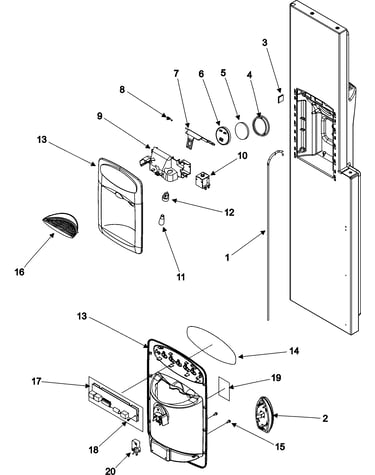

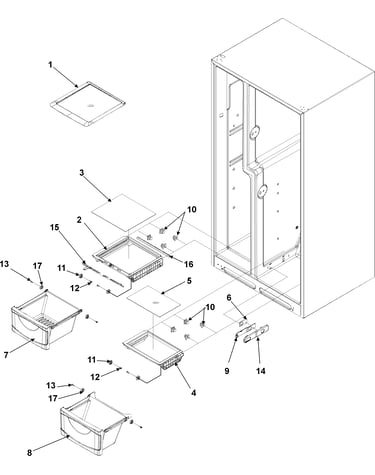

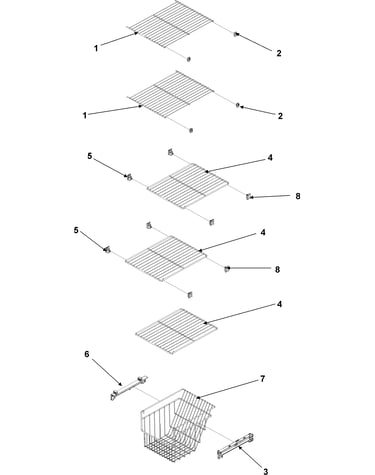

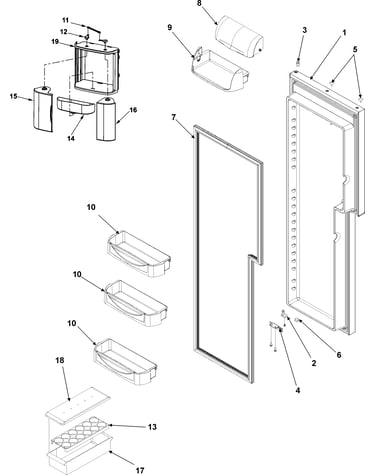

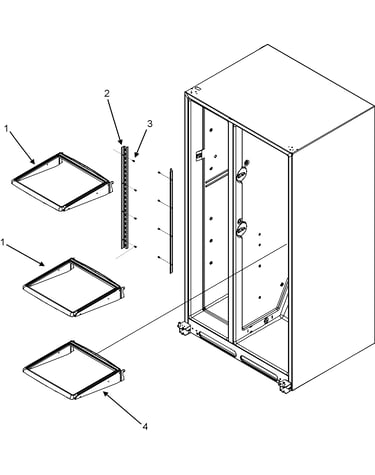

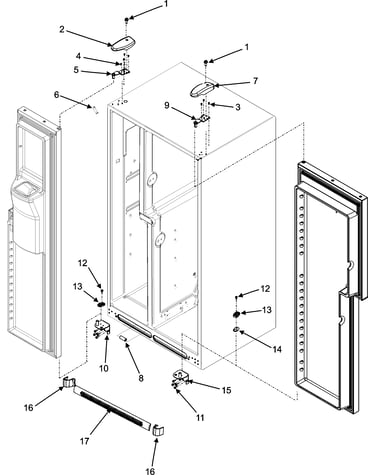

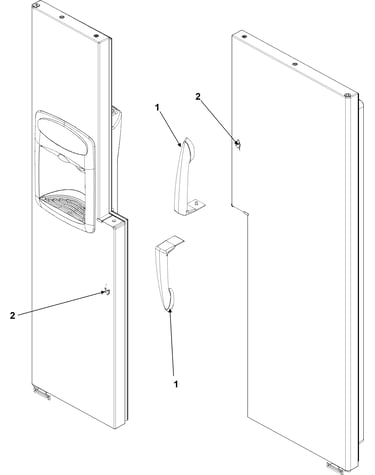

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 293 parts  |
Refrigerator Water Filter 67003727
#15

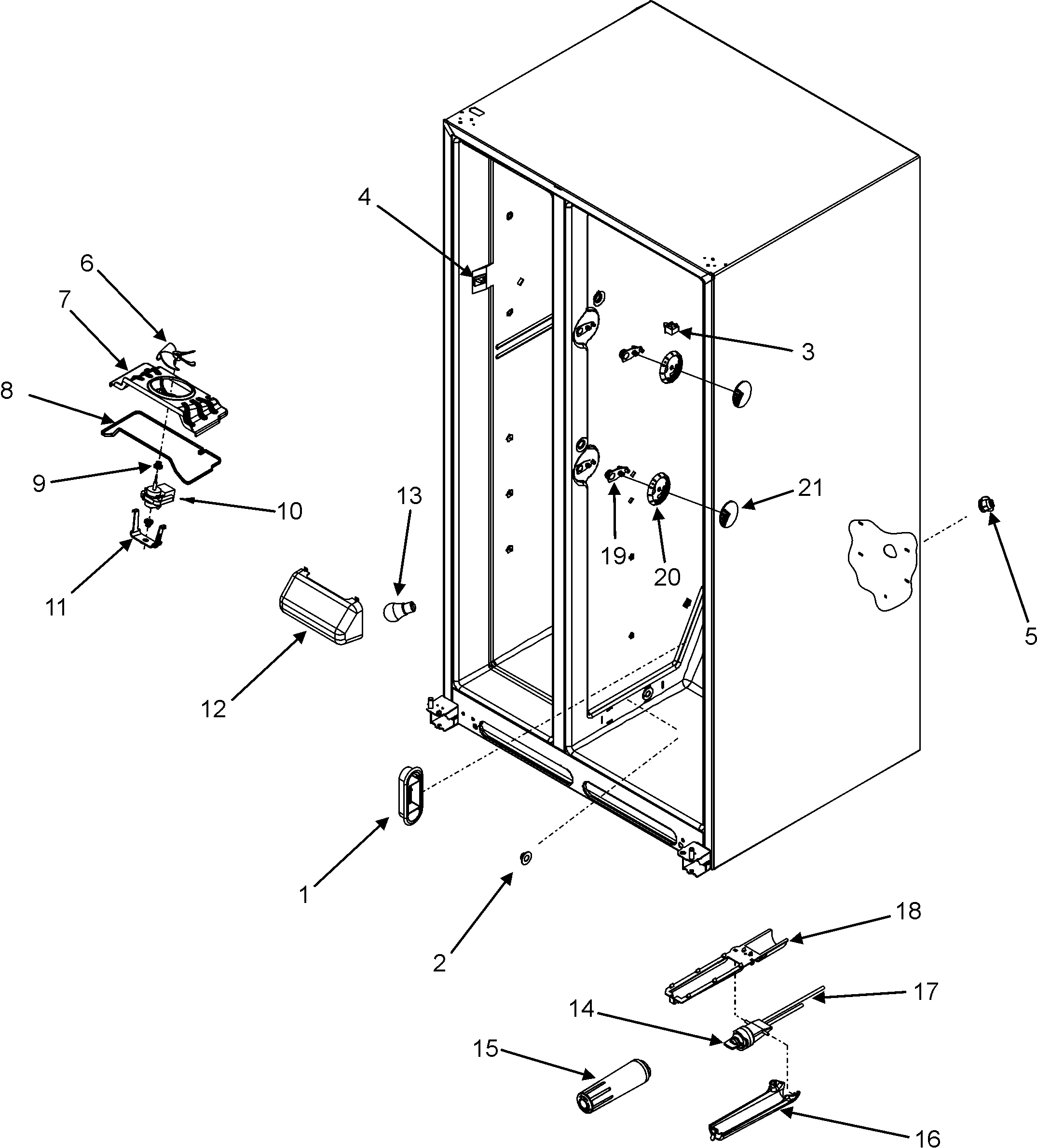

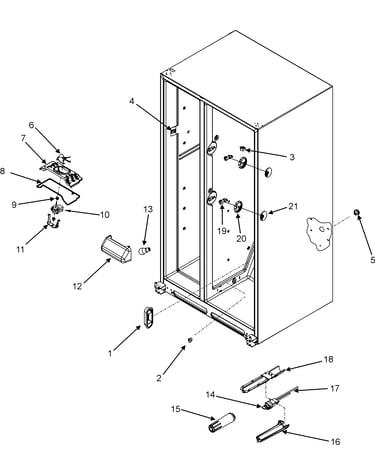

Evap fan assy./crisp light/waterfilter diagram

Refrigerator water filter

Part #67003727

Replaced by #9084

?
Manufacturer substitution
This part replaces 67003727. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$54.98
In Stock
Refrigerator Ice Maker 61005508
#1

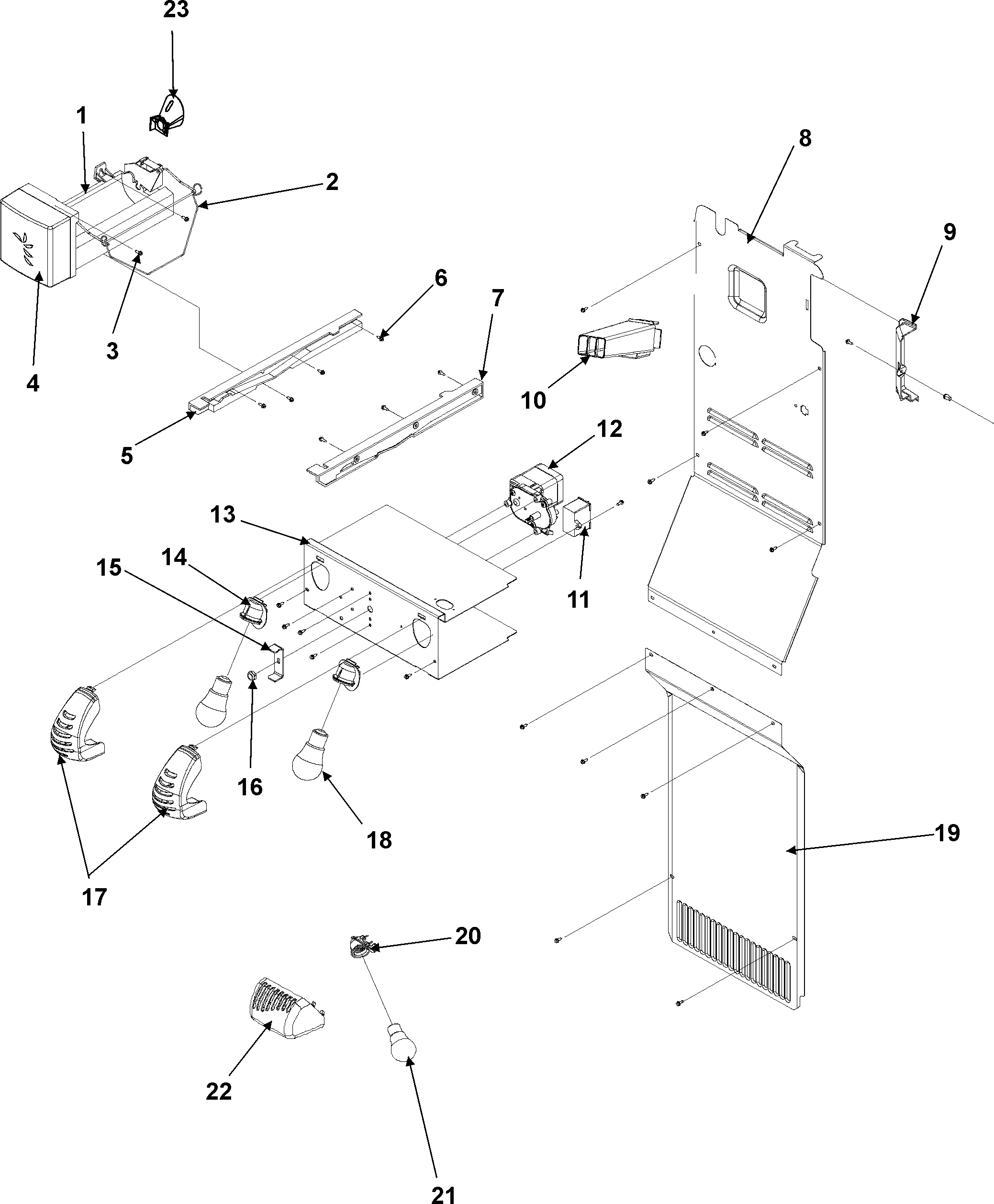

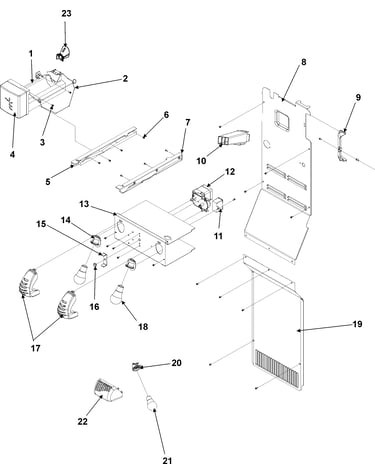

Freezer compartment diagram

Refrigerator ice maker

Part #61005508

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces 61005508. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Light Bulb 67003883
Refrigerator light bulb

Part #67003883

Replaced by #40A15

?
Manufacturer substitution
This part replaces 67003883. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Board Kit 12002567
#13

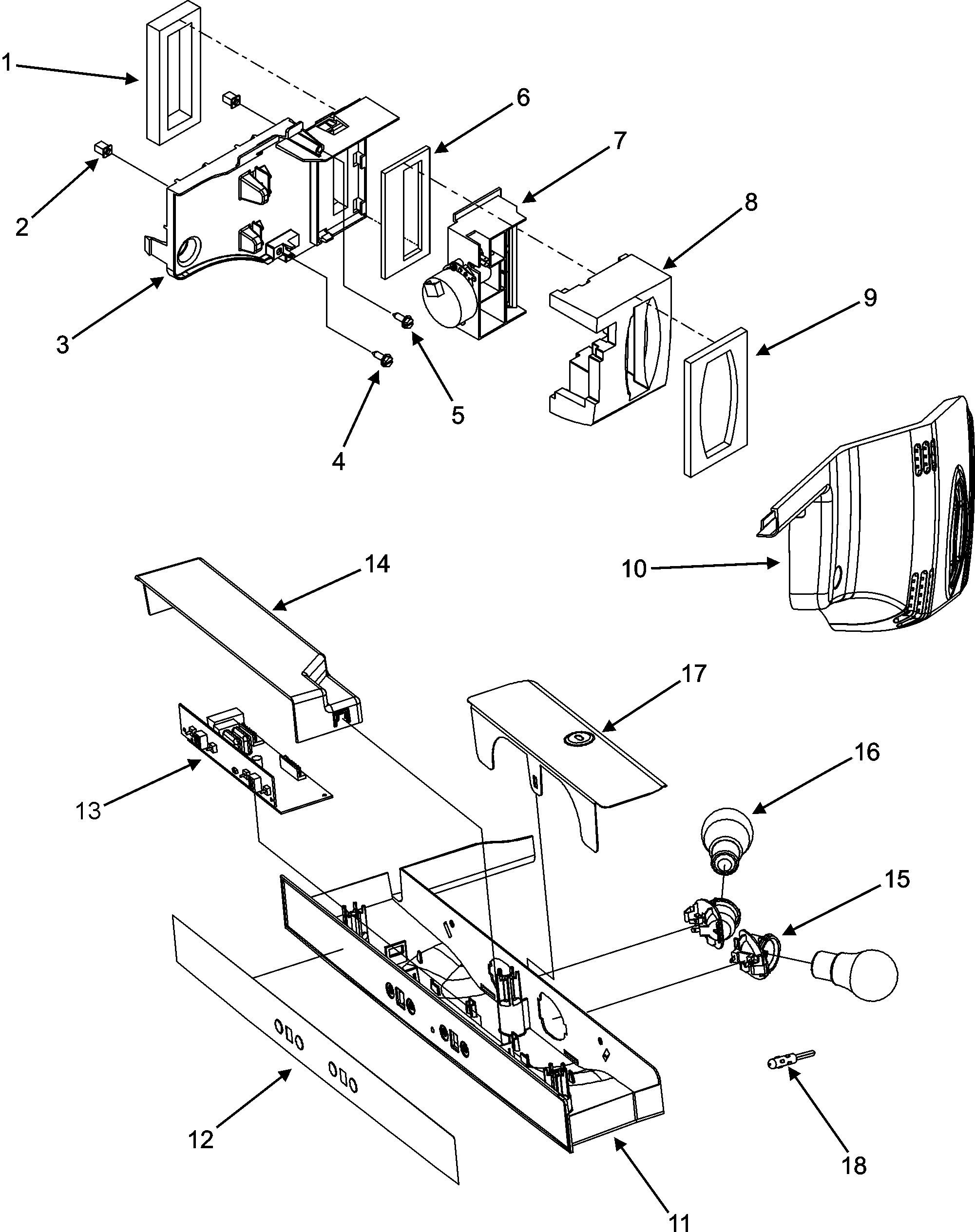

Controls diagram

Refrigerator board kit

Part #12002567

Replaced by #WPW10503278

?
Manufacturer substitution
This part replaces 12002567. Substitute parts can look different from the original.
BEST SELLER
$159.52 |
7% OFF Phone Price : $171.52
In Stock
Compressor-t 67005564
#8

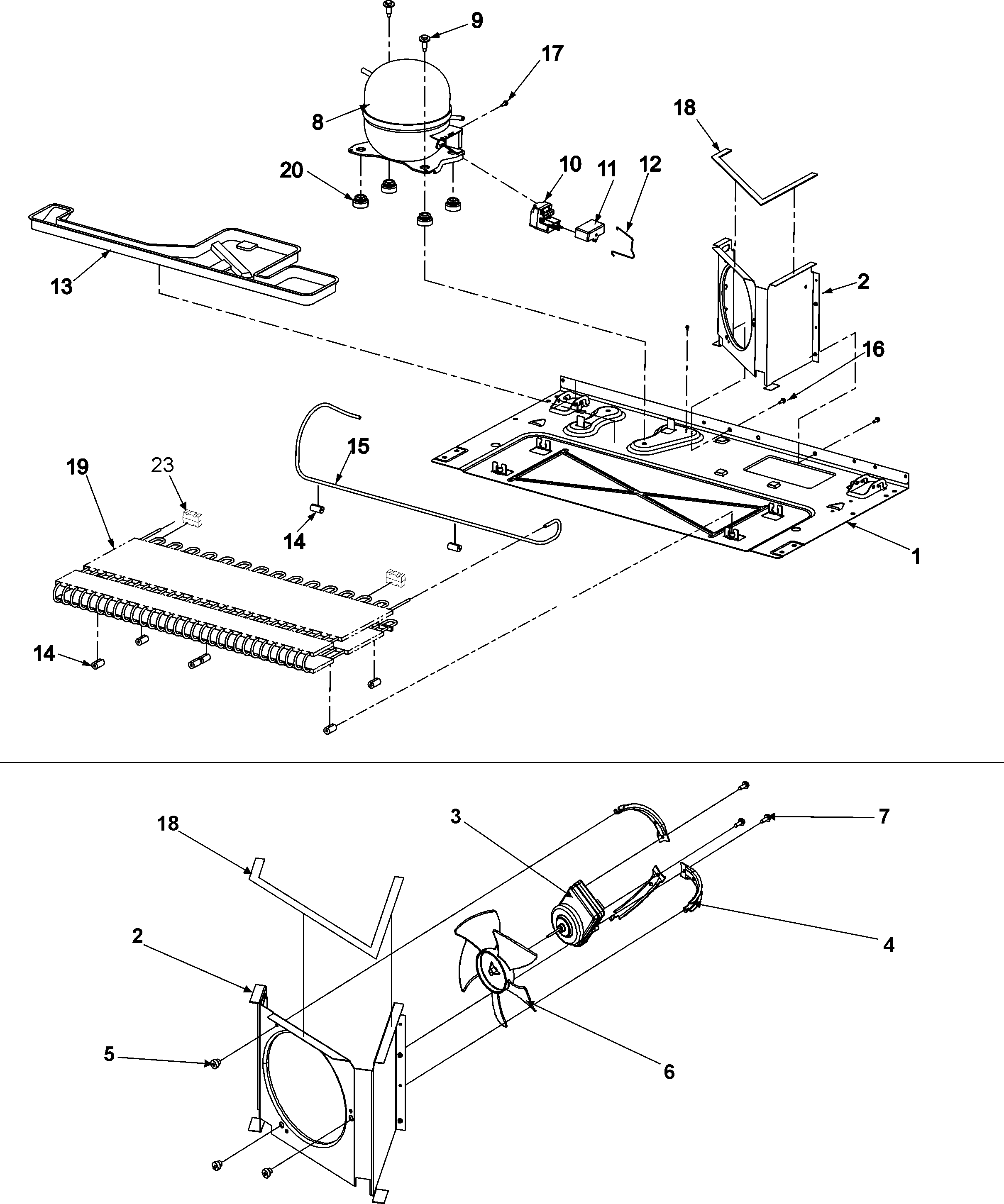

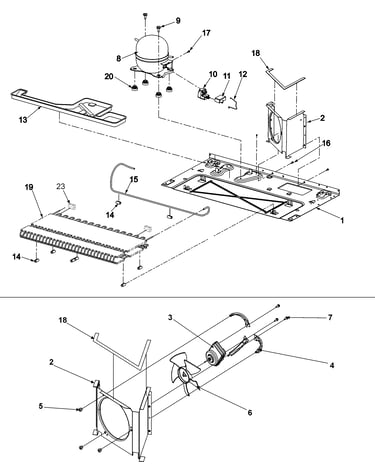

Compressor diagram

Compressor-t

Part #67005564

Replaced by #W10309990

?
Manufacturer substitution
This part replaces 67005564. Substitute parts can look different from the original.
BEST SELLER
$338.61 |
$12.00 OFF Phone Price : $350.61
In Stock
Capacitor W/ 67005562
#11

Compressor diagram

Capacitor w/

Part #67005562

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005562. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Overload Release 67005561
#10

Compressor diagram

Refrigerator overload release

Part #67005561

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005561. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Light Switch 12466103
#4

Evap fan assy./crisp light/waterfilter diagram

Refrigerator light switch

Part #12466103

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466103. Substitute parts can look different from the original.
BEST SELLER
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Refrigerator Condenser Fan Motor 10884507
#3

Compressor diagram

Refrigerator condenser fan motor

Part #10884507

Replaced by #833697

?
Manufacturer substitution
This part replaces 10884507. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Refrigerator Temperature Sensor (replaces 12002356, 12791403, 12791403sp, 12791404, 12791404sp, 12791405, 12791405sp, 12791406, 12791406sp, 12791407, 12791407sp, 67003871, 67004034, 8208196, 8208278, Y67003872) 12002355
#18

Controls diagram

Refrigerator temperature sensor (replaces 12002356, 12791403, 12791403sp, 12791404, 12791404sp, 12791405, 12791405sp, 12791406, 12791406sp, 12791407, 12791407sp, 67003871, 67004034, 8208196, 8208278, y67003872)

Part #12002355

BEST SELLER
$33.33 |
15% OFF Phone Price : $39.33
In Stock
