Bosch
Electric Wall Oven

Model # HBL755AUC/02 Official Bosch range

Here are the diagrams and repair parts for Official Bosch HBL755AUC-02 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

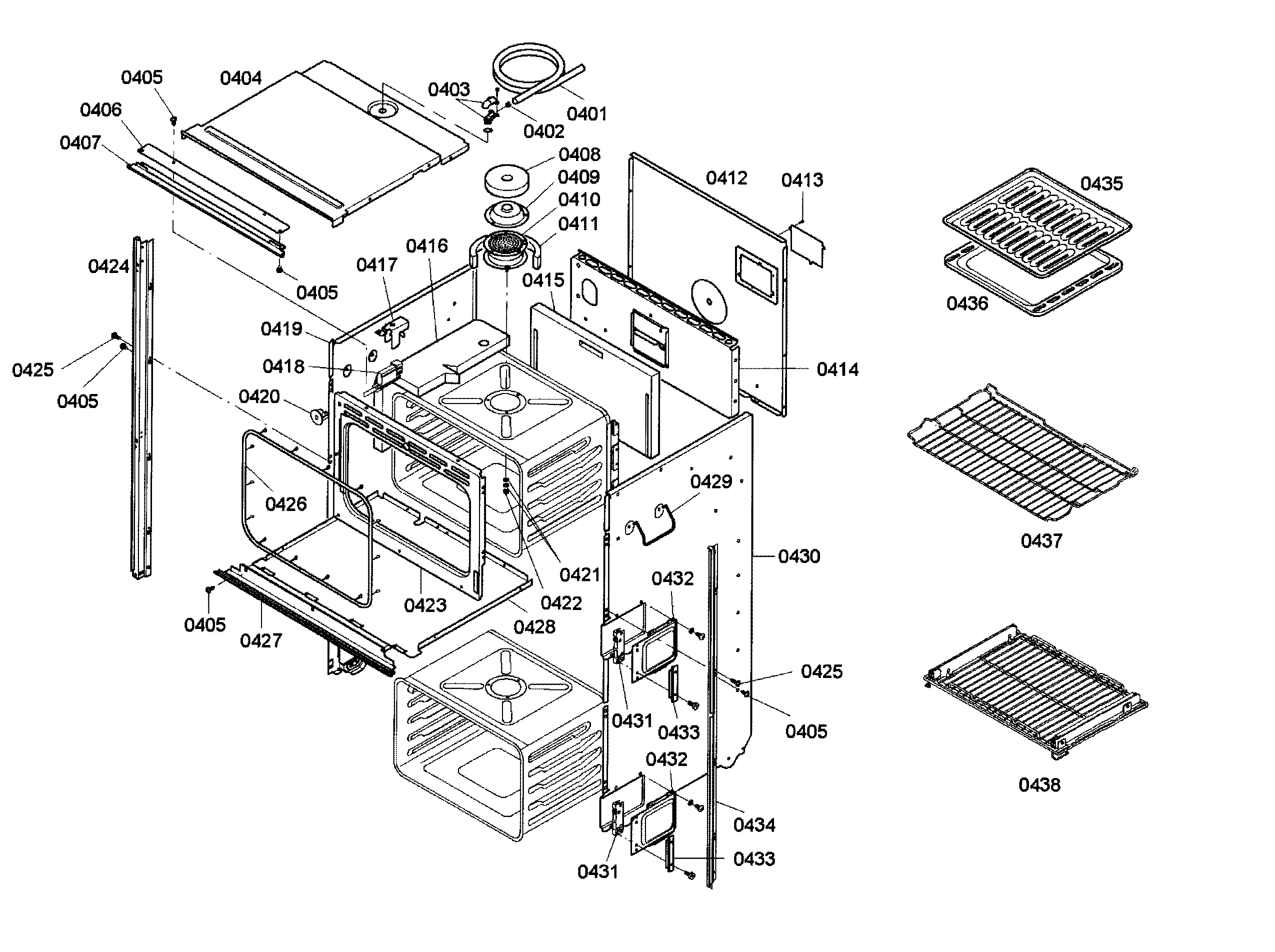

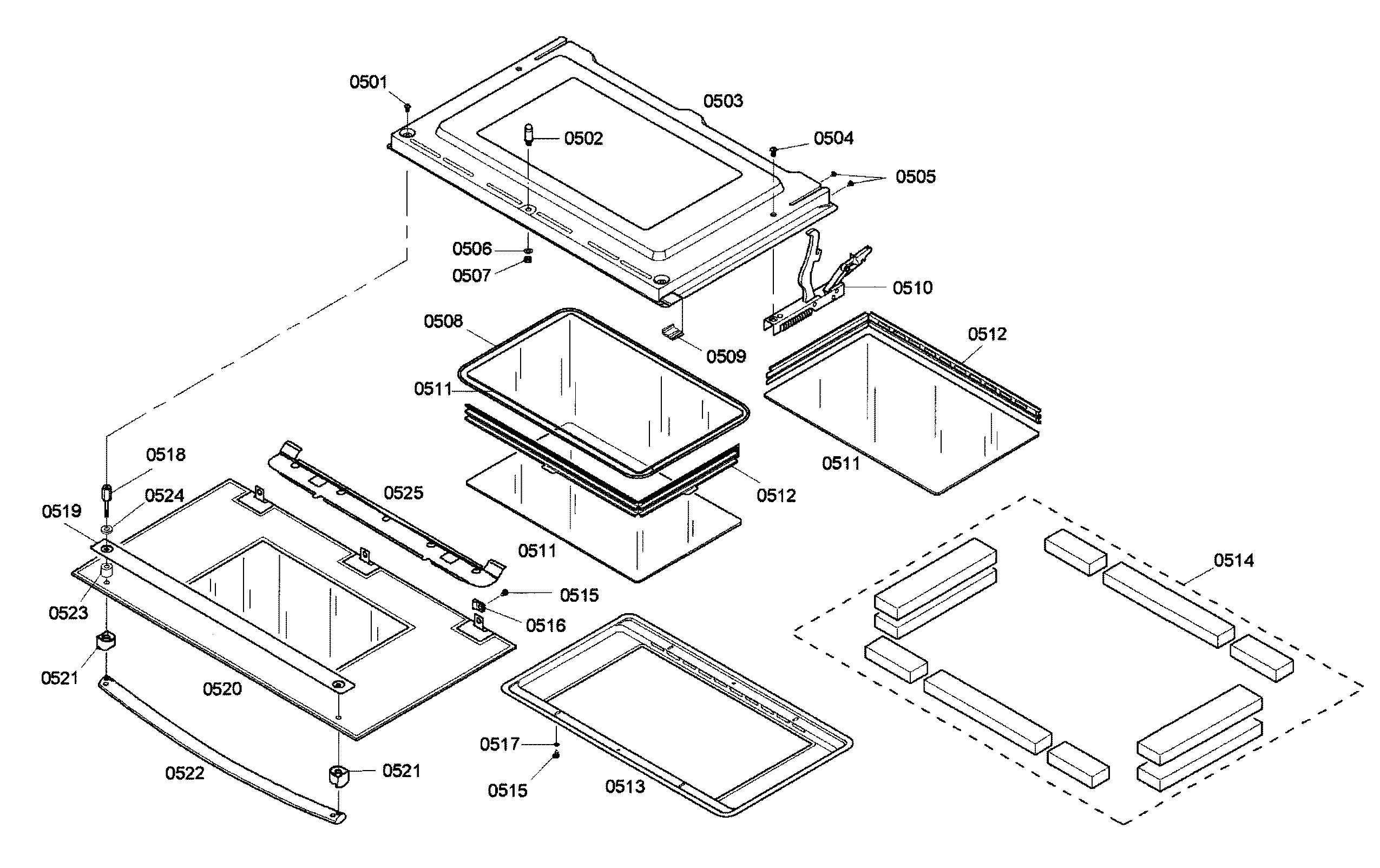

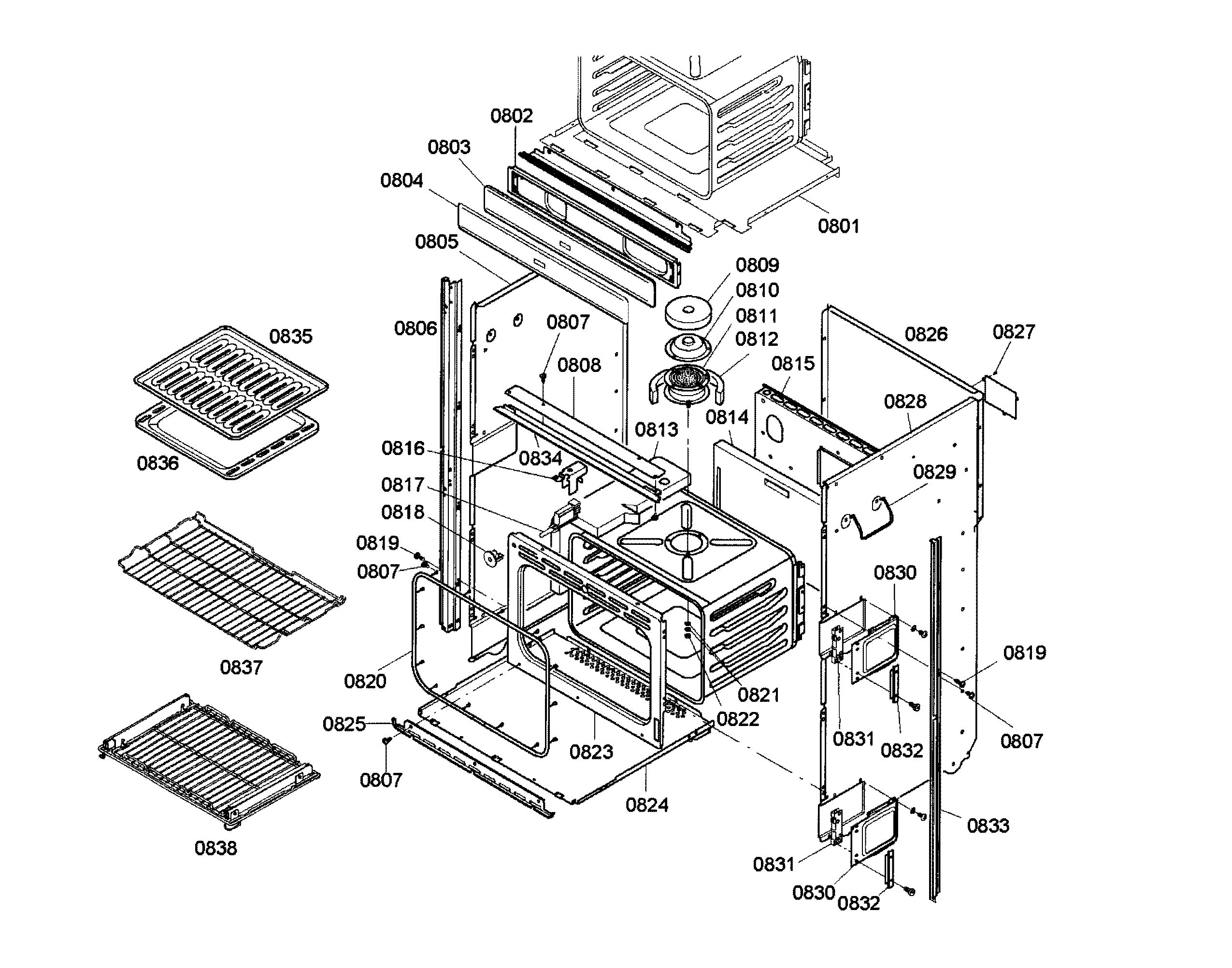

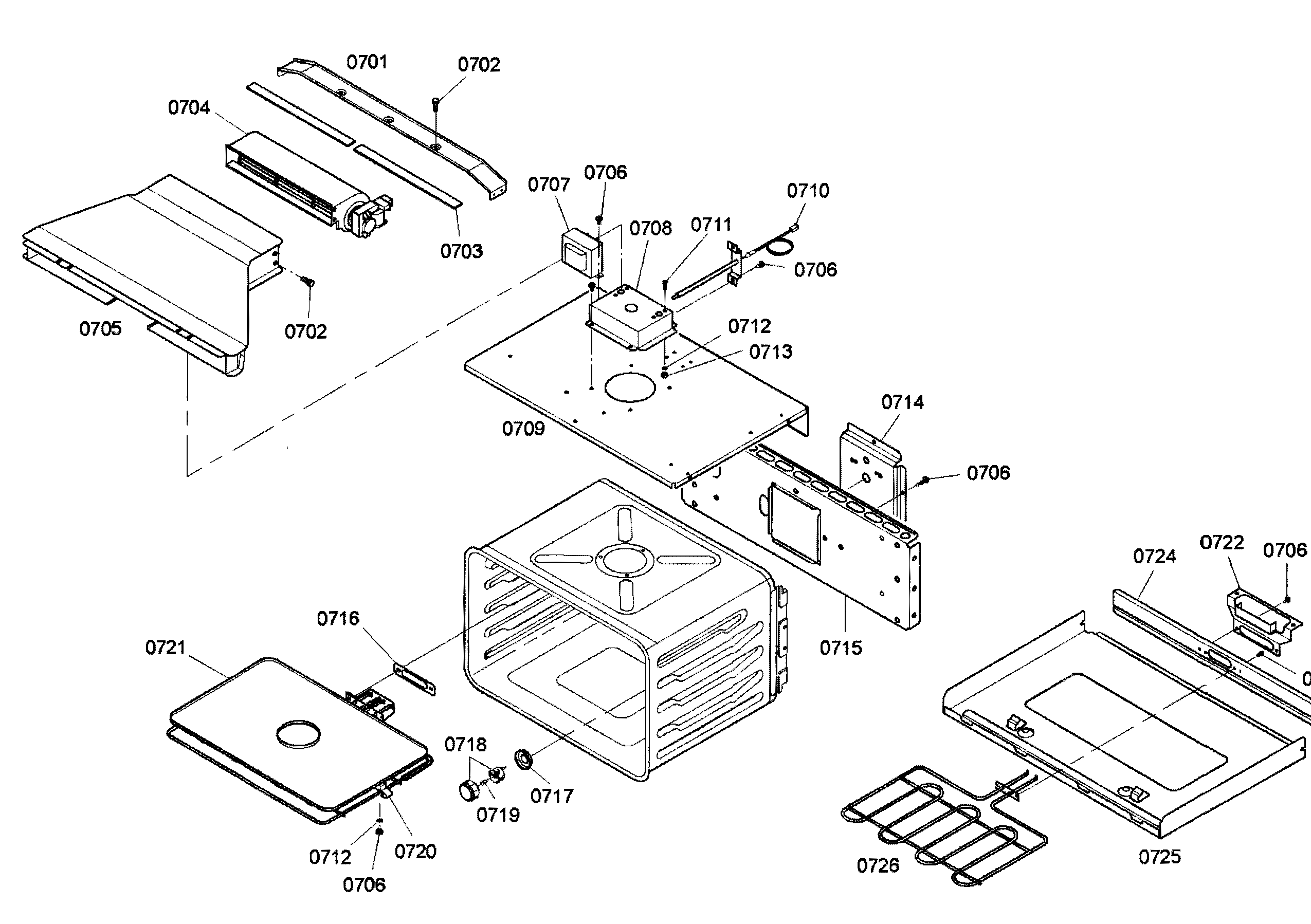

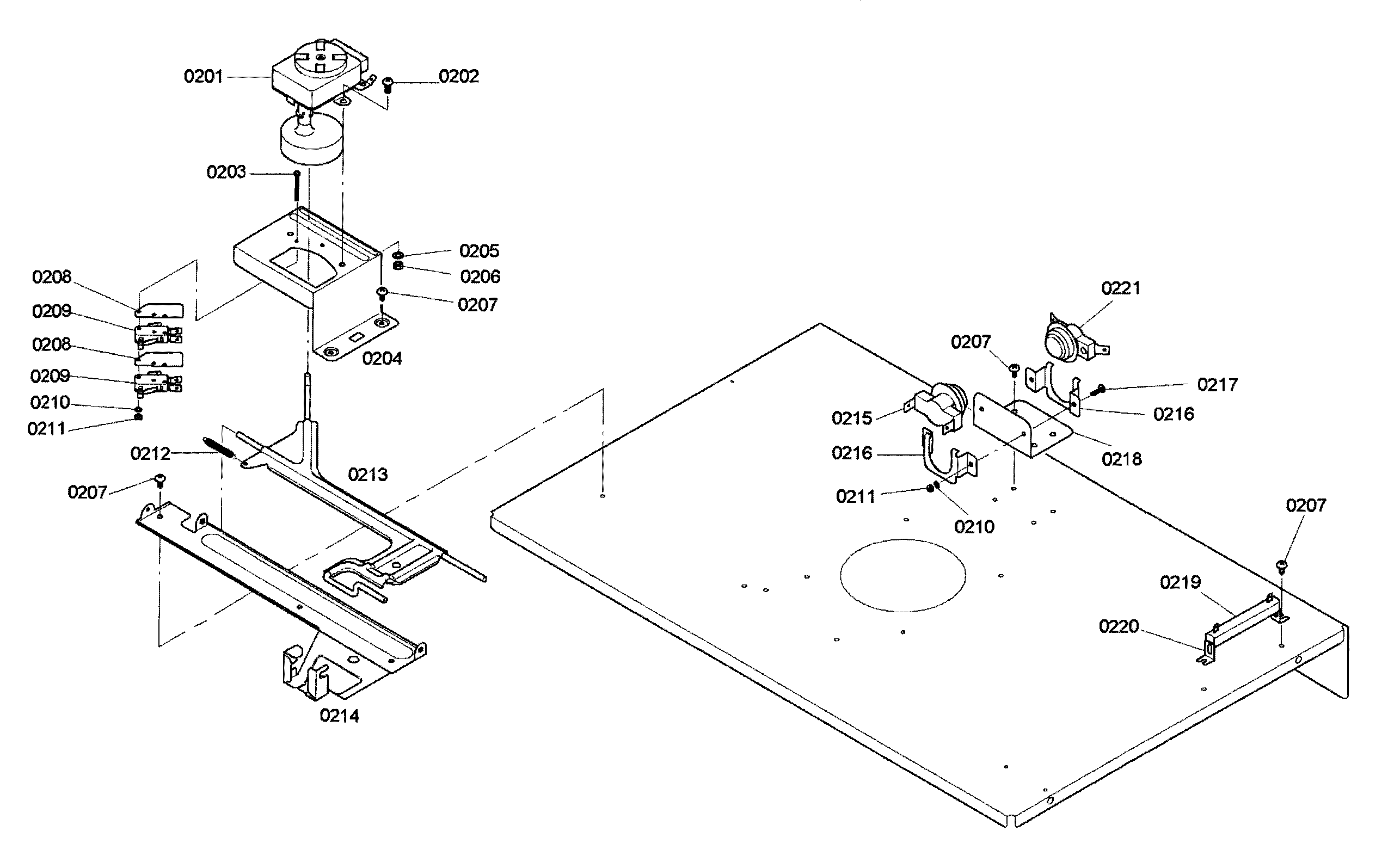

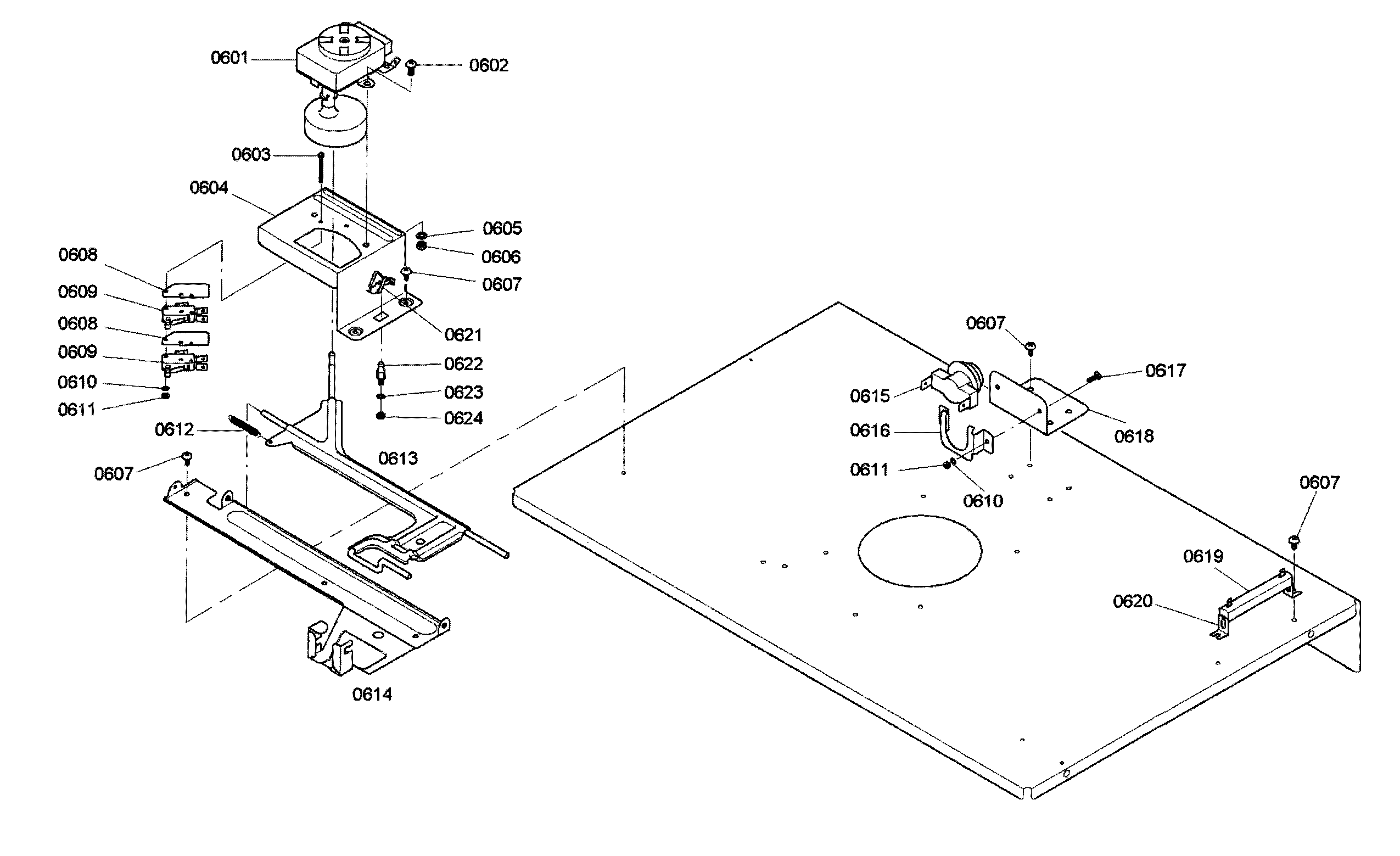

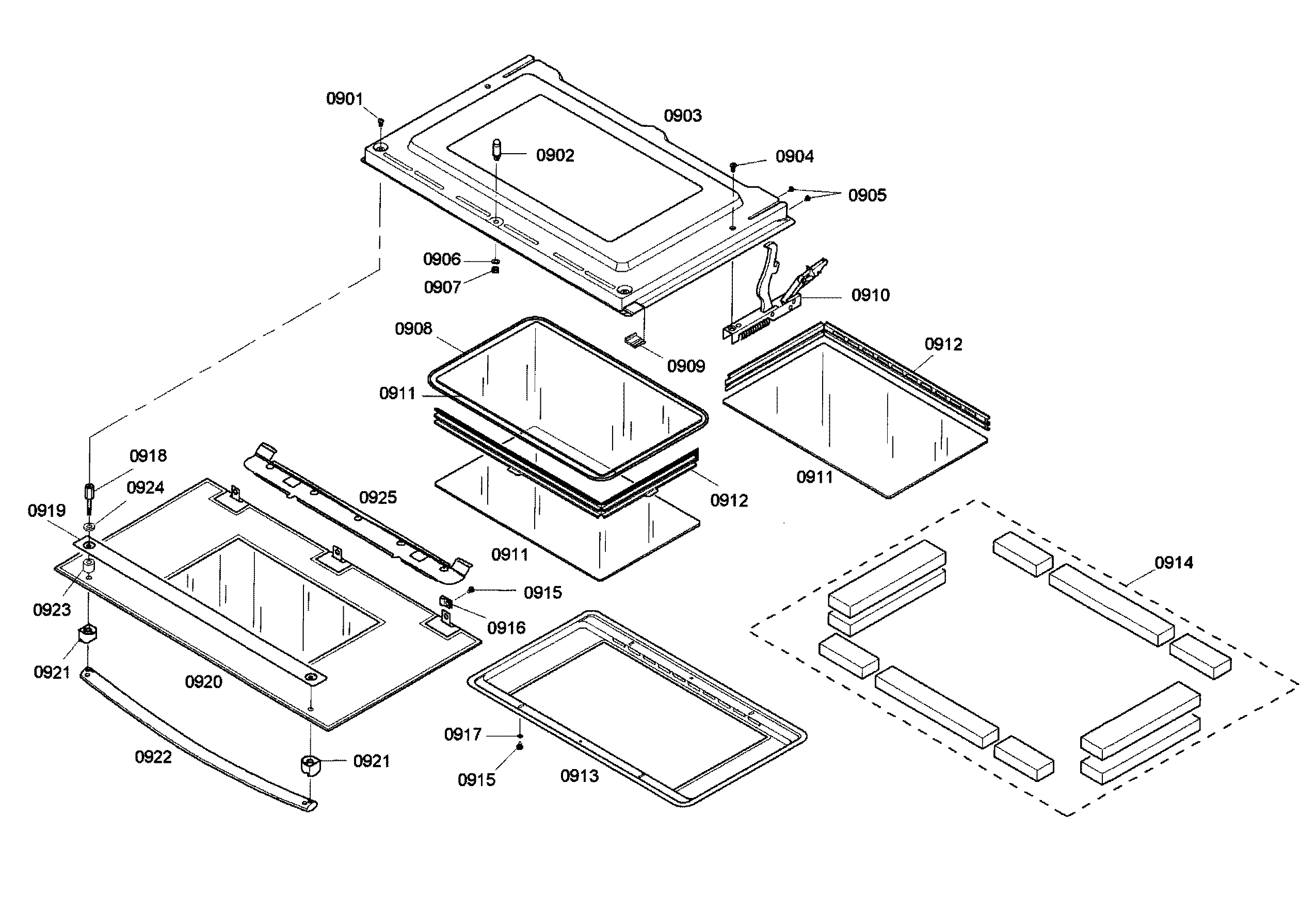

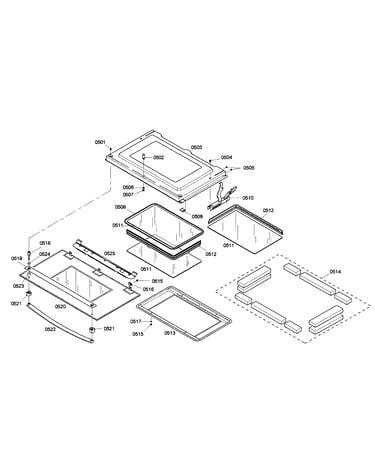

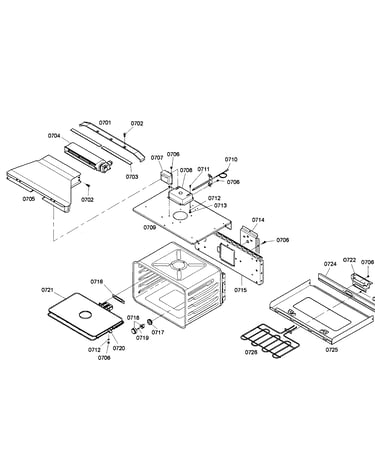

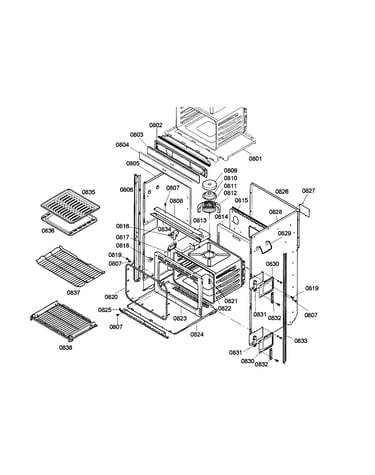

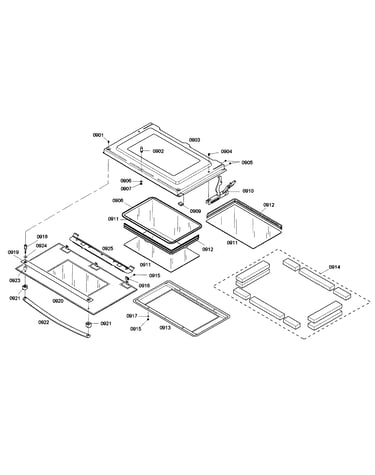

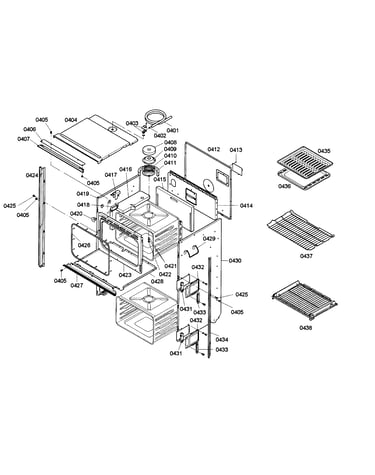

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Display 00489268
#105

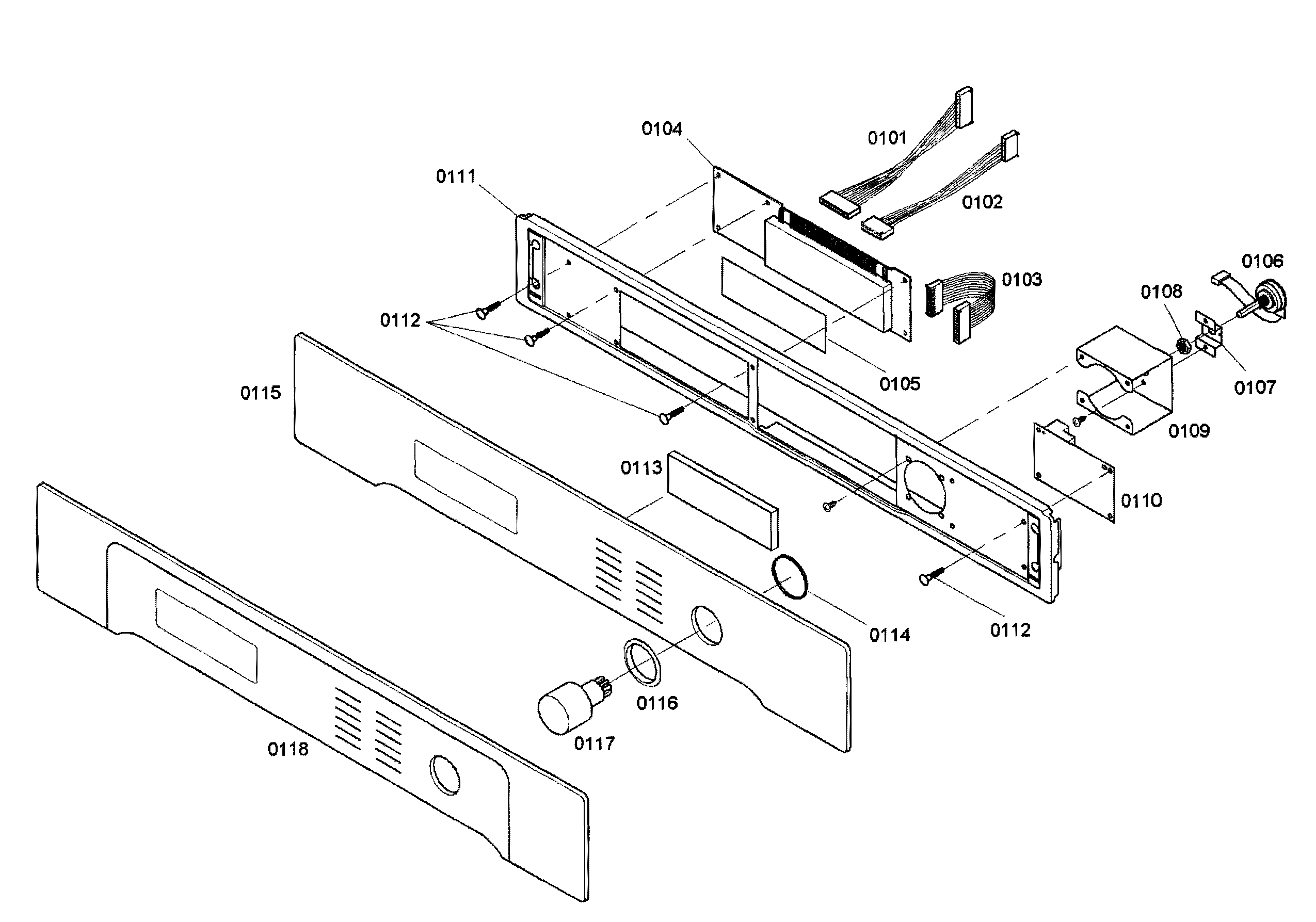

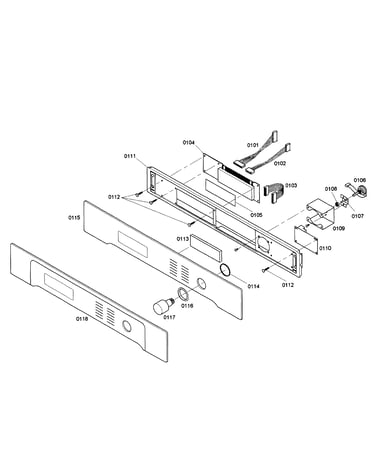

Control panel diagram

Display

Part #00489268

$29.04 |
17% OFF Phone Price : $35.04
In Stock
Wall Oven Convection Element 00241778
#337

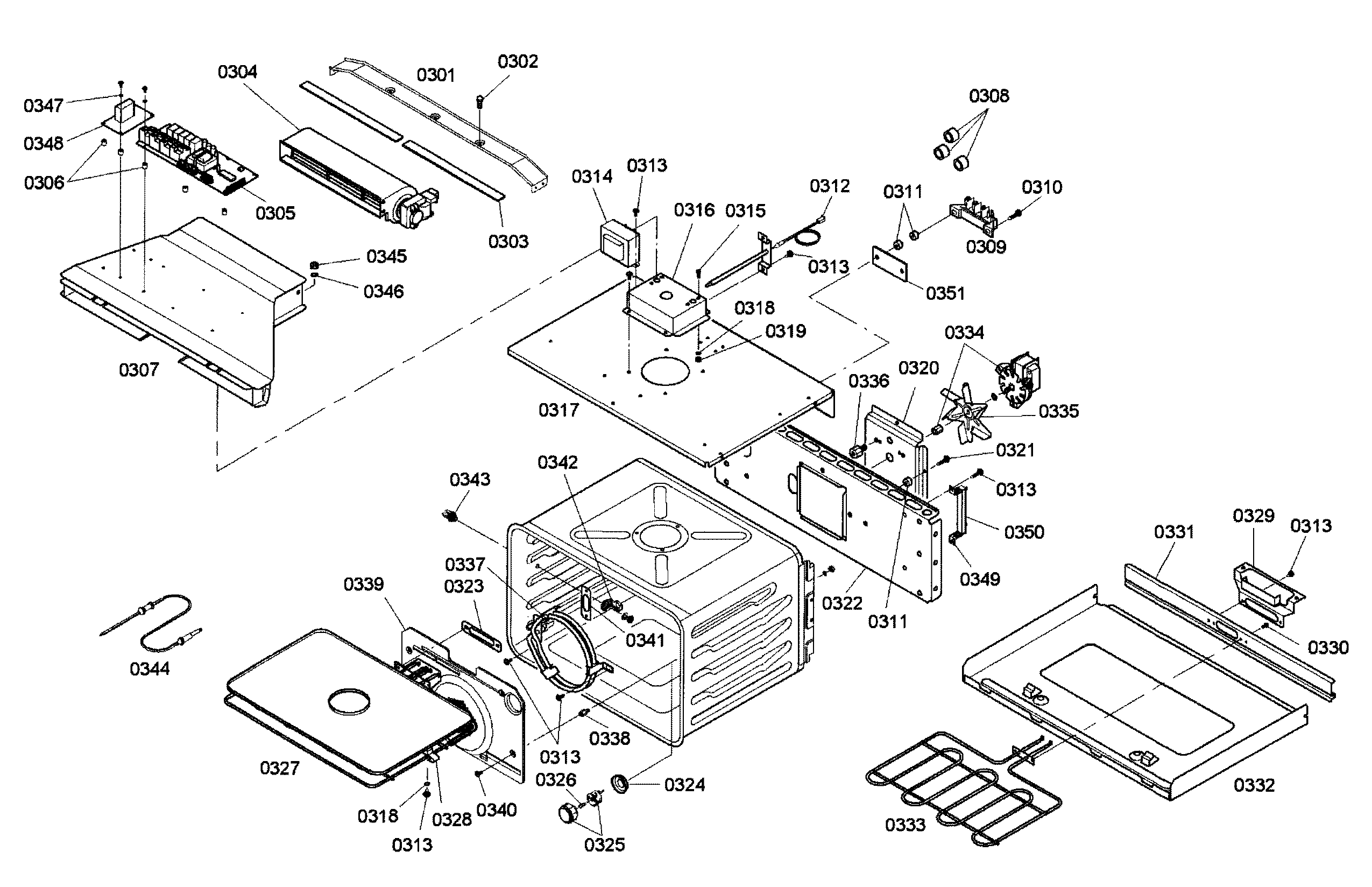

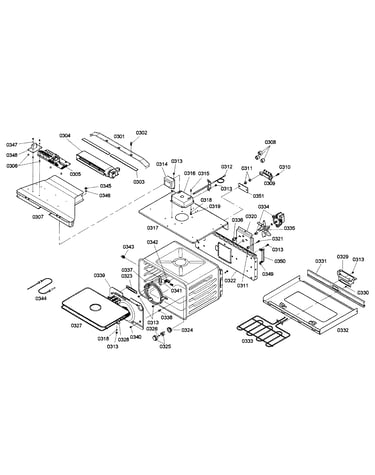

Upper cavity diagram

Wall oven convection element

Part #00241778

$114.79 |
9% OFF Phone Price : $126.79
In Stock
Retainer Plate 00445057
Retainer plate

Part #00445057

$48.36
In Stock
Lamp 00420228
Lamp

Part #00420228

Replaced by #00189351

?
Manufacturer substitution
This part replaces 00420228. Substitute parts can look different from the original.
$25.79 |
19% OFF Phone Price : $31.79
In Stock
Grid 00143673
Grid

Part #00143673

Replaced by #00449756

?
Manufacturer substitution
This part replaces 00143673. Substitute parts can look different from the original.
$57.89
In Stock
Screw 00600161
#321

Upper cavity diagram

Screw

Part #00600161

The manufacturer no longer makes this part, and there's no substitute part

Heater Element 00239402
Heater element

Part #00239402

The manufacturer no longer makes this part, and there's no substitute part

Support 00490363
Support

Part #00490363

The manufacturer no longer makes this part, and there's no substitute part

Spacer 00420213
#311

Upper cavity diagram

Spacer

Part #00420213

The manufacturer no longer makes this part, and there's no substitute part

Seal 00493342
Seal

Part #00493342

The manufacturer no longer makes this part, and there's no substitute part
