Model # RE65003 Official Hotpoint microwave

Here are the diagrams and repair parts for Official Hotpoint RE65003 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Rectifier WB27X5318

#1439

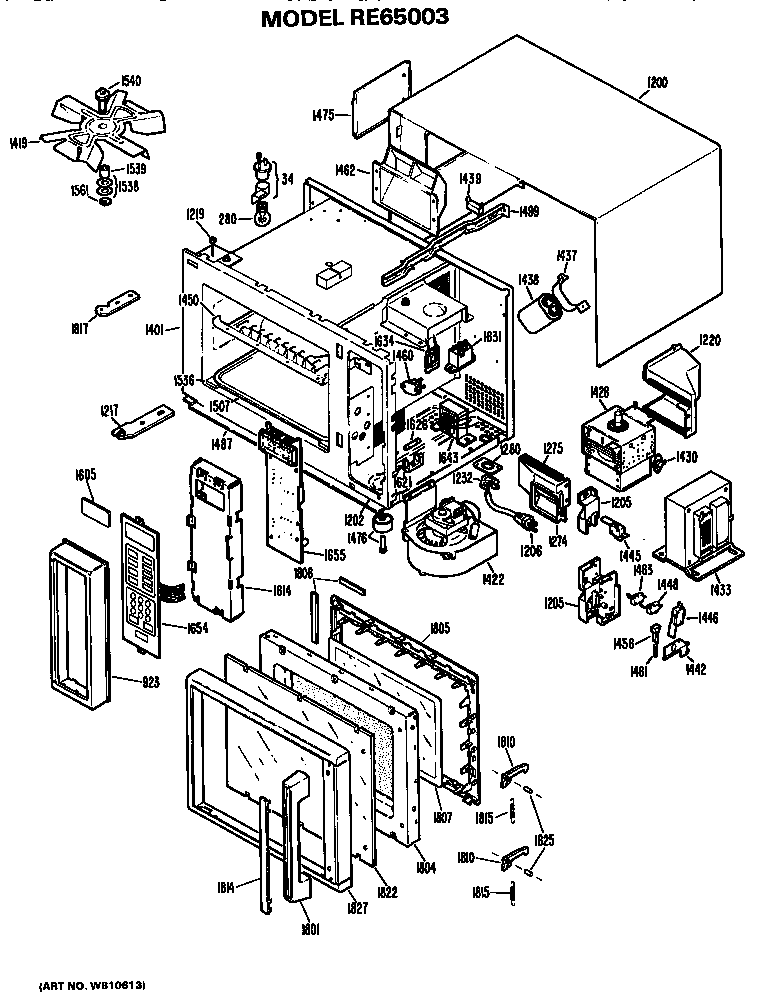

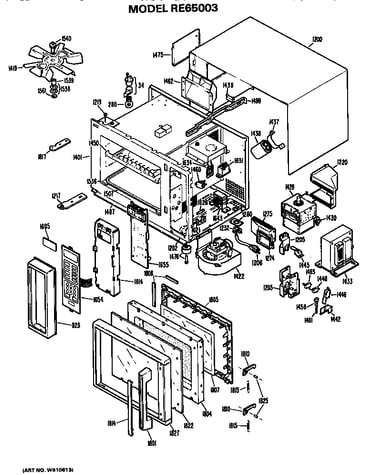

All parts diagram

Rectifier

Part #WB27X5318

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X5318. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Cookbook Re5 39-4542

#LITR

All parts diagram

Cookbook re5

Part #39-4542

$26.99
In Stock
Triac WB27X238

#1460

All parts diagram

Triac

Part #WB27X238

Replaced by #WB27X5391

?
Manufacturer substitution
This part replaces WB27X238. Substitute parts can look different from the original.
$57.49
In Stock
Magnetron NOT AVAIL

#1428

All parts diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Pin Foot WB2X7376

#1476

All parts diagram

Pin foot

Part #WB2X7376

The manufacturer no longer makes this part, and there's no substitute part

Power Cord WB18X5077

#1206

All parts diagram

Power cord

Part #WB18X5077

The manufacturer no longer makes this part, and there's no substitute part

Cord Bushing WB2X7542

#1232

All parts diagram

Cord bushing

Part #WB2X7542

The manufacturer no longer makes this part, and there's no substitute part

Latch Low Switch WB24X5218

#1448

All parts diagram

Latch low switch

Part #WB24X5218

The manufacturer no longer makes this part, and there's no substitute part

Spring WB9X214

#1815

All parts diagram

Spring

Part #WB9X214

The manufacturer no longer makes this part, and there's no substitute part

Base Plate WB49X503

#1202

All parts diagram

Base plate

Part #WB49X503

The manufacturer no longer makes this part, and there's no substitute part
