Electric Range

Model # LRE30453ST/02 Official LG electric range

Here are the diagrams and repair parts for Official LG LRE30453ST/02 electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forLRE30453ST/02 Ranges

  • Range Terminal Block EAG32629302
    #5508

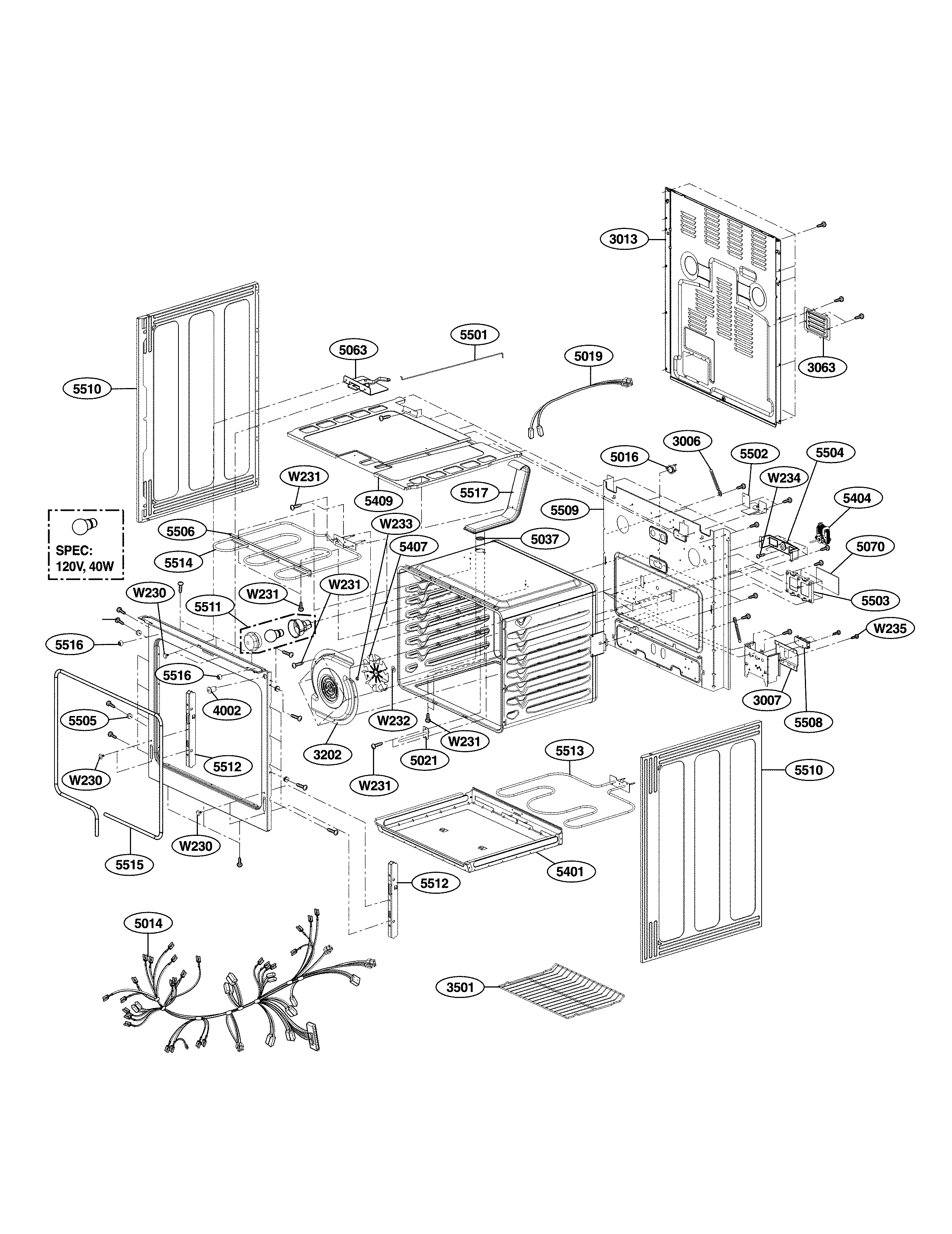

    Cavity parts diagram

    Range terminal block

    Part #EAG32629302

    Replaced by #EAG32629306

    ?
    Manufacturer substitution
    This part replaces EAG32629302. Substitute parts can look different from the original.
    BEST SELLER
    $81.21
    In Stock
  • Range Oven Relay Control Board 6871W1N012B
    #5070

    Cavity parts diagram

    Range oven relay control board

    Part #6871W1N012B

    4.83 (12)
    This item is not returnable
    $150.78 |
    7% OFF Phone Price : $162.78
    In Stock
  • Range Oven Control Board 6871W1N002E
    #2006

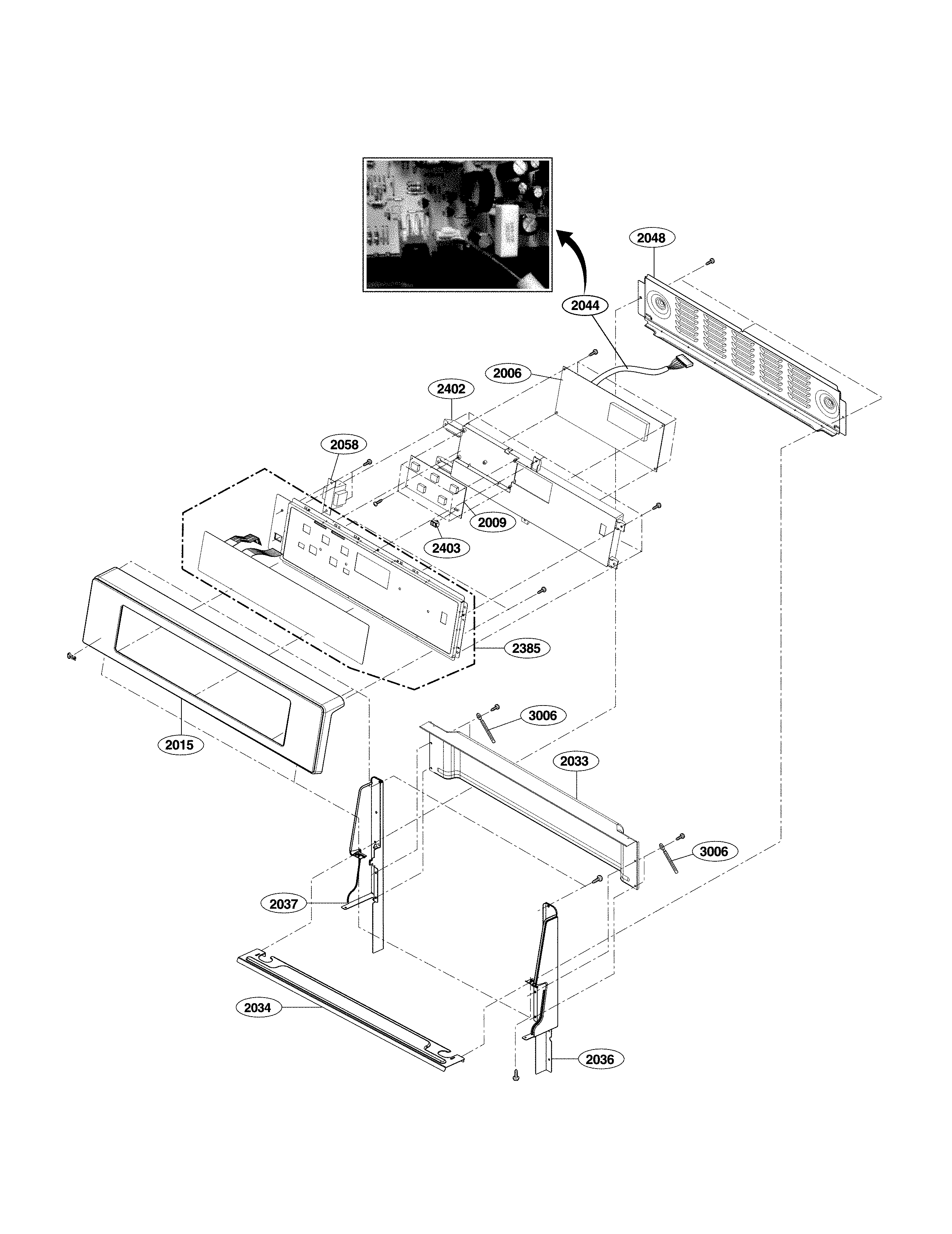

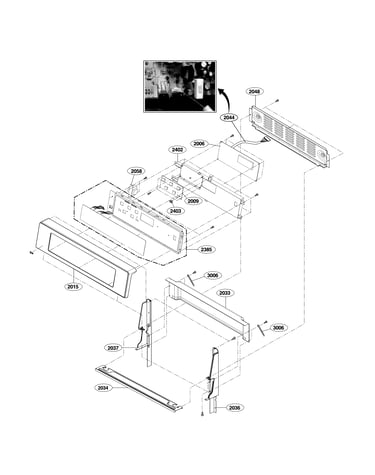

    Controller parts diagram

    Range oven control board

    Part #6871W1N002E

    Replaced by #EBR74632605

    ?
    Manufacturer substitution
    This part replaces 6871W1N002E. Substitute parts can look different from the original.
    4.5 (4)
    This item is not returnable
    $257.79 |
    $12.00 OFF Phone Price : $269.79
    In Stock
  • Range Washer, 5.3 X 1-mm 1WZZ81N001A
    #W232

    Cavity parts diagram

    Range washer, 5.3 x 1-mm

    Part #1WZZ81N001A

    $8.00 |
    11% OFF Phone Price : $9.00
    In Stock
  • Range Broil Element MEE36592903
    #5514

    Cavity parts diagram

    Range broil element

    Part #MEE36592903

    Replaced by #MEE36592904

    ?
    Manufacturer substitution
    This part replaces MEE36592903. Substitute parts can look different from the original.
    $146.47 |
    8% OFF Phone Price : $158.47
    In Stock
  • Range Oven Rack MHL39256101
    #3501

    Cavity parts diagram

    Range oven rack

    Part #MHL39256101

    Replaced by #MHL39256107

    ?
    Manufacturer substitution
    This part replaces MHL39256101. Substitute parts can look different from the original.
    $39.59 |
    13% OFF Phone Price : $45.59
    In Stock
  • Lamp 6913W1N002B
    #5511

    Cavity parts diagram

    Lamp

    Part #6913W1N002B

    Replaced by #6913W1N002C

    ?
    Manufacturer substitution
    This part replaces 6913W1N002B. Substitute parts can look different from the original.
    $83.08 |
    7% OFF Phone Price : $89.08
    In Stock
  • Range Radiant Surface Element, 6-in 5300W1R004A
    #3303

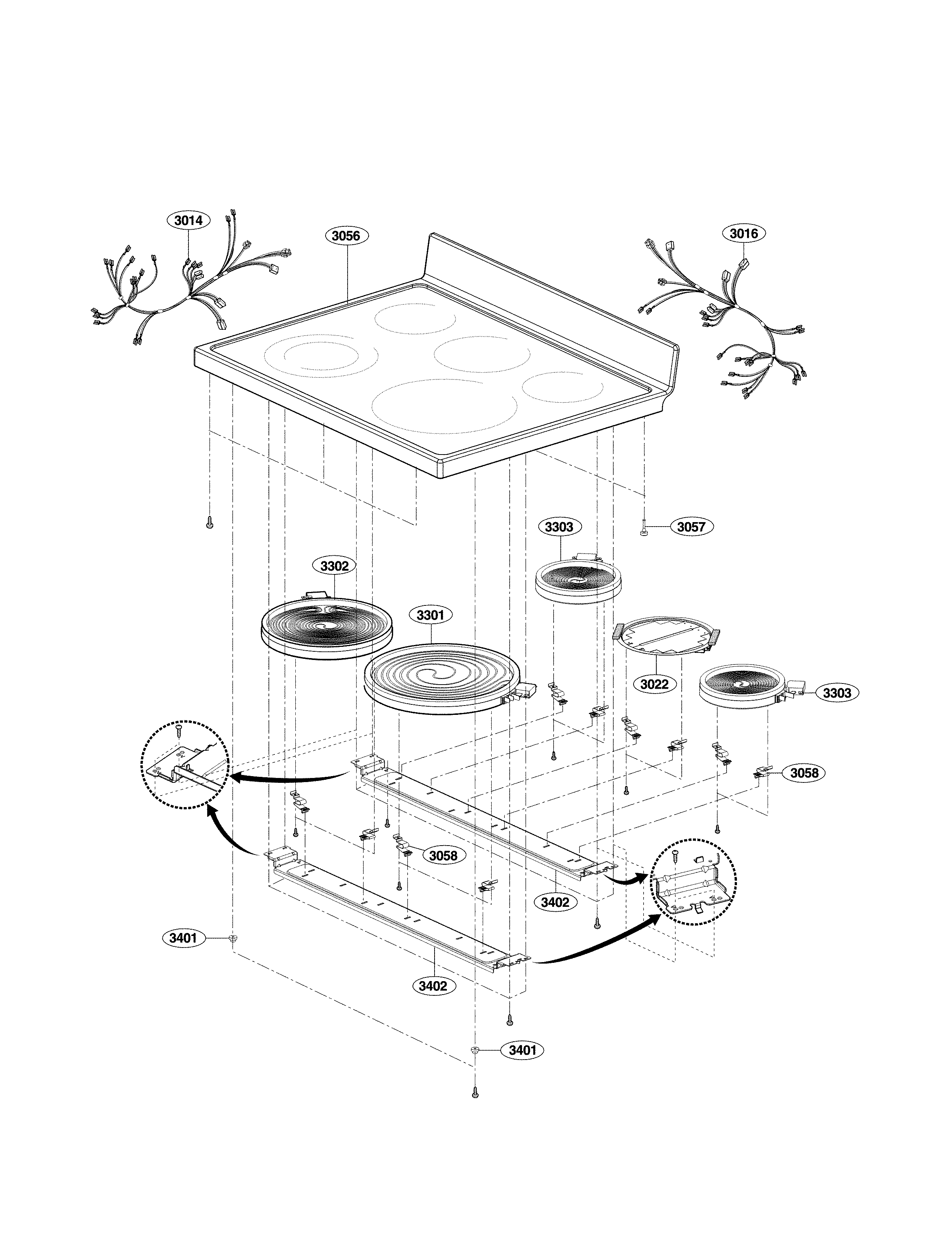

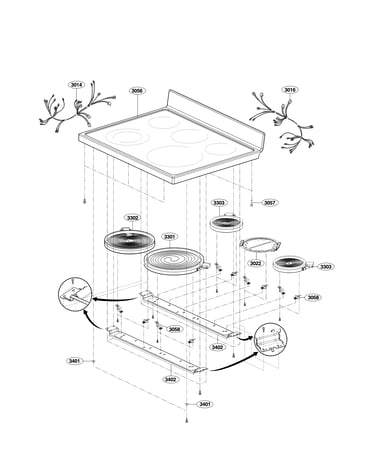

    Cooktop parts diagram

    Range radiant surface element, 6-in

    Part #5300W1R004A

    $100.46 |
    11% OFF Phone Price : $112.46
    In Stock
  • Range Control Panel And Overlay 383EW1N006N
    #2385

    Controller parts diagram

    Range control panel and overlay

    Part #383EW1N006N

    5 (2)
    $162.37 |
    7% OFF Phone Price : $174.37
    In Stock
  • Range Oven Door Screw, 5 X 59-mm 1SZZW5N001H
    #W243

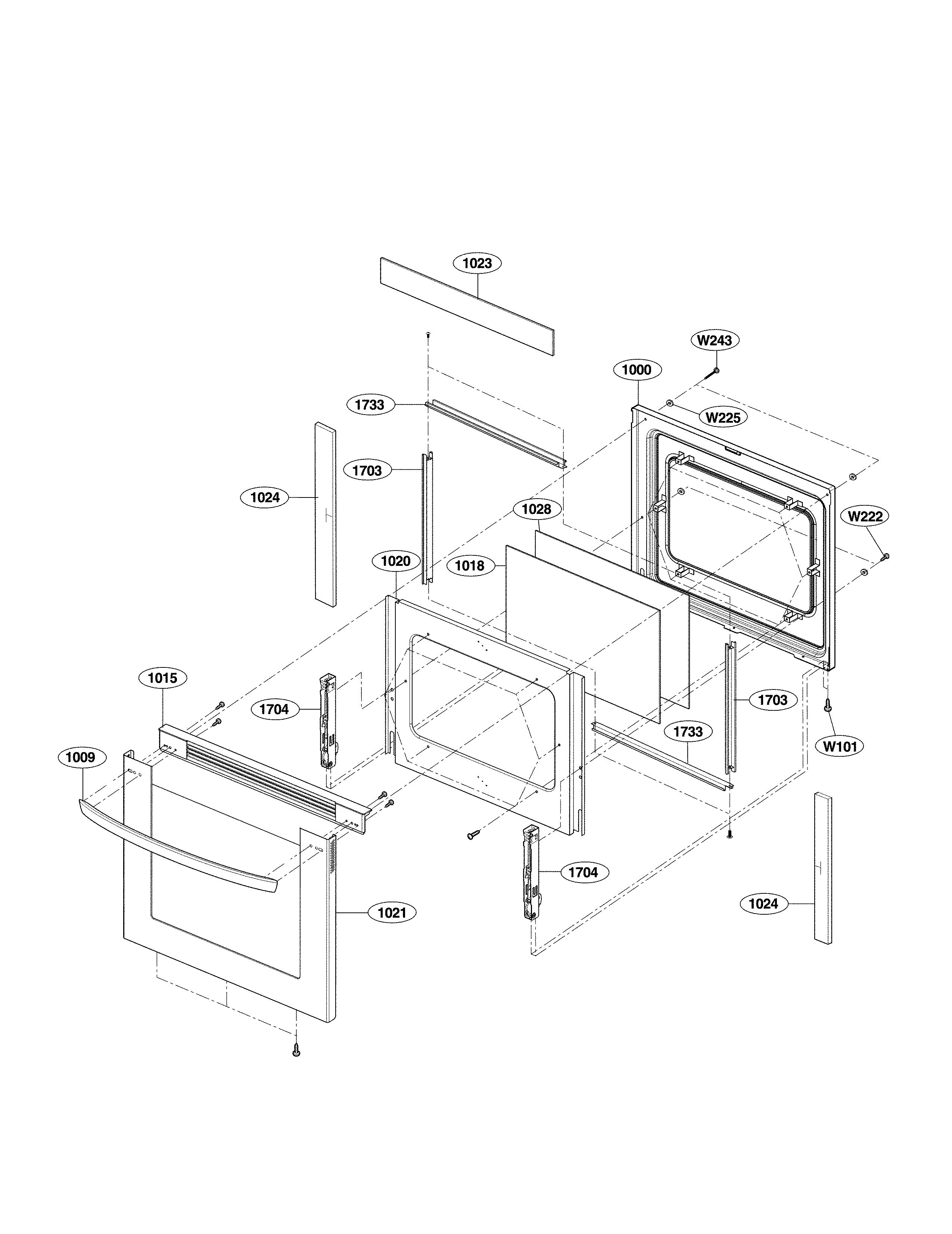

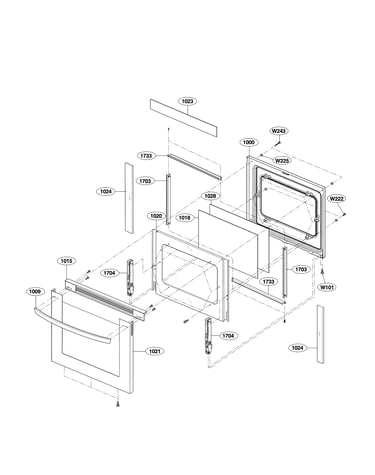

    Door parts diagram

    Range oven door screw, 5 x 59-mm

    Part #1SZZW5N001H

    $8.00 |
    11% OFF Phone Price : $9.00
    In Stock
