Whirlpool
Laundry Center

Model # YWET4024HW0 Official Whirlpool stacked laundry center

Here are the diagrams and repair parts for Official Whirlpool YWET4024HW0 stacked laundry center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

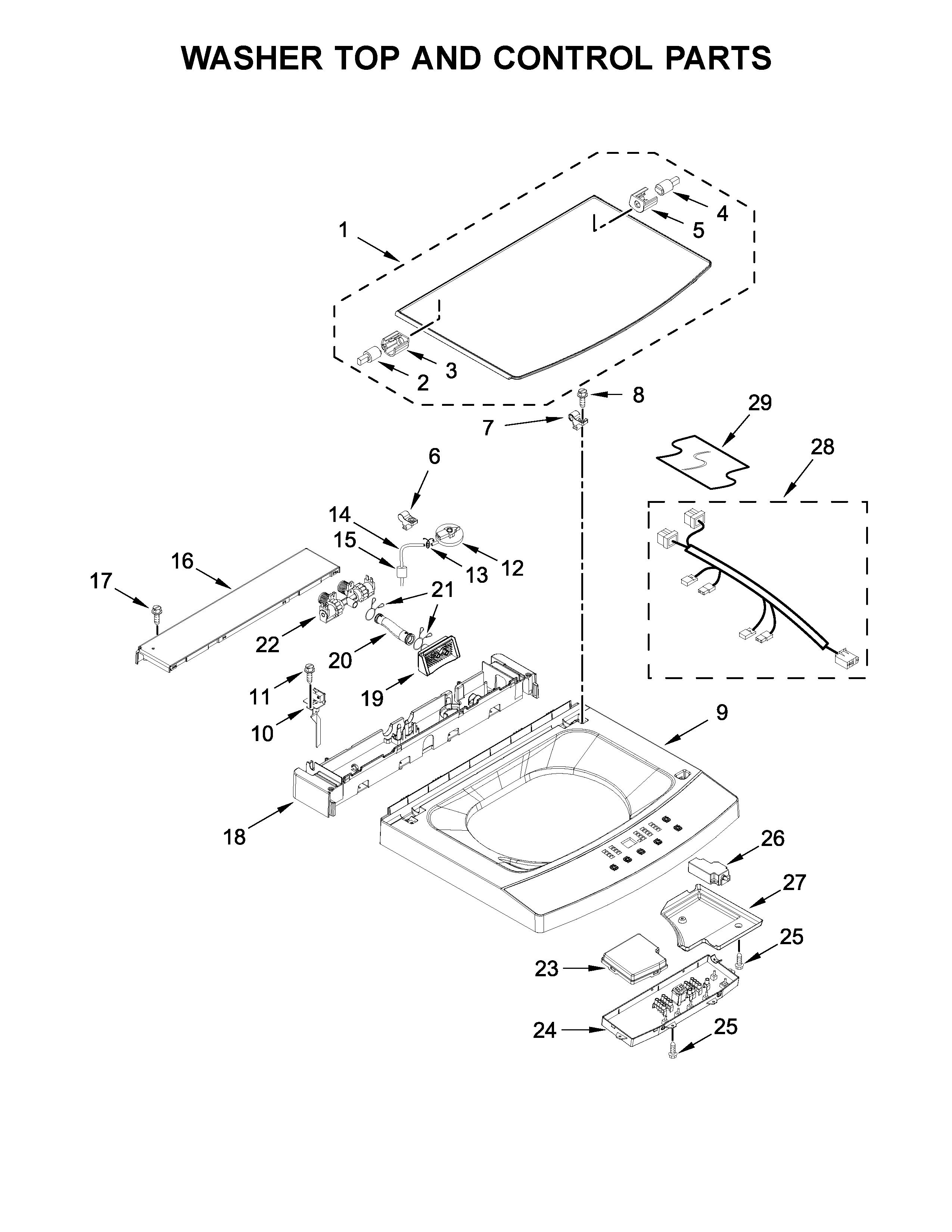

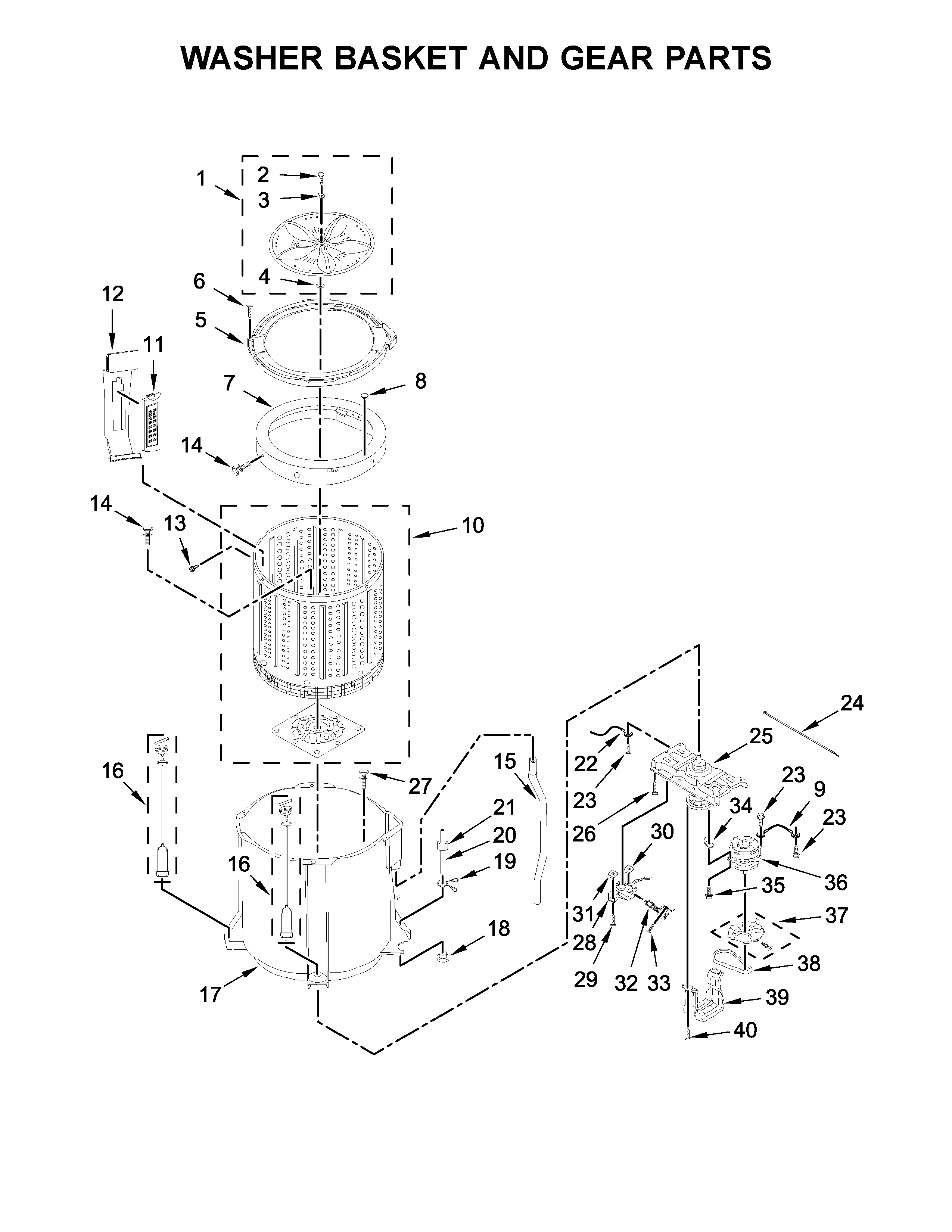

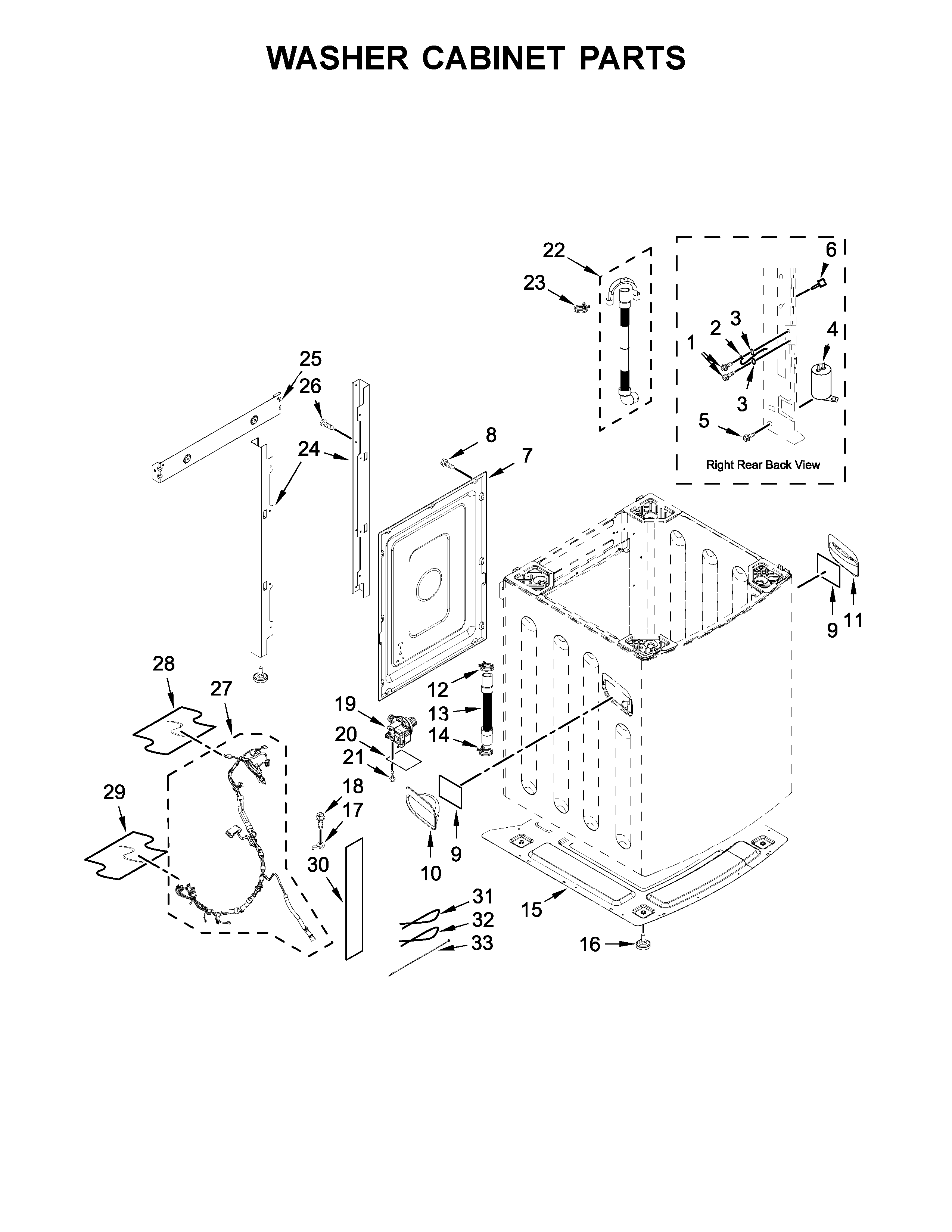

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 201 parts  |
Dryer Thermal Fuse 3392519
#34

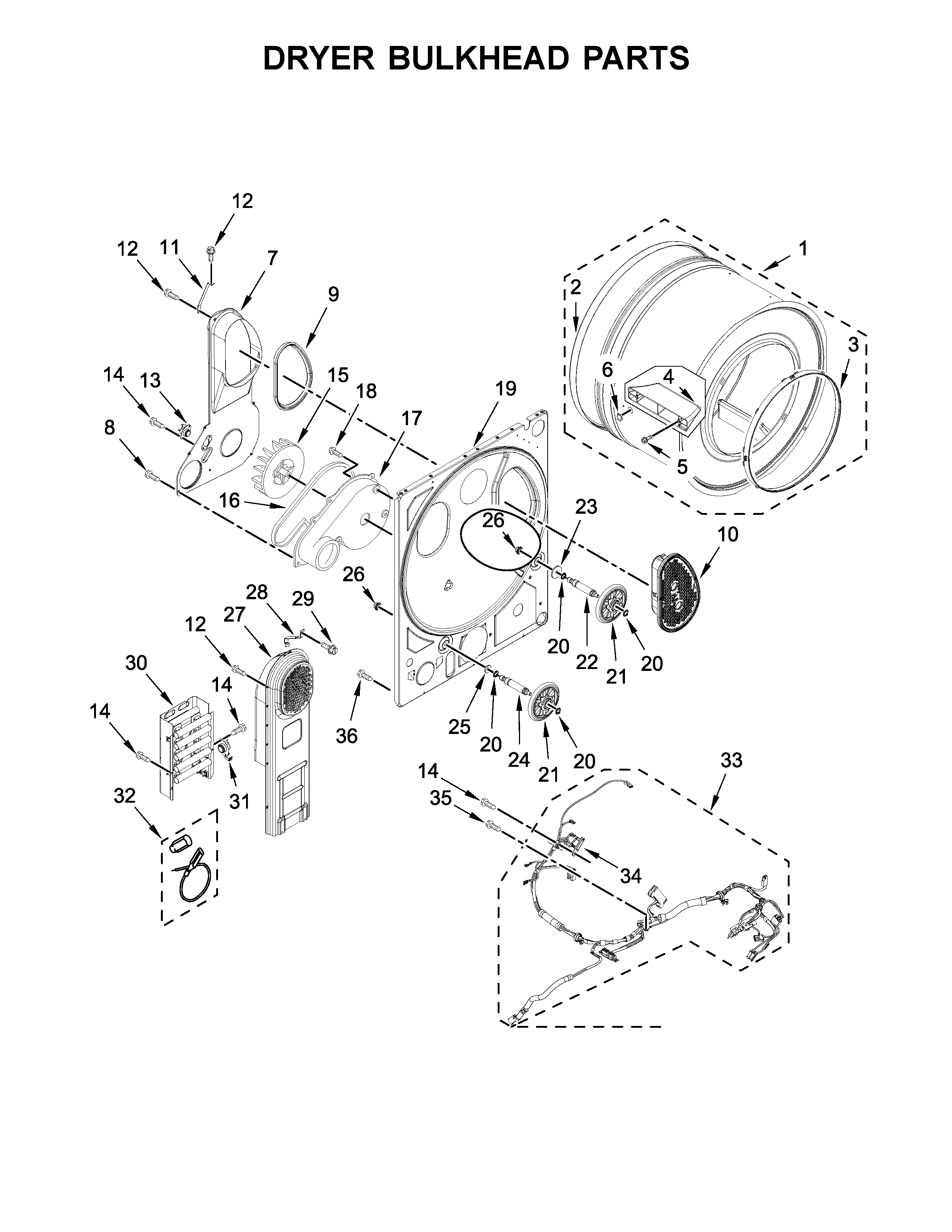

Dryer bulkhead parts diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$18.56 |
10% OFF Phone Price : $20.56
In Stock
Dryer Idler Pulley 691366
#22

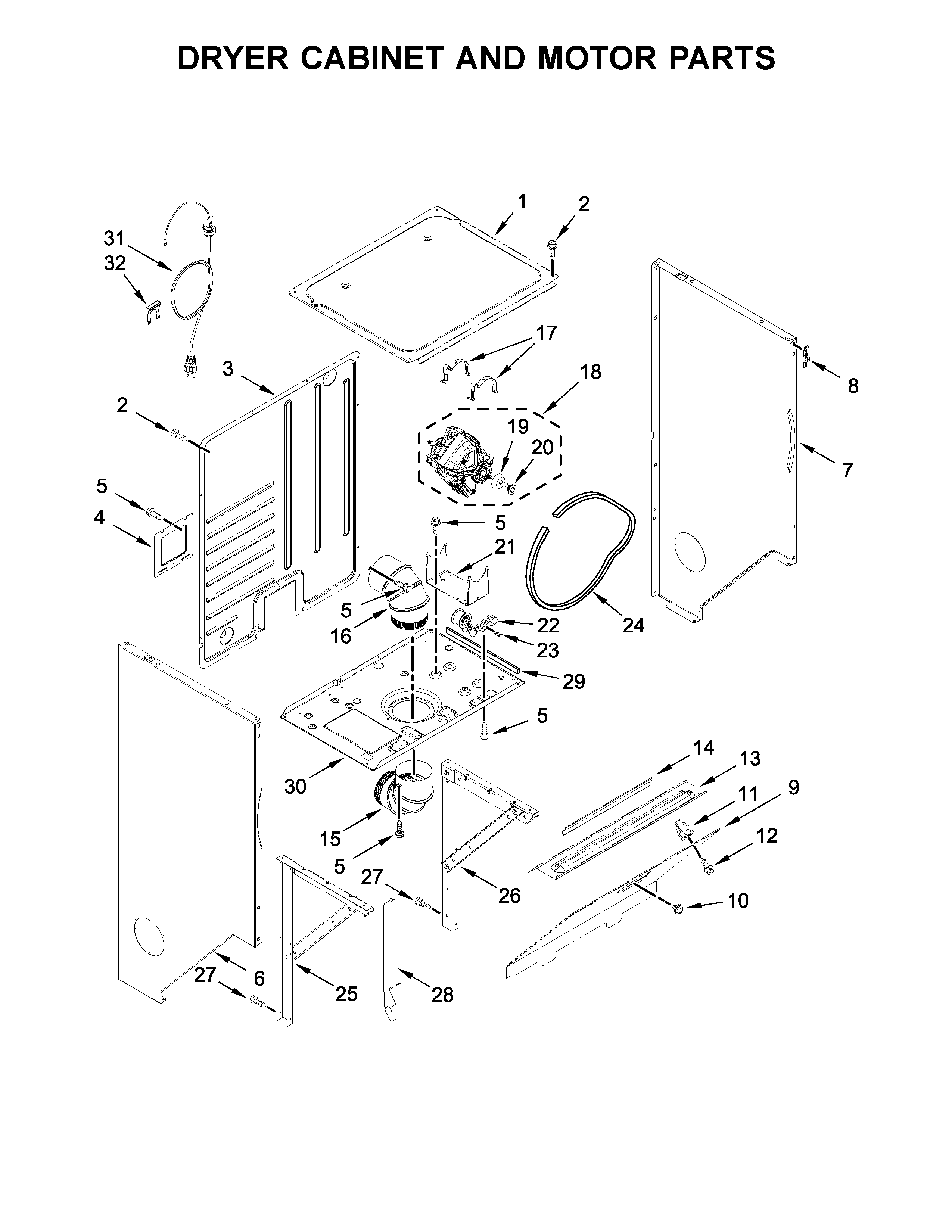

Dryer cabinet and motor parts diagram

Dryer idler pulley

Part #691366

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 691366. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$11.91 |
14% OFF Phone Price : $13.91
In Stock
Dryer Support Roller Tri-ring Washer W10512946
#20

Dryer bulkhead parts diagram

Dryer support roller tri-ring washer

Part #W10512946

Replaced by #WPW10512946

?
Manufacturer substitution
This part replaces W10512946. Substitute parts can look different from the original.
BEST SELLER
$6.53 |
13% OFF Phone Price : $7.53
In Stock
Dryer Push-to-start Switch 3977456
#9

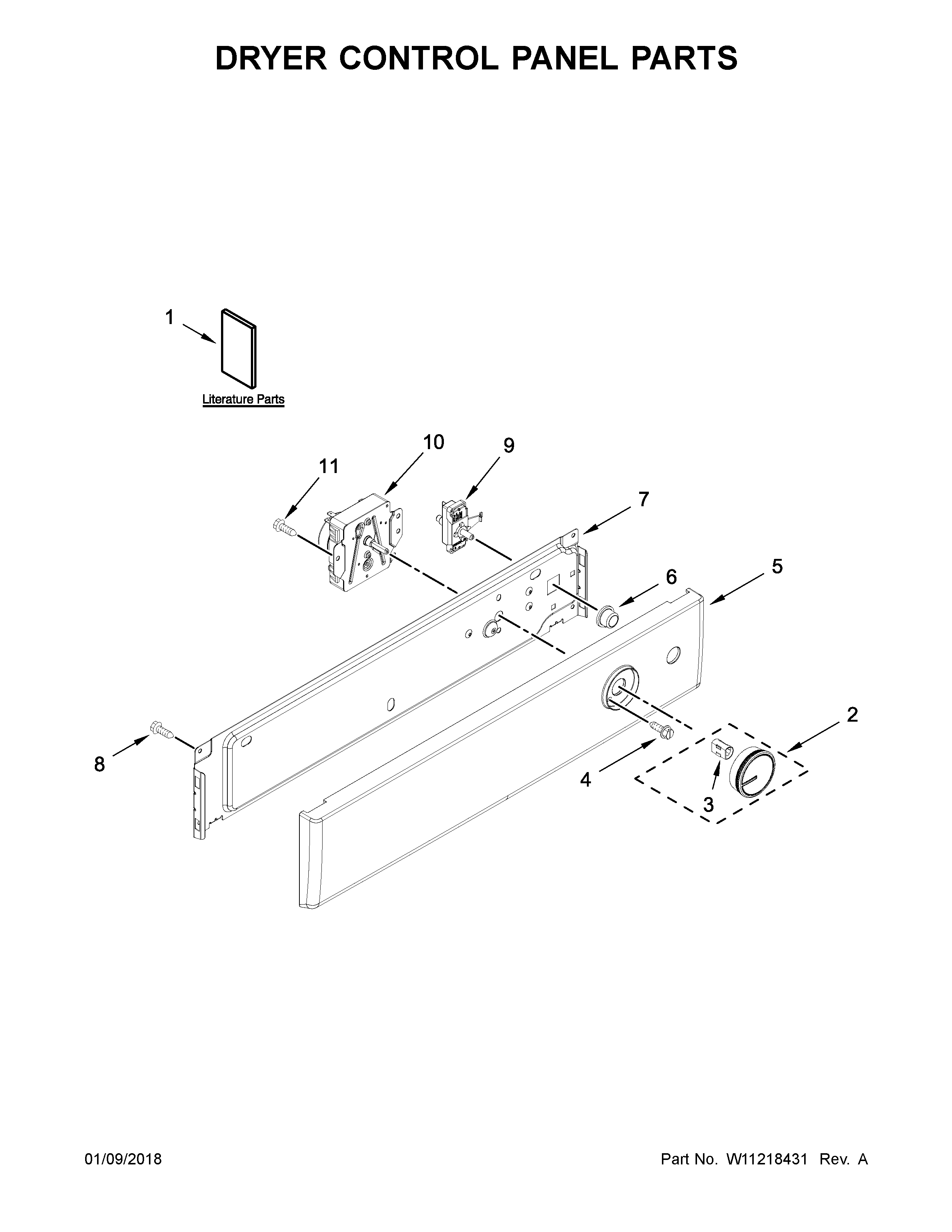

Dryer control panel parts diagram

Dryer push-to-start switch

Part #3977456

Replaced by #WP3977456

?
Manufacturer substitution
This part replaces 3977456. Substitute parts can look different from the original.
BEST SELLER
$32.04 |
16% OFF Phone Price : $38.04
In Stock
Dryer Drum Support Roller Shaft W10359270
#24

Dryer bulkhead parts diagram

Dryer drum support roller shaft

Part #W10359270

Replaced by #WPW10359270

?
Manufacturer substitution
This part replaces W10359270. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Dryer Door Catch 3389441
#5

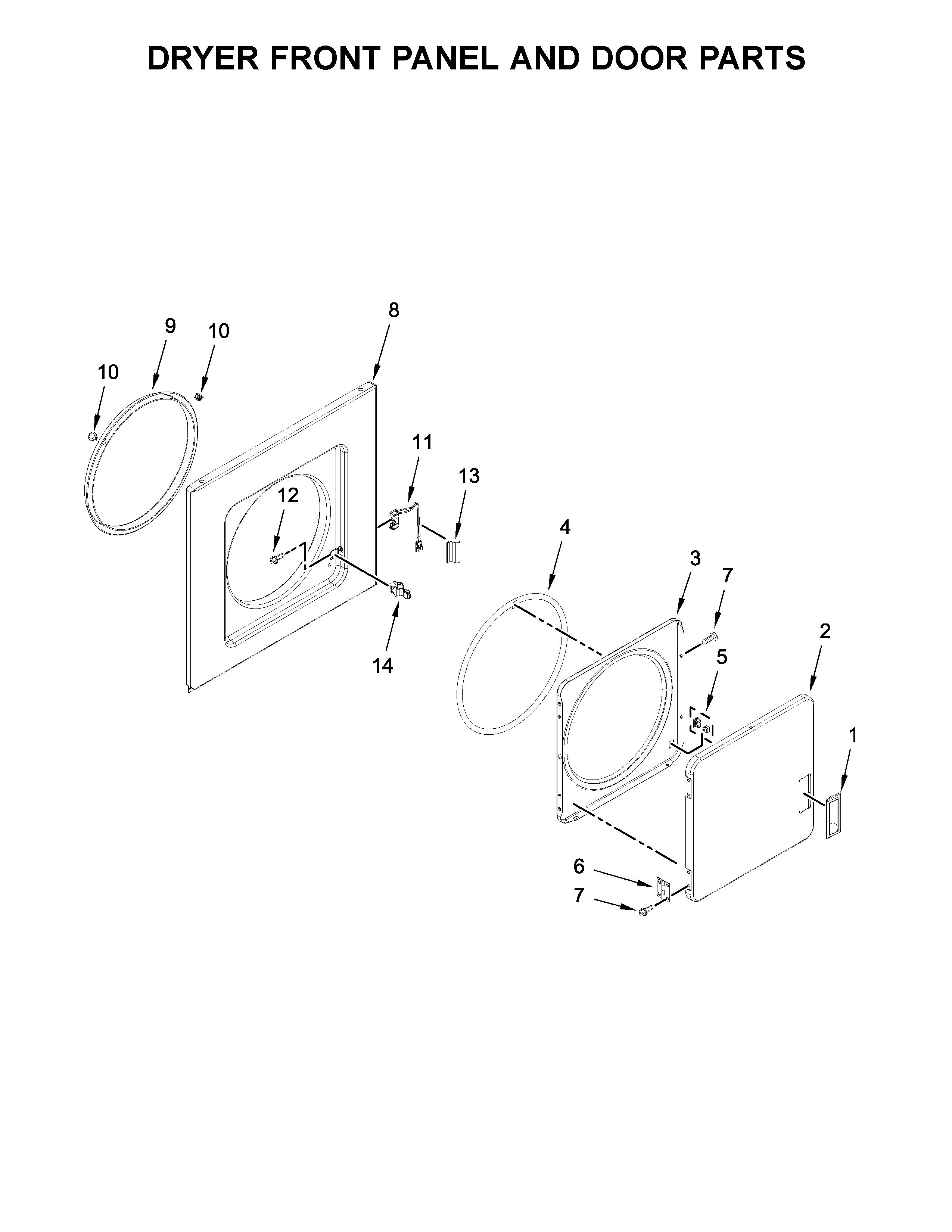

Dryer front panel and door parts diagram

Dryer door catch

Part #3389441

Replaced by #WP3389441

?
Manufacturer substitution
This part replaces 3389441. Substitute parts can look different from the original.
BEST SELLER
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Dryer Lint Screen Housing Foam Seal 339956
#9

Dryer bulkhead parts diagram

Dryer lint screen housing foam seal

Part #339956

Replaced by #WP339956

?
Manufacturer substitution
This part replaces 339956. Substitute parts can look different from the original.
BEST SELLER
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Dryer Drum Support Roller Shaft W10359269
#22

Dryer bulkhead parts diagram

Dryer drum support roller shaft

Part #W10359269

Replaced by #WPW10359269

?
Manufacturer substitution
This part replaces W10359269. Substitute parts can look different from the original.
BEST SELLER
$40.92 |
13% OFF Phone Price : $46.92
In Stock
Washer Water Inlet Hose, 2-pack 8212487
#NI

Optional parts (not included) diagram

Washer water inlet hose, 2-pack

Part #8212487

Replaced by #8212487RP

?
Manufacturer substitution
This part replaces 8212487. Substitute parts can look different from the original.
BEST SELLER
$25.76 |
19% OFF Phone Price : $31.76
In Stock
