Model # 72180864400 Official Kenmore Elite microwave/hood combo

Here are the diagrams and repair parts for Official Kenmore Elite 72180864400 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

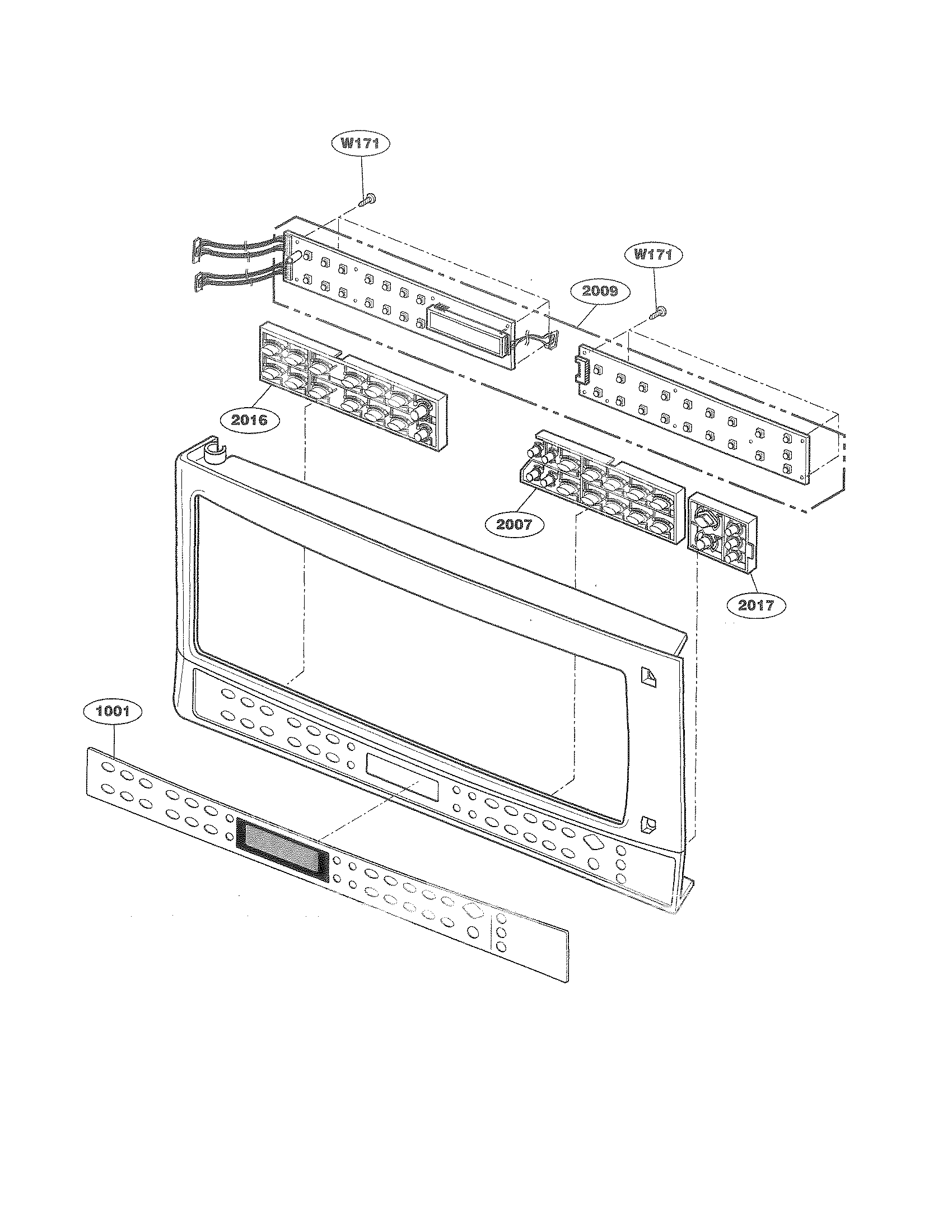

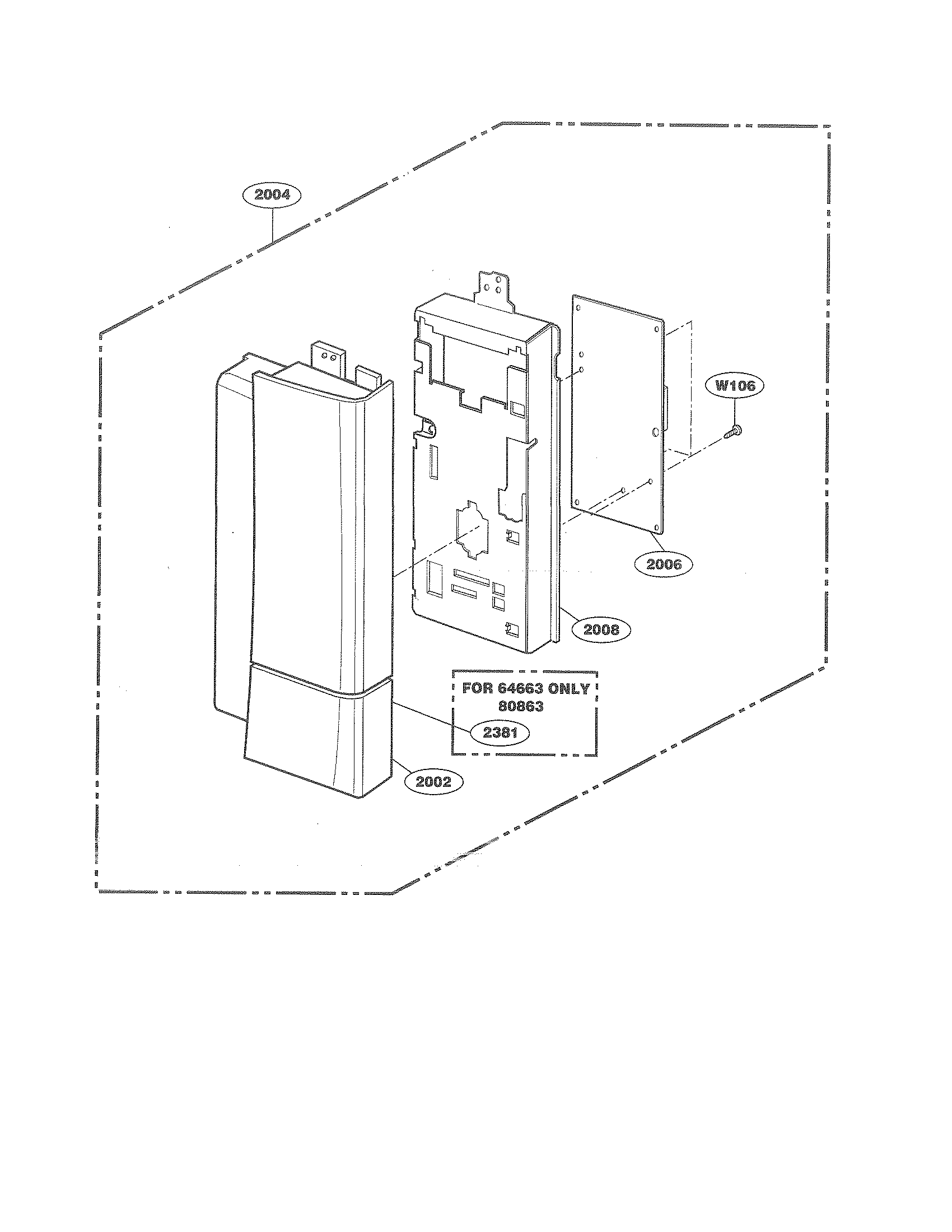

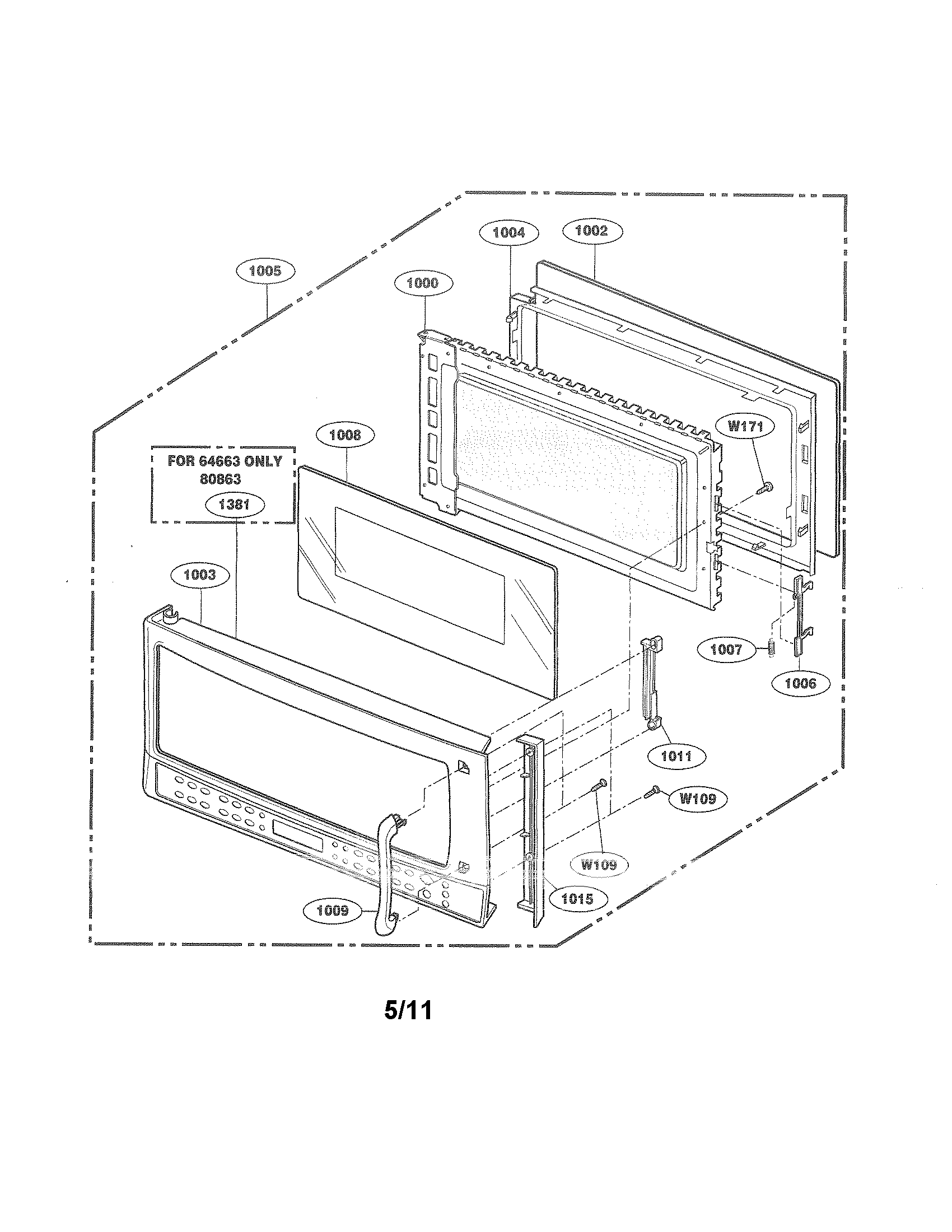

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Microwave Charcoal Filter 5230W1A003A
#5037

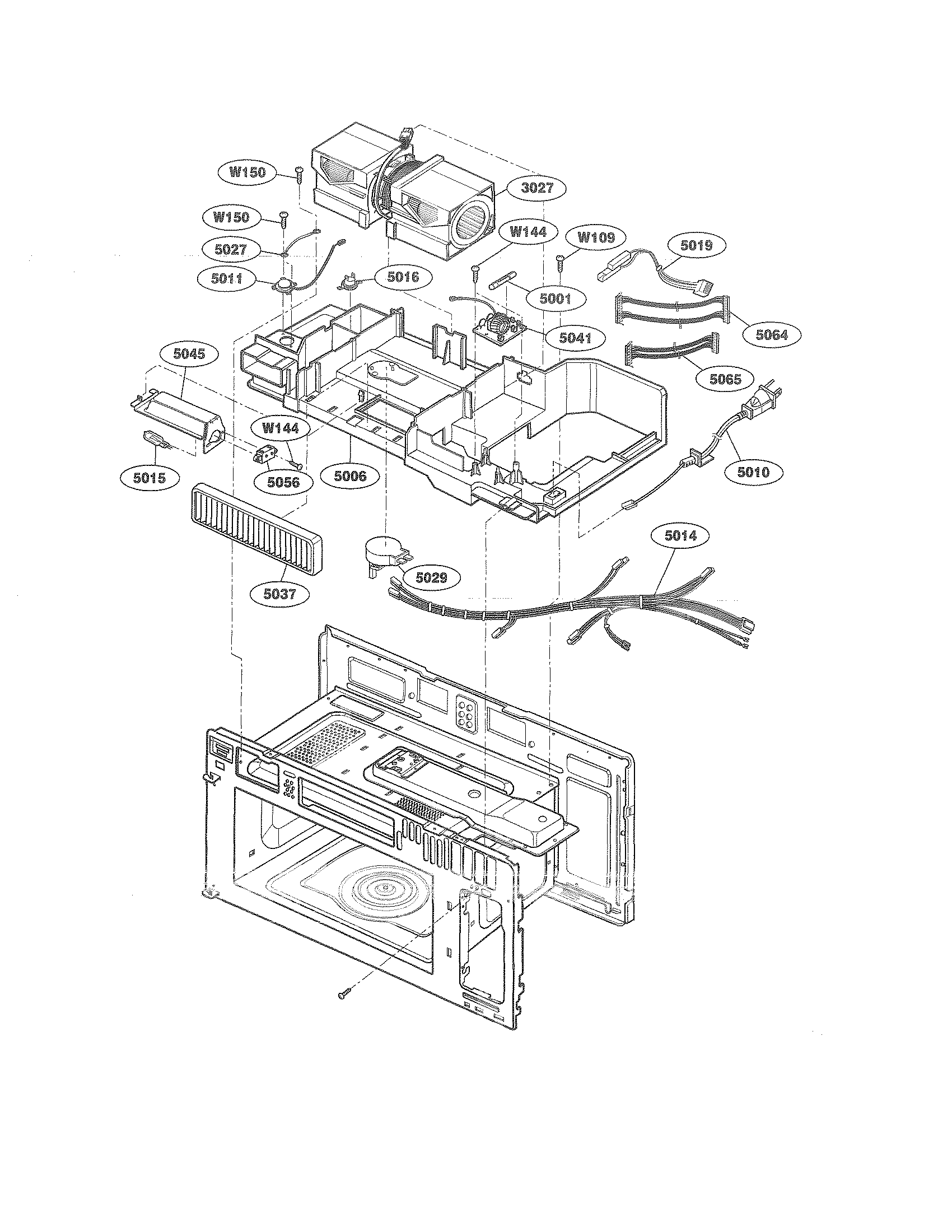

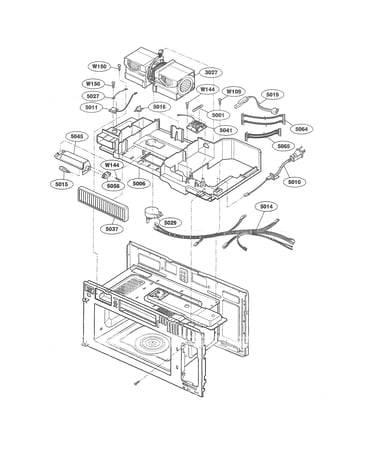

Interior parts (ii) diagram

Microwave charcoal filter

Part #5230W1A003A

BEST SELLER
$31.19 |
16% OFF Phone Price : $37.19
In Stock
Microwave Door Interlock Switch 3B73361E
#4003

Latch board parts diagram

Microwave door interlock switch

Part #3B73361E

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 3B73361E. Substitute parts can look different from the original.
BEST SELLER
$11.77 |
15% OFF Phone Price : $13.77
In Stock
Microwave Lamp Assembly 383EW1A077C
#5382

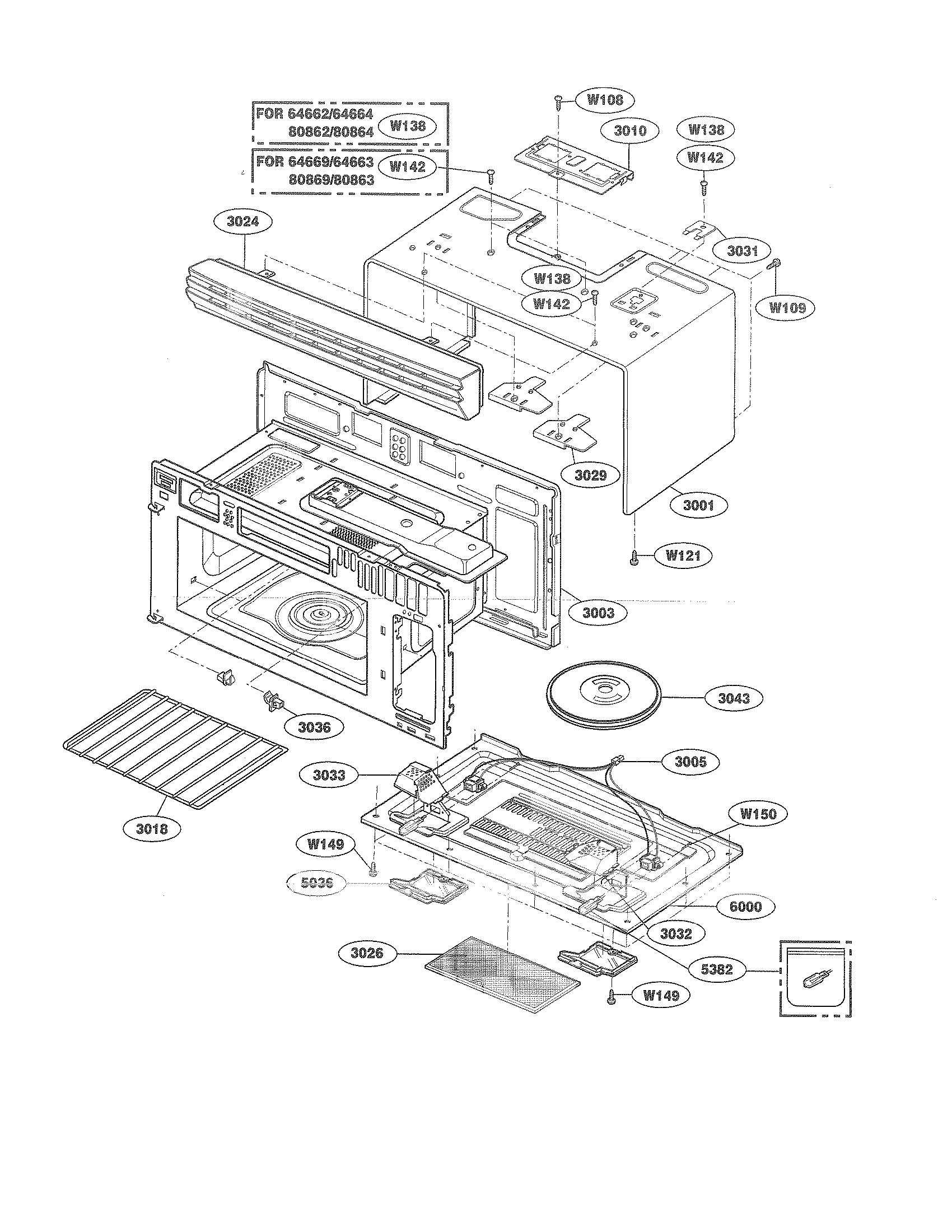

Oven cavity parts diagram

Microwave lamp assembly

Part #383EW1A077C

Replaced by #6912A40002E

?
Manufacturer substitution
This part replaces 383EW1A077C. Substitute parts can look different from the original.
BEST SELLER
$13.76 |
13% OFF Phone Price : $15.76
In Stock
Microwave Light Bulb 6912A40002D
#5015

Interior parts (ii) diagram

Microwave light bulb

Part #6912A40002D

Replaced by #6912A40002E

?
Manufacturer substitution
This part replaces 6912A40002D. Substitute parts can look different from the original.
BEST SELLER
$13.76 |
13% OFF Phone Price : $15.76
In Stock
Us Pressed Steel Microwave Fuse 3B74133K
#5001

Interior parts (ii) diagram

Us pressed steel microwave fuse

Part #3B74133K

BEST SELLER
$7.62 |
12% OFF Phone Price : $8.62
In Stock
Microwave Thermostat (replaces 6930w1a002k, 6930wrt003c) 6930W1A003J
#5016

Interior parts (ii) diagram

Microwave thermostat (replaces 6930w1a002k, 6930wrt003c)

Part #6930W1A003J

BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Latch Body Assembly (replaces 3501w1a019p) 3501W1A019C
#4001

Latch board parts diagram

Microwave latch body assembly (replaces 3501w1a019p)

Part #3501W1A019C

Replaced by #AEJ75540901

?
Manufacturer substitution
This part replaces 3501W1A019C. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Exhaust Damper Bracket 3B72144A
#6010

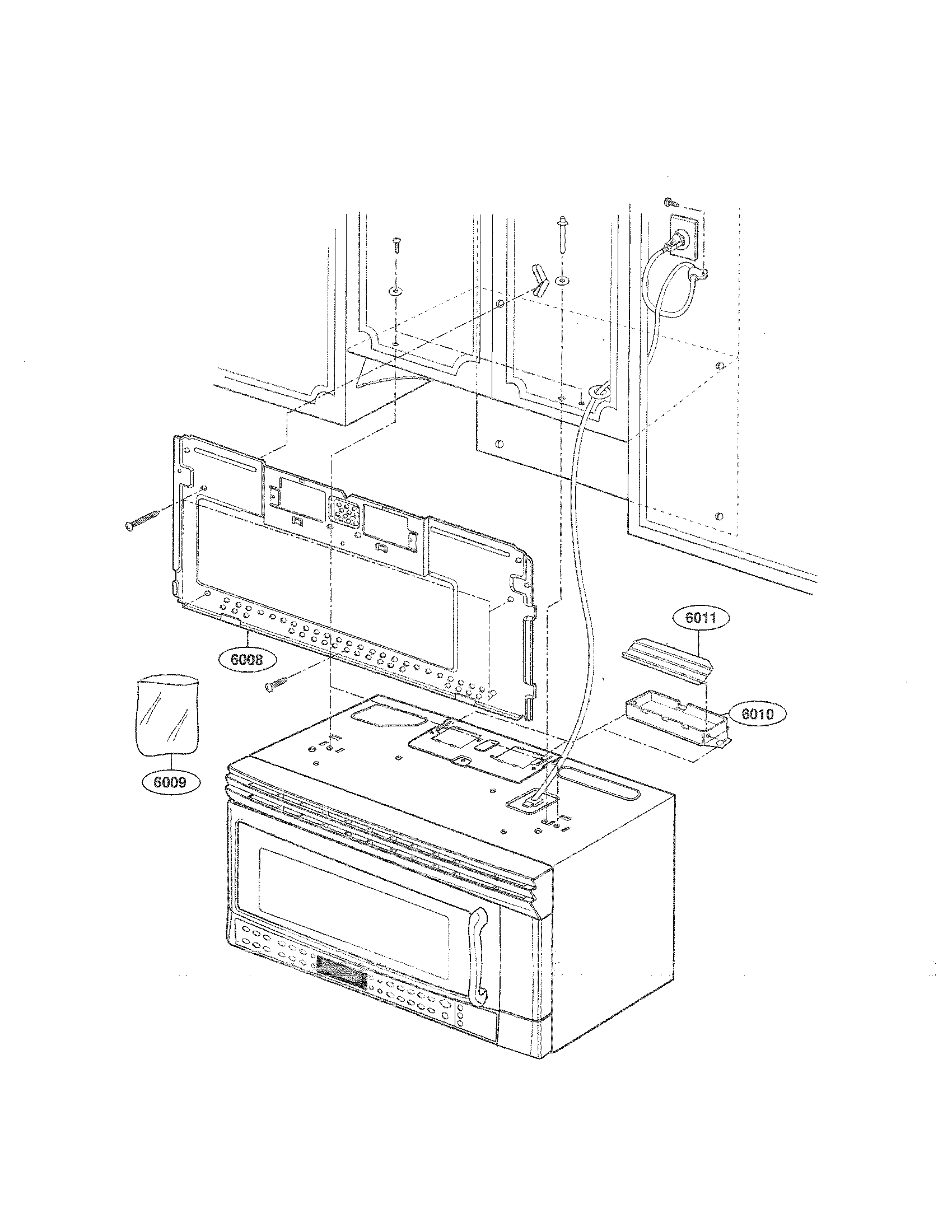

Installation parts diagram

Microwave exhaust damper bracket

Part #3B72144A

Replaced by #4810W1A151A

?
Manufacturer substitution
This part replaces 3B72144A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
Microwave Waveguide Cover Rivet 4051W3A001A
#3004

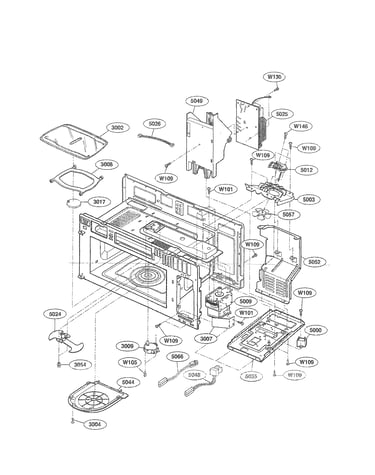

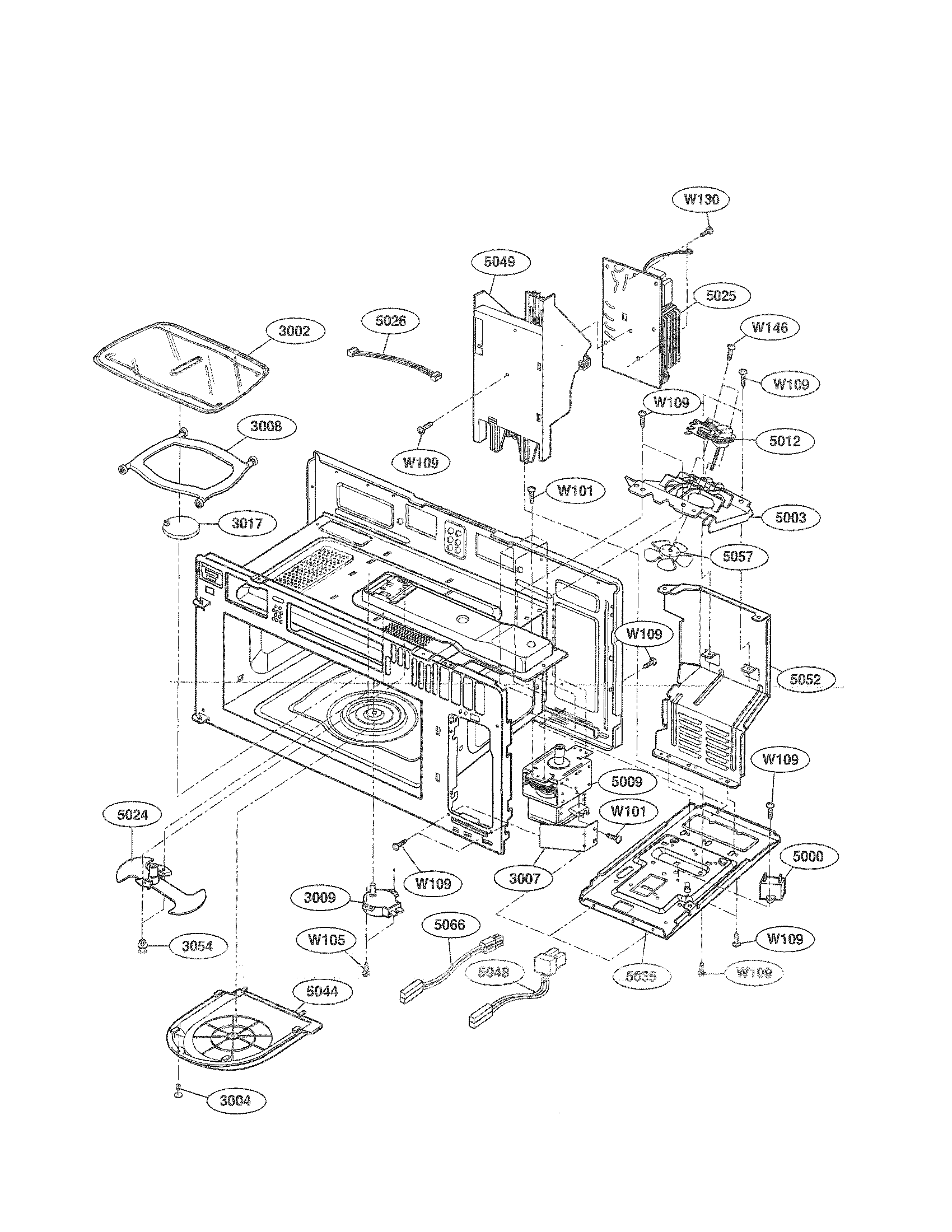

Interior parts (i) diagram

Microwave waveguide cover rivet

Part #4051W3A001A

This item is not returnable
$2.75 |
27% OFF Phone Price : $3.75
In Stock
Microwave Screw 1TTL0402618
#W144

Interior parts (ii) diagram

Microwave screw

Part #1TTL0402618

This item is not returnable
$6.68 |
13% OFF Phone Price : $7.68
In Stock
