Model # 315174700 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 315174700 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Ball Brg 621221-002
#4

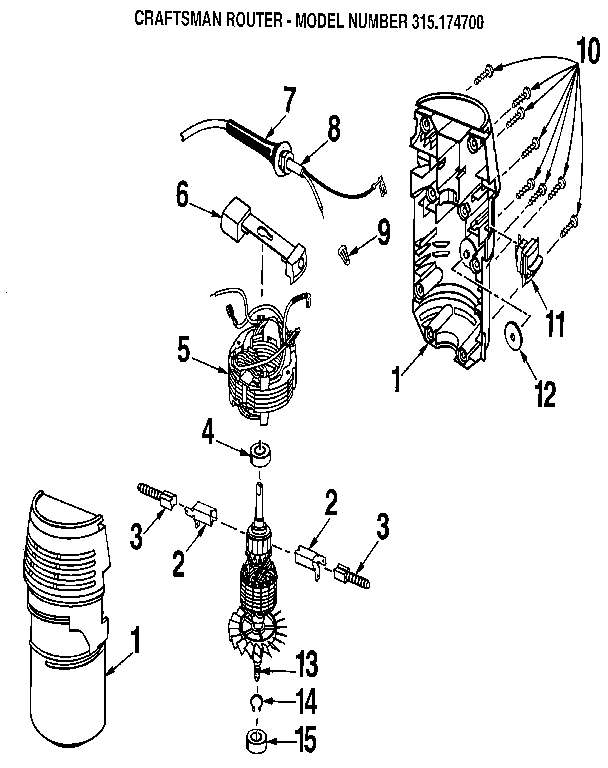

Craftsman router diagram

Ball brg

Part #621221-002

The manufacturer no longer makes this part, and there's no substitute part

Base 969849-001
#6

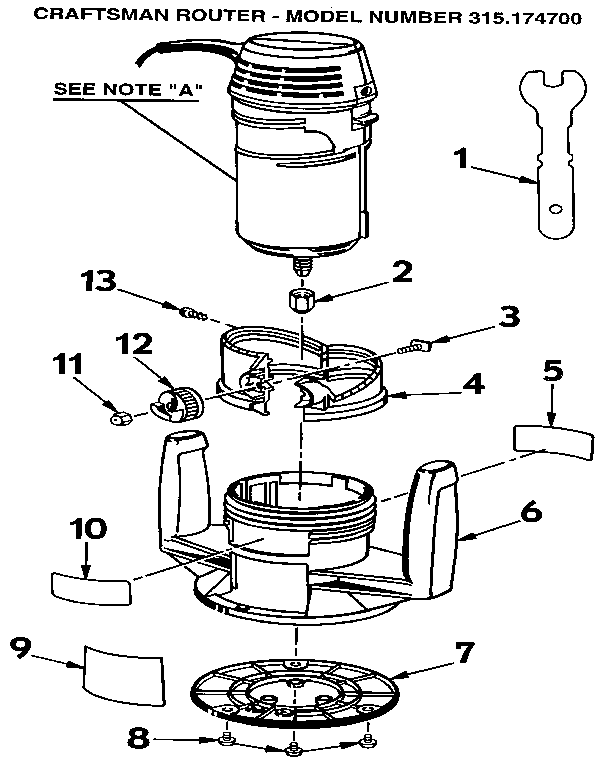

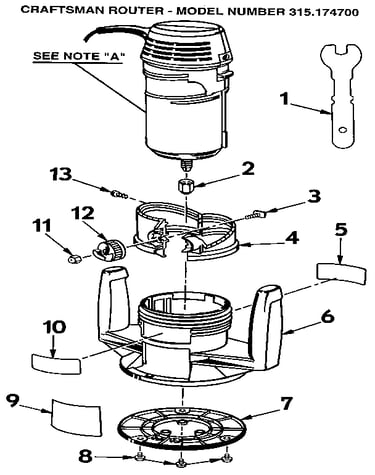

Base assembly diagram

Base

Part #969849-001

The manufacturer no longer makes this part, and there's no substitute part

Sub-base 612191-004
#7

Base assembly diagram

Sub-base

Part #612191-004

The manufacturer no longer makes this part, and there's no substitute part

Brush Tube 611686-002
#2

Craftsman router diagram

Brush tube

Part #611686-002

The manufacturer no longer makes this part, and there's no substitute part

Screw 969697-001
#3

Base assembly diagram

Screw

Part #969697-001

The manufacturer no longer makes this part, and there's no substitute part

Armature 968843-008
#13

Craftsman router diagram

Armature

Part #968843-008

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 969850-001
#1

Craftsman router diagram

Housing assembly

Part #969850-001

The manufacturer no longer makes this part, and there's no substitute part

Field 970794-004
#5

Craftsman router diagram

Field

Part #970794-004

The manufacturer no longer makes this part, and there's no substitute part

Screw 970855-001
#13

Base assembly diagram

Screw

Part #970855-001

The manufacturer no longer makes this part, and there's no substitute part

Wire Connctr 623173-001
#9

Craftsman router diagram

Wire connctr

Part #623173-001

The manufacturer no longer makes this part, and there's no substitute part
