Model # 917258871 Official Craftsman tractor
Here are the diagrams and repair parts for Official Craftsman 917258871 tractor, as well as links to manuals and error code tables, if available.

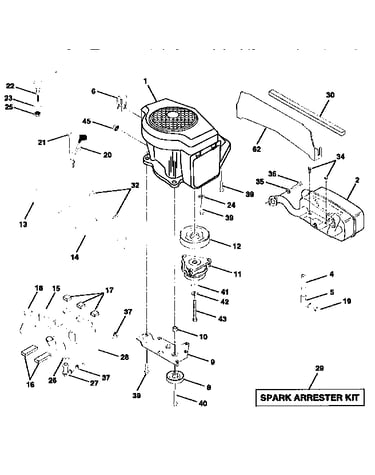

View engineBy Schematic
By Part

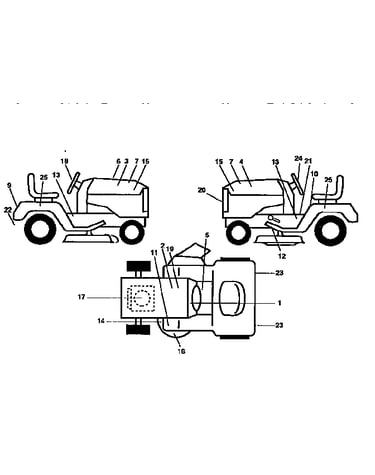

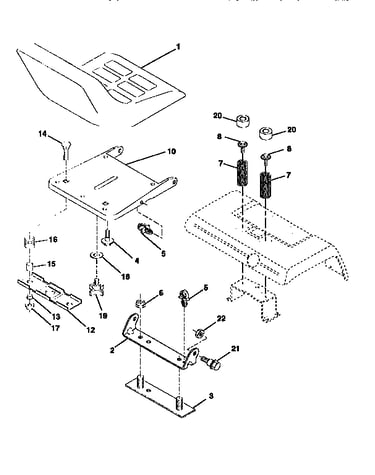

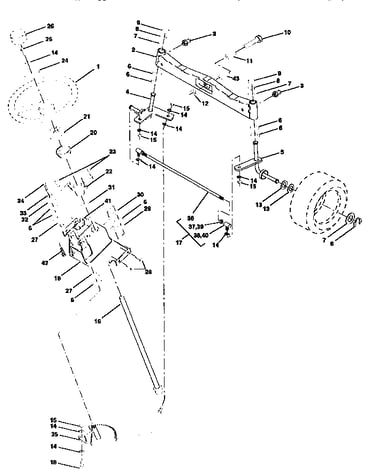

SELECT DIAGRAM
Browse Parts for917258871 Riding Mowers & Tractors
- #47

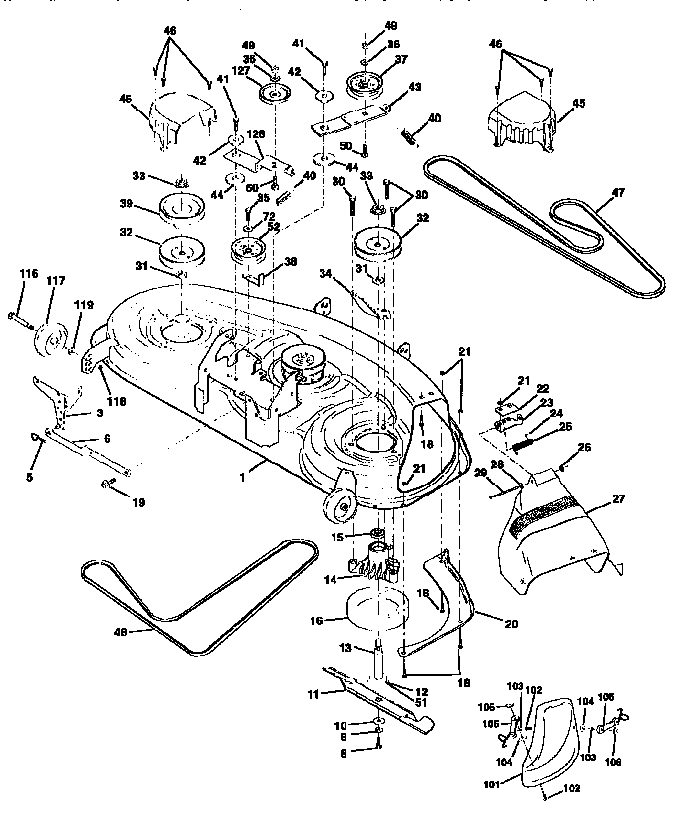

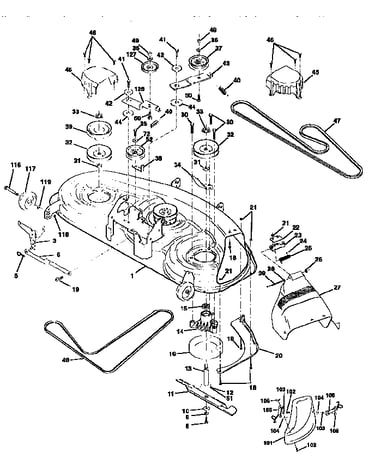

Mower deck diagram
Lawn tractor v-beltPart #144959
Replaced by #532144959
?Manufacturer substitutionThis part replaces 144959. Substitute parts can look different from the original.Get free shipping with Automatic Reorder
$38.49 |13% OFF Phone Price : $44.49In Stock - #11
Wheels and tires diagram
Hub capPart #104757X
Replaced by #532104757
?Manufacturer substitutionThis part replaces 104757X. Substitute parts can look different from the original.This item is not returnable$5.93 |14% OFF Phone Price : $6.93In Stock - #117

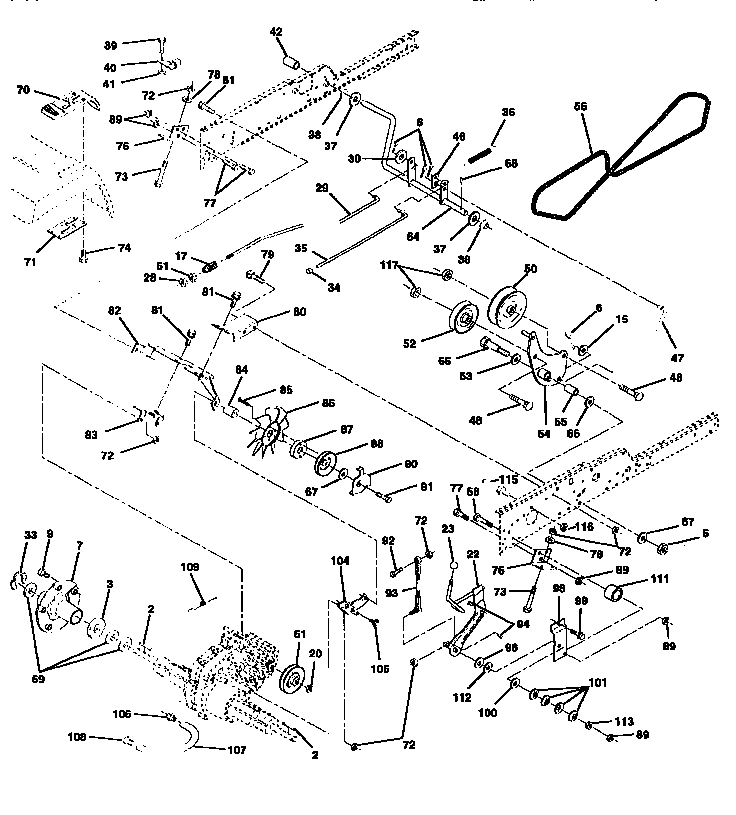

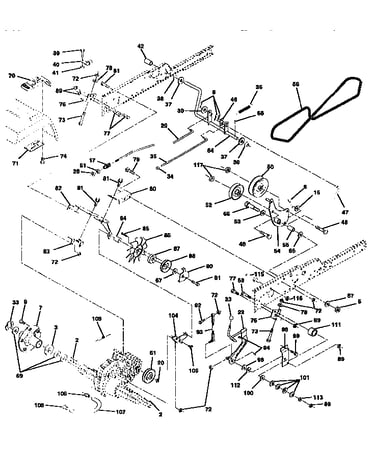

Ground drive diagram
Lock nutPart #73900600
Replaced by #532409149
?Manufacturer substitutionThis part replaces 73900600. Substitute parts can look different from the original.This item is not returnable$6.29 |14% OFF Phone Price : $7.29In Stock - #70

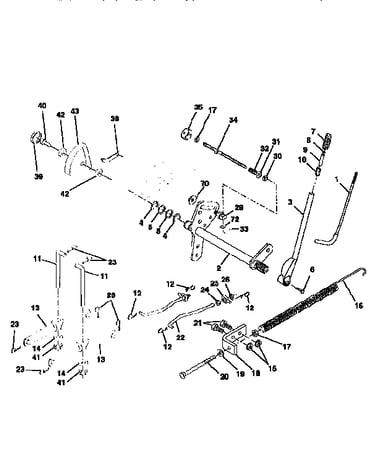

Lift assembly diagram
Hex flange lock nutPart #145212
Replaced by #532409149
?Manufacturer substitutionThis part replaces 145212. Substitute parts can look different from the original.This item is not returnable$6.29 |14% OFF Phone Price : $7.29In Stock - #106

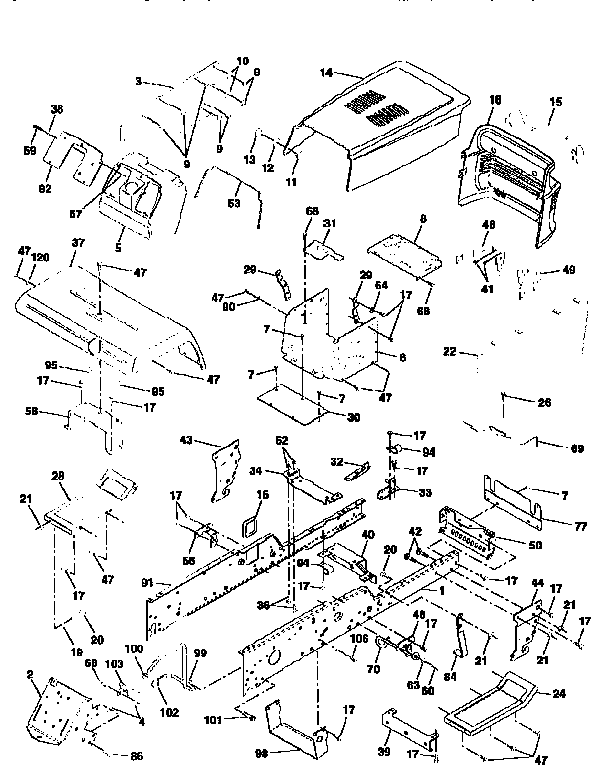

Chassis and enclosures diagram
ScrewPart #138776
Replaced by #584953901
?Manufacturer substitutionThis part replaces 138776. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - #30
Mower deck diagram
Washer head thread rolling screwPart #157722
Replaced by #584953901
?Manufacturer substitutionThis part replaces 157722. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - #43

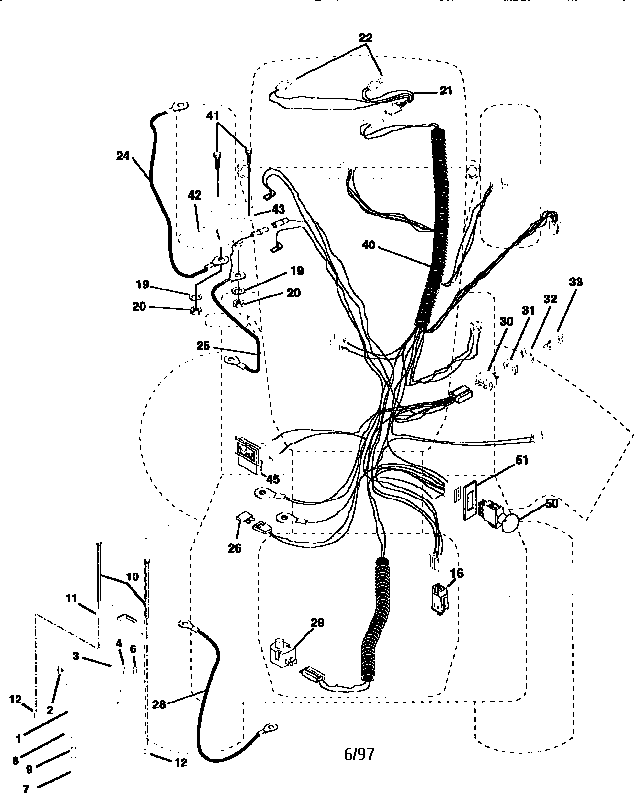

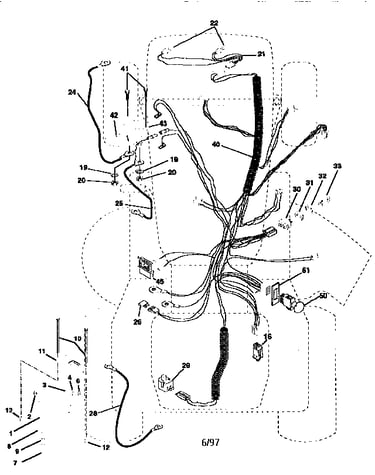

Electrical diagram
SolenoidPart #145673
Replaced by #532146154
?Manufacturer substitutionThis part replaces 145673. Substitute parts can look different from the original.$29.09 |17% OFF Phone Price : $35.09In Stock - #105
Mower deck diagram
Lawn tractor bagger attachment chute strapPart #160793
Replaced by #597000601
?Manufacturer substitutionThis part replaces 160793. Substitute parts can look different from the original.$8.90 |10% OFF Phone Price : $9.90In Stock - #50
Electrical diagram
Switch.pto.3Part #154963
Replaced by #582107601
?Manufacturer substitutionThis part replaces 154963. Substitute parts can look different from the original.$35.58 |14% OFF Phone Price : $41.58In Stock - #116
Mower deck diagram
Shoulder boltPart #137644
Replaced by #596434404
?Manufacturer substitutionThis part replaces 137644. Substitute parts can look different from the original.$7.20 |12% OFF Phone Price : $8.20In Stock
