Craftsman
Circular Saw

Model # 135109120 Official Craftsman 7-1/4" circular saw

Here are the diagrams and repair parts for Official Craftsman 135109120 7-1/4" circular saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Craftsman Data Plate 348328

#NI

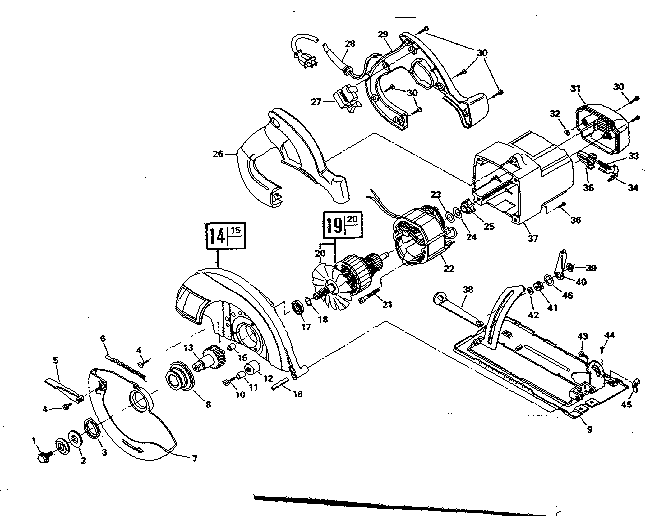

All parts diagram

Craftsman data plate

Part #348328

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Spring 341373
#6

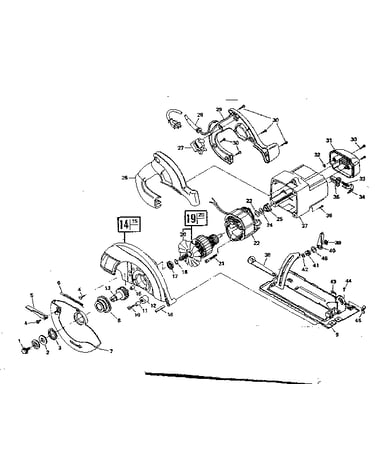

Unit parts diagram

Craftsman spring

Part #341373

The manufacturer no longer makes this part, and there's no substitute part

Brush Holder 341257
#35

Unit parts diagram

Brush holder

Part #341257

The manufacturer no longer makes this part, and there's no substitute part

Screw 347103
#21

Unit parts diagram

Screw

Part #347103

The manufacturer no longer makes this part, and there's no substitute part

Spiral Pin 341332
#16

Unit parts diagram

Spiral pin

Part #341332

The manufacturer no longer makes this part, and there's no substitute part

Washer 341465
#23

Unit parts diagram

Washer

Part #341465

The manufacturer no longer makes this part, and there's no substitute part

Screw Sems 341335
#36

Unit parts diagram

Screw sems

Part #341335

The manufacturer no longer makes this part, and there's no substitute part

Fan 341263
#20

Unit parts diagram

Fan

Part #341263

The manufacturer no longer makes this part, and there's no substitute part

Washer 68566
#42

Unit parts diagram

Washer

Part #68566

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing 341275
#37

Unit parts diagram

Motor housing

Part #341275

The manufacturer no longer makes this part, and there's no substitute part
