Model # HDA860-05
G.E. Dishwasher Pump and Motor Assembly

Asm Mech

Part #WD26X74

$188.83 |
6% OFF Phone Price : $200.83
Dishwasher

Model # HDA860-05 Official Hotpoint dishwasher

Here are the diagrams and repair parts for Official Hotpoint HDA860-05 dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forHDA860-05 Dishwasher

  • Asm Mech WD26X74
    #423

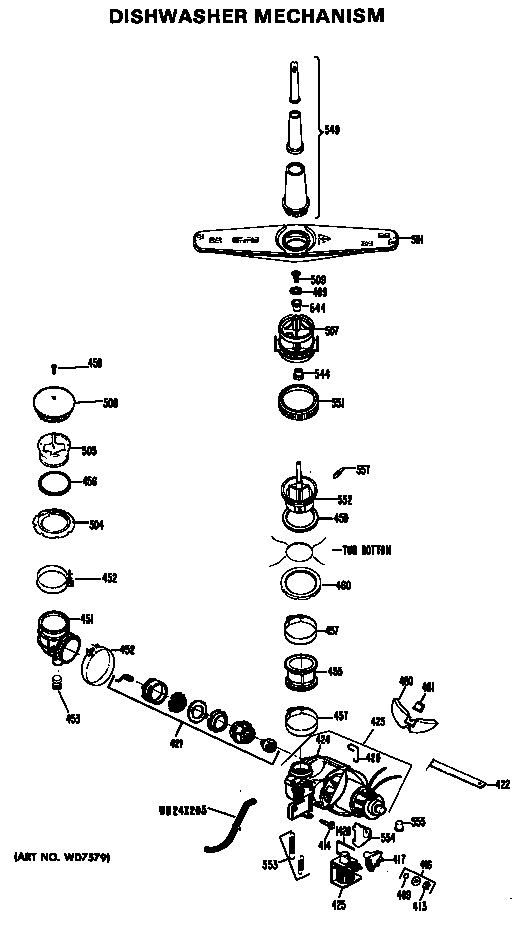

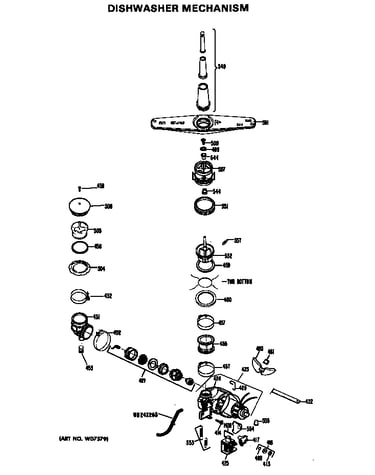

    Dishwasher mechanism diagram

    Asm mech

    Part #WD26X74

    Replaced by #WD26X10013

    ?
    Manufacturer substitution
    This part replaces WD26X74. Substitute parts can look different from the original.
    5 (2)
    BEST SELLER
    $188.83 |
    6% OFF Phone Price : $200.83
    In Stock
  • Dishwasher Drain Solenoid Link WD1X1316

    #NI

    All parts diagram

    Dishwasher drain solenoid link

    Part #WD1X1316

    BEST SELLER
    $34.60 |
    15% OFF Phone Price : $40.60
    In Stock
  • Fill Cap Wht WD12X5040
    #829

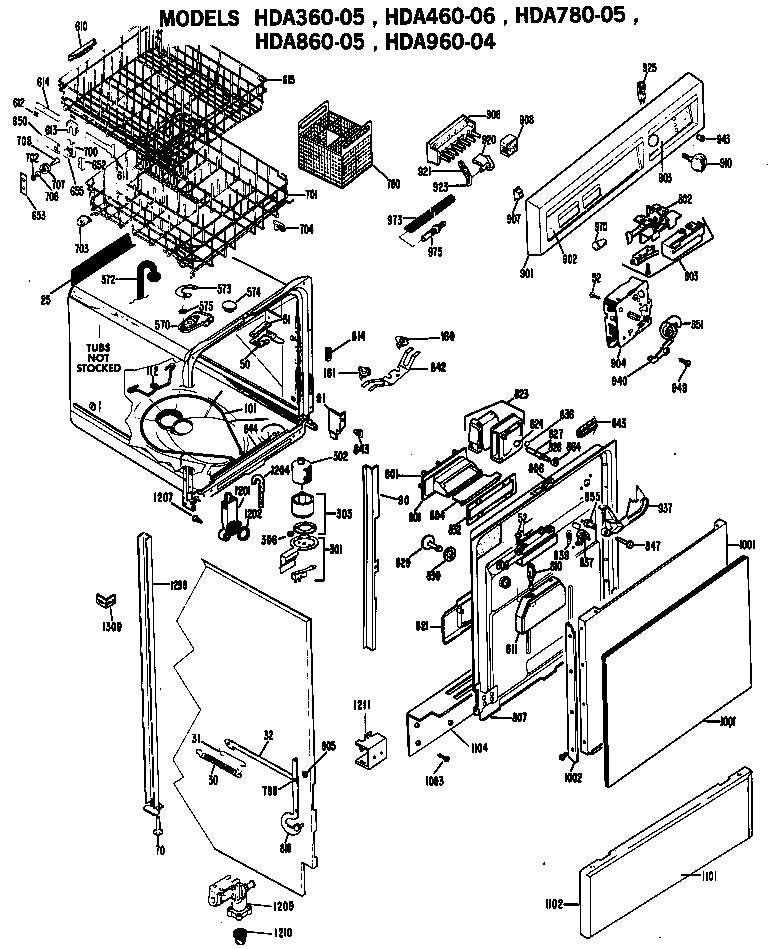

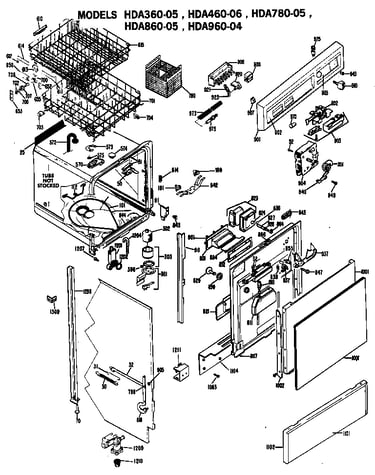

    Dishwasher assembly diagram

    Fill cap wht

    Part #WD12X5040

    Replaced by #WD12X24238

    ?
    Manufacturer substitution
    This part replaces WD12X5040. Substitute parts can look different from the original.
    4 (3)
    BEST SELLER
    This item is not returnable
    $8.04 |
    11% OFF Phone Price : $9.04
    In Stock
  • Dishwasher Gate Shaft Seal WD8X181
    #416

    Dishwasher mechanism diagram

    Dishwasher gate shaft seal

    Part #WD8X181

    5 (1)
    This item is not returnable
    $31.64 |
    16% OFF Phone Price : $37.64
    In Stock
  • Sump Clamp WD1X1319
    #452

    Dishwasher mechanism diagram

    Sump clamp

    Part #WD1X1319

    Replaced by #WD1X1392

    ?
    Manufacturer substitution
    This part replaces WD1X1319. Substitute parts can look different from the original.
    4 (1)
    $24.43 |
    20% OFF Phone Price : $30.43
    In Stock
  • Valve Water Inlet WD15X78
    #1209

    Dishwasher assembly diagram

    Valve water inlet

    Part #WD15X78

    Replaced by #WD15X93

    ?
    Manufacturer substitution
    This part replaces WD15X78. Substitute parts can look different from the original.
    5 (1)
    $53.11 |
    10% OFF Phone Price : $59.11
    In Stock
  • Dishwasher Actuator Spring Set WD3X721
    #553

    Dishwasher mechanism diagram

    Dishwasher actuator spring set

    Part #WD3X721

    $48.03 |
    11% OFF Phone Price : $54.03
    In Stock
  • Retainer WD3X487
    #413

    Dishwasher mechanism diagram

    Retainer

    Part #WD3X487

    Replaced by #WD3X487D

    ?
    Manufacturer substitution
    This part replaces WD3X487. Substitute parts can look different from the original.
    $23.69 |
    20% OFF Phone Price : $29.69
    In Stock
  • Silverware Basket WD28X5086
    #760

    Dishwasher assembly diagram

    Silverware basket

    Part #WD28X5086

    Replaced by #WD28X265

    ?
    Manufacturer substitution
    This part replaces WD28X5086. Substitute parts can look different from the original.
    5 (3)
    $62.60 |
    9% OFF Phone Price : $68.60
    In Stock
  • Bsktslvwrasm WD28X241
    #760

    Dishwasher assembly diagram

    Bsktslvwrasm

    Part #WD28X241

    Replaced by #WD28X265

    ?
    Manufacturer substitution
    This part replaces WD28X241. Substitute parts can look different from the original.
    5 (3)
    $62.60 |
    9% OFF Phone Price : $68.60
    In Stock
