Samsung
Microwave/Hood Combo

Model # ME21H706MQB/AA-01 Official Samsung microwave/hood combo

Here are the diagrams and repair parts for Official Samsung ME21H706MQB-AA-01 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

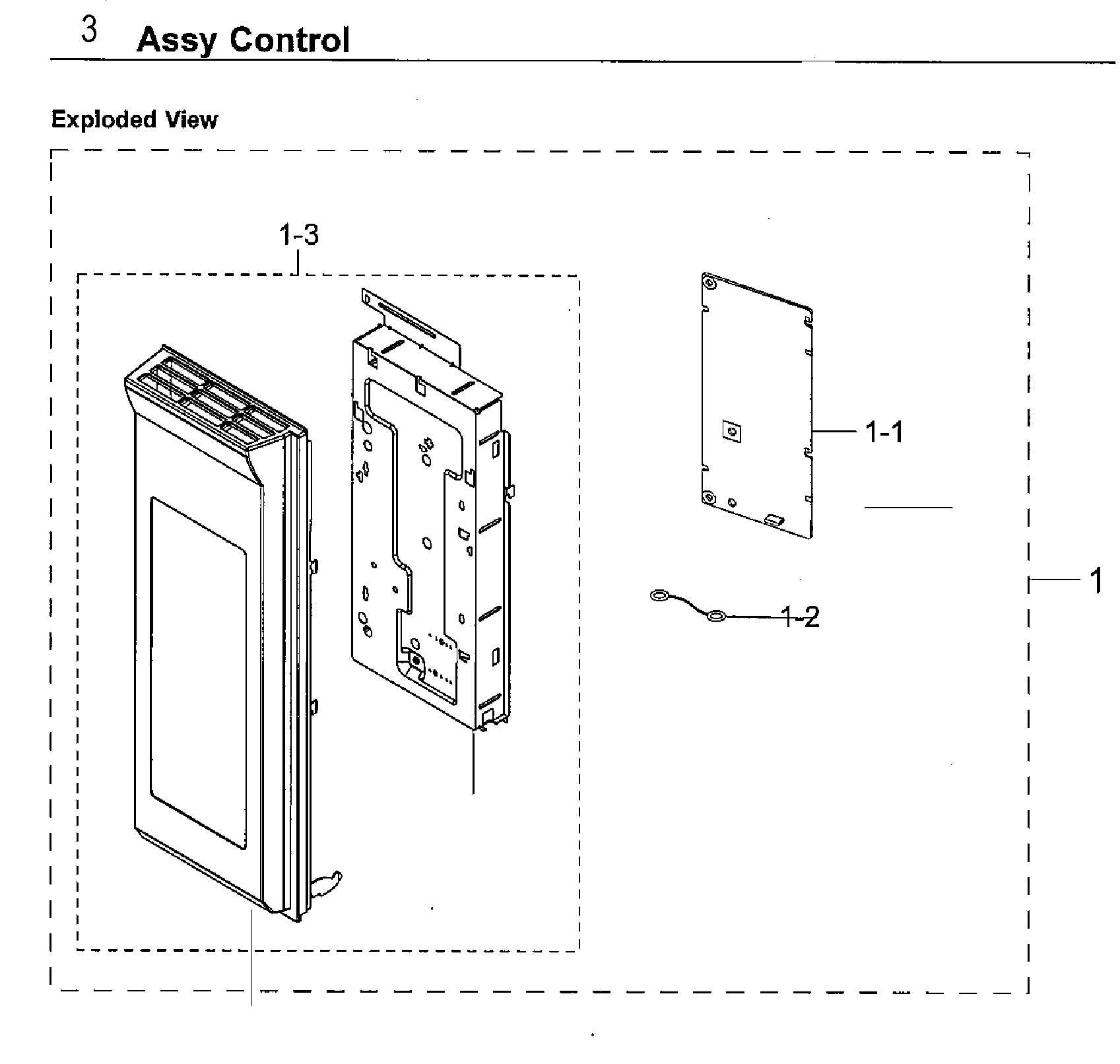

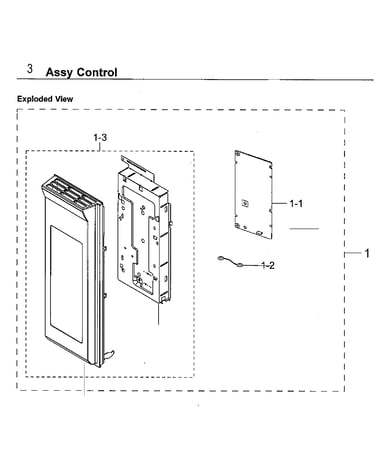

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |

Microwave Magnetron (replaces Om75p21esgn) OM75P-21-ESGN
#39

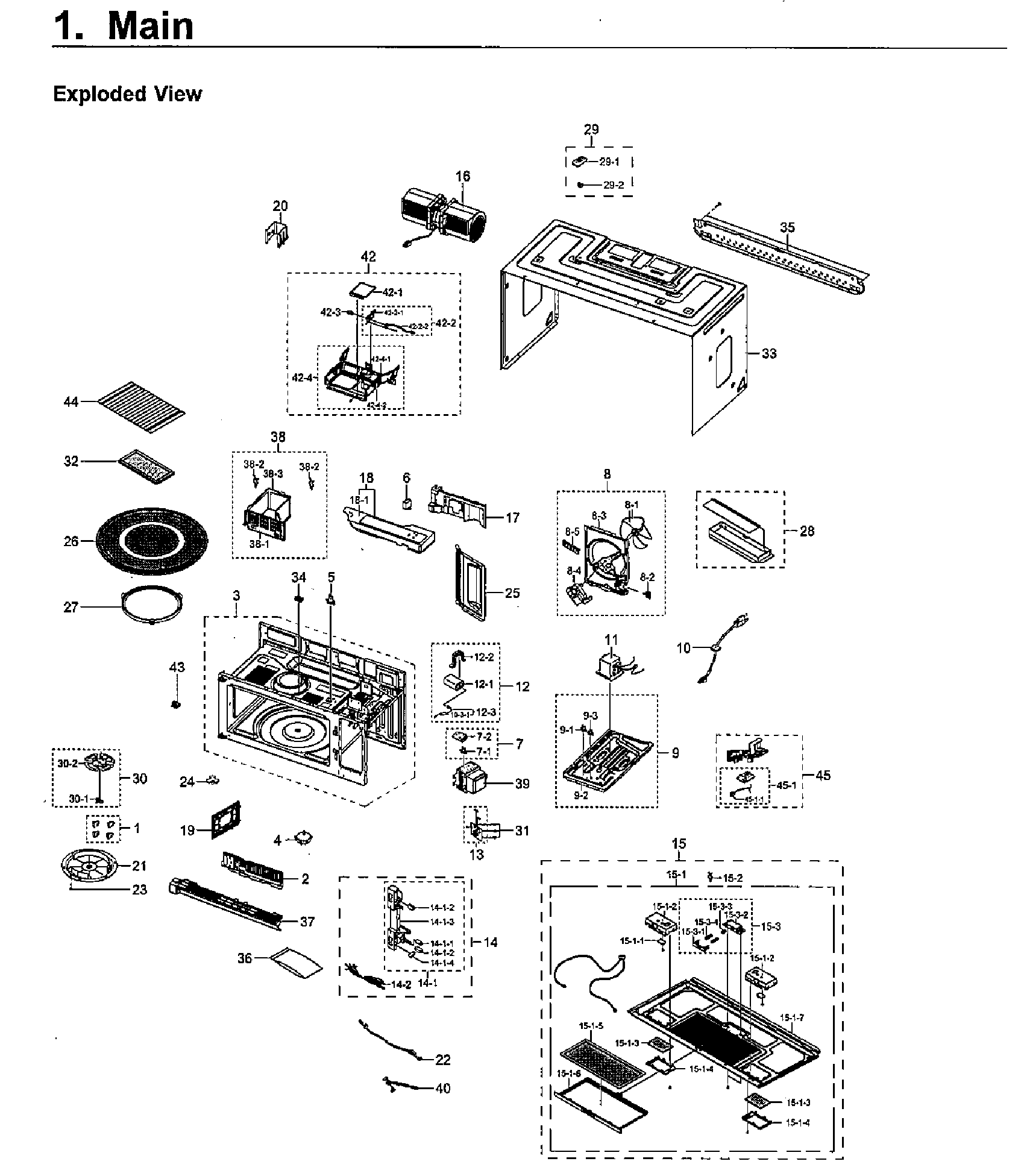

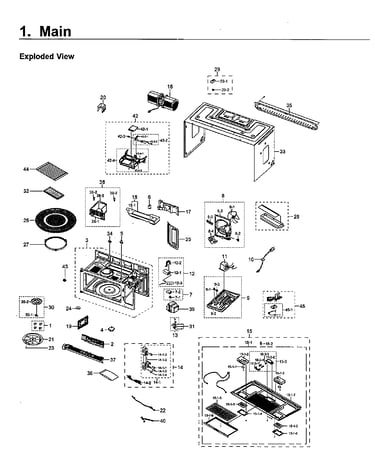

Cabinet parts diagram

Microwave magnetron (replaces om75p21esgn)

Part #OM75P-21-ESGN

BEST SELLER
$128.65
9% OFF Phone Price : $140.65
In Stock
Microwave High-voltage Capacitor DE96-00269A
#12

Cabinet parts diagram

Microwave high-voltage capacitor

Part #DE96-00269A

BEST SELLER
$36.17
14% OFF Phone Price : $42.17
In Stock
Microwave High-voltage Diode (replaces De91-70063a, De91-70063b, De91-70063e) DE91-70063D
#12-3

Cabinet parts diagram

Microwave high-voltage diode (replaces de91-70063a, de91-70063b, de91-70063e)

Part #DE91-70063D

BEST SELLER
$17.40
10% OFF Phone Price : $19.40
In Stock
Microwave High-voltage Capacitor (replaces 2501-000258) 2501-001011
#12-1

Cabinet parts diagram

Microwave high-voltage capacitor (replaces 2501-000258)

Part #2501-001011

BEST SELLER
$55.81
10% OFF Phone Price : $61.81
In Stock
Microwave High-voltage Transformer DE26-00126B
#11

Cabinet parts diagram

Microwave high-voltage transformer

Part #DE26-00126B

Replaced by #DE26-00126A

?
Manufacturer substitution
This part replaces DE26-00126B. Substitute parts can look different from the original.
BEST SELLER
$116.01
9% OFF Phone Price : $128.01
In Stock
Microwave Door Latch DE64-01308A
#1-7

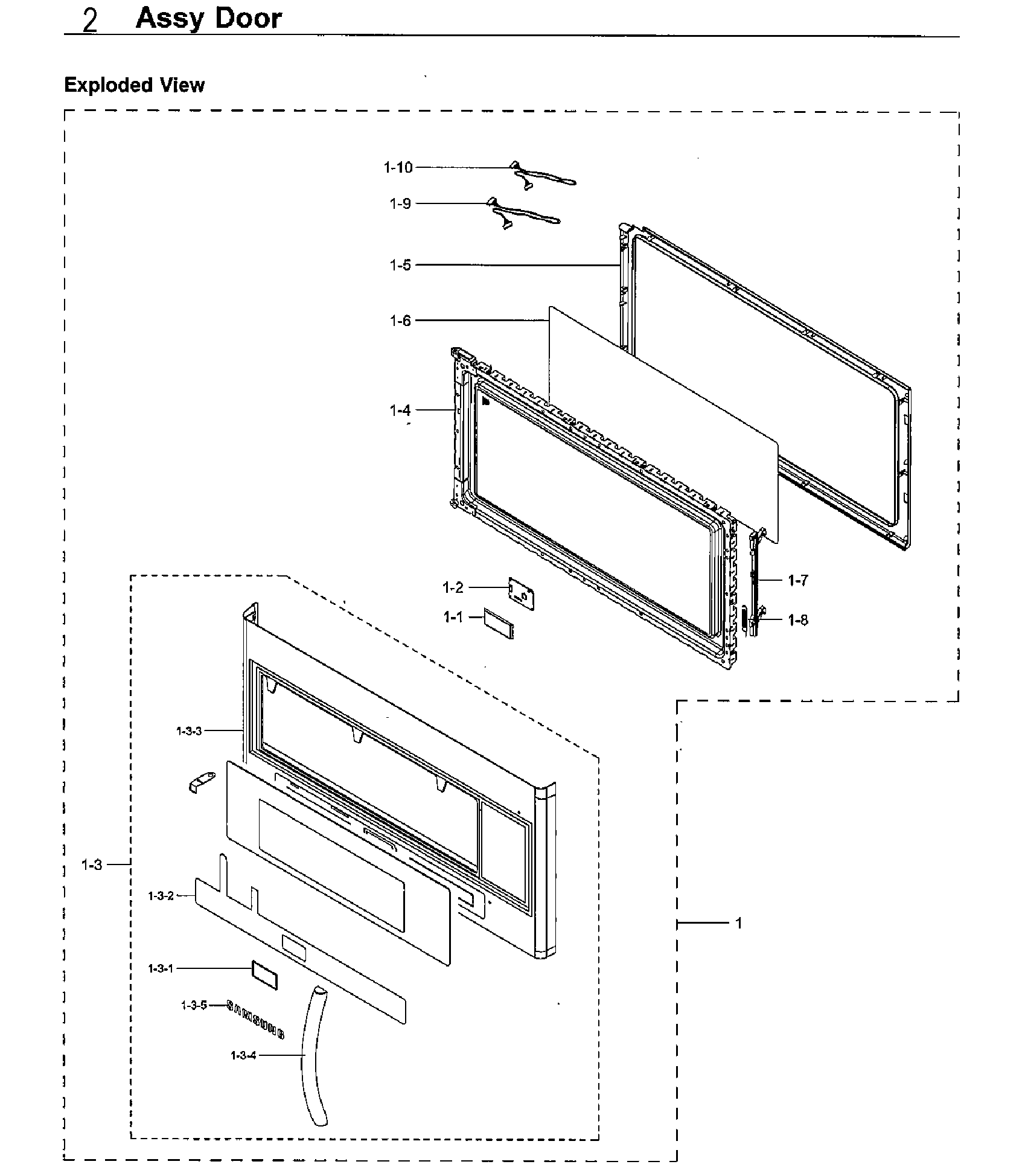

Door diagram

Microwave door latch

Part #DE64-01308A

Replaced by #DE64-00760A

?
Manufacturer substitution
This part replaces DE64-01308A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$21.83
22% OFF Phone Price : $27.83
Back Order
Microwave Door Interlock Switch (replaces 3405-000178) 3405-001034
#1412

Cabinet parts diagram

Microwave door interlock switch (replaces 3405-000178)

Part #3405-001034

BEST SELLER
$17.74
10% OFF Phone Price : $19.74
Back Order
Microwave Thermostat (replaces De47-20007a) DE47-20007B
#7-1

Cabinet parts diagram

Microwave thermostat (replaces de47-20007a)

Part #DE47-20007B

BEST SELLER
$14.09
12% OFF Phone Price : $16.09
In Stock
Microwave High-voltage Diode DE59-00002A
#1031

Cabinet parts diagram

Microwave high-voltage diode

Part #DE59-00002A

BEST SELLER
This item is not returnable
$17.89
10% OFF Phone Price : $19.89
In Stock
Microwave Door Micro-switch 3405-001033
#1411

Cabinet parts diagram

Microwave door micro-switch

Part #3405-001033

BEST SELLER
$16.00
11% OFF Phone Price : $18.00
In Stock
