Model # 106173780 Official Craftsman twin-cylinder tank-type air compressor

Here are the diagrams and repair parts for Official Craftsman 106173780 twin-cylinder tank-type air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

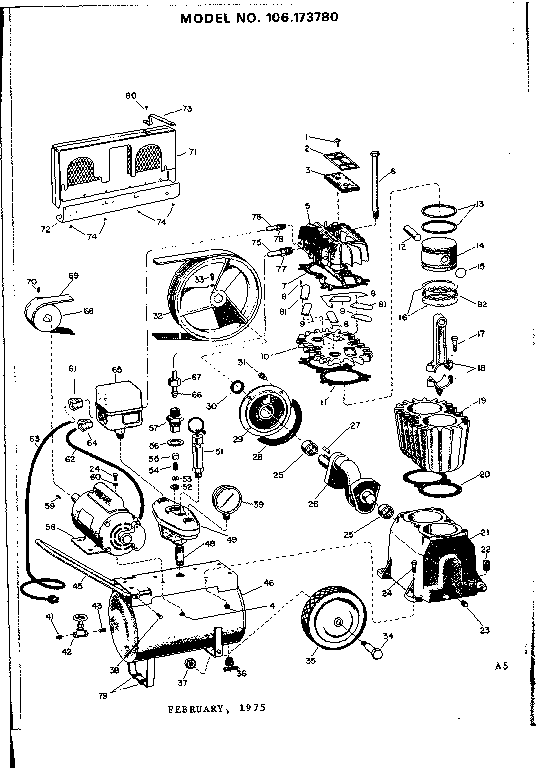

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Valve V-2022
#51

Unit diagram

Valve

Part #V-2022

The manufacturer no longer makes this part, and there's no substitute part

Handle VS-10
#45

Unit diagram

Handle

Part #VS-10

The manufacturer no longer makes this part, and there's no substitute part

Gasket XA-35
#7

Unit diagram

Gasket

Part #XA-35

The manufacturer no longer makes this part, and there's no substitute part

Axle Bolt STD-334
#34

Unit diagram

Axle bolt

Part #STD-334

The manufacturer no longer makes this part, and there's no substitute part

Drain Cock STD-301
#36

Unit diagram

Drain cock

Part #STD-301

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal STD-216
#30

Unit diagram

Oil seal

Part #STD-216

The manufacturer no longer makes this part, and there's no substitute part

Poly V Belt BT-31
#69

Unit diagram

Poly v belt

Part #BT-31

The manufacturer no longer makes this part, and there's no substitute part

Motor MC-58
#58

Unit diagram

Motor

Part #MC-58

The manufacturer no longer makes this part, and there's no substitute part

Pressure Gauge GA-301
#39

Unit diagram

Pressure gauge

Part #GA-301

The manufacturer no longer makes this part, and there's no substitute part

Flappr Valve VS-18
#9

Unit diagram

Flappr valve

Part #VS-18

The manufacturer no longer makes this part, and there's no substitute part
