Model # YMED8000AW0 Official Maytag electric dryer

Here are the diagrams and repair parts for Official Maytag YMED8000AW0 electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

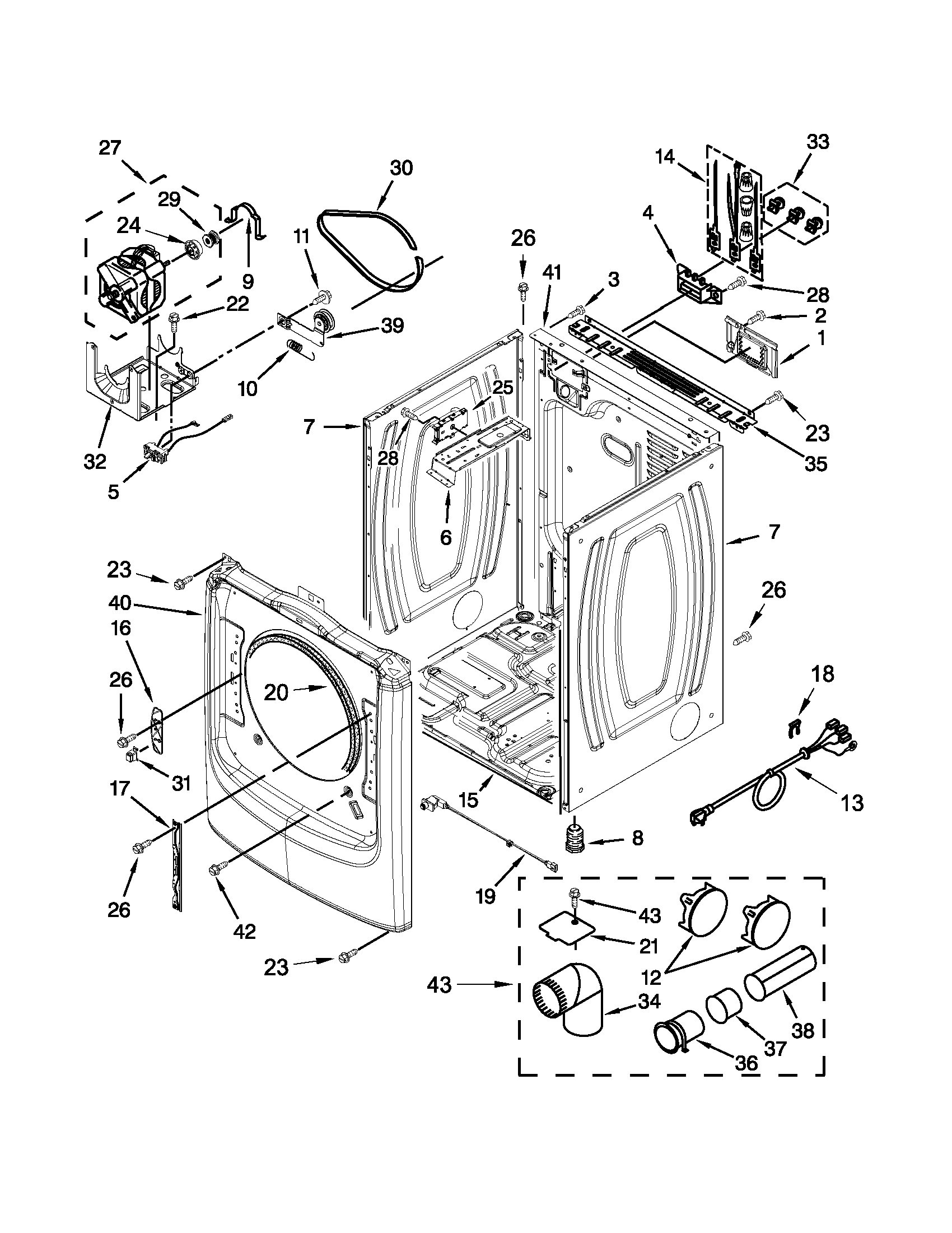

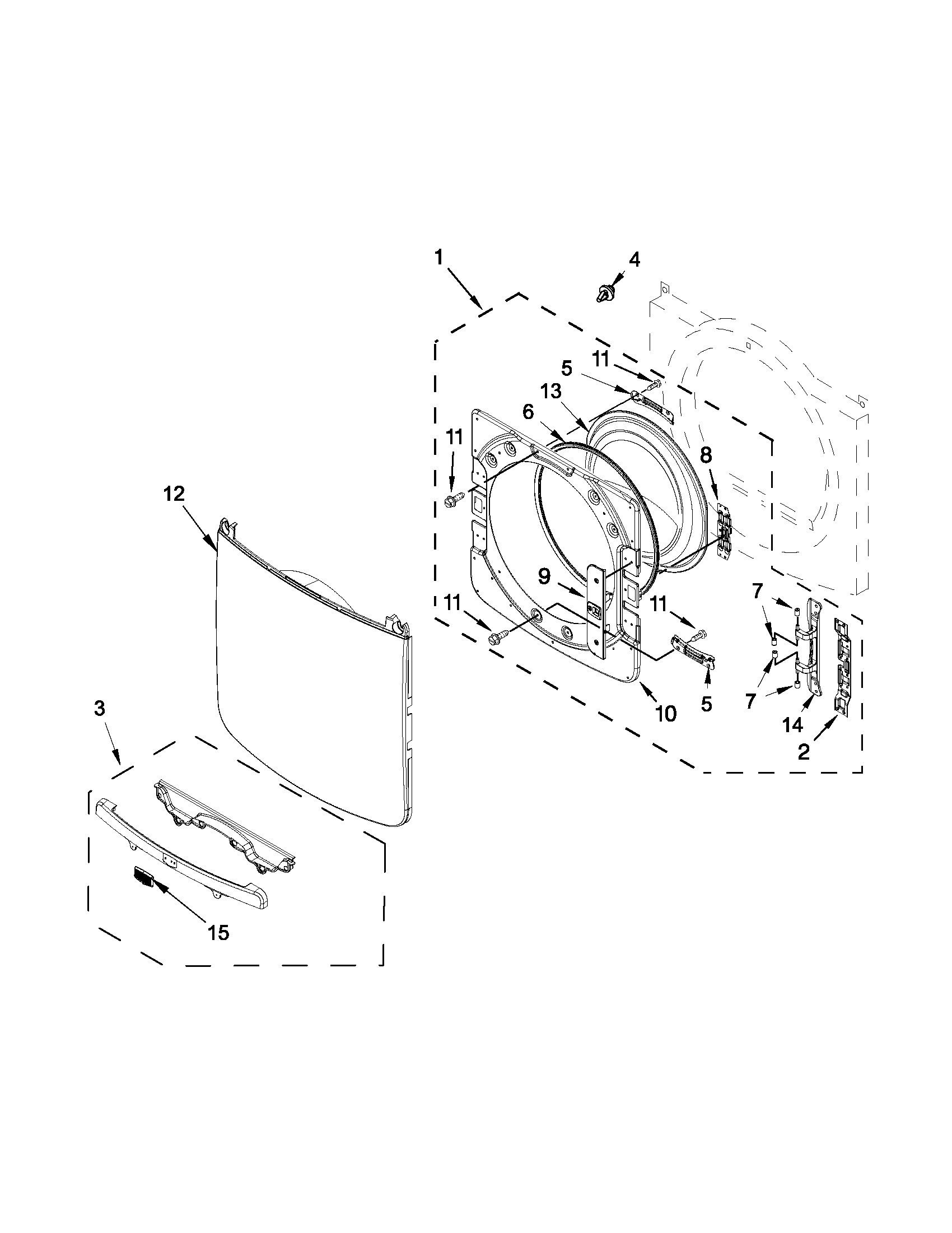

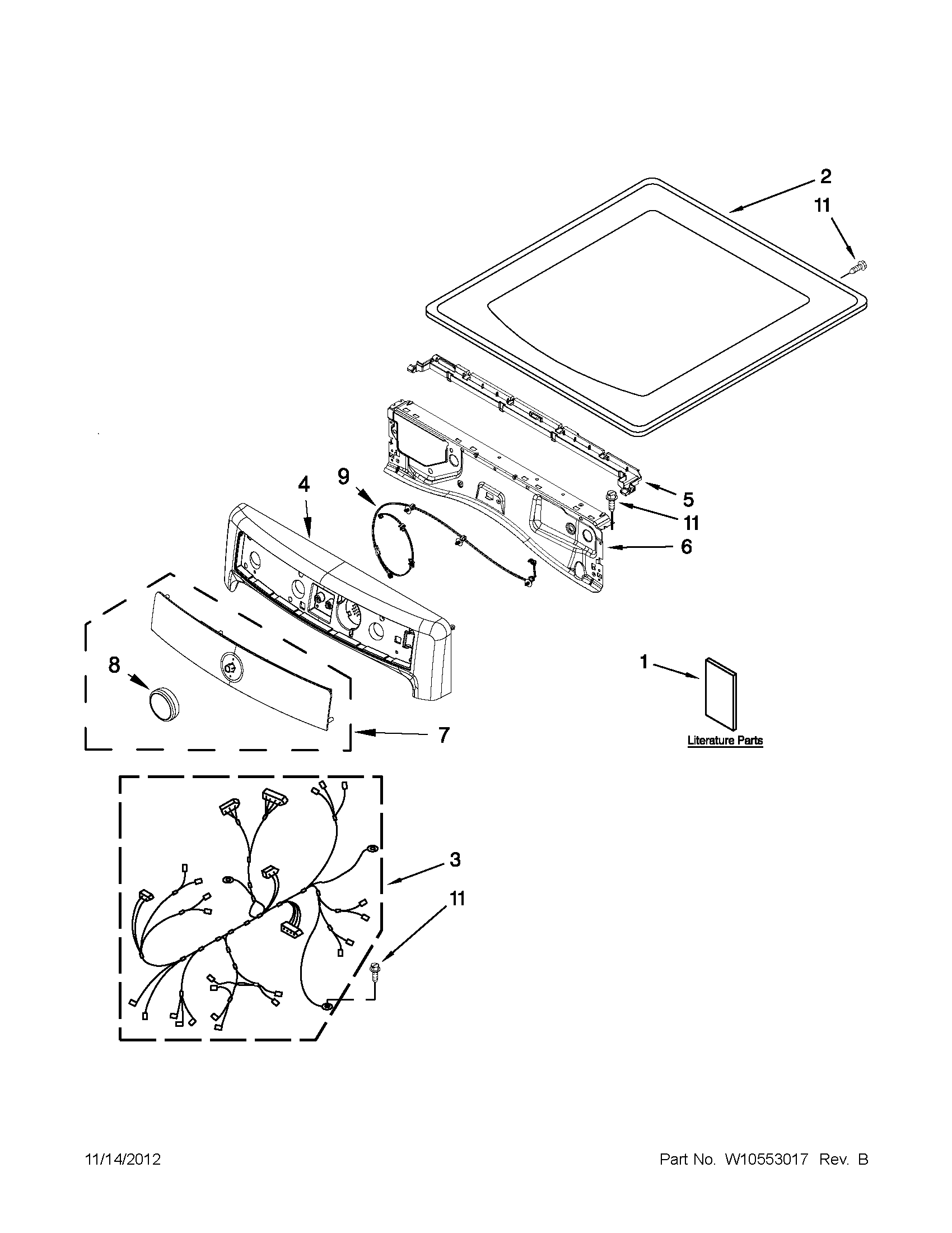

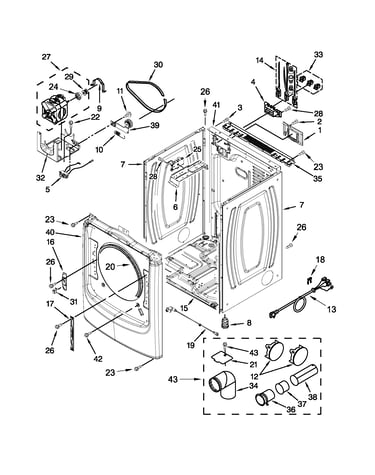

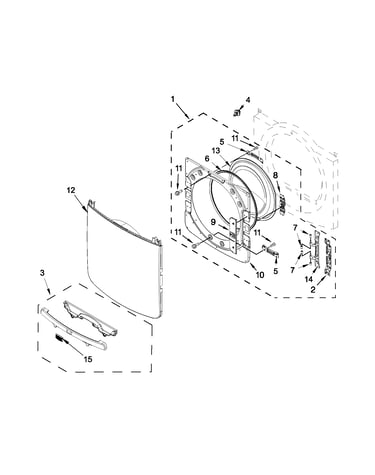

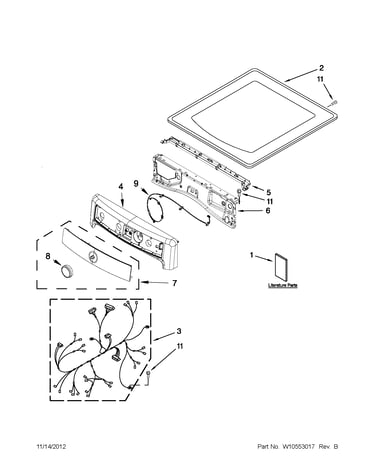

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
Dryer Thermal Fuse 3392519
#9

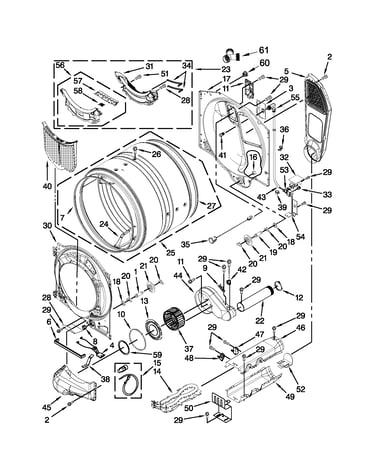

Bulkhead parts diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$18.56 |
10% OFF Phone Price : $20.56
In Stock
Dryer Drum Support Roller W10314171
#21

Bulkhead parts diagram

Dryer drum support roller

Part #W10314171

Replaced by #WPW10314173

?
Manufacturer substitution
This part replaces W10314171. Substitute parts can look different from the original.
BEST SELLER
$15.77 |
11% OFF Phone Price : $17.77
In Stock
Dryer Thermistor 8577274
#42

Bulkhead parts diagram

Dryer thermistor

Part #8577274

Replaced by #WP8577274

?
Manufacturer substitution
This part replaces 8577274. Substitute parts can look different from the original.
BEST SELLER
$31.84 |
16% OFF Phone Price : $37.84
In Stock
Dryer Repair Kit 80047
#NI

Optional parts (not included) diagram

Dryer repair kit

Part #80047

Replaced by #4392067

?
Manufacturer substitution
This part replaces 80047. Substitute parts can look different from the original.
BEST SELLER
$47.88 |
11% OFF Phone Price : $53.88
In Stock
Dryer Heating Element 8544771
#14

Bulkhead parts diagram

Dryer heating element

Part #8544771

Replaced by #WP8544771

?
Manufacturer substitution
This part replaces 8544771. Substitute parts can look different from the original.
BEST SELLER
$74.48 |
7% OFF Phone Price : $80.48
In Stock
Dryer Thermal Cut-off Fuse Kit 8318314
#47

Bulkhead parts diagram

Dryer thermal cut-off fuse kit

Part #8318314

Replaced by #279973

?
Manufacturer substitution
This part replaces 8318314. Substitute parts can look different from the original.
BEST SELLER
$41.07 |
13% OFF Phone Price : $47.07
In Stock
Washer Seal W10521118
#27

Bulkhead parts diagram

Washer seal

Part #W10521118

Replaced by #280114

?
Manufacturer substitution
This part replaces W10521118. Substitute parts can look different from the original.
BEST SELLER
$31.50 |
16% OFF Phone Price : $37.50
In Stock
Dryer Tri-ring Retainer 690997
#20

Bulkhead parts diagram

Dryer tri-ring retainer

Part #690997

Replaced by #WPW10512946

?
Manufacturer substitution
This part replaces 690997. Substitute parts can look different from the original.
BEST SELLER
$6.53 |
13% OFF Phone Price : $7.53
In Stock
Dryer Moisture Sensor 3387223
#34

Bulkhead parts diagram

Dryer moisture sensor

Part #3387223

Replaced by #WP3387223

?
Manufacturer substitution
This part replaces 3387223. Substitute parts can look different from the original.
BEST SELLER
$7.23 |
12% OFF Phone Price : $8.23
In Stock
Dryer Drum Support Roller Shaft W10359272
#19

Bulkhead parts diagram

Dryer drum support roller shaft

Part #W10359272

Replaced by #WPW10359272

?
Manufacturer substitution
This part replaces W10359272. Substitute parts can look different from the original.
BEST SELLER
$34.73 |
15% OFF Phone Price : $40.73
In Stock
