Kenmore
Top-Mount Refrigerator

Model # 25379242702 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 25379242702 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

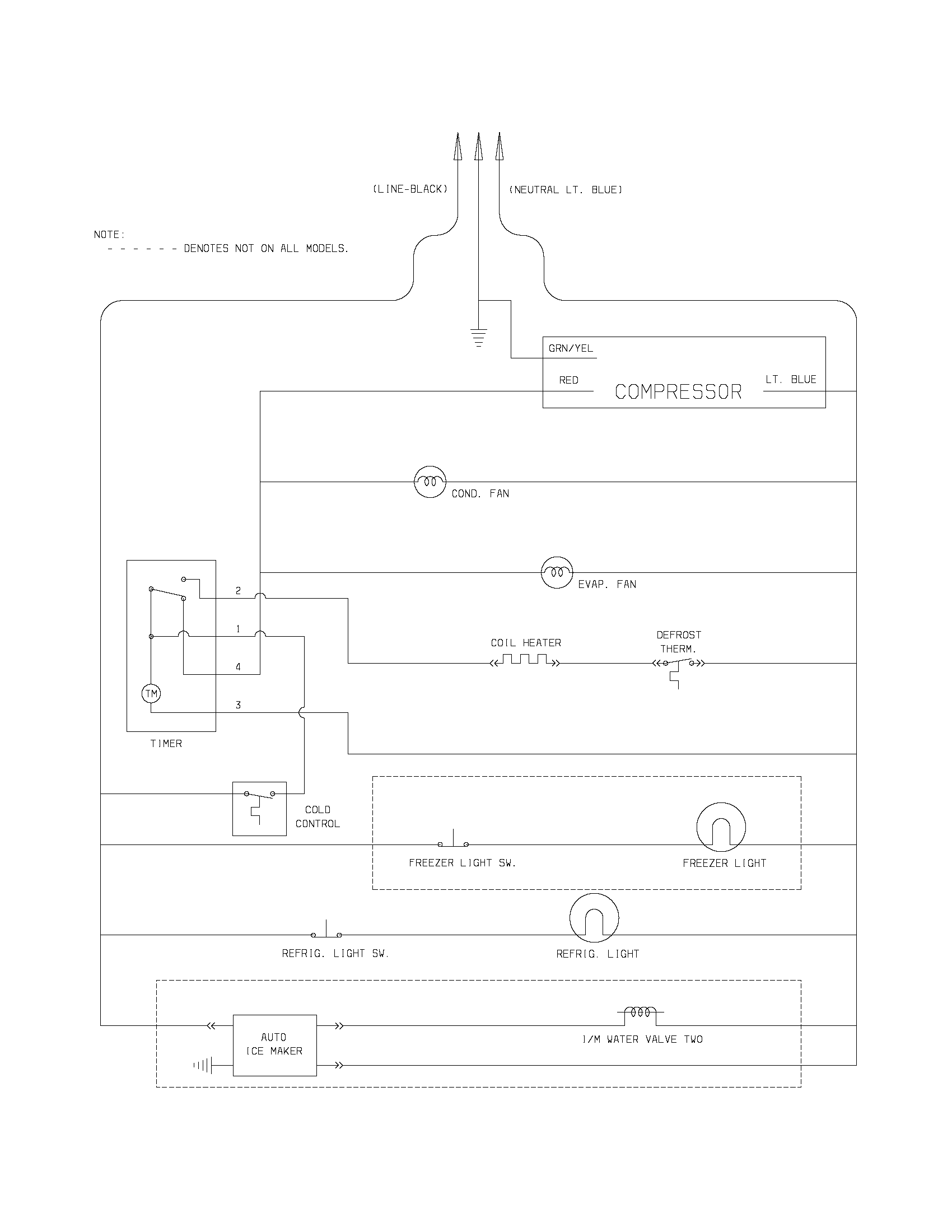

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 222 parts  |
Refrigerator Ice Maker Fill Cup 5304456671
#19

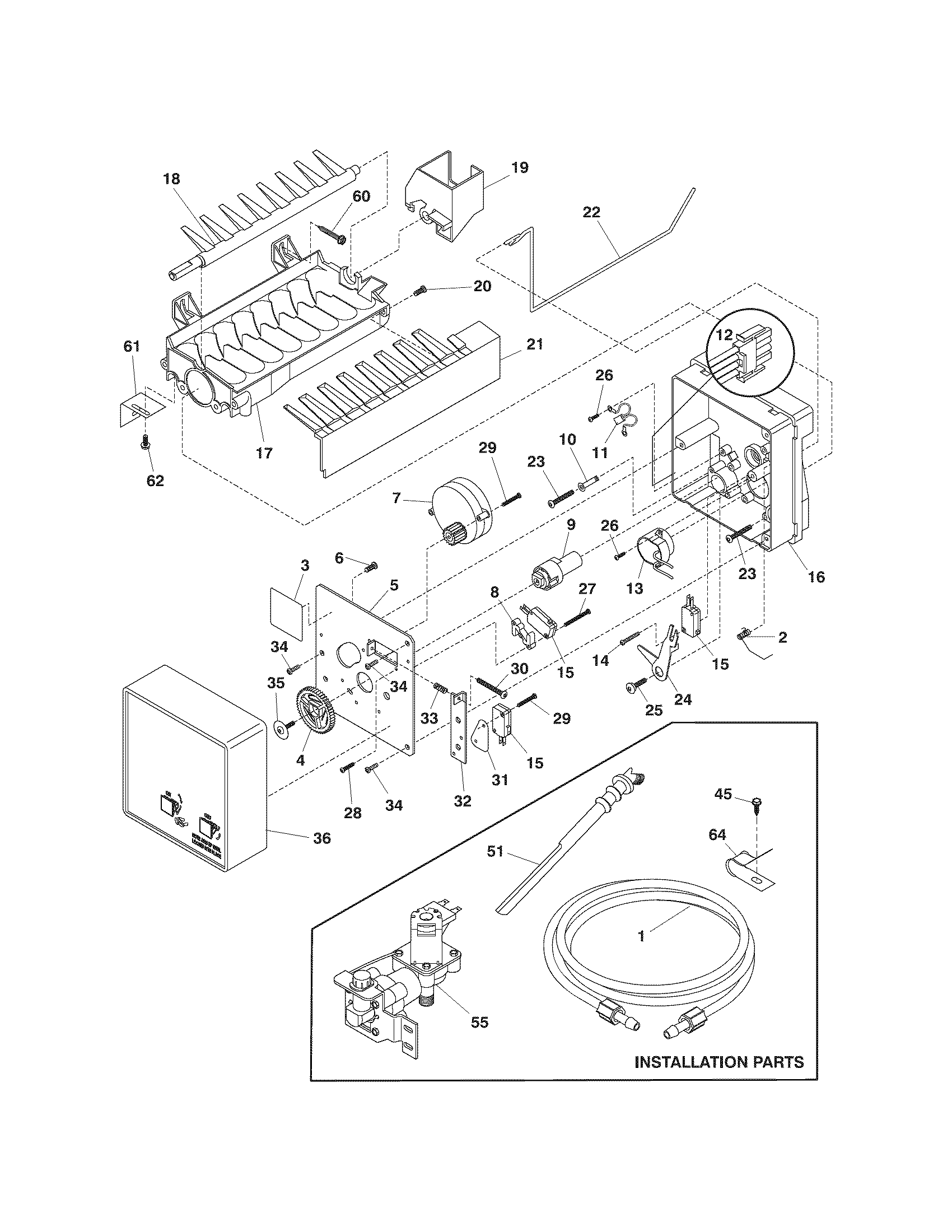

Ice maker diagram

Refrigerator ice maker fill cup

Part #5304456671

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5304456671. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Ice Maker Mold 5304456669
#17

Ice maker diagram

Ice maker mold

Part #5304456669

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5304456669. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Refrigerator Ice Maker Assembly 241642501
#NI

Ice maker diagram

Refrigerator ice maker assembly

Part #241642501

Replaced by #241798231

?
Manufacturer substitution
This part replaces 241642501. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Ice Maker Motor 5304445222
#7

Ice maker diagram

Ice maker motor

Part #5304445222

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5304445222. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Refrigerator Filter Drier 218944001
#4

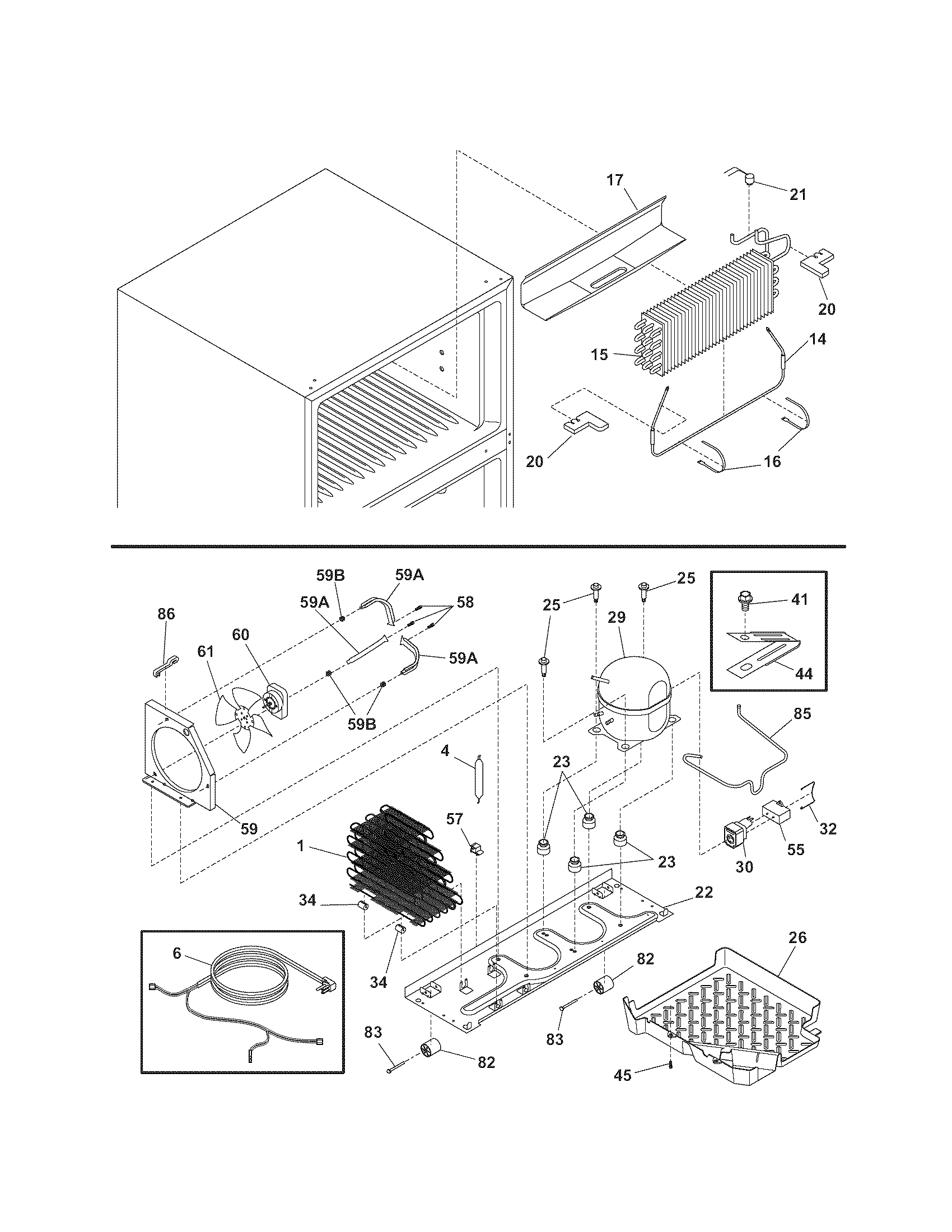

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Light Bulb (replaces 7241555401) 241555401
#15

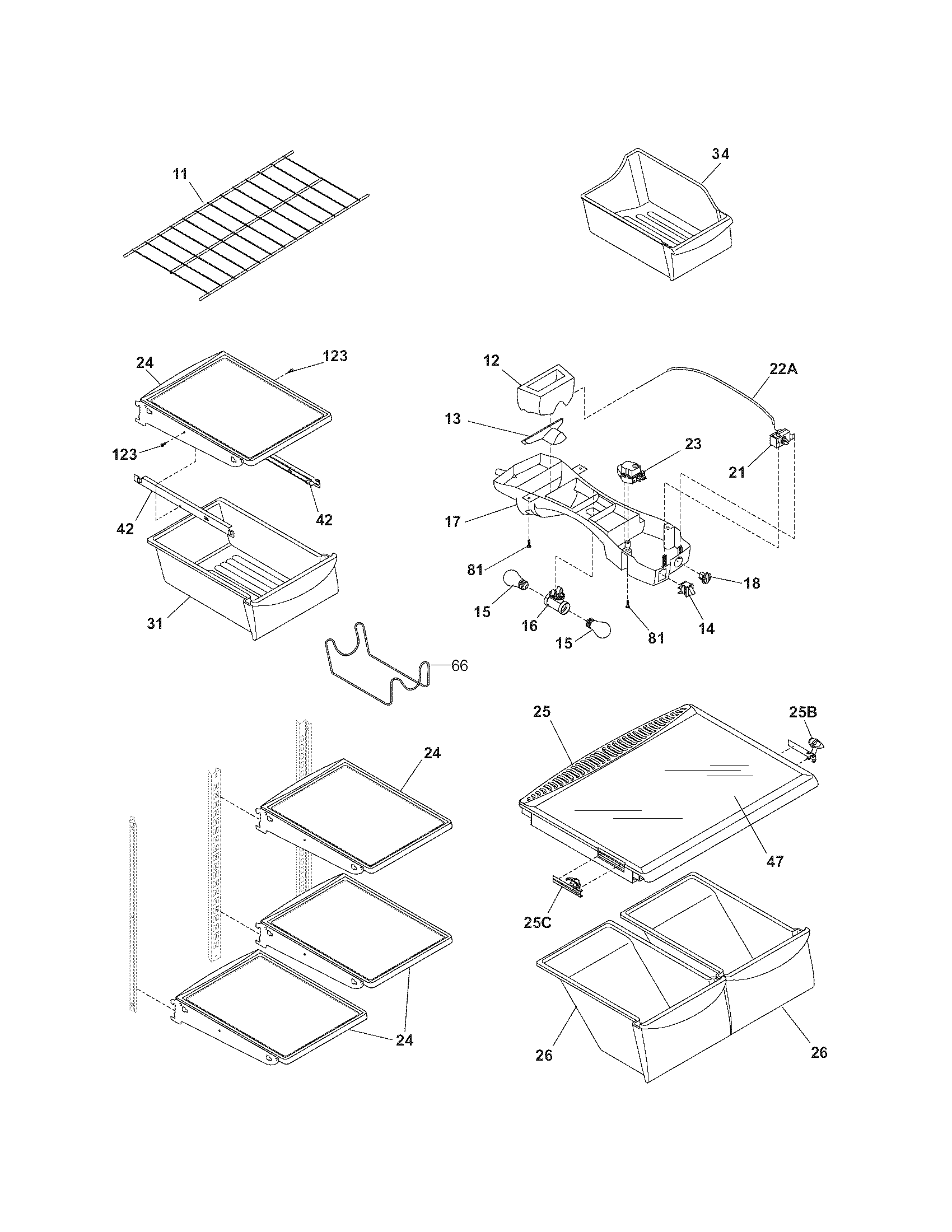

Shelves diagram

Refrigerator light bulb (replaces 7241555401)

Part #241555401

Replaced by #316538904

?
Manufacturer substitution
This part replaces 241555401. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Refrigerator Door 240514608
#2

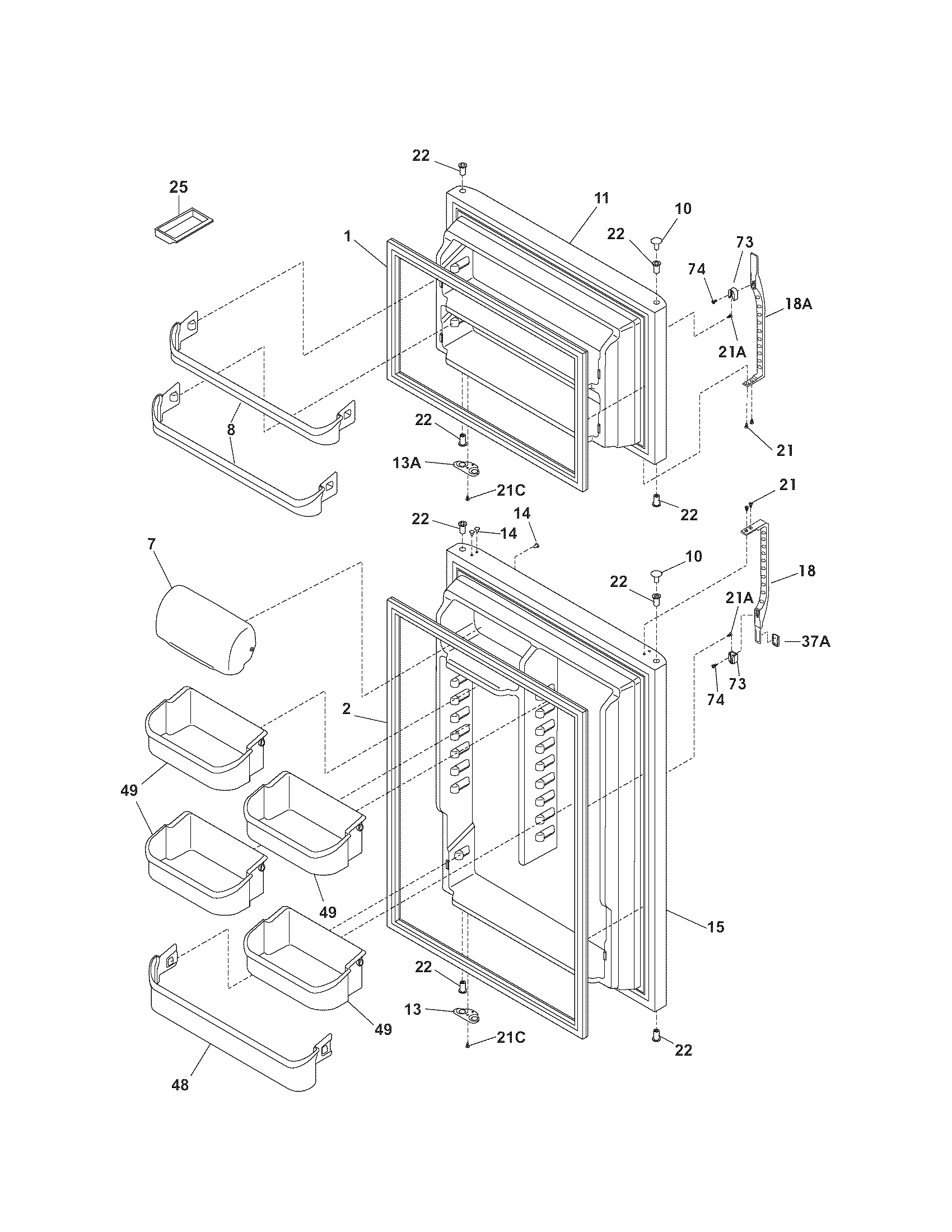

Doors diagram

Refrigerator door

Part #240514608

Replaced by #241872513

?
Manufacturer substitution
This part replaces 240514608. Substitute parts can look different from the original.
BEST SELLER
$100.58 |
11% OFF Phone Price : $112.58
In Stock
Chest Freezer Run Capacitor 218909915
#55

System diagram

Chest freezer run capacitor

Part #218909915

Replaced by #297286803

?
Manufacturer substitution
This part replaces 218909915. Substitute parts can look different from the original.
BEST SELLER
$36.46 |
14% OFF Phone Price : $42.46
In Stock
Refrigerator Evaporator Motor 240369702
#13

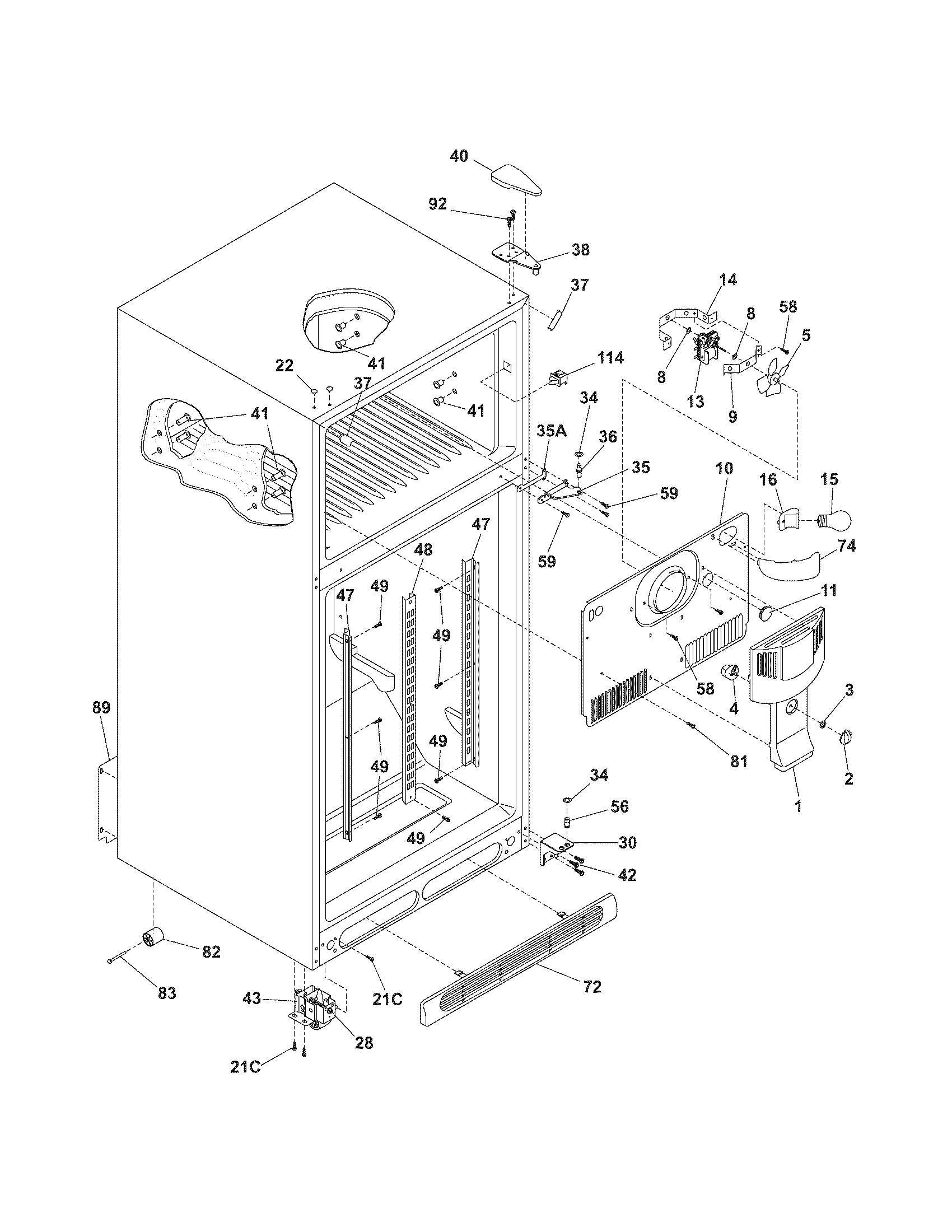

Cabinet diagram

Refrigerator evaporator motor

Part #240369702

Replaced by #5303918549

?
Manufacturer substitution
This part replaces 240369702. Substitute parts can look different from the original.
BEST SELLER
$71.31 |
8% OFF Phone Price : $77.31
In Stock
Refrigerator Temperature Control Thermostat 5304445058
#21

Shelves diagram

Refrigerator temperature control thermostat

Part #5304445058

Replaced by #241537103

?
Manufacturer substitution
This part replaces 5304445058. Substitute parts can look different from the original.
BEST SELLER
$81.31 |
7% OFF Phone Price : $87.31
In Stock
