Dishwasher

Model # SHX45M05UC/48 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHX45M05UC/48 dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part

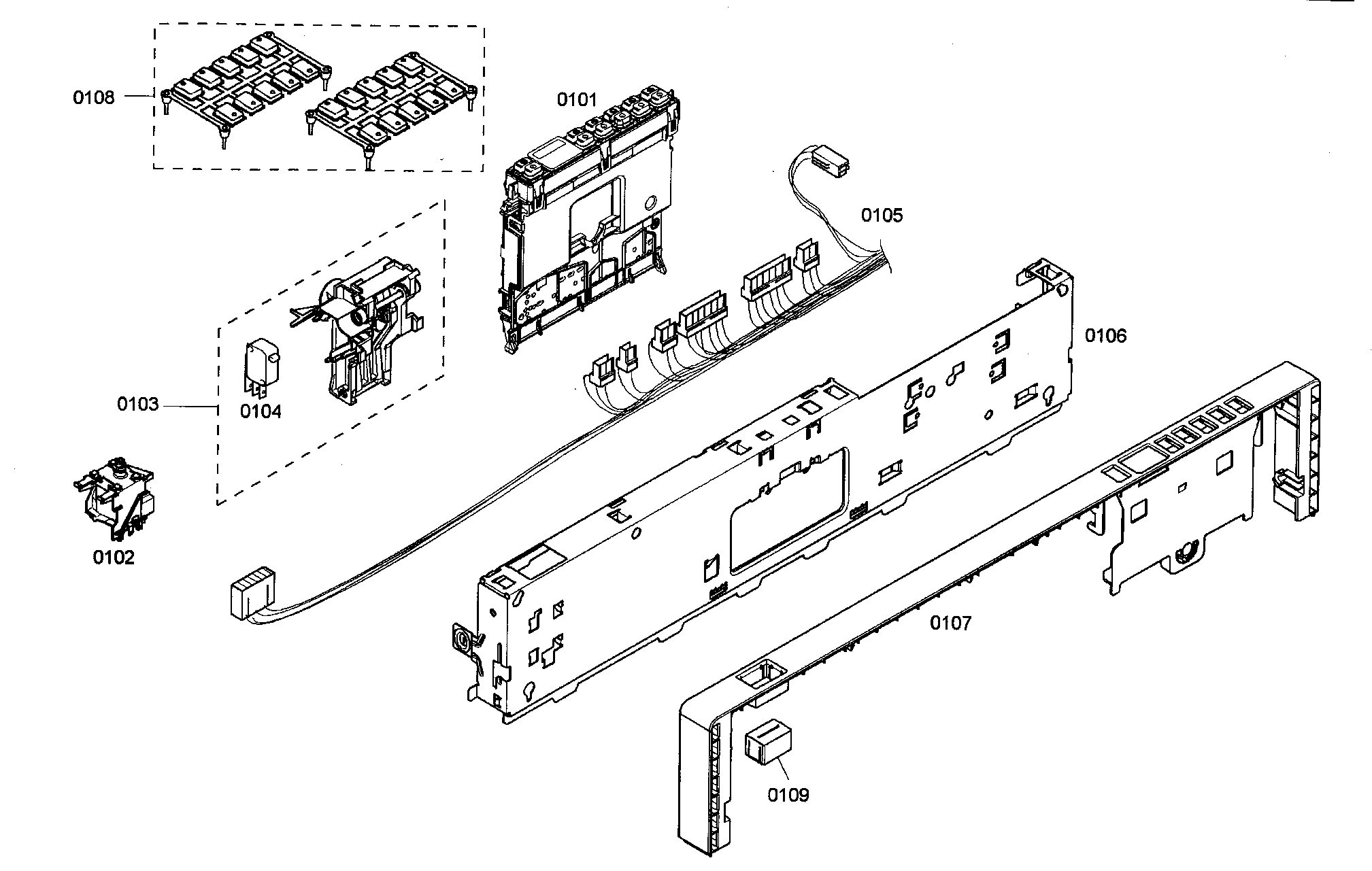

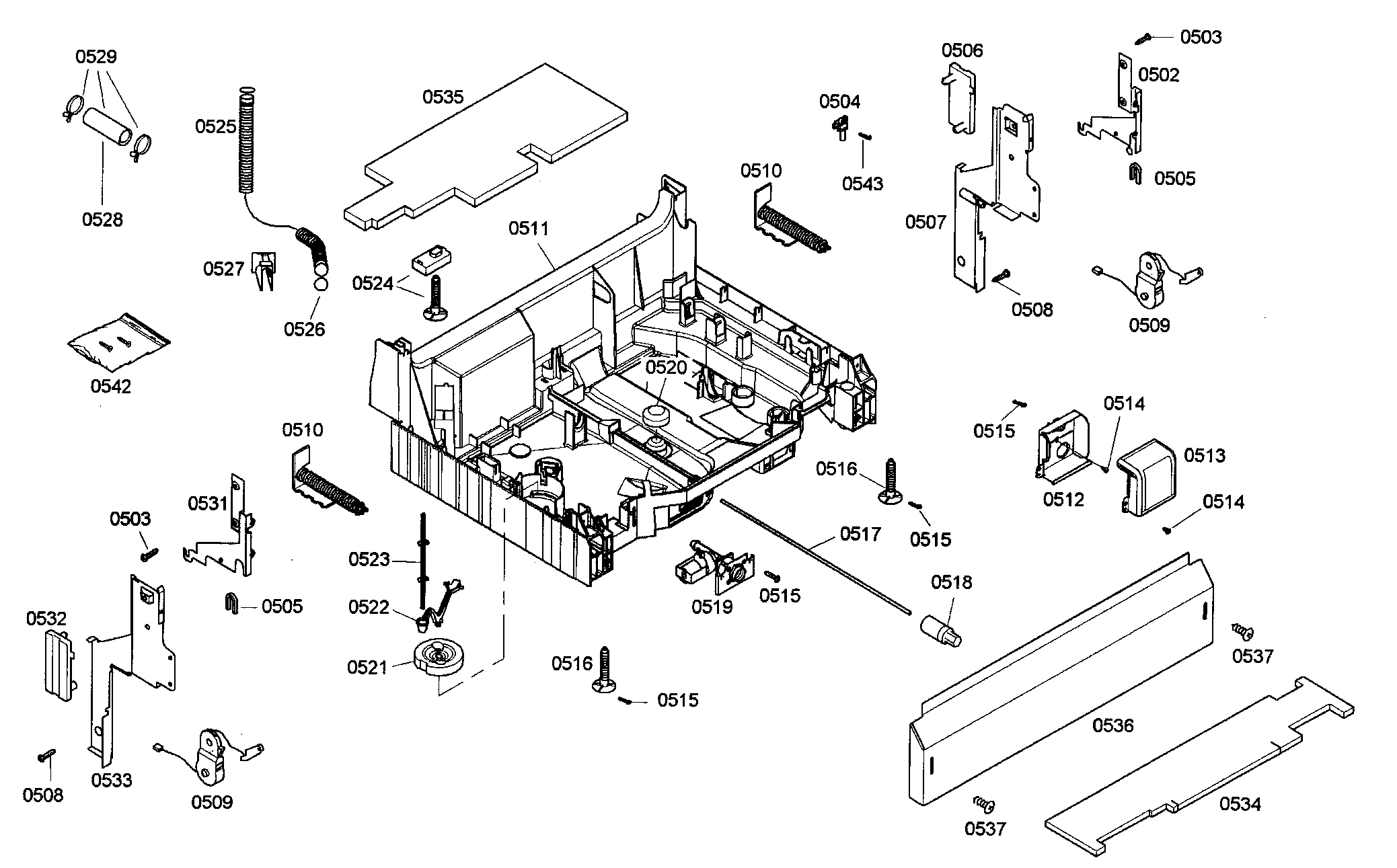

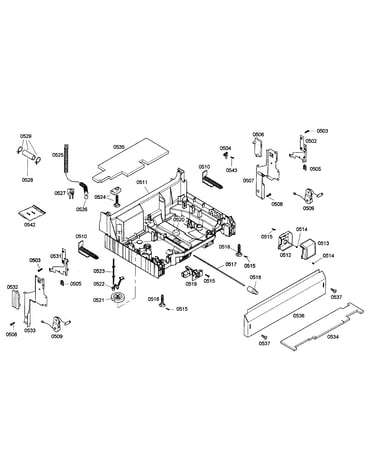

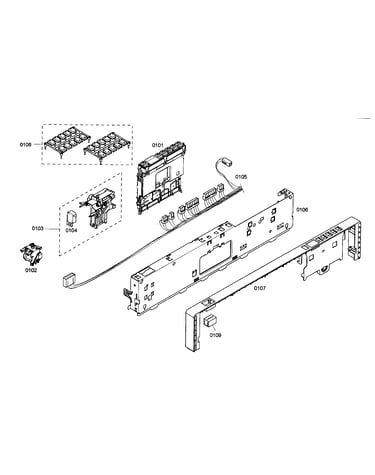

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
SHX45M05UC/48 Dishwasher
Door Gasket 494772
#307

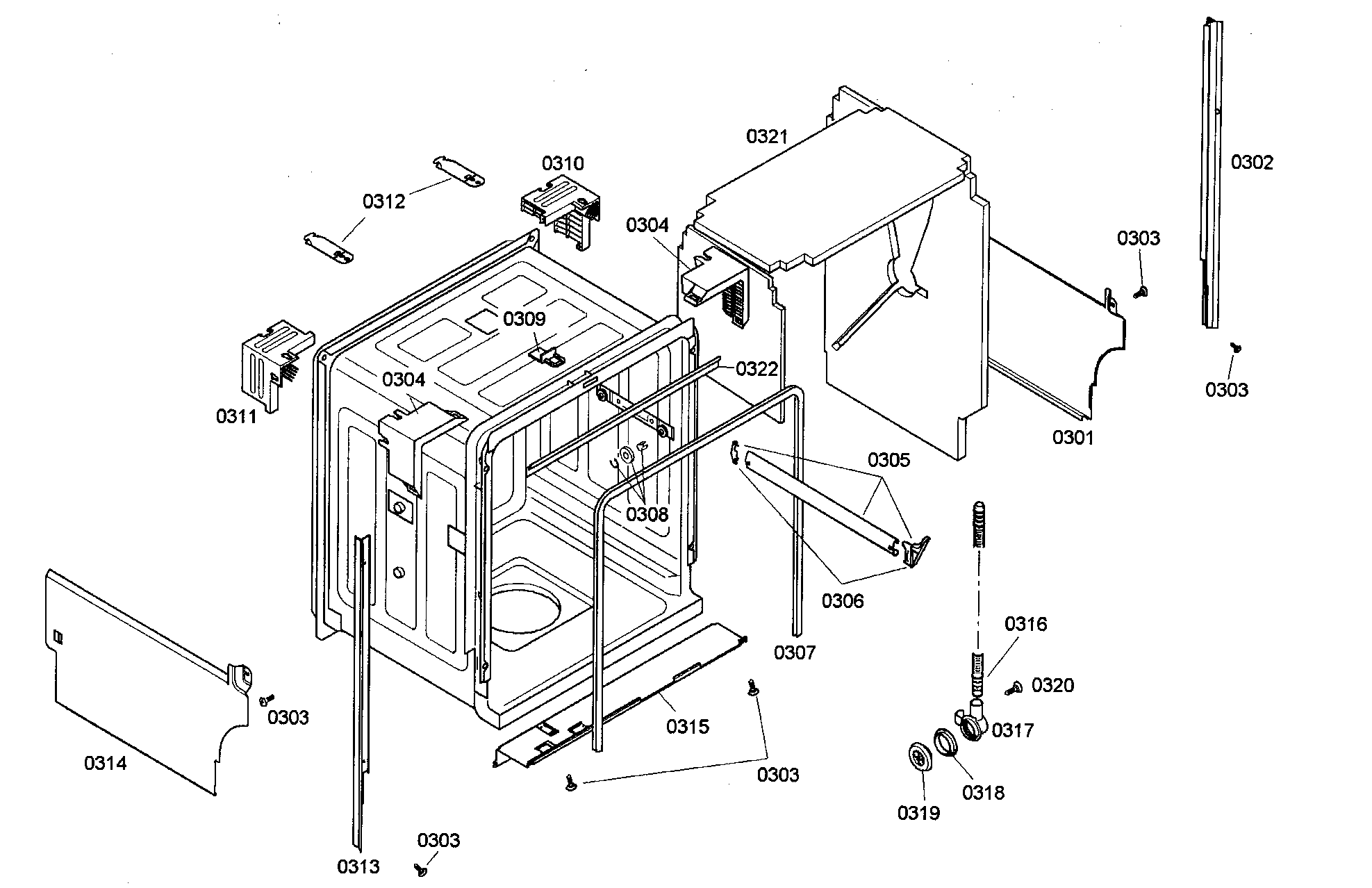

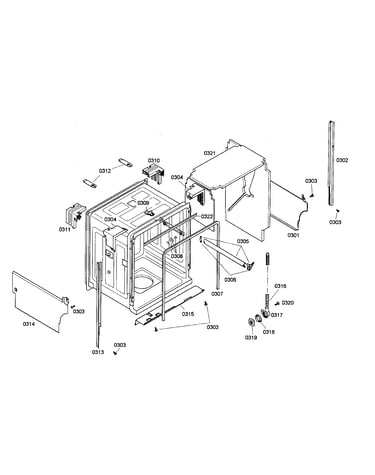

Cabinet parts diagram

Door gasket

Part #494772

Replaced by #00494772

?
Manufacturer substitution
This part replaces 494772. Substitute parts can look different from the original.
3.67 (3)
BEST SELLER
$30.97 |
16% OFF Phone Price : $36.97
In Stock
Dishwasher Recirculation Pump Assembly 442548
#419

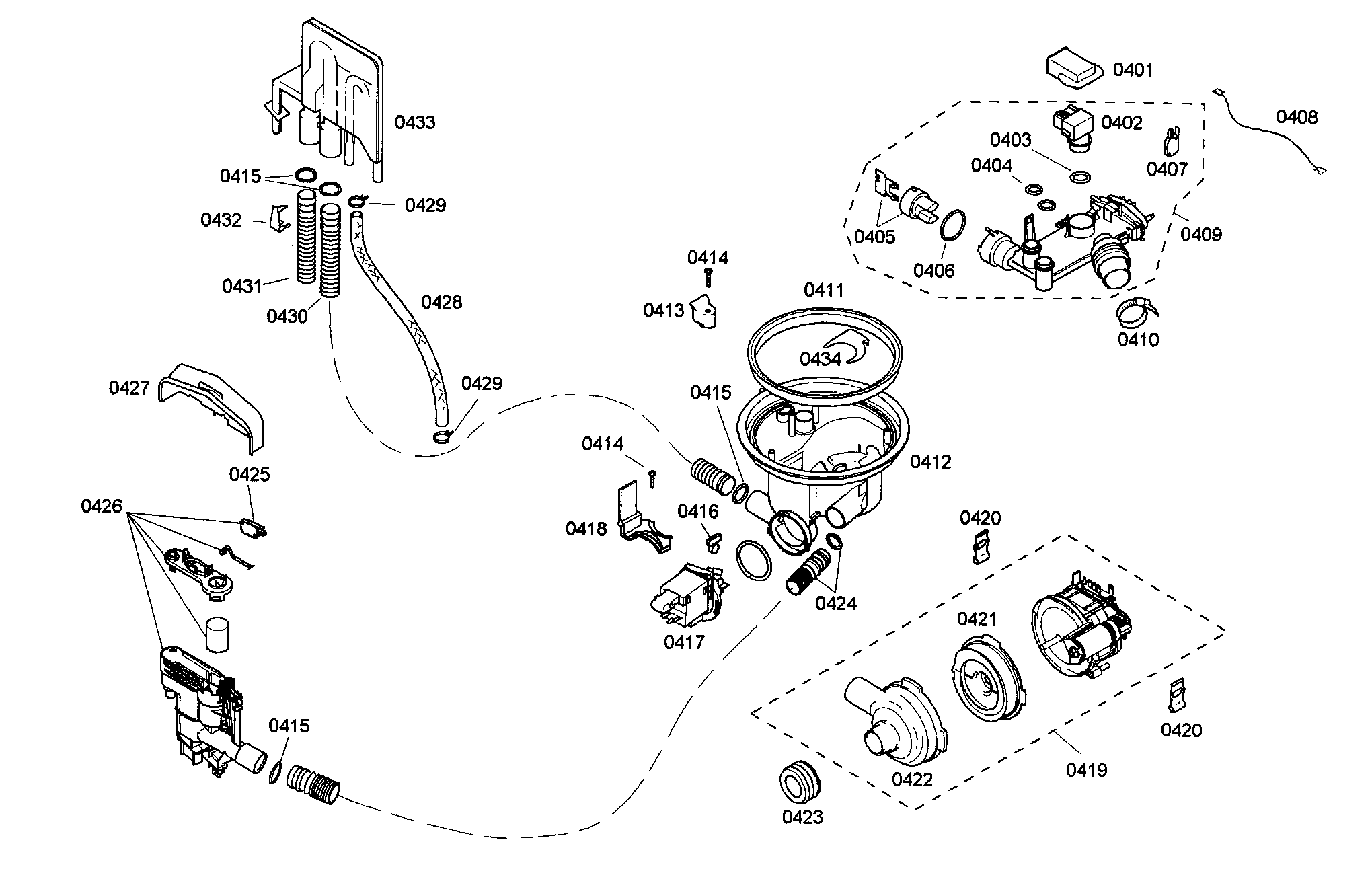

Pump assy diagram

Dishwasher recirculation pump assembly

Part #442548

Replaced by #00442548

?
Manufacturer substitution
This part replaces 442548. Substitute parts can look different from the original.
4.5 (2)
BEST SELLER
$255.91 |
$12.00 OFF Phone Price : $267.91
In Stock
Drain Pump 642239
#417

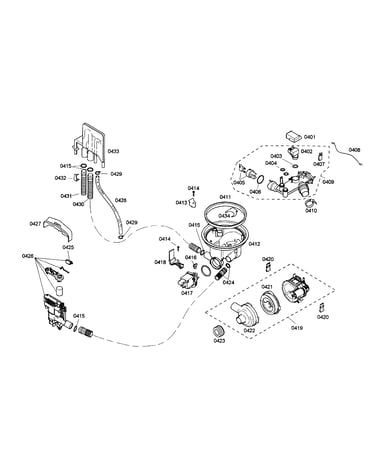

Pump assy diagram

Drain pump

Part #642239

Replaced by #00642239

?
Manufacturer substitution
This part replaces 642239. Substitute parts can look different from the original.
4.43 (7)
BEST SELLER
$134.05 |
8% OFF Phone Price : $146.05
In Stock
Door Seal 432490
#204

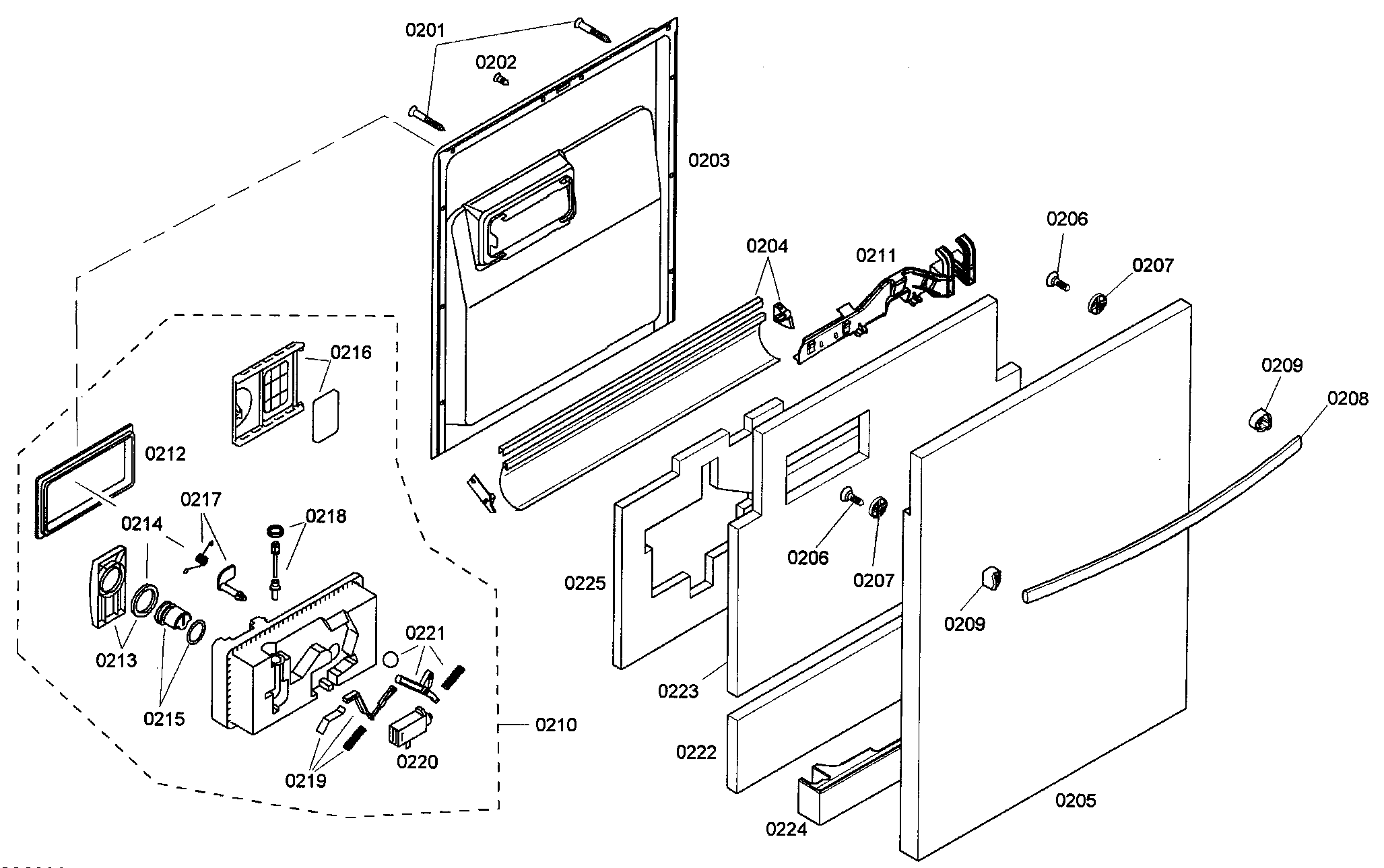

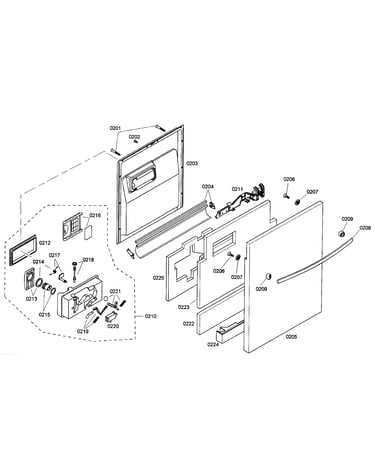

Door assy diagram

Door seal

Part #432490

Replaced by #00432490

?
Manufacturer substitution
This part replaces 432490. Substitute parts can look different from the original.
4.75 (4)
BEST SELLER
$34.83 |
15% OFF Phone Price : $40.83
In Stock
Mounting Bracket 605007
#312

Cabinet parts diagram

Mounting bracket

Part #605007

Replaced by #00619985

?
Manufacturer substitution
This part replaces 605007. Substitute parts can look different from the original.
$13.89 |
13% OFF Phone Price : $15.89
In Stock
Basket 665311
#618

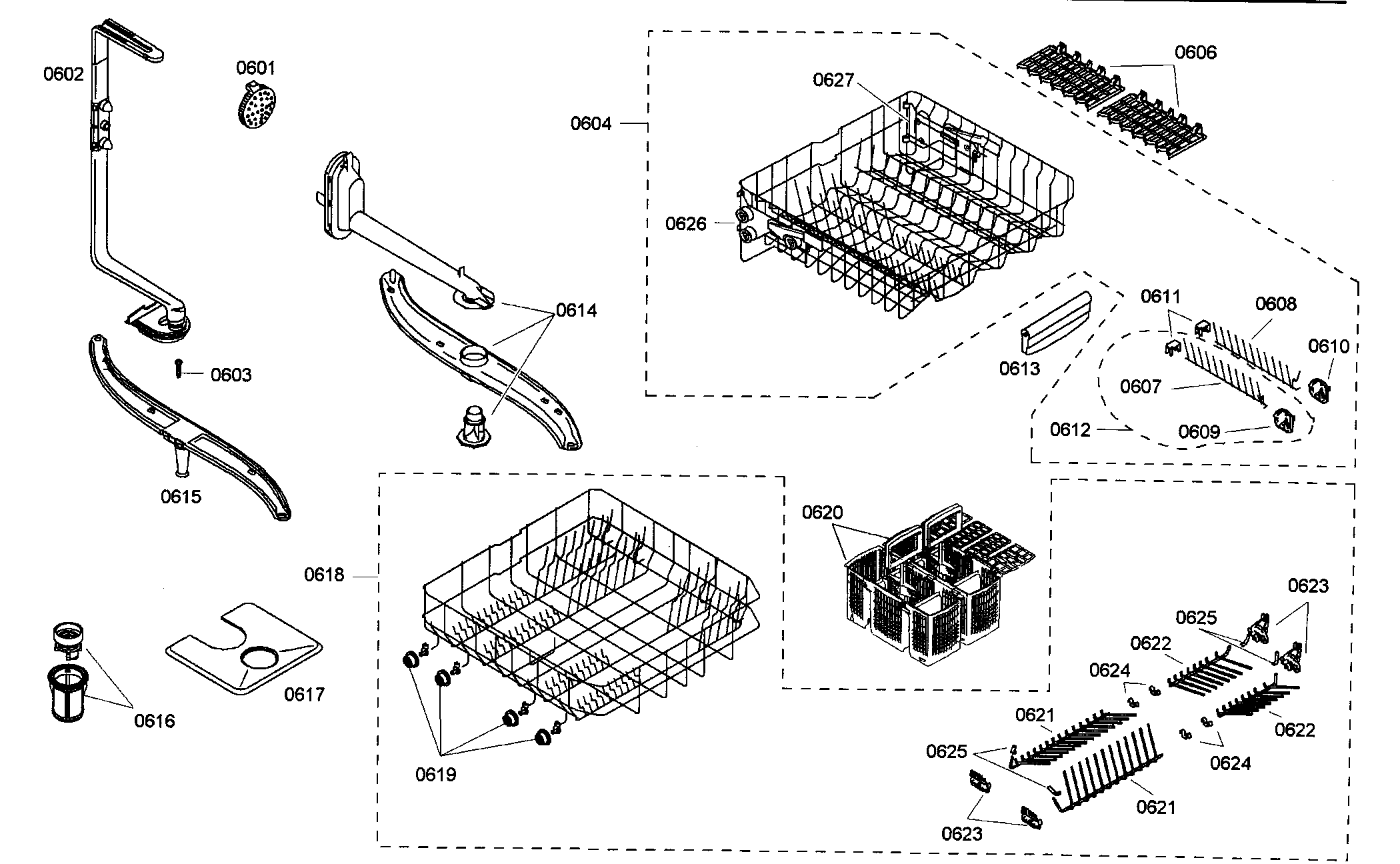

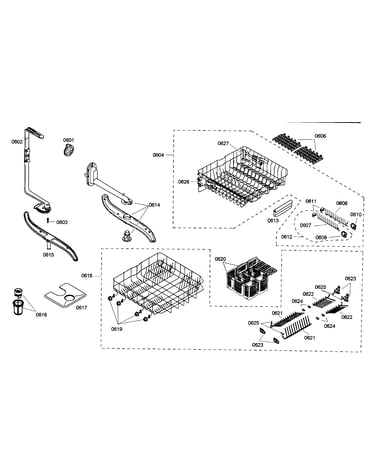

Racks assy diagram

Basket

Part #665311

Replaced by #00249276

?
Manufacturer substitution
This part replaces 665311. Substitute parts can look different from the original.
5 (4)
$277.02 |
$12.00 OFF Phone Price : $289.02
Back Order
Dishwasher Water Inlet Valve 263833
#433

Pump assy diagram

Dishwasher water inlet valve

Part #263833

Replaced by #00263833

?
Manufacturer substitution
This part replaces 263833. Substitute parts can look different from the original.
5 (1)
$150.10 |
7% OFF Phone Price : $162.10
In Stock
Dishwasher Spray Arm 448806
#615

Racks assy diagram

Dishwasher spray arm

Part #448806

Replaced by #00448806

?
Manufacturer substitution
This part replaces 448806. Substitute parts can look different from the original.
4 (1)
This item is not returnable
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Tine Latch 418498
#624

Racks assy diagram

Tine latch

Part #418498

Replaced by #00418498

?
Manufacturer substitution
This part replaces 418498. Substitute parts can look different from the original.
5 (2)
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Basket 170841
#616

Racks assy diagram

Basket

Part #170841

Replaced by #00615079

?
Manufacturer substitution
This part replaces 170841. Substitute parts can look different from the original.
$25.69 |
19% OFF Phone Price : $31.69
In Stock
