Model # 917376222 Official Craftsman lawn mower
Here are the diagrams and repair parts for Official Craftsman 917376222 lawn mower, as well as links to manuals and error code tables, if available.
Owner’s manual
View engineBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
917376222 Walk-Behind Mowers
Lawn & garden equipment nut
Part #409148
Replaced by #532409149
?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
#11

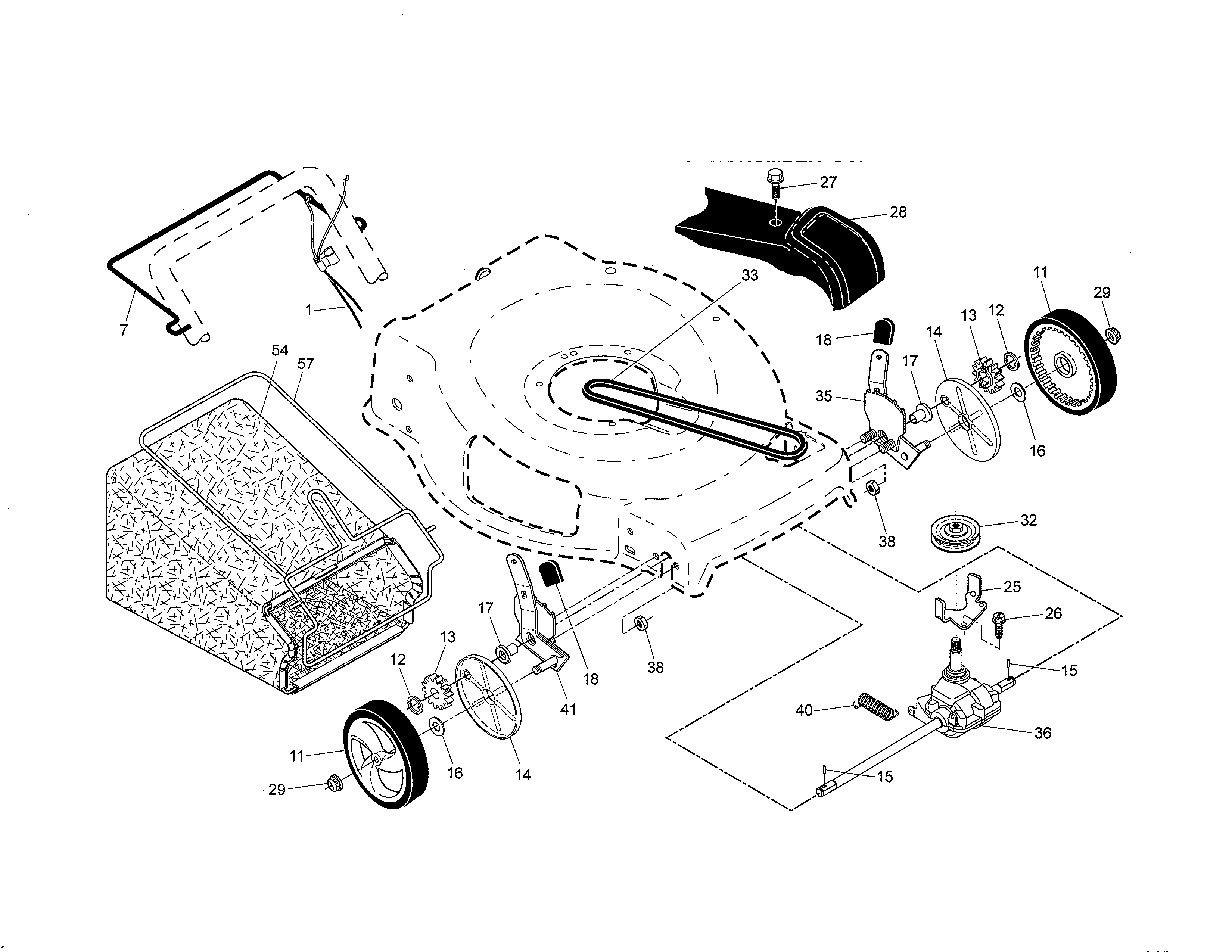

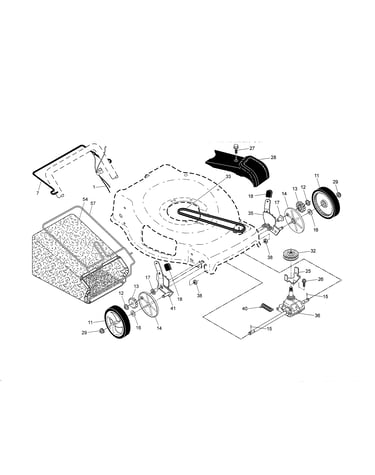

Drive control/gear case/wheels diagram
Lawn mower drive wheel
Part #194231X427
Replaced by #532403111
?
Manufacturer substitution
This part replaces 194231X427. Substitute parts can look different from the original.
$21.64 |
22% OFF Phone Price : $27.64
In Stock
Lawn mower height adjuster knob
Part #701037
Replaced by #532701037
?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
#15
Drive control/gear case/wheels diagram
Drive pawl
Part #404845
Replaced by #532404845
?
Manufacturer substitution
This part replaces 404845. Substitute parts can look different from the original.
$7.20 |
12% OFF Phone Price : $8.20
In Stock
#35
Drive control/gear case/wheels diagram
Adjuster
Part #409109
Replaced by #581497908
?
Manufacturer substitution
This part replaces 409109. Substitute parts can look different from the original.
$28.87 |
17% OFF Phone Price : $34.87
In Stock
#9

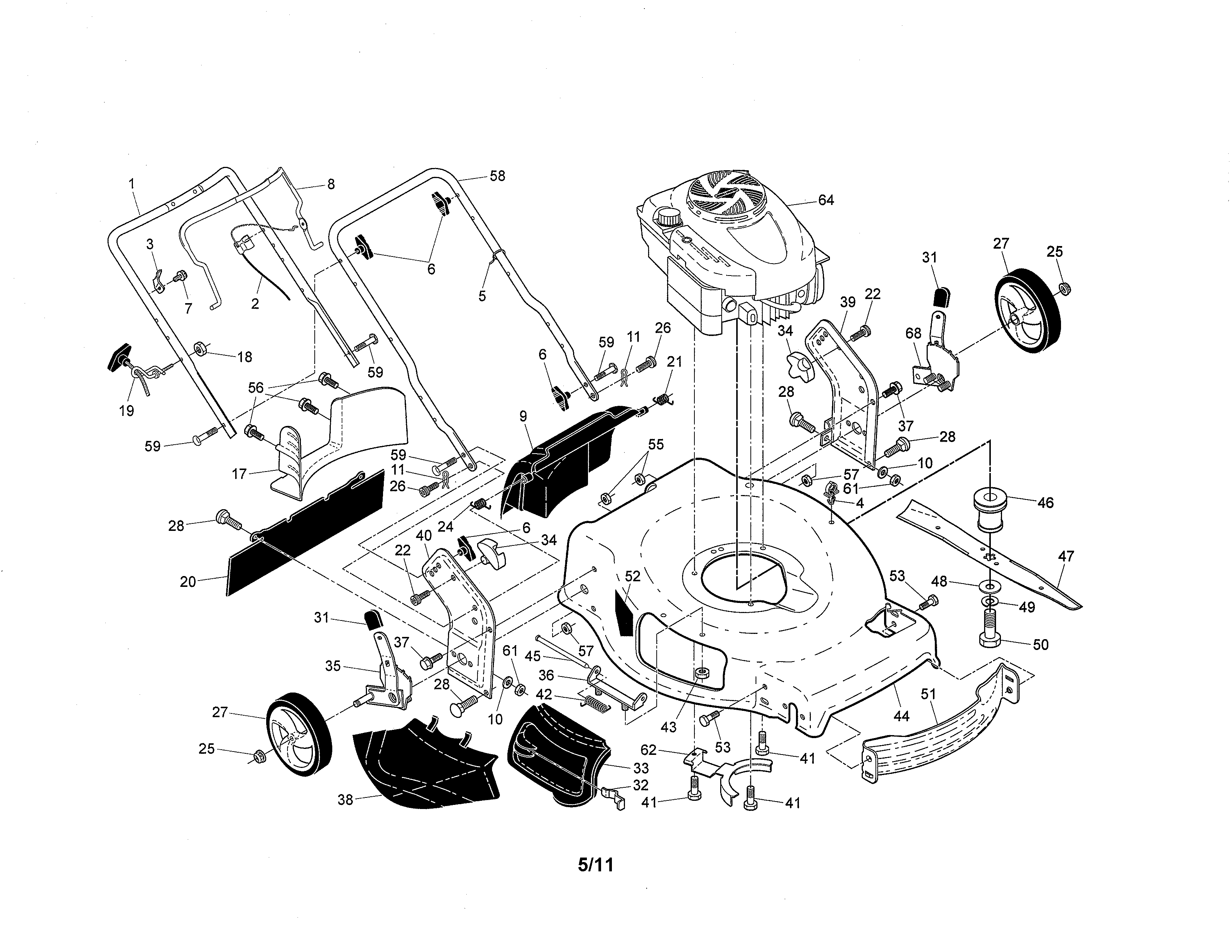

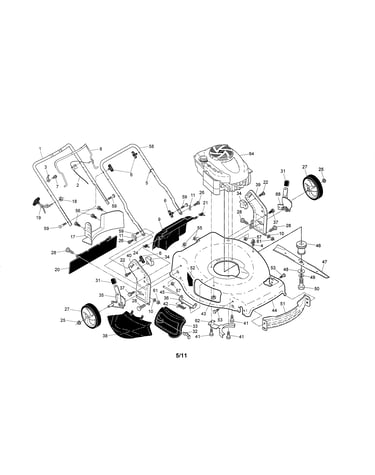

Engine/housing/handle diagram
Lawn mower discharge chute door
Part #421084
Replaced by #532421084
?
Manufacturer substitution
This part replaces 421084. Substitute parts can look different from the original.
$28.87 |
17% OFF Phone Price : $34.87
In Stock
#27
Engine/housing/handle diagram
Lawn mower wheel
Part #400246X427
The manufacturer no longer makes this part, and there's no substitute part
#37
Engine/housing/handle diagram
Screw, 5/16-18 x 3/4-in
Part #17000512
Replaced by #428867
?
Manufacturer substitution
This part replaces 17000512. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
#18
Engine/housing/handle diagram
Nut
Part #132004
Replaced by #582478602
?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
This item is not returnable
$2.87 |
26% OFF Phone Price : $3.87
In Stock
#8
Engine/housing/handle diagram
Bail.mzr.cre
Part #427612X428
Replaced by #583755201
?
Manufacturer substitution
This part replaces 427612X428. Substitute parts can look different from the original.
This item is not returnable
$17.31 |
10% OFF Phone Price : $19.31
In Stock
Symptoms for gas walk-behind mowers
Choose a symptom to see related walk-behind mower repairs.
Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel…
Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key…
Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent…
Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up…
Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, ba…
Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade…
Repair guides for gas walk-behind mowers
