GE
Upright Freezer

Model # FUF17DAARWH Official GE freezer - a series

Here are the diagrams and repair parts for Official GE FUF17DAARWH freezer - a series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

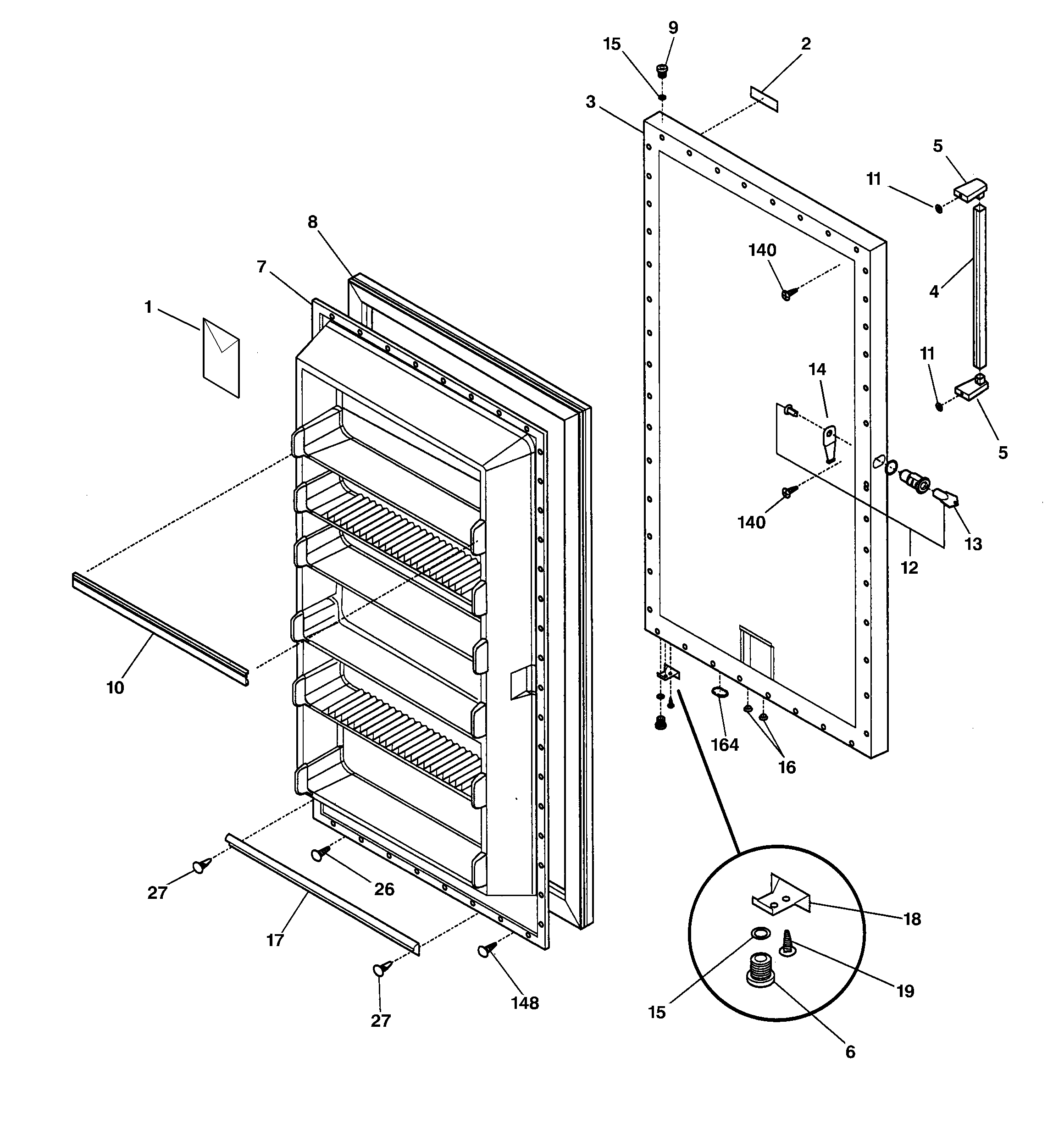

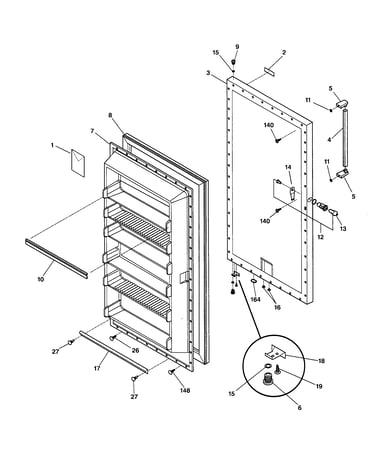

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Dryer Filter WR86X0096
#740

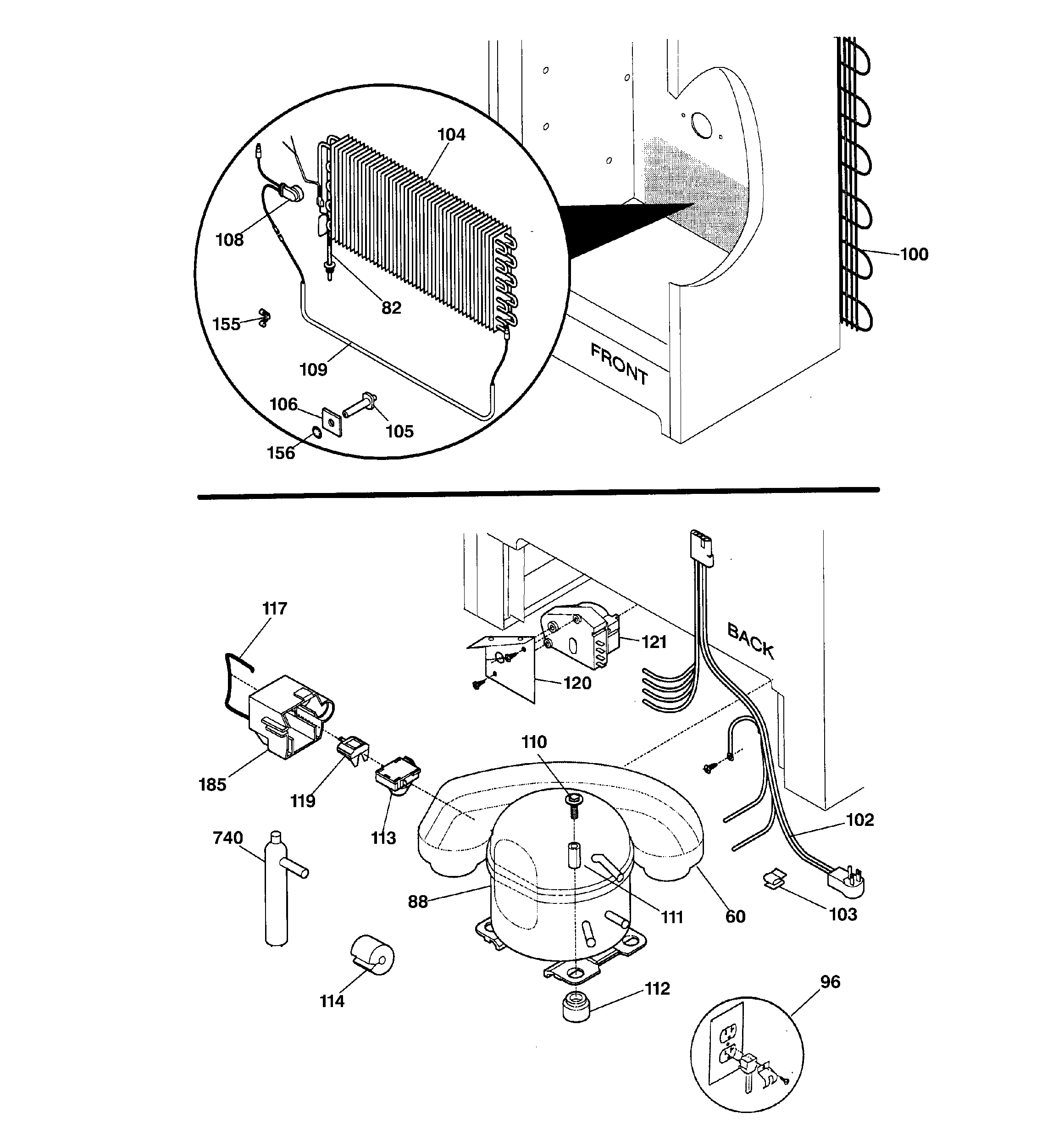

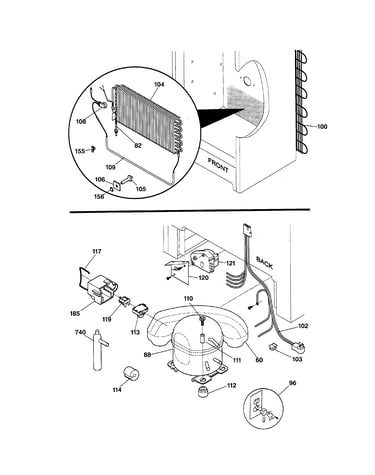

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Power Cord WR23X0108
#102

Unit parts diagram

Power cord

Part #WR23X0108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X0108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Condenser WR84X5007
#100

Unit parts diagram

Condenser

Part #WR84X5007

$279.53
In Stock
Support Evaporator WR02X6206
#105

Unit parts diagram

Support evaporator

Part #WR02X6206

This item is not returnable
$2.99
In Stock
Bumper WR02X6361
#69

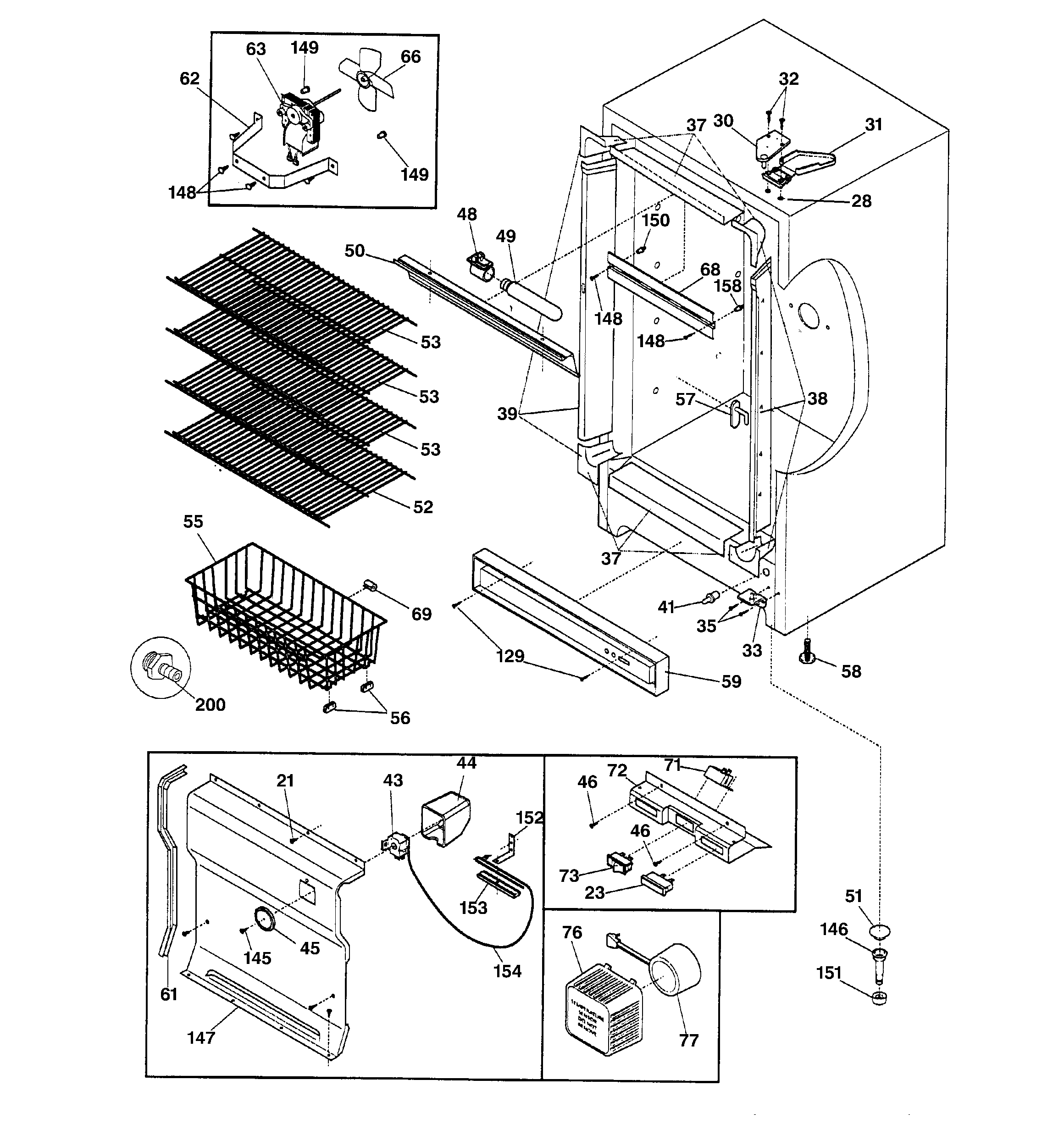

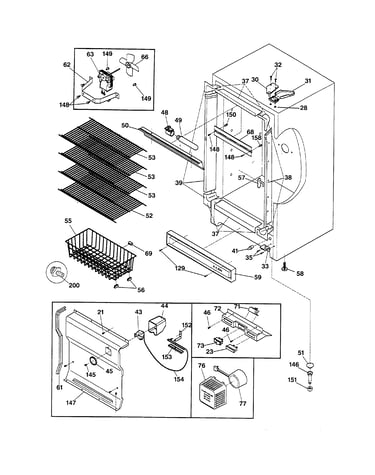

Cabinet diagram

Bumper

Part #WR02X6361

Replaced by #WR2X6361

?
Manufacturer substitution
This part replaces WR02X6361. Substitute parts can look different from the original.
$17.11
In Stock
Mounting Sleeve WR02X9497
#111

Unit parts diagram

Mounting sleeve

Part #WR02X9497

Replaced by #WR2X9497

?
Manufacturer substitution
This part replaces WR02X9497. Substitute parts can look different from the original.
$45.51
In Stock
Glide WR02X6808
#56

Cabinet diagram

Glide

Part #WR02X6808

Replaced by #WR02X11444

?
Manufacturer substitution
This part replaces WR02X6808. Substitute parts can look different from the original.
$81.57 |
7% OFF Phone Price : $87.57
In Stock
Fan Bracket WR02X9496
#62

Cabinet diagram

Fan bracket

Part #WR02X9496

Replaced by #WR02X12686

?
Manufacturer substitution
This part replaces WR02X9496. Substitute parts can look different from the original.
$17.19
In Stock
Adjustment Foot WR02X9485
#58

Cabinet diagram

Adjustment foot

Part #WR02X9485

Replaced by #WR2X9485

?
Manufacturer substitution
This part replaces WR02X9485. Substitute parts can look different from the original.
$20.43 |
23% OFF Phone Price : $26.43
In Stock
Insulator WR02X9500
#154

Cabinet diagram

Insulator

Part #WR02X9500

Replaced by #WR2X9500

?
Manufacturer substitution
This part replaces WR02X9500. Substitute parts can look different from the original.
$37.40
In Stock
