Amana
Electric Range

Model # ARHC8700E-P1143420NE Official Amana electric freestanding self-cleaning range

Here are the diagrams and repair parts for Official Amana ARHC8700E-P1143420NE electric freestanding self-cleaning range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

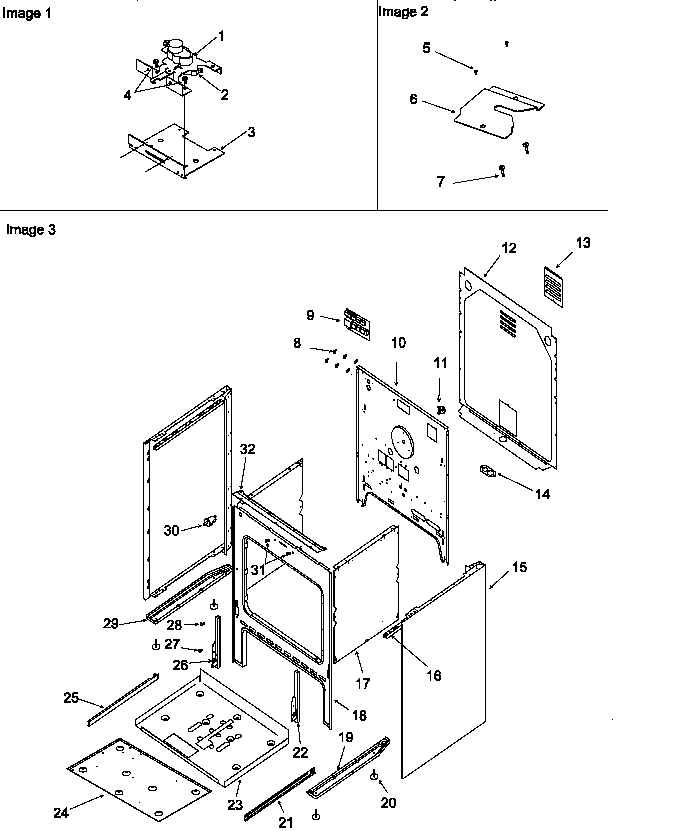

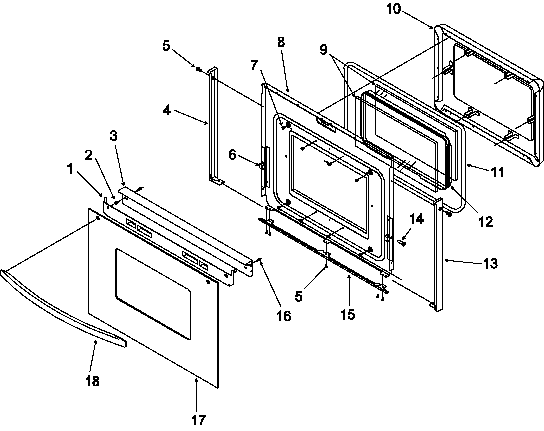

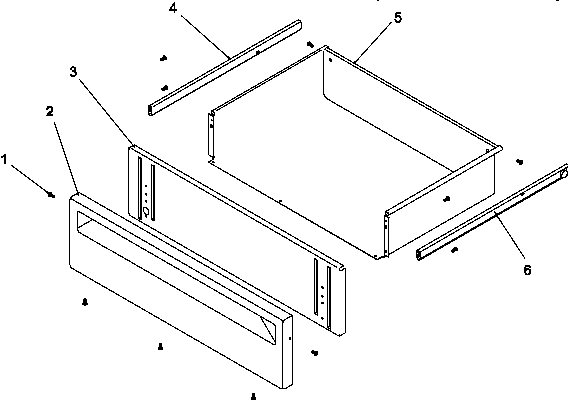

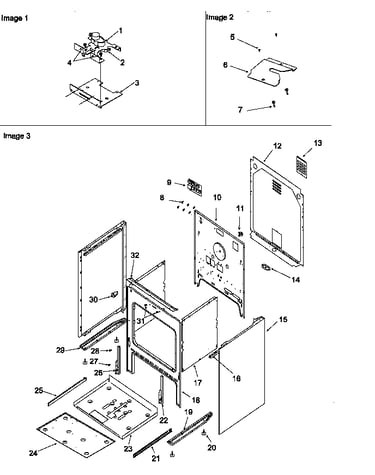

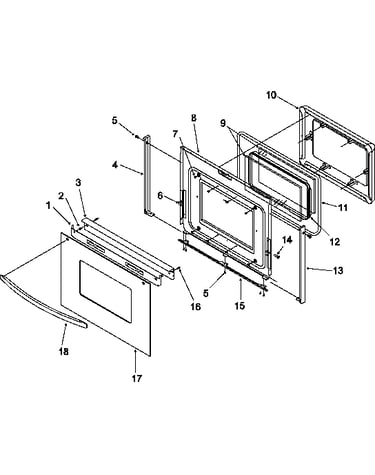

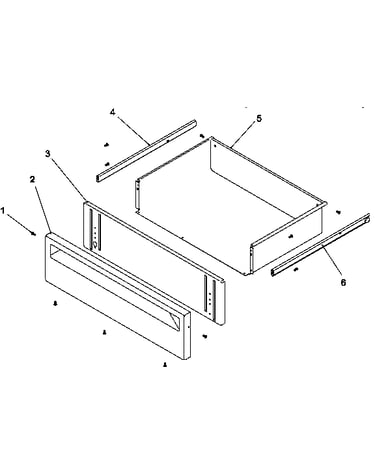

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Lamp 0042175
#17

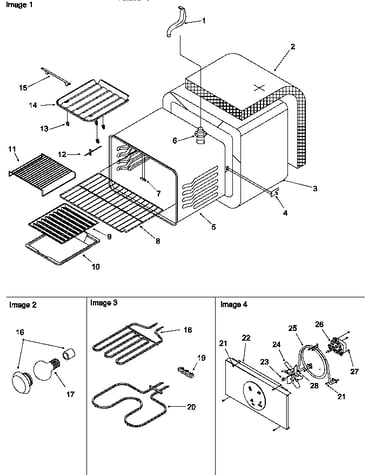

Cavity diagram

Lamp

Part #0042175

Replaced by #40A15

?
Manufacturer substitution
This part replaces 0042175. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Cover,backgd 0306379
#999A

Cavity diagram

Cover,backgd

Part #0306379

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 0306379. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Screw 0309016
Screw

Part #0309016

Replaced by #WP693995

?
Manufacturer substitution
This part replaces 0309016. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Element 0314899
#11

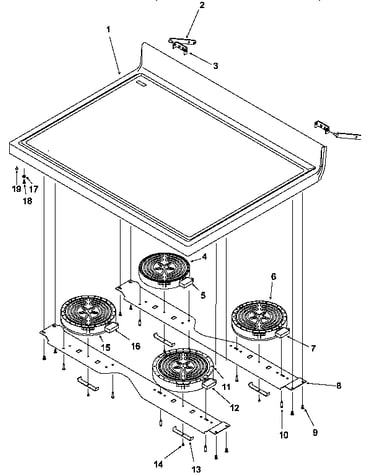

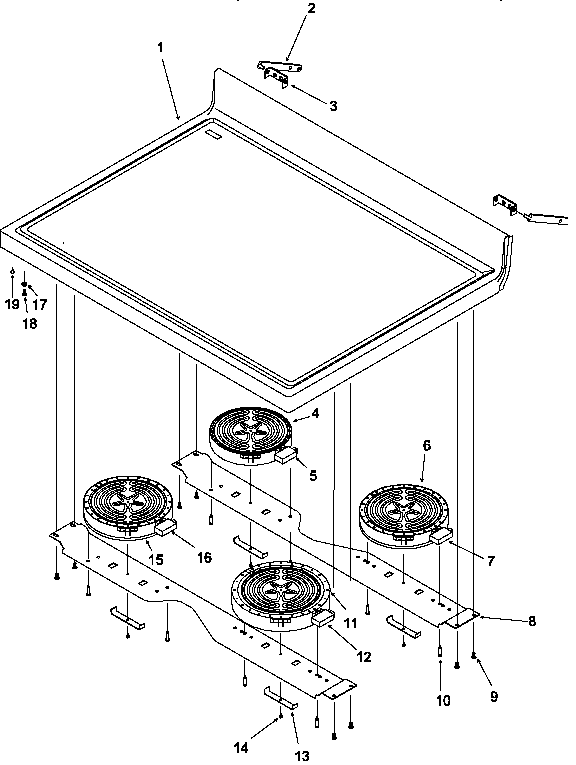

Main top diagram

Element

Part #0314899

Replaced by #W10823726

?
Manufacturer substitution
This part replaces 0314899. Substitute parts can look different from the original.
$128.56 |
9% OFF Phone Price : $140.56
In Stock
Oven Light 0314842
#16

Cavity diagram

Oven light

Part #0314842

The manufacturer no longer makes this part, and there's no substitute part

Oven Sensor 0314907
#12

Cavity diagram

Oven sensor

Part #0314907

The manufacturer no longer makes this part, and there's no substitute part

"grid, Broile" 304451CG
#9

Cavity diagram

"grid, broile"

Part #304451CG

Replaced by #4396923

?
Manufacturer substitution
This part replaces 304451CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Broiler Pan 314175CG
#10

Cavity diagram

Broiler pan

Part #314175CG

Replaced by #4396923

?
Manufacturer substitution
This part replaces 314175CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Lamp 0315927
#8

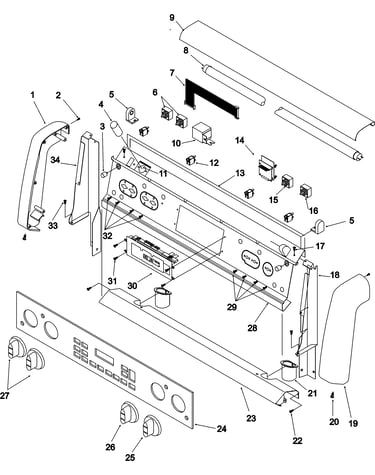

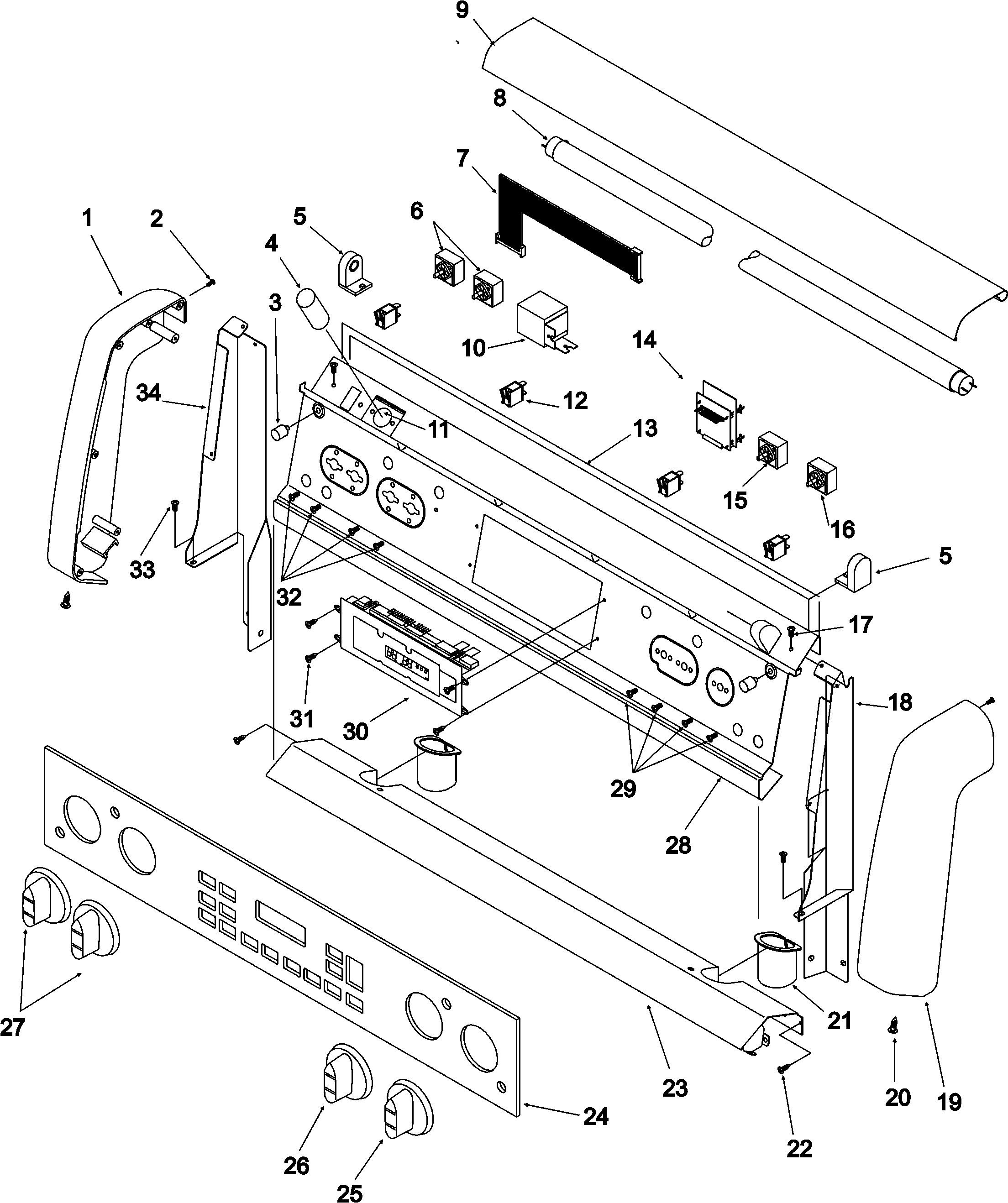

Backguard diagram

Lamp

Part #0315927

The manufacturer no longer makes this part, and there's no substitute part

Infinite Switch 0315563
#15

Backguard diagram

Infinite switch

Part #0315563

The manufacturer no longer makes this part, and there's no substitute part
