Model # 919728000 Official Craftsman air compressor operator's manual

Here are the diagrams and repair parts for Official Craftsman 919728000 air compressor operator's manual, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 97 parts |

#78

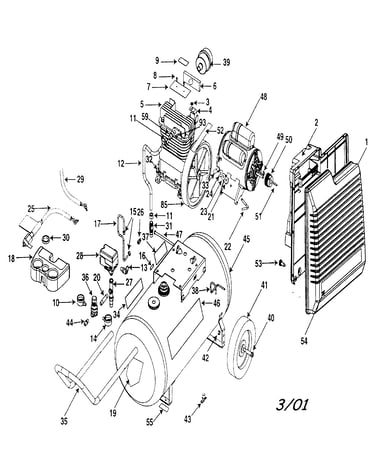

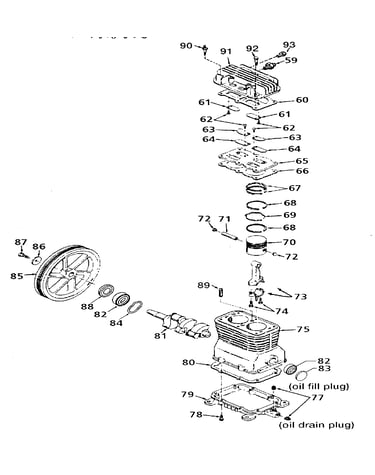

Cabinet parts diagram

Unknown brand name #696 air compressor screw

Part #SSF-925

The manufacturer no longer makes this part, and there's no substitute part

#39

Cabinet parts diagram

Air compressor air filter

Part #AC-0330

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Crankcase Oil Plug SSP-505

#83

Cabinet parts diagram

Air compressor crankcase oil plug

Part #SSP-505

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Control Cover Mounting Ring CAC-61

#30

Cabinet parts diagram

Air compressor control cover mounting ring

Part #CAC-61

The manufacturer no longer makes this part, and there's no substitute part

#22

Cabinet parts diagram

Porter cable screw

Part #CAC-1013

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Handle Retainer Clip CAC-1059

#38

Cabinet parts diagram

Air compressor handle retainer clip

Part #CAC-1059

The manufacturer no longer makes this part, and there's no substitute part

#40

Cabinet parts diagram

Companion air compressor screw

Part #CAC-60

The manufacturer no longer makes this part, and there's no substitute part

#86

Cabinet parts diagram

Porter cable washer

Part #SSN-1014-ZN

The manufacturer no longer makes this part, and there's no substitute part

#59

Cabinet parts diagram

Unknown brand name #696 air compressor compression nut thread adapter

Part #SSP-9401

The manufacturer no longer makes this part, and there's no substitute part

#46

Cabinet parts diagram

Air compressor nameplate

Part #LA-3069

The manufacturer no longer makes this part, and there's no substitute part
