Gas Line Trimmer

Model # 358798560 Official Craftsman line trimmer

Here are the diagrams and repair parts for Official Craftsman 358798560 line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#62

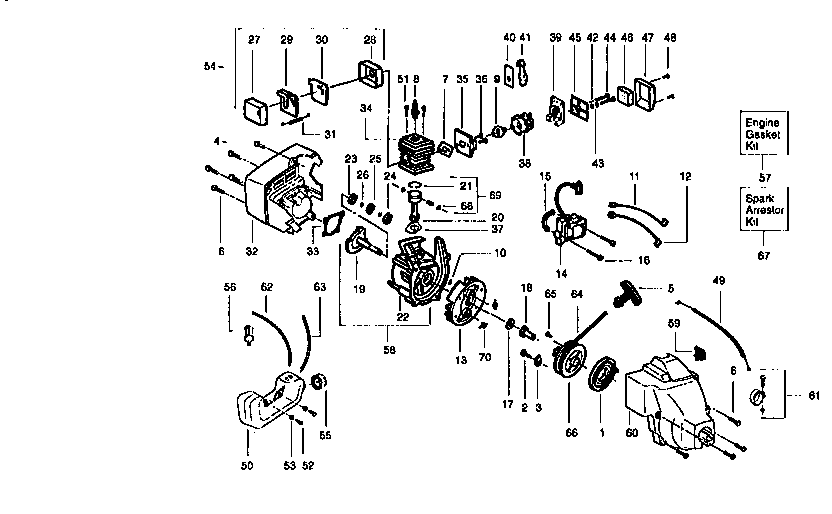

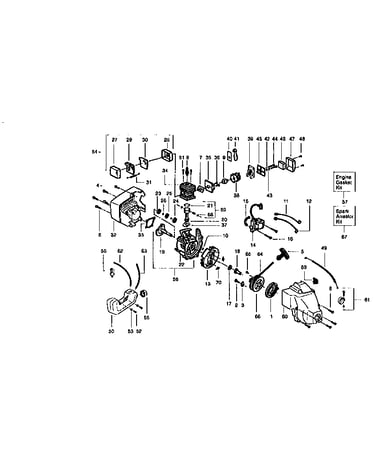

Engine diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#63

Engine diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
$14.44 |
12% OFF Phone Price : $16.44
In Stock
Husqvarna Lawn & Garden Equipment Engine Carburetor Diaphragm And Gasket Kit (replaces 530035173, 530035186, 530-035186, 530035213, 530035219, 530035313, 5300698-44, 530-069844, 530069937) 530069844
#3

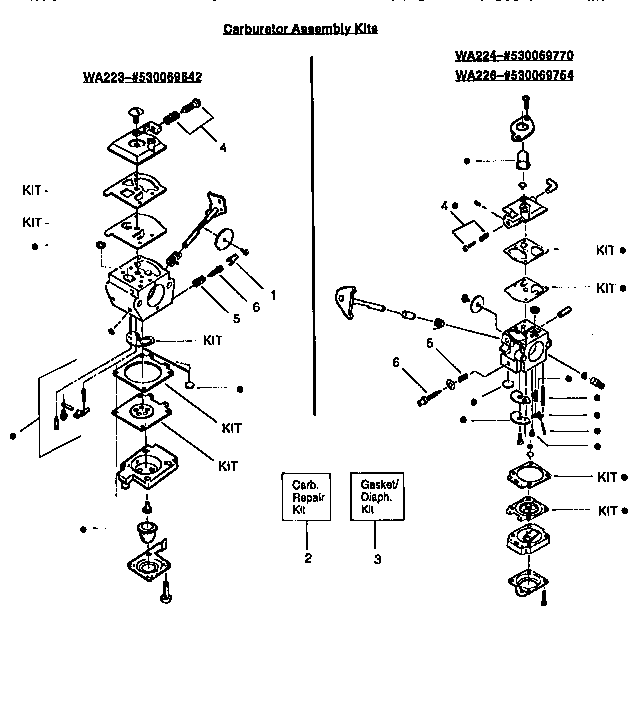

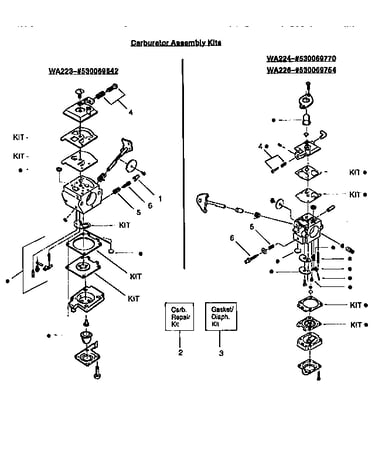

Carburetor assembly kits diagram

Husqvarna lawn & garden equipment engine carburetor diaphragm and gasket kit (replaces 530035173, 530035186, 530-035186, 530035213, 530035219, 530035313, 5300698-44, 530-069844, 530069937)

Part #530069844

This item is not returnable
$26.00 |
19% OFF Phone Price : $32.00
In Stock
Chainsaw Recoil Starter Rope (replaces 530-022289, 530024451, 530042033, 5300692-32, 530-069232, 530069233, 530-069233, 530069339) 530069232
#64

Engine diagram

Chainsaw recoil starter rope (replaces 530-022289, 530024451, 530042033, 5300692-32, 530-069232, 530069233, 530-069233, 530069339)

Part #530069232

This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Line Trimmer Recoil Starter Pulley Kit 530069400
#66

Engine diagram

Line trimmer recoil starter pulley kit

Part #530069400

Replaced by #530071786

?
Manufacturer substitution
This part replaces 530069400. Substitute parts can look different from the original.
This item is not returnable
$14.44 |
12% OFF Phone Price : $16.44
In Stock
Lawn & Garden Equipment Screw 530015814
#52

Engine diagram

Lawn & garden equipment screw

Part #530015814

Replaced by #503210619

?
Manufacturer substitution
This part replaces 530015814. Substitute parts can look different from the original.
This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
Flywheel 530039149
#13

Engine diagram

Flywheel

Part #530039149

Replaced by #545221701

?
Manufacturer substitution
This part replaces 530039149. Substitute parts can look different from the original.
This item is not returnable
$27.08 |
18% OFF Phone Price : $33.08
In Stock
Poulan Lawn & Garden Equipment Engine Carburetor Gasket 530019194
#9

Engine diagram

Poulan lawn & garden equipment engine carburetor gasket

Part #530019194

This item is not returnable
$9.26
In Stock
Lawn & Garden Equipment Head Bolt 530015953
#51

Engine diagram

Lawn & garden equipment head bolt

Part #530015953

This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Wing Nut 530401992
#10

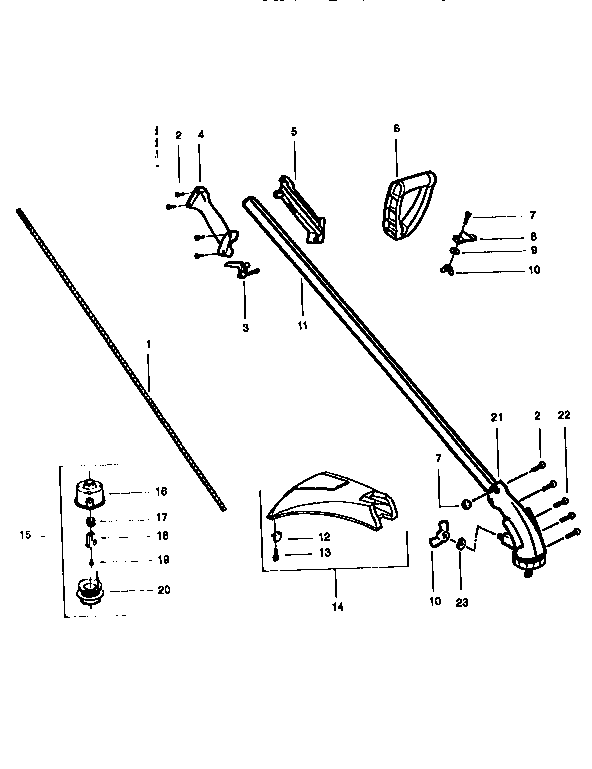

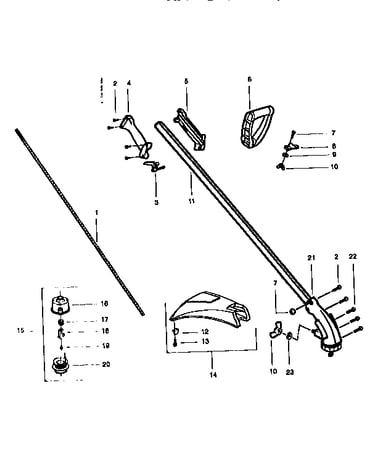

Drive shaft and cutting head diagram

Wing nut

Part #530401992

Replaced by #530091373

?
Manufacturer substitution
This part replaces 530401992. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
