Model # GSD2200Z00WH Official GE dishwasher
Here are the diagrams and repair parts for Official GE GSD2200Z00WH dishwasher, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
GSD2200Z00WH Dishwasher
#310

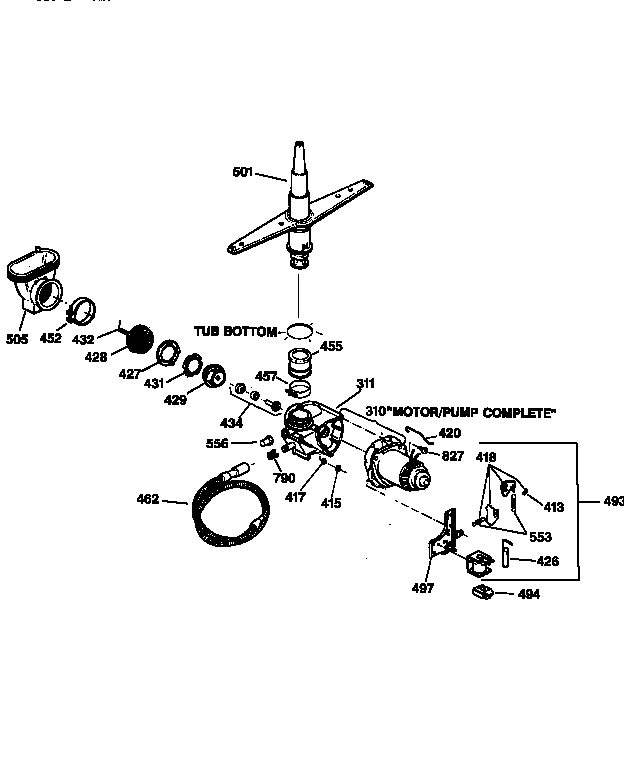

Motor-pump mechanism diagram
Mechanism assembly
Part #WD26X10003
Replaced by #WD26X10013
?
Manufacturer substitution
This part replaces WD26X10003. Substitute parts can look different from the original.
$174.38 |
6% OFF Phone Price : $186.38
In Stock
#701

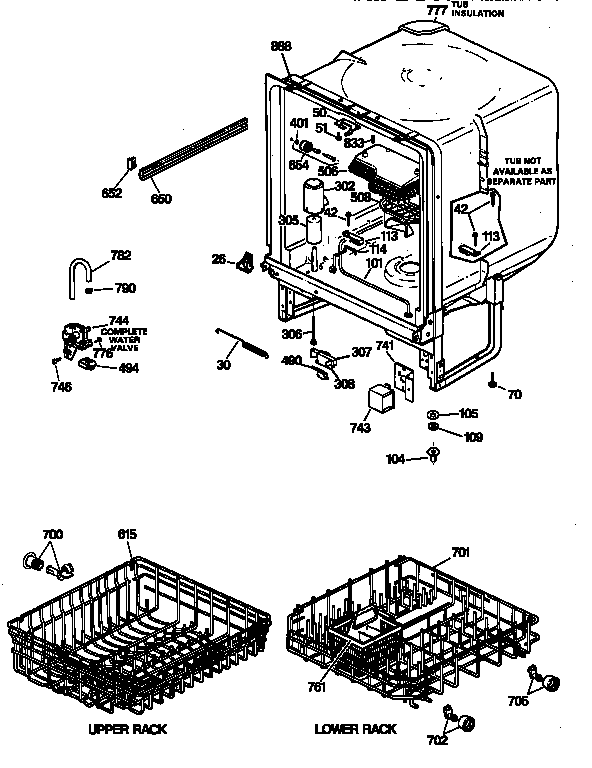

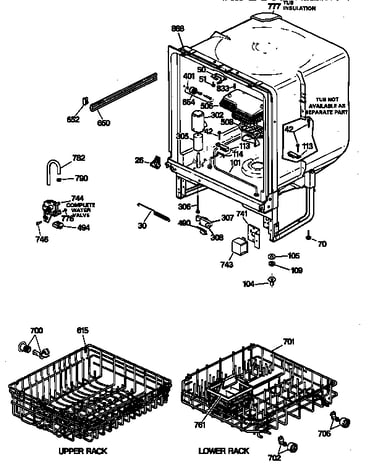

Body parts diagram
Rack asm lwr
Part #WD28X0305
Replaced by #WD28X31819
?
Manufacturer substitution
This part replaces WD28X0305. Substitute parts can look different from the original.
$119.02 |
9% OFF Phone Price : $131.02
Back Order
#26A
Body parts diagram
Bafle tubcnr
Part #WD08X0227
Replaced by #WD8X227
?
Manufacturer substitution
This part replaces WD08X0227. Substitute parts can look different from the original.
$21.40 |
22% OFF Phone Price : $27.40
In Stock
#426
Motor-pump mechanism diagram
Armature&lnk
Part #WD01X1316
Replaced by #WD1X1316
?
Manufacturer substitution
This part replaces WD01X1316. Substitute parts can look different from the original.
$30.07 |
17% OFF Phone Price : $36.07
In Stock
#26B
Body parts diagram
Bafle tubcn
Part #WD08X0228
Replaced by #WD8X228
?
Manufacturer substitution
This part replaces WD08X0228. Substitute parts can look different from the original.
$20.28 |
23% OFF Phone Price : $26.28
In Stock
#803

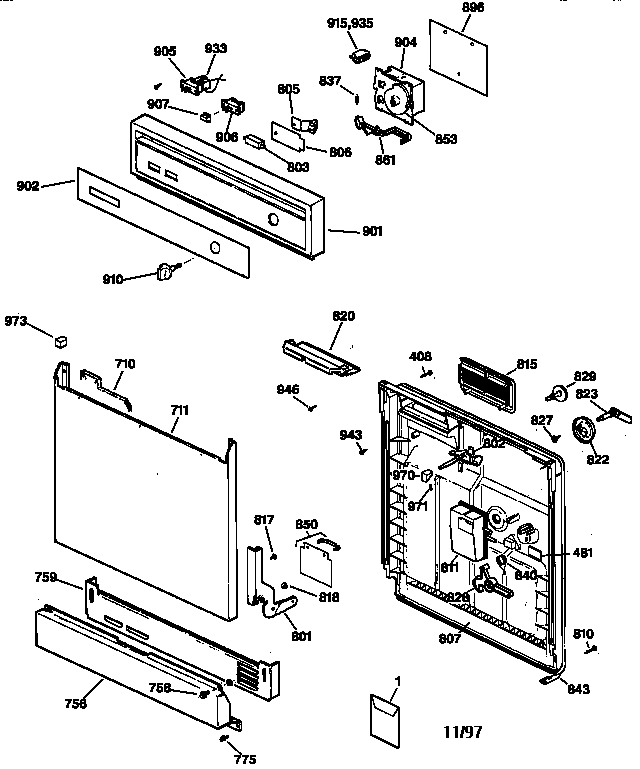

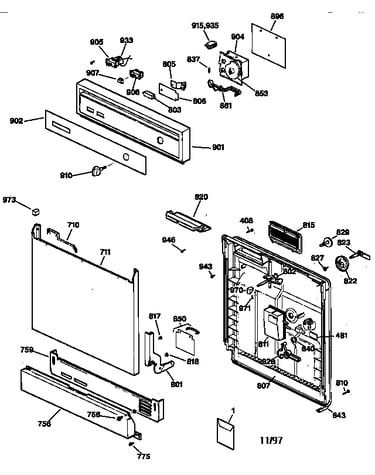

Escutcheon & door assembly diagram
Interlock switch
Part #WD21X0557
Replaced by #WD21X10261
?
Manufacturer substitution
This part replaces WD21X0557. Substitute parts can look different from the original.
$21.69 |
22% OFF Phone Price : $27.69
In Stock
#829
Escutcheon & door assembly diagram
Fill cap
Part #WD12X0392
Replaced by #WD12X24238
?
Manufacturer substitution
This part replaces WD12X0392. Substitute parts can look different from the original.
This item is not returnable
$8.46 |
11% OFF Phone Price : $9.46
In Stock
#462A
Motor-pump mechanism diagram
Drain hose
Part #WD24X0219
Replaced by #WD24X10014
?
Manufacturer substitution
This part replaces WD24X0219. Substitute parts can look different from the original.
$30.06 |
17% OFF Phone Price : $36.06
In Stock
#462B
Motor-pump mechanism diagram
Dishwasher drain hose
Part #WD24X10003
Replaced by #WD24X10014
?
Manufacturer substitution
This part replaces WD24X10003. Substitute parts can look different from the original.
$30.06 |
17% OFF Phone Price : $36.06
In Stock
#104
Body parts diagram
Tower heater nut
Part #WD01X1491
Replaced by #WD01X10070
?
Manufacturer substitution
This part replaces WD01X1491. Substitute parts can look different from the original.
This item is not returnable
$8.67 |
10% OFF Phone Price : $9.67
In Stock
