Kenmore
Upright Freezer

Model # 25328432804 Official Kenmore freezer

Here are the diagrams and repair parts for Official Kenmore 25328432804 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Filter Drier 216987500
#4

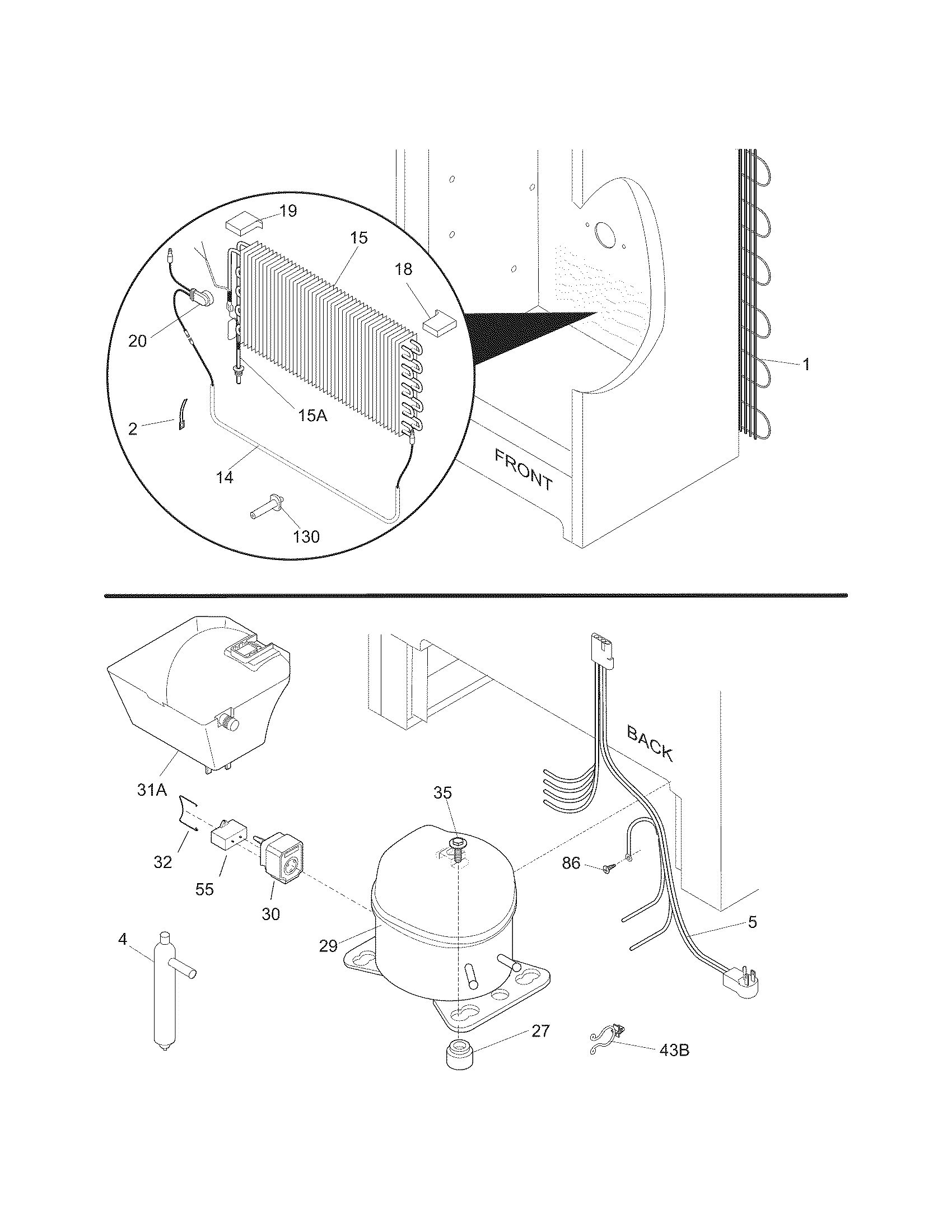

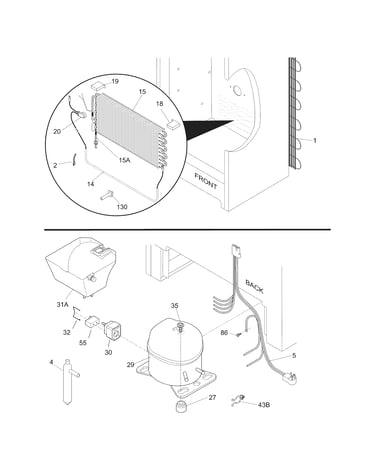

System diagram

Filter drier

Part #216987500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216987500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Blade 216325600
#5

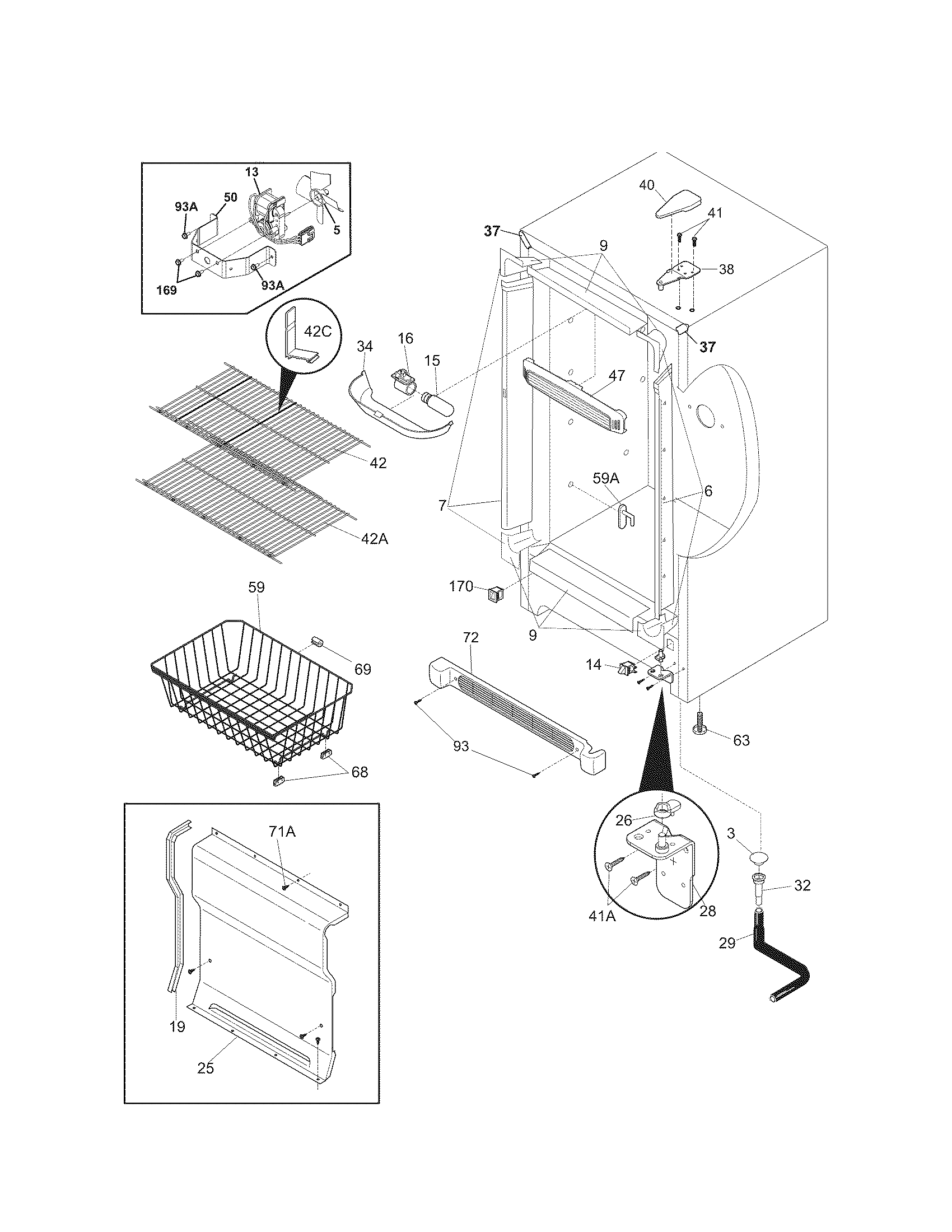

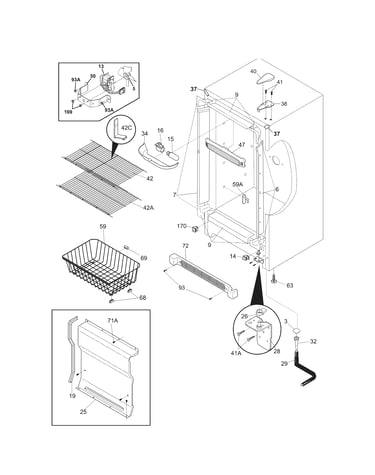

Cabinet diagram

Blade

Part #216325600

Replaced by #5308000010

?
Manufacturer substitution
This part replaces 216325600. Substitute parts can look different from the original.
BEST SELLER
$41.13 |
13% OFF Phone Price : $47.13
In Stock
Gibson Freezer Door Key (replaces 216702900, 7297147700) 297147700
#5

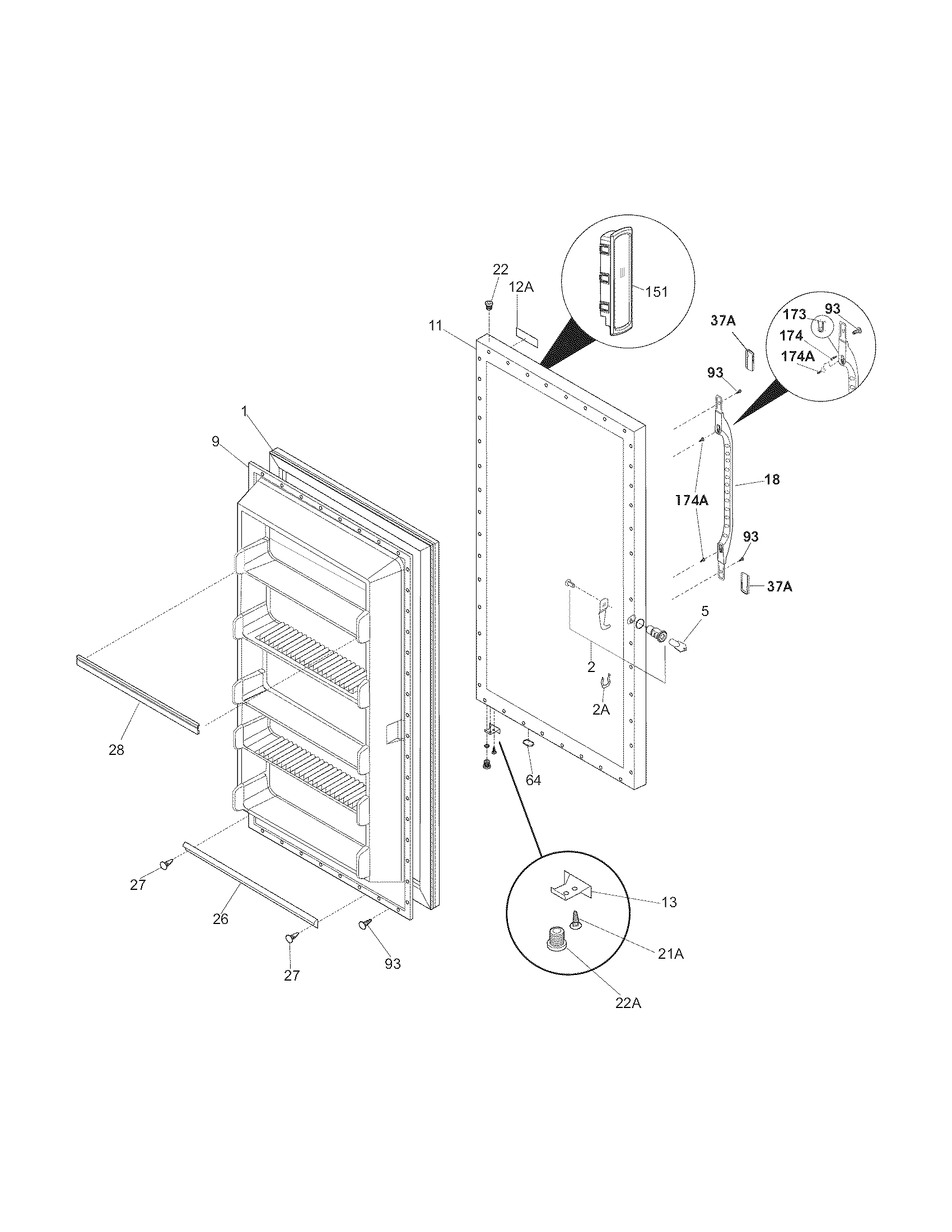

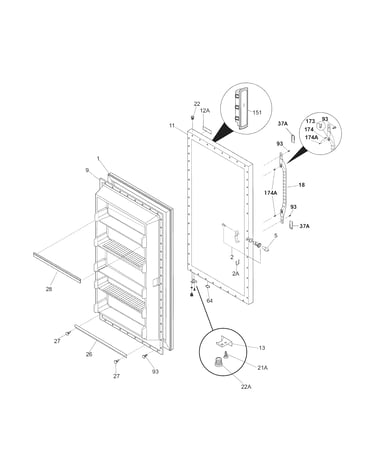

Door diagram

Gibson freezer door key (replaces 216702900, 7297147700)

Part #297147700

BEST SELLER
$9.07 |
10% OFF Phone Price : $10.07
In Stock
Refrigeration Appliance Defrost Bi-metal Thermostat (replaces 216872200, 218969901, 7216872200) 297216600
#20

System diagram

Refrigeration appliance defrost bi-metal thermostat (replaces 216872200, 218969901, 7216872200)

Part #297216600

BEST SELLER
$18.78 |
10% OFF Phone Price : $20.78
In Stock
Freezer Electronic Control Board 297241802
#151

Door diagram

Freezer electronic control board

Part #297241802

Replaced by #297370602

?
Manufacturer substitution
This part replaces 297241802. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$161.00 |
7% OFF Phone Price : $173.00
In Stock
Freezer Door Handle (white) (replaces 218803901) 297272500
#18

Door diagram

Freezer door handle (white) (replaces 218803901)

Part #297272500

BEST SELLER
$50.84 |
11% OFF Phone Price : $56.84
In Stock
Refrigerator Strap 5308000110
#2

System diagram

Refrigerator strap

Part #5308000110

BEST SELLER
$52.30 |
10% OFF Phone Price : $58.30
In Stock
Freezer Door Closer Bearing 216503300
#26

Cabinet diagram

Freezer door closer bearing

Part #216503300

BEST SELLER
This item is not returnable
$8.49 |
11% OFF Phone Price : $9.49
In Stock
Kelvinator Freezer Door Handle Mounting Block (replaces 218396701) 218396700
#173

Door diagram

Kelvinator freezer door handle mounting block (replaces 218396701)

Part #218396700

$36.46 |
14% OFF Phone Price : $42.46
In Stock
Freezer Door Hinge Bearing (replaces 216503200, 7297006800) 297006800
#22A

Door diagram

Freezer door hinge bearing (replaces 216503200, 7297006800)

Part #297006800

This item is not returnable
$12.59 |
14% OFF Phone Price : $14.59
In Stock
