Model # SHE3ARF2UC/22 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHE3ARF2UC-22 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

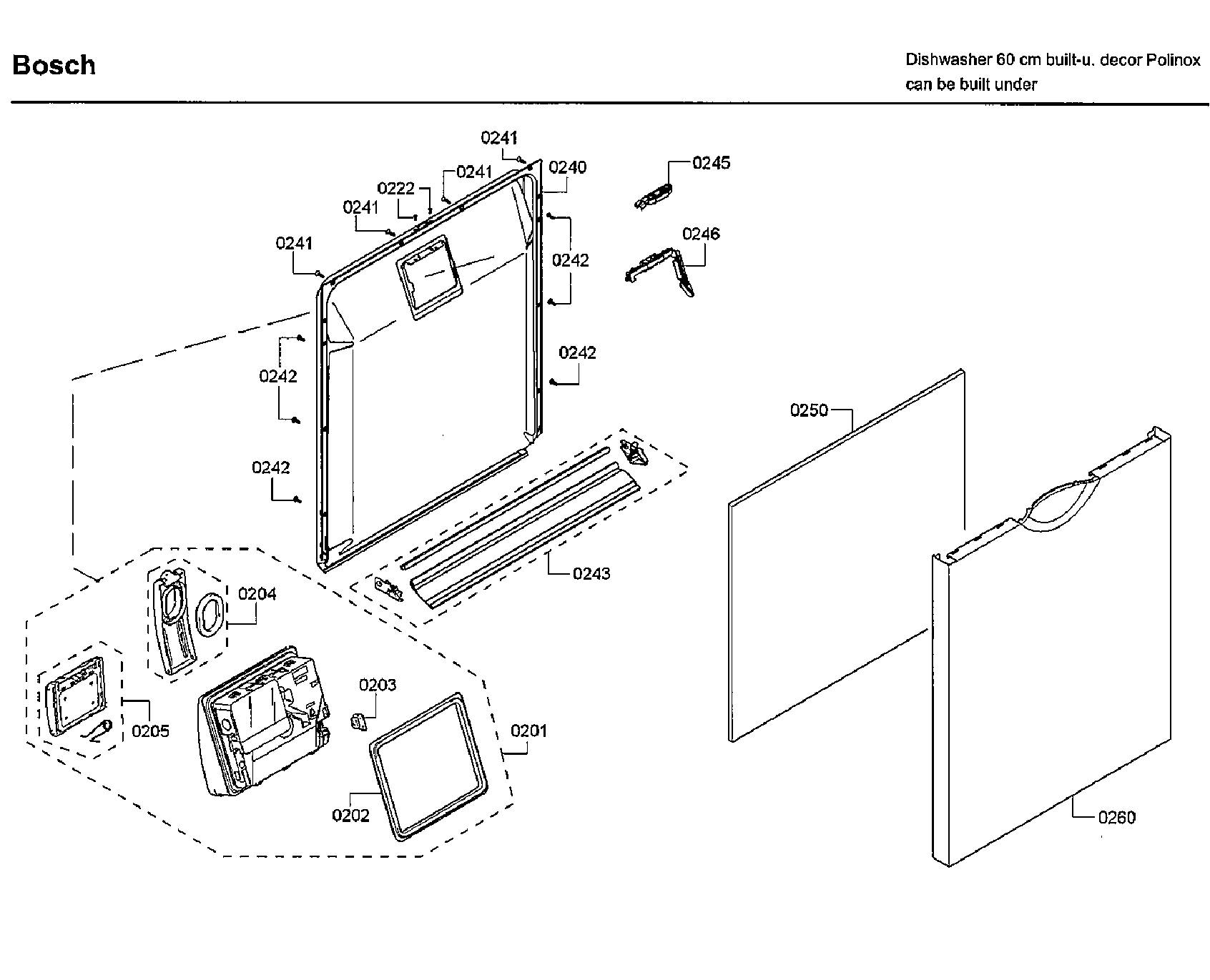

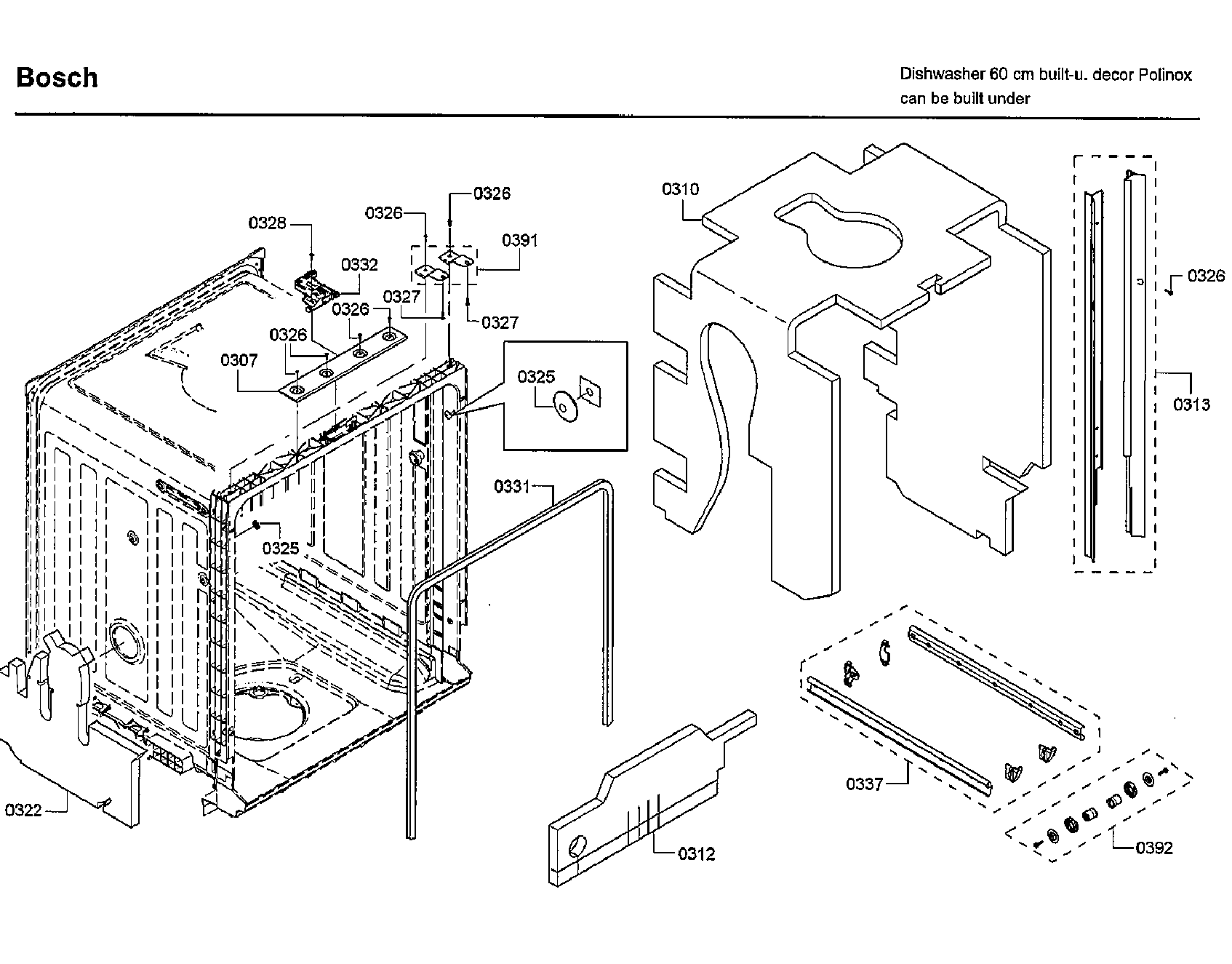

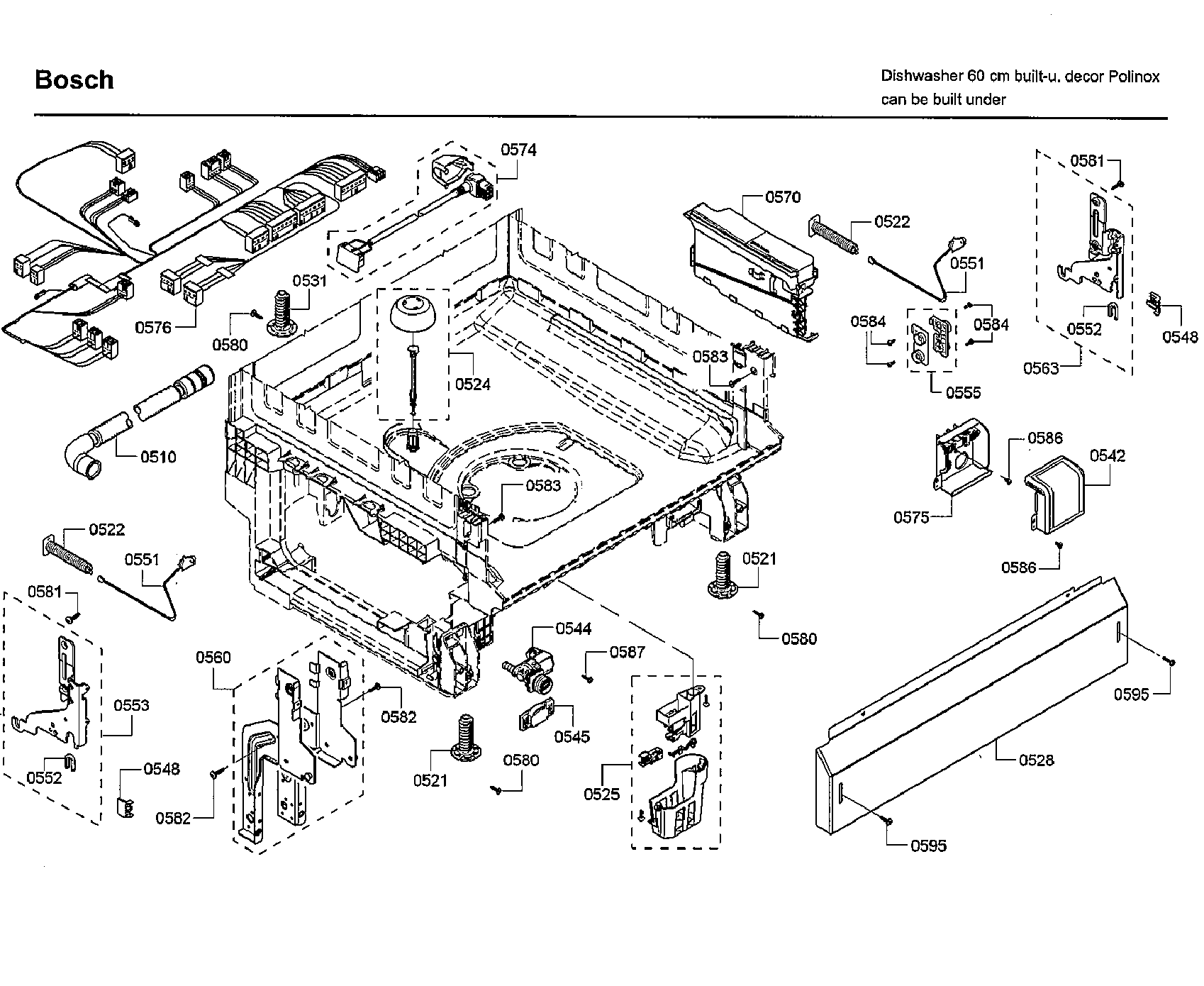

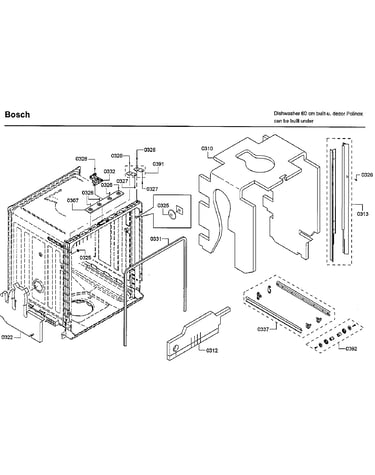

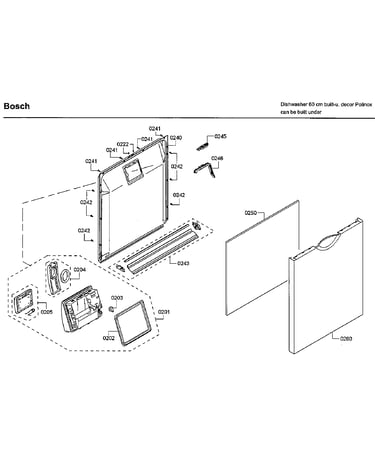

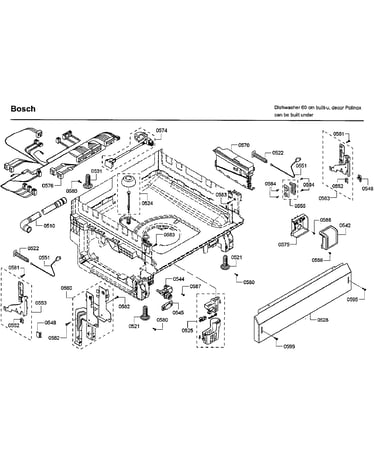

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Dishwasher Circulation Pump With Heater 12008381
#450

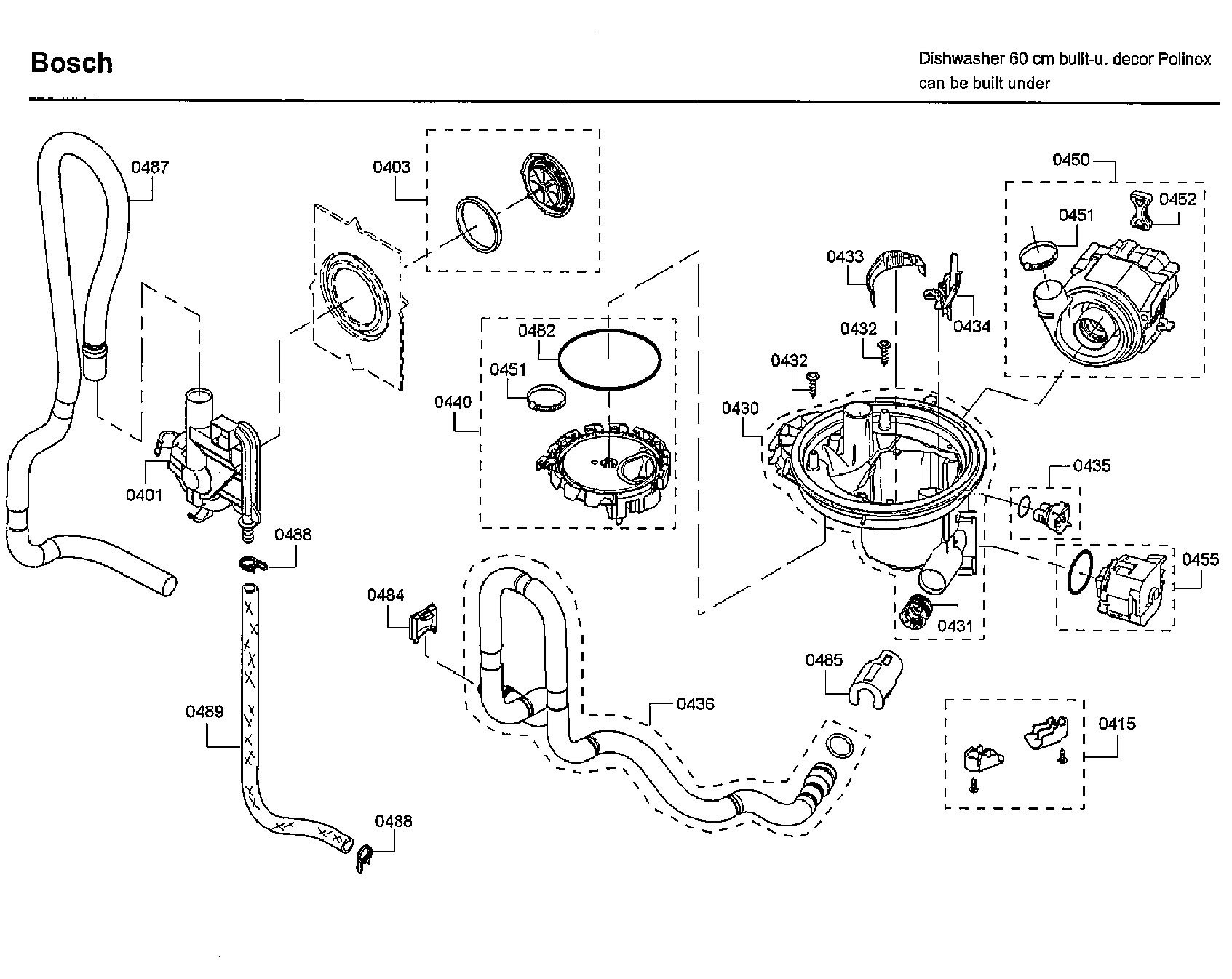

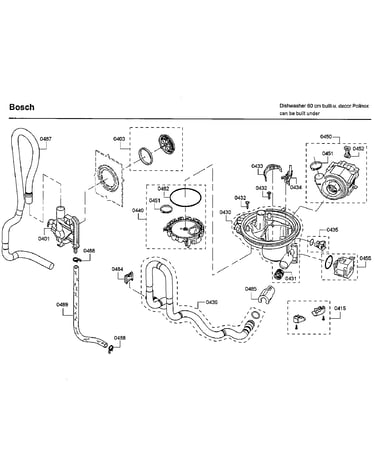

Pump diagram

Dishwasher circulation pump with heater

Part #12008381

BEST SELLER
$111.40 |
10% OFF Phone Price : $123.40
In Stock
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272) 00172272
#451

Pump diagram

Dishwasher hose clamp (replaces 00417502, 00606311, 172272)

Part #00172272

BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Dishwasher Door Lock (replaces 630783) 00630783
Dishwasher door lock (replaces 630783)

Part #00630783

BEST SELLER
$20.98 |
22% OFF Phone Price : $26.98
In Stock
Dishwasher Dishrack Roller, Lower (replaces 611475) 00611475
#621

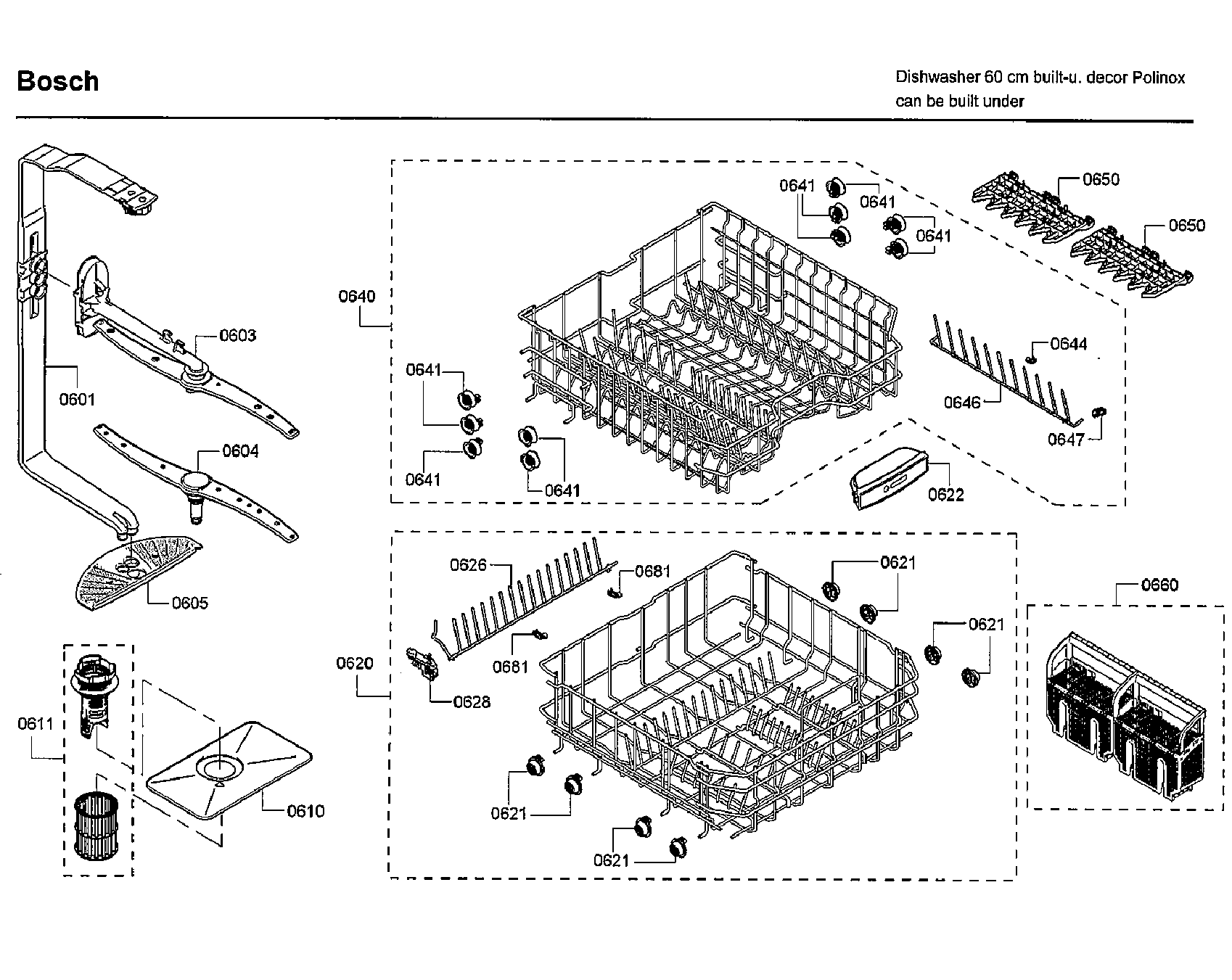

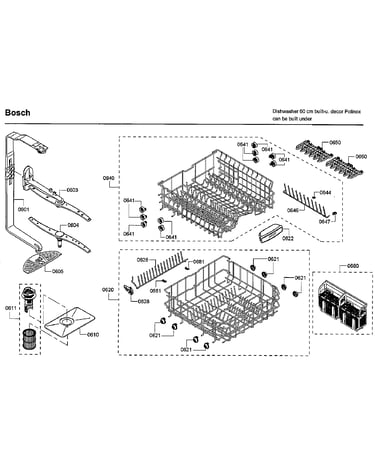

Rack diagram

Dishwasher dishrack roller, lower (replaces 611475)

Part #00611475

BEST SELLER
$14.27 |
12% OFF Phone Price : $16.27
In Stock
Dishwasher Sump 00752078
#430

Pump diagram

Dishwasher sump

Part #00752078

Replaced by #00668102

?
Manufacturer substitution
This part replaces 00752078. Substitute parts can look different from the original.
BEST SELLER
$71.79 |
8% OFF Phone Price : $77.79
In Stock
Dishwasher On/off Switch (replaces 620775) 00620775
#113

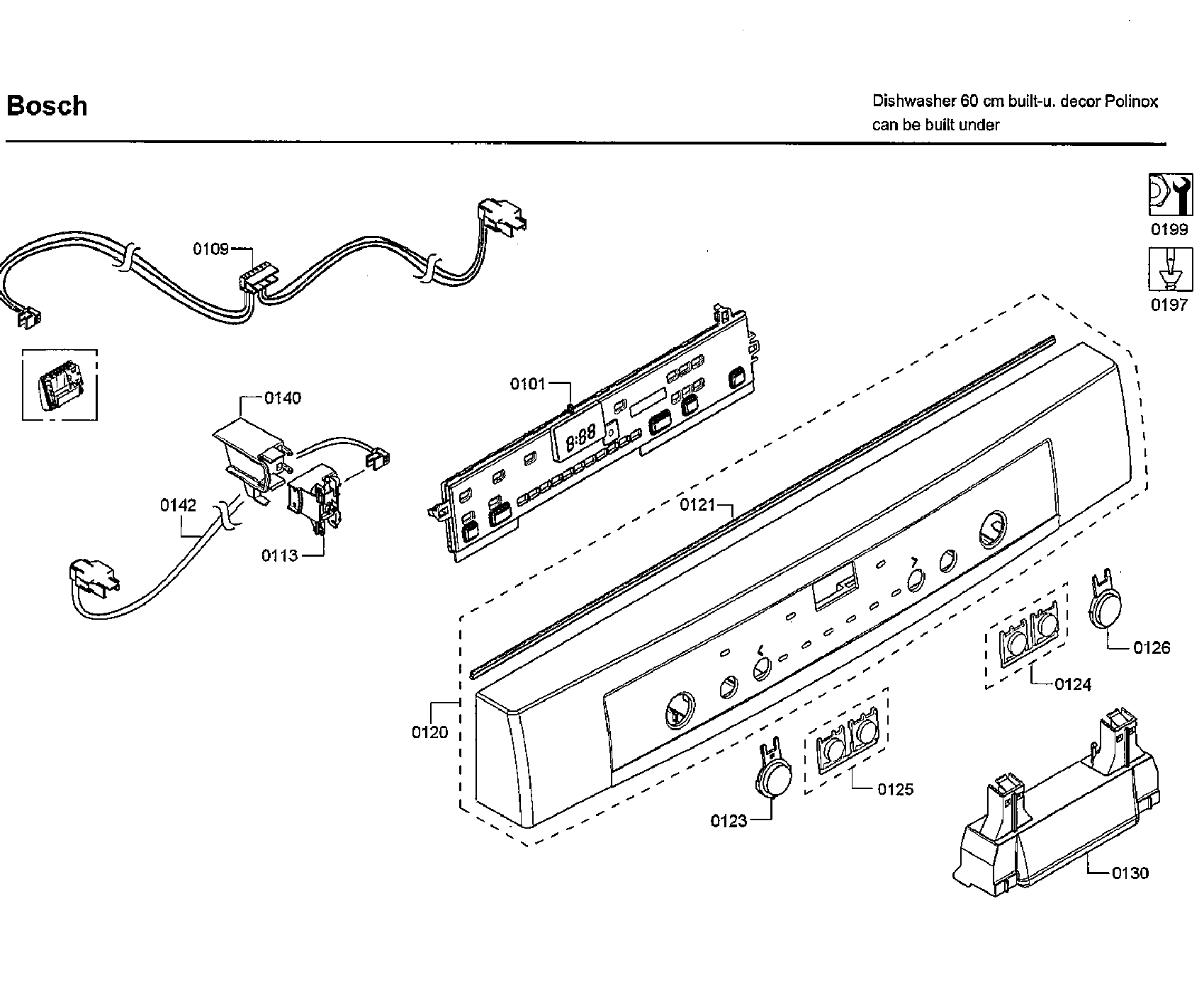

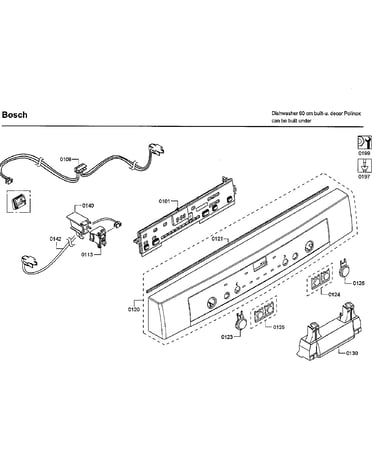

Control panel diagram

Dishwasher on/off switch (replaces 620775)

Part #00620775

$38.99 |
13% OFF Phone Price : $44.99
In Stock
Dishwasher Spray Arm, Upper 11011646
#603

Rack diagram

Dishwasher spray arm, upper

Part #11011646

This item is not returnable
$23.58 |
20% OFF Phone Price : $29.58
In Stock
Thermador Dishwasher Tine Row Pivot Clip (replaces 611981) 00611981
#681

Rack diagram

Thermador dishwasher tine row pivot clip (replaces 611981)

Part #00611981

This item is not returnable
$4.79 |
17% OFF Phone Price : $5.79
In Stock
Dishwasher Diverter Disc Cover Seal (replaces 628306) 00628306
#482

Pump diagram

Dishwasher diverter disc cover seal (replaces 628306)

Part #00628306

This item is not returnable
$4.99 |
17% OFF Phone Price : $5.99
In Stock
Dishwasher Dishrack Assembly, Lower (replaces 00683547, 00688504, 00688505, 770545) 00770545
#620

Rack diagram

Dishwasher dishrack assembly, lower (replaces 00683547, 00688504, 00688505, 770545)

Part #00770545

$172.74 |
6% OFF Phone Price : $184.74
Back Order
