Model # WFG510S0HS0 Official Whirlpool gas freestanding range
Here are the diagrams and repair parts for Official Whirlpool WFG510S0HS0 gas freestanding range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

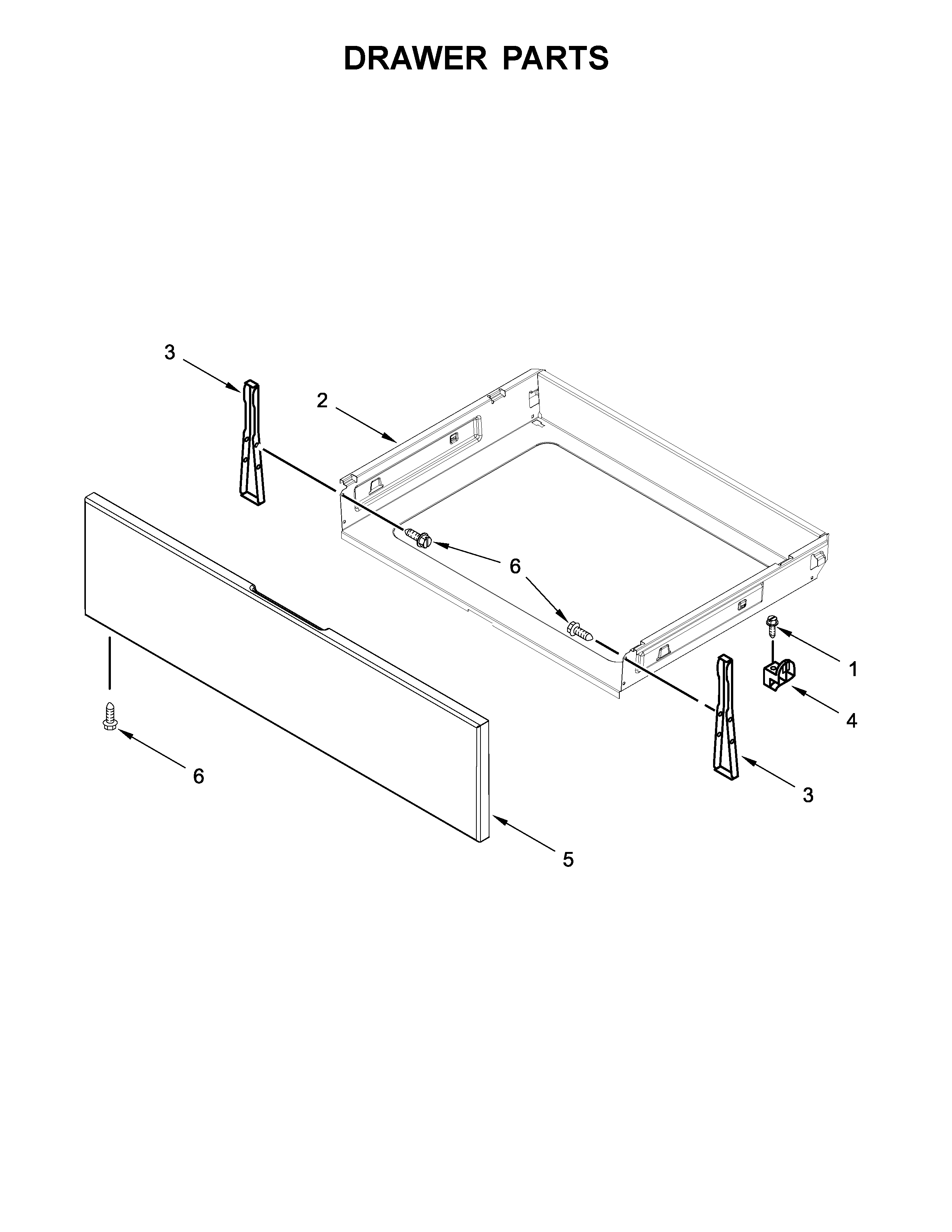

SELECT DIAGRAM
Browse Parts forWFG510S0HS0 Ranges
- #10

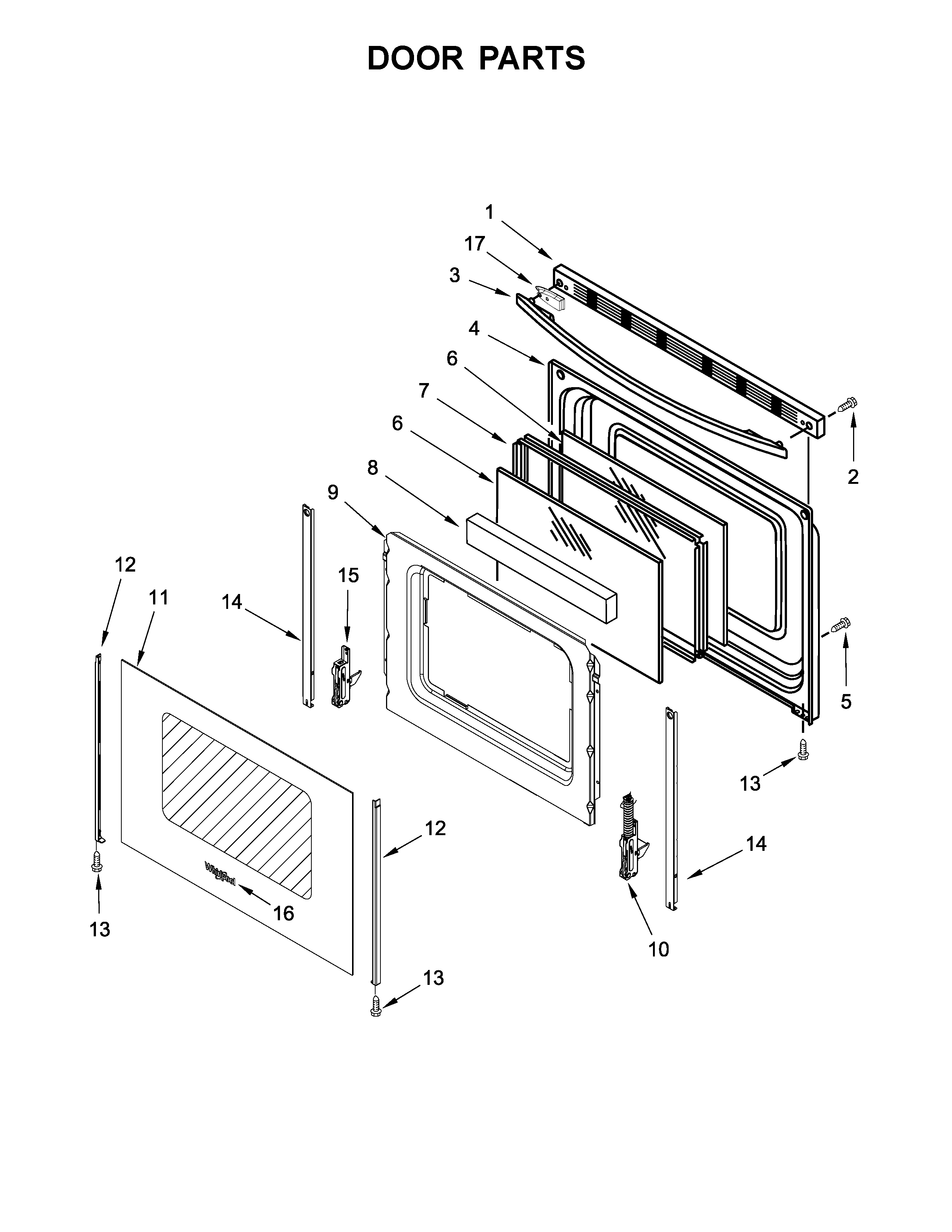

Door parts diagram
Range oven door hingePart #W10299224
Replaced by #WPW10299224
?Manufacturer substitutionThis part replaces W10299224. Substitute parts can look different from the original.$37.60 |14% OFF Phone Price : $43.60In Stock - #1
Door parts diagram
Range oven door vent capPart #W10310922
Replaced by #WPW10310922
?Manufacturer substitutionThis part replaces W10310922. Substitute parts can look different from the original.$84.78 |7% OFF Phone Price : $90.78In Stock - #13

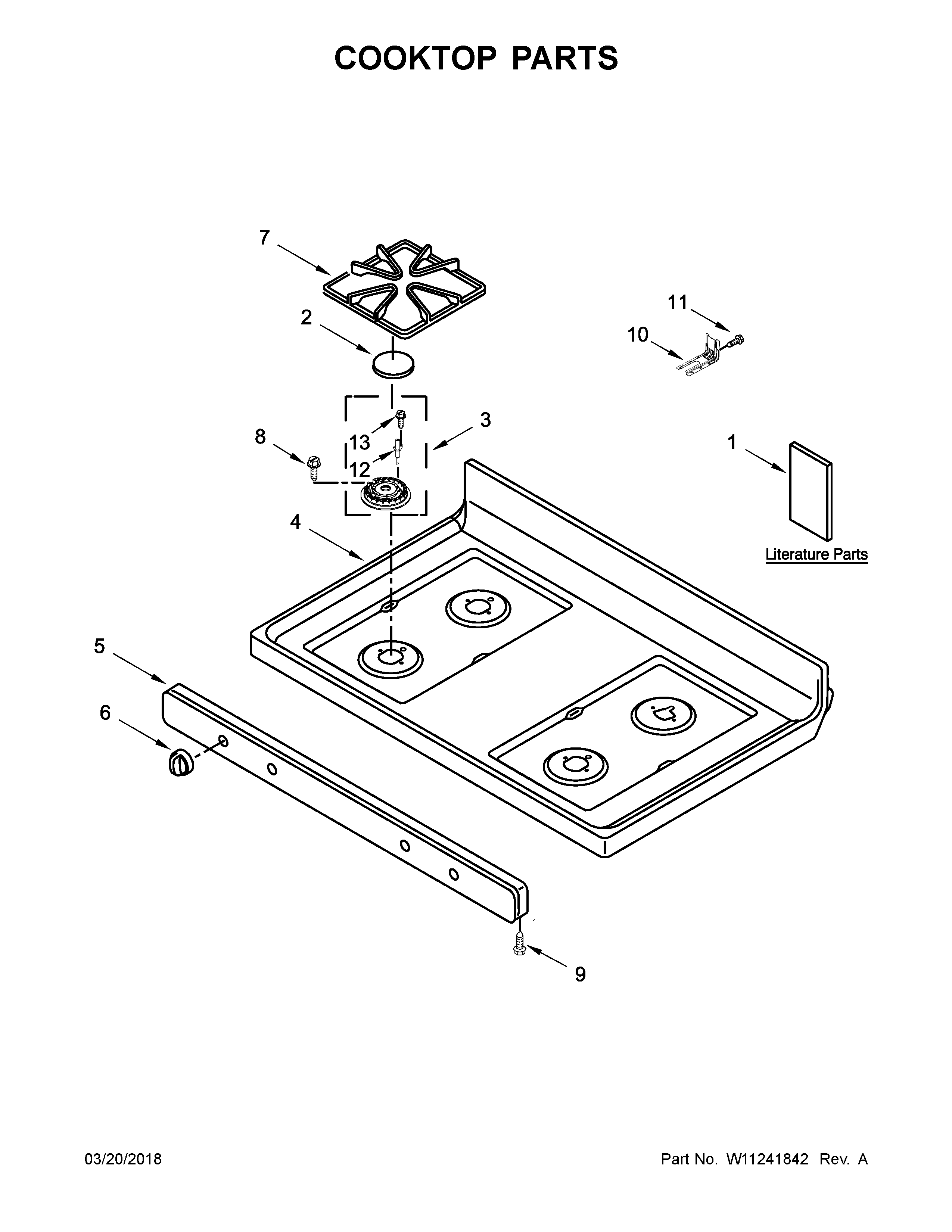

Cooktop parts diagram
Range screwPart #8273062
Replaced by #WP8273062
?Manufacturer substitutionThis part replaces 8273062. Substitute parts can look different from the original.This item is not returnable$3.58 |22% OFF Phone Price : $4.58In Stock - #16

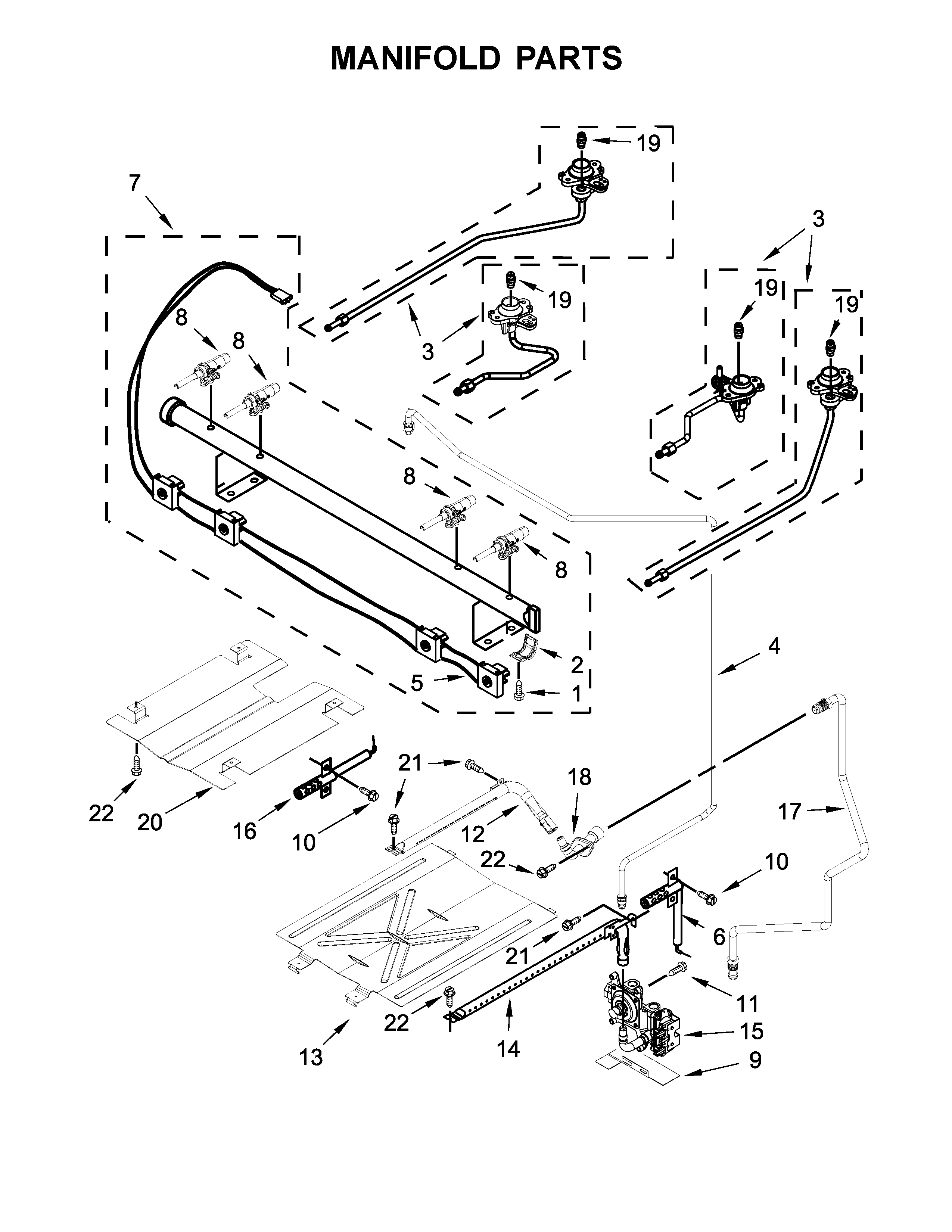

Manifold parts diagram
Range oven burner igniterPart #W10333842
Replaced by #WPW10333842
?Manufacturer substitutionThis part replaces W10333842. Substitute parts can look different from the original.$72.33 |8% OFF Phone Price : $78.33In Stock - #32

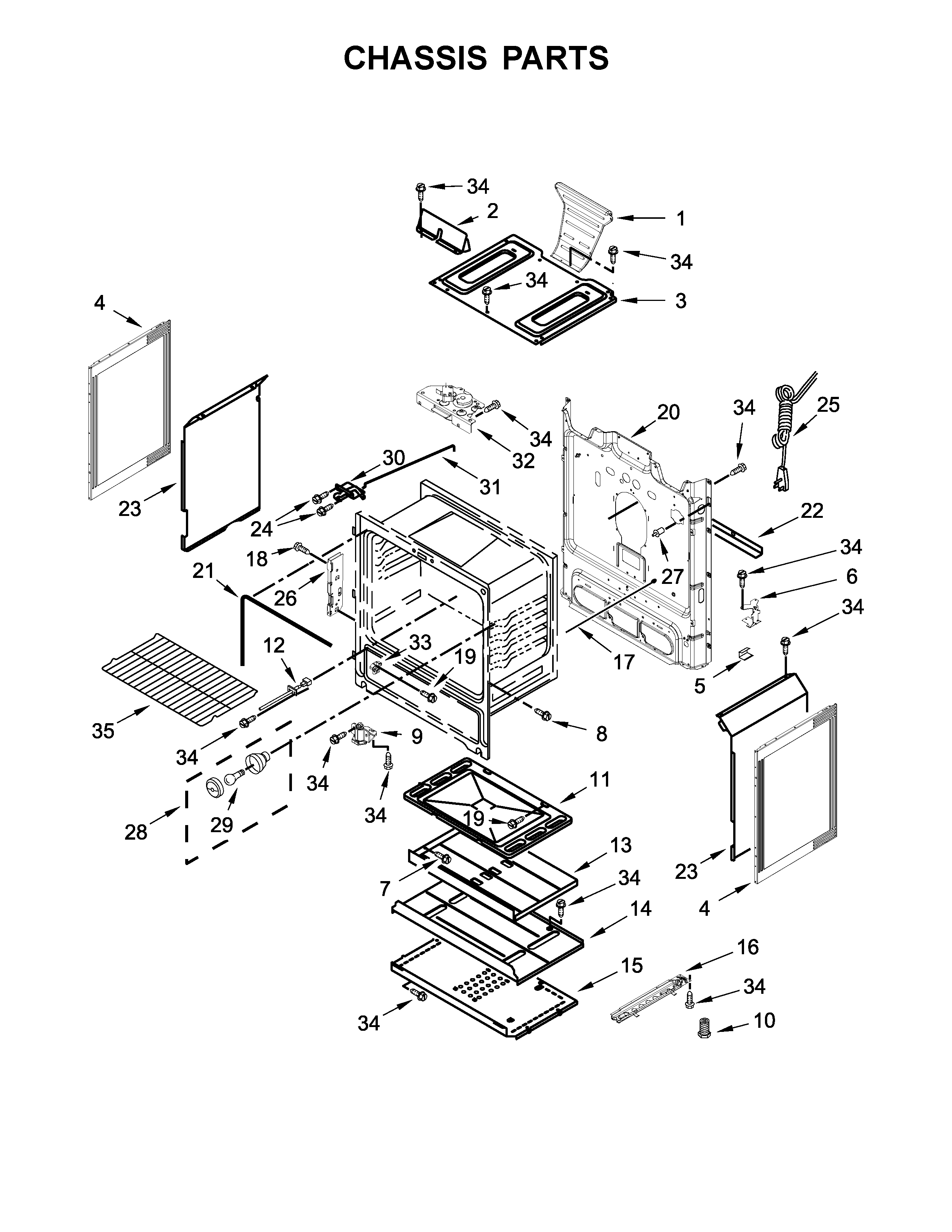

Chassis parts diagram
Range oven door lock assemblyPart #W10107820
Replaced by #WPW10107820
?Manufacturer substitutionThis part replaces W10107820. Substitute parts can look different from the original.$109.97 |10% OFF Phone Price : $121.97In Stock - #3
Cooktop parts diagram
Range surface burner head, frontPart #W10515455
Replaced by #WPW10515455
?Manufacturer substitutionThis part replaces W10515455. Substitute parts can look different from the original.$60.89 |9% OFF Phone Price : $66.89In Stock - #12

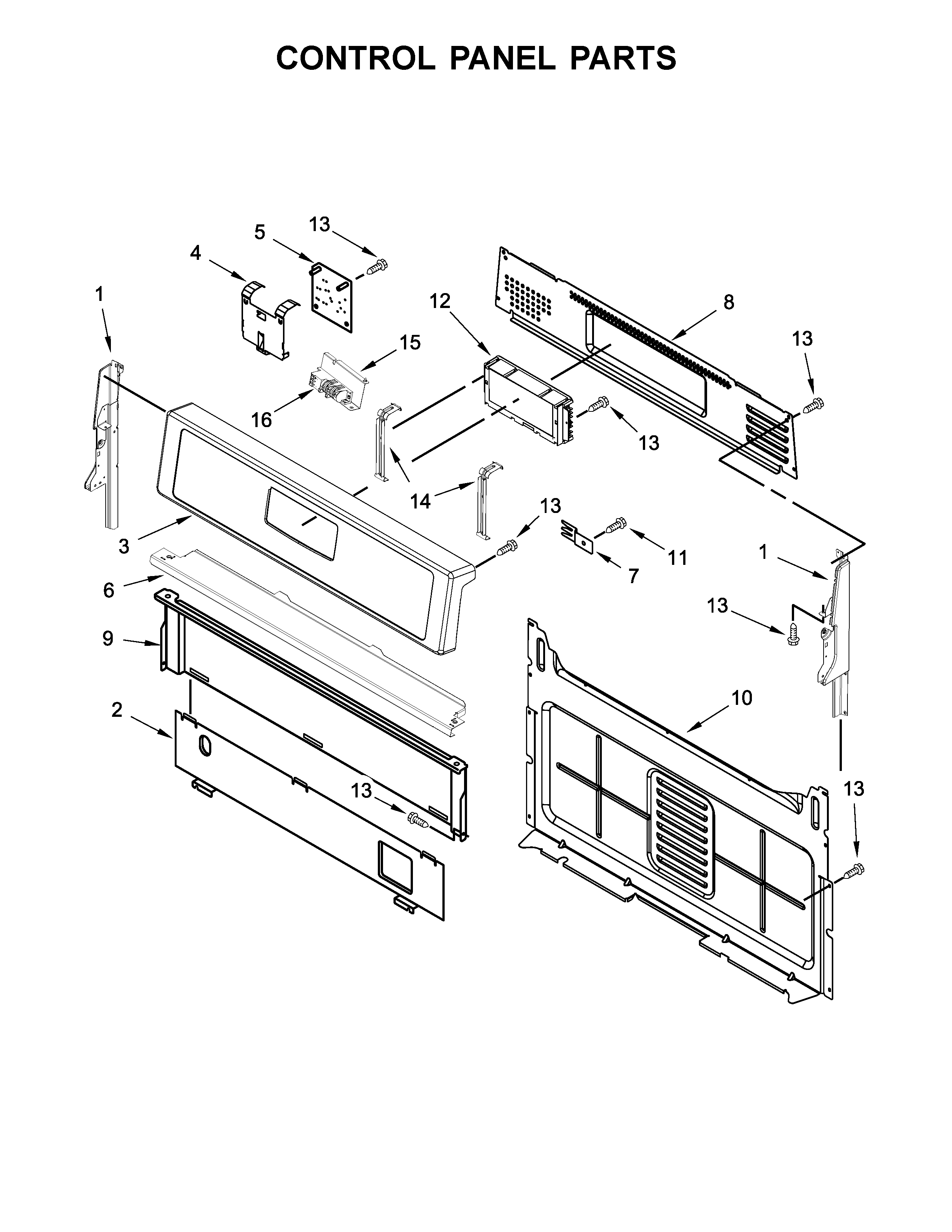

Control panel parts diagram
Control assemblyPart #W11038146
Replaced by #W11159621
?Manufacturer substitutionThis part replaces W11038146. Substitute parts can look different from the original.$261.14 |$12.00 OFF Phone Price : $273.14In Stock - #12
Cooktop parts diagram
ElectrodePart #W10515459
Replaced by #WPW10515459
?Manufacturer substitutionThis part replaces W10515459. Substitute parts can look different from the original.This item is not returnable$34.16 |15% OFF Phone Price : $40.16In Stock - Range oven rack
Part #W10268578
Replaced by #W11520287
?Manufacturer substitutionThis part replaces W10268578. Substitute parts can look different from the original.$31.02 |16% OFF Phone Price : $37.02In Stock - #29
Chassis parts diagram
Light bulbPart #311255
Replaced by #8009
?Manufacturer substitutionThis part replaces 311255. Substitute parts can look different from the original.This item is not returnable$12.57 |14% OFF Phone Price : $14.57In Stock
