Kenmore
Mechanical Sewing Machine

Model # 15812390 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 15812390 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

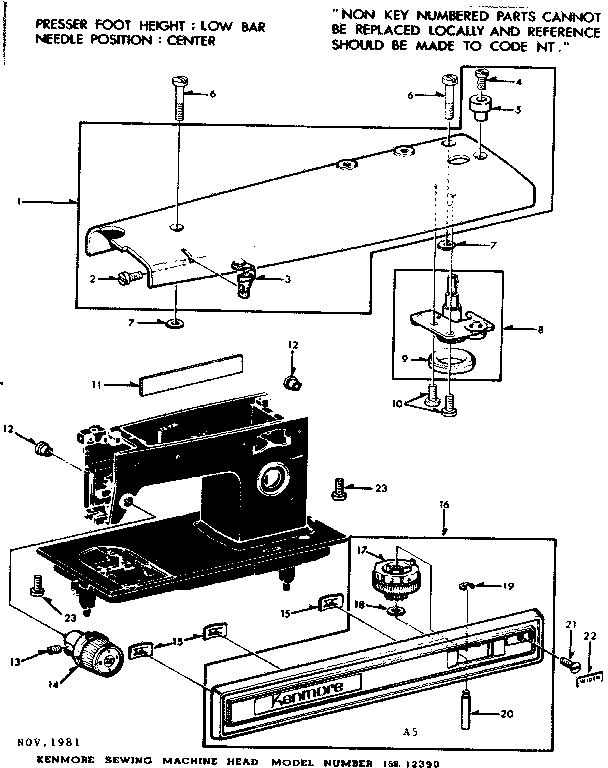

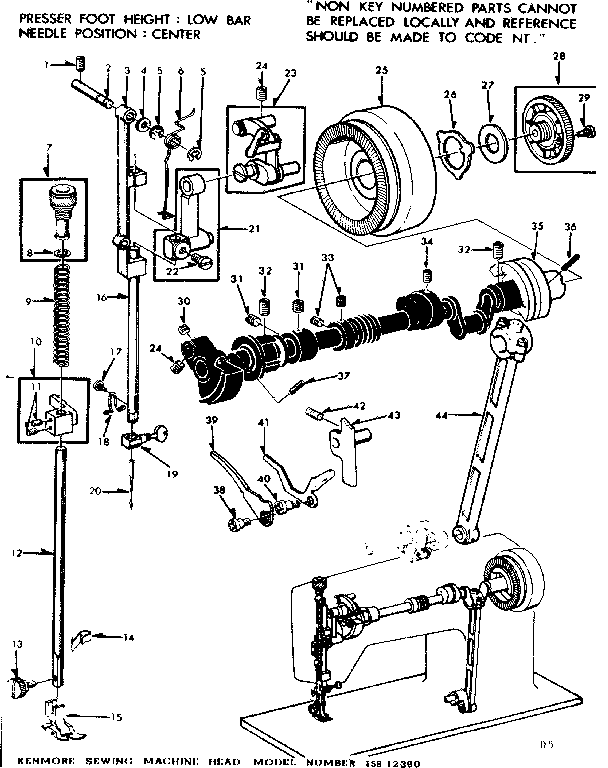

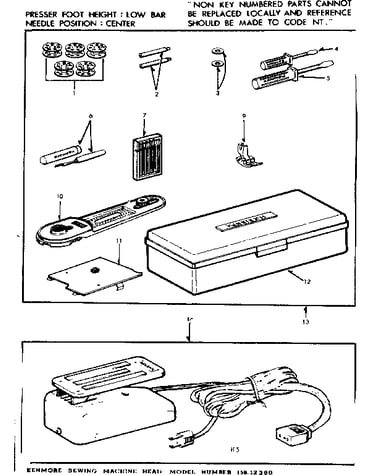

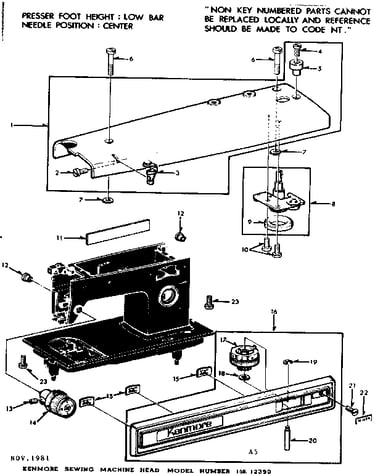

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 219 parts  |
Guard Cord 53648
#11

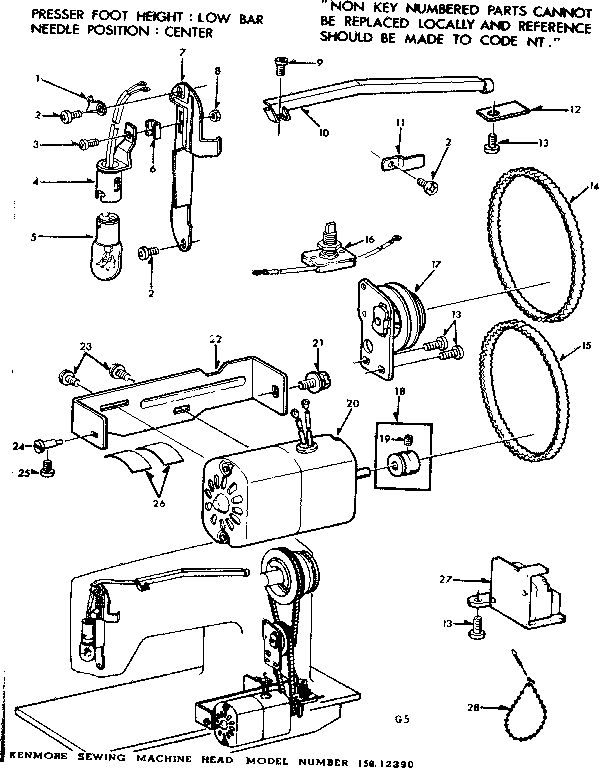

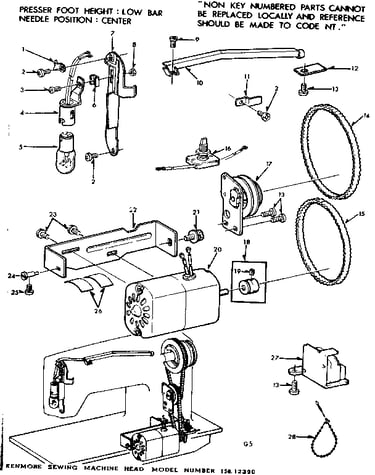

Motor assembly diagram

Guard cord

Part #53648

The manufacturer no longer makes this part, and there's no substitute part

Gear Cam 49771
#6

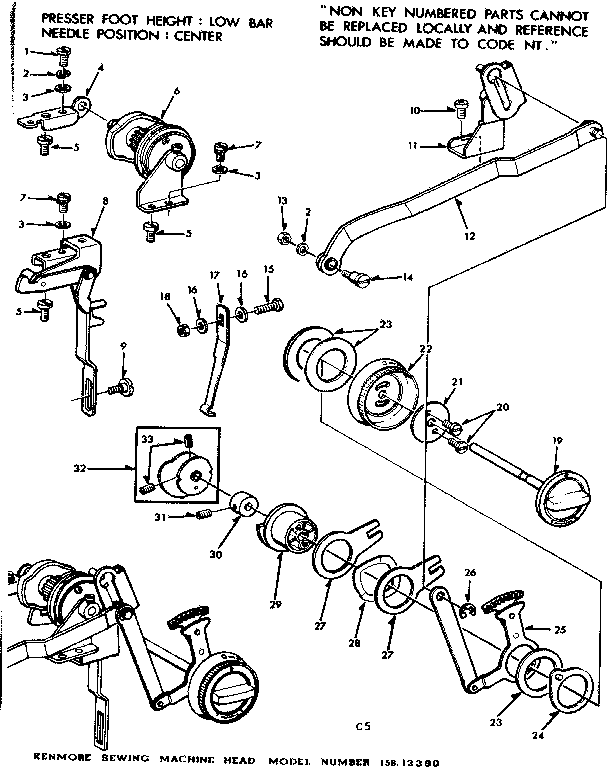

Geared cam assembly diagram

Gear cam

Part #49771

The manufacturer no longer makes this part, and there's no substitute part

Washer 42269
#45

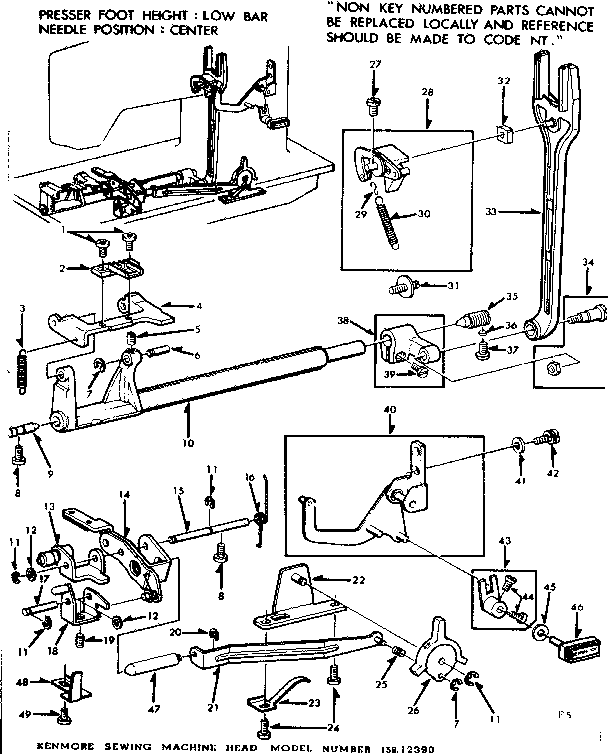

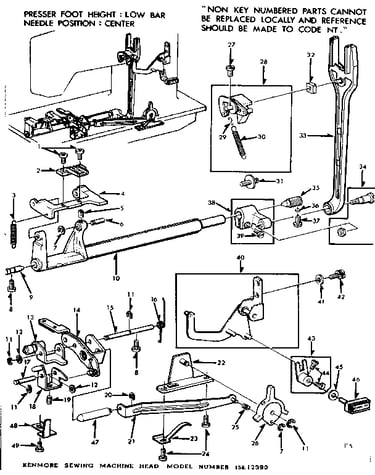

Feed regulator assembly diagram

Washer

Part #42269

The manufacturer no longer makes this part, and there's no substitute part

Separator 53844
#25

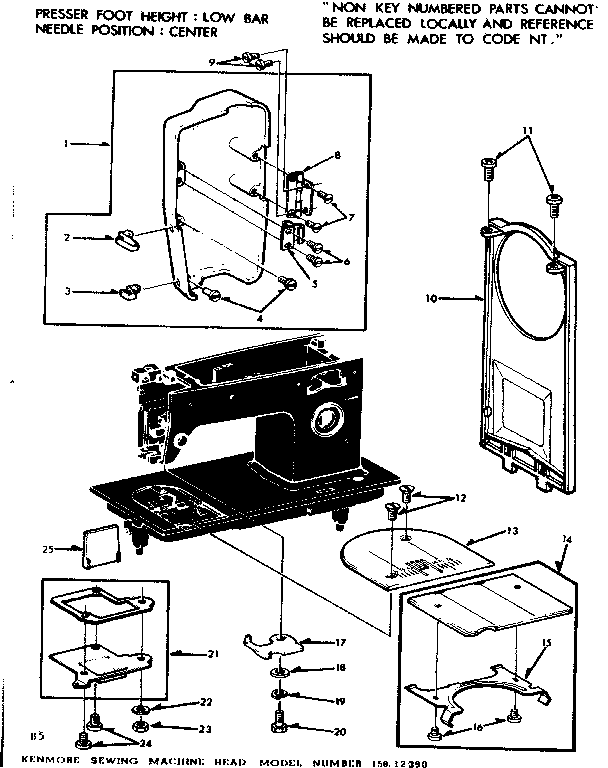

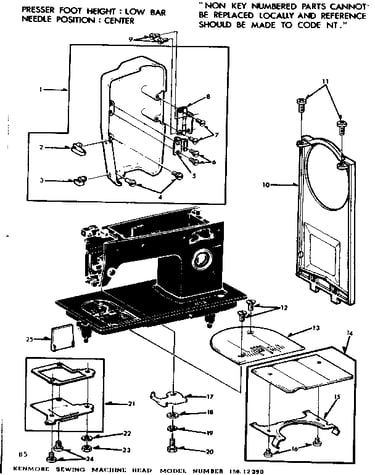

Face covers diagram

Separator

Part #53844

The manufacturer no longer makes this part, and there's no substitute part

Spacer 53539
#27

Geared cam assembly diagram

Spacer

Part #53539

The manufacturer no longer makes this part, and there's no substitute part

Drop Base 54579
#22

Feed regulator assembly diagram

Drop base

Part #54579

The manufacturer no longer makes this part, and there's no substitute part

Guard Cord 39679
#12

Motor assembly diagram

Guard cord

Part #39679

The manufacturer no longer makes this part, and there's no substitute part

Connect Bar 54580
#21

Feed regulator assembly diagram

Connect bar

Part #54580

The manufacturer no longer makes this part, and there's no substitute part

Spring 8576
#14

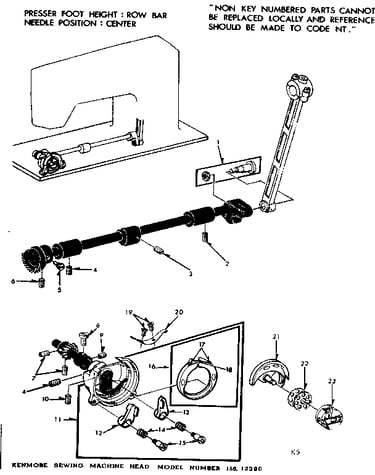

Shuttle assembly diagram

Spring

Part #8576

The manufacturer no longer makes this part, and there's no substitute part

Spring 53300
#30

Feed regulator assembly diagram

Spring

Part #53300

The manufacturer no longer makes this part, and there's no substitute part
