GE
Upright Freezer

Model # FUF14SVARWW Official GE freezer

Here are the diagrams and repair parts for Official GE FUF14SVARWW freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Freezer Dryer Filter WR86X10044
#740

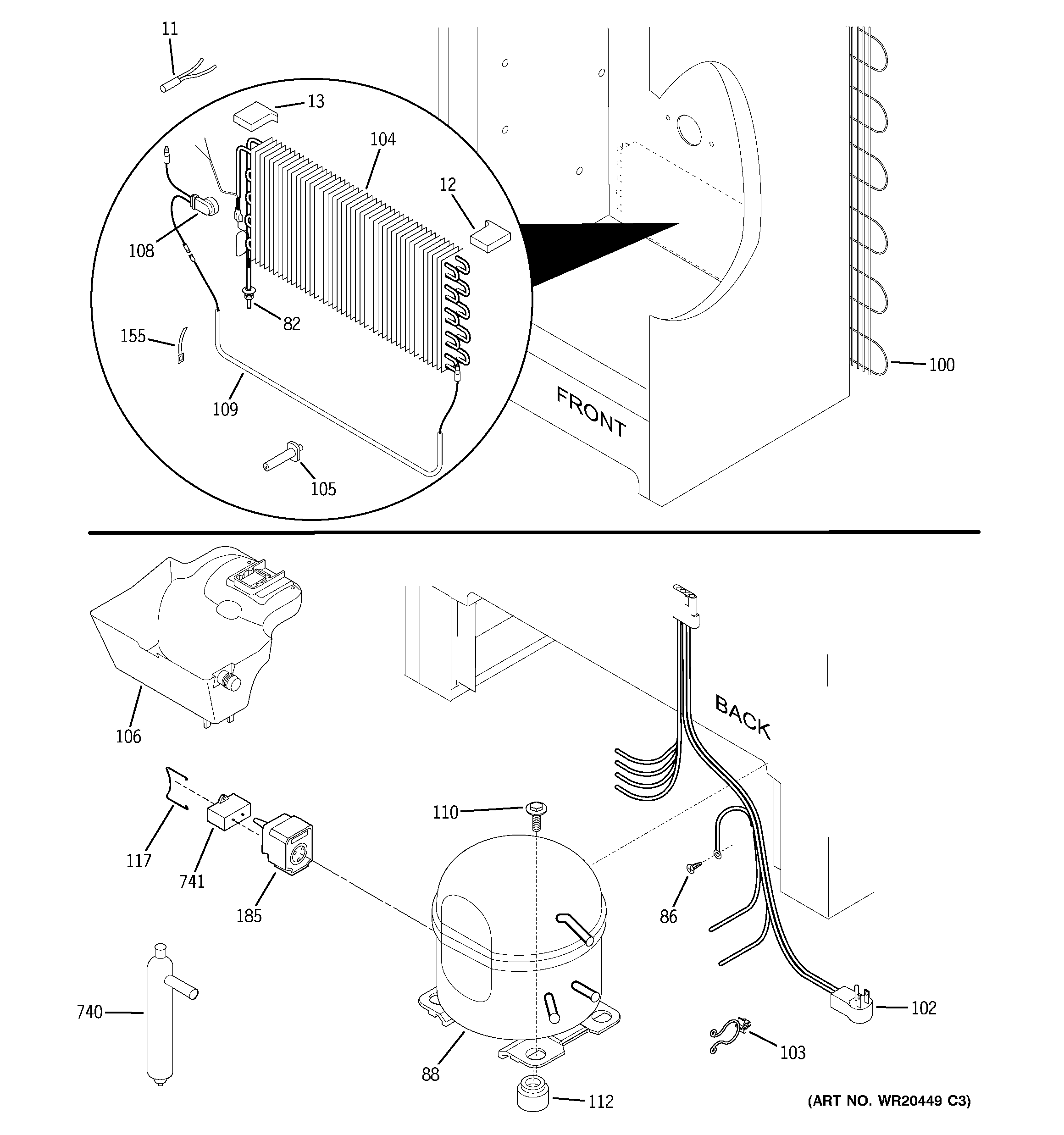

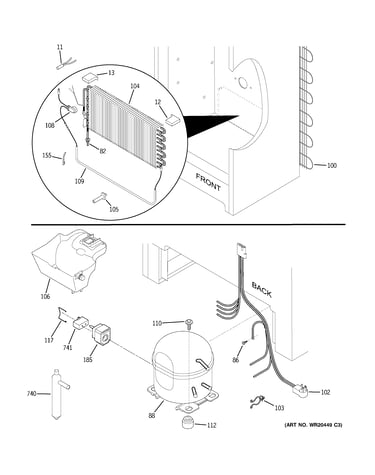

Unit parts diagram

Freezer dryer filter

Part #WR86X10044

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X10044. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Freezer Defrost Heater WR51X10059
#109

Unit parts diagram

Freezer defrost heater

Part #WR51X10059

Replaced by #WR51X23562

?
Manufacturer substitution
This part replaces WR51X10059. Substitute parts can look different from the original.
$90.94 |
6% OFF Phone Price : $96.94
In Stock
Adjustment Foot WR02X9485
#58

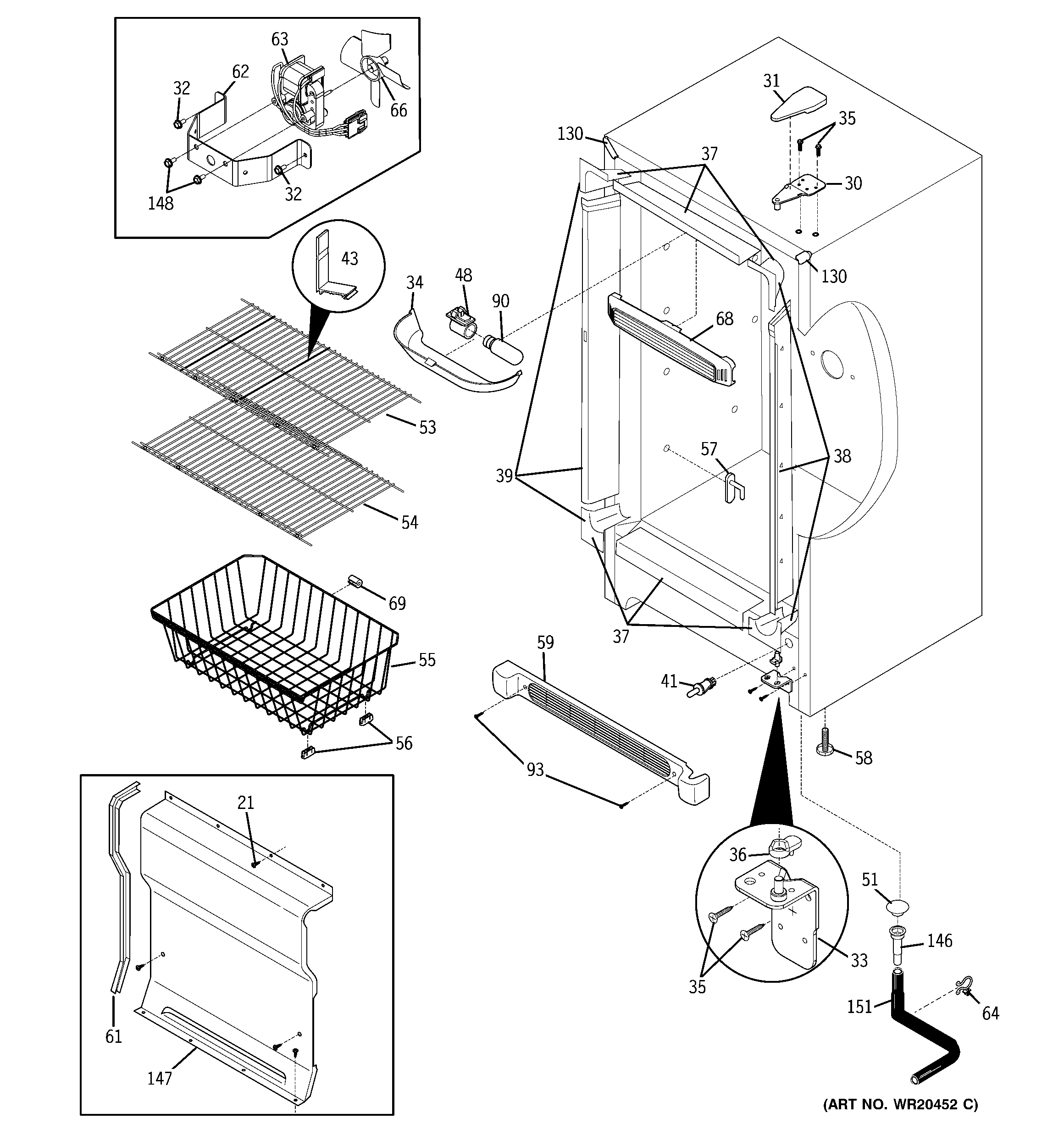

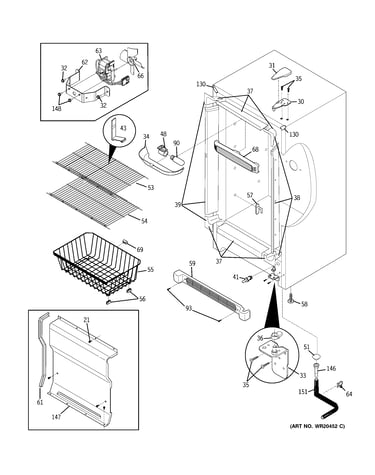

Cabinet diagram

Adjustment foot

Part #WR02X9485

Replaced by #WR2X9485

?
Manufacturer substitution
This part replaces WR02X9485. Substitute parts can look different from the original.
$20.43 |
23% OFF Phone Price : $26.43
In Stock
Light Shield WR02X12994
#34

Cabinet diagram

Light shield

Part #WR02X12994

$27.00
In Stock
Drain Hose WR17X12652
#151

Cabinet diagram

Drain hose

Part #WR17X12652

$8.51
In Stock
Spring Clip WR01X10870
#45

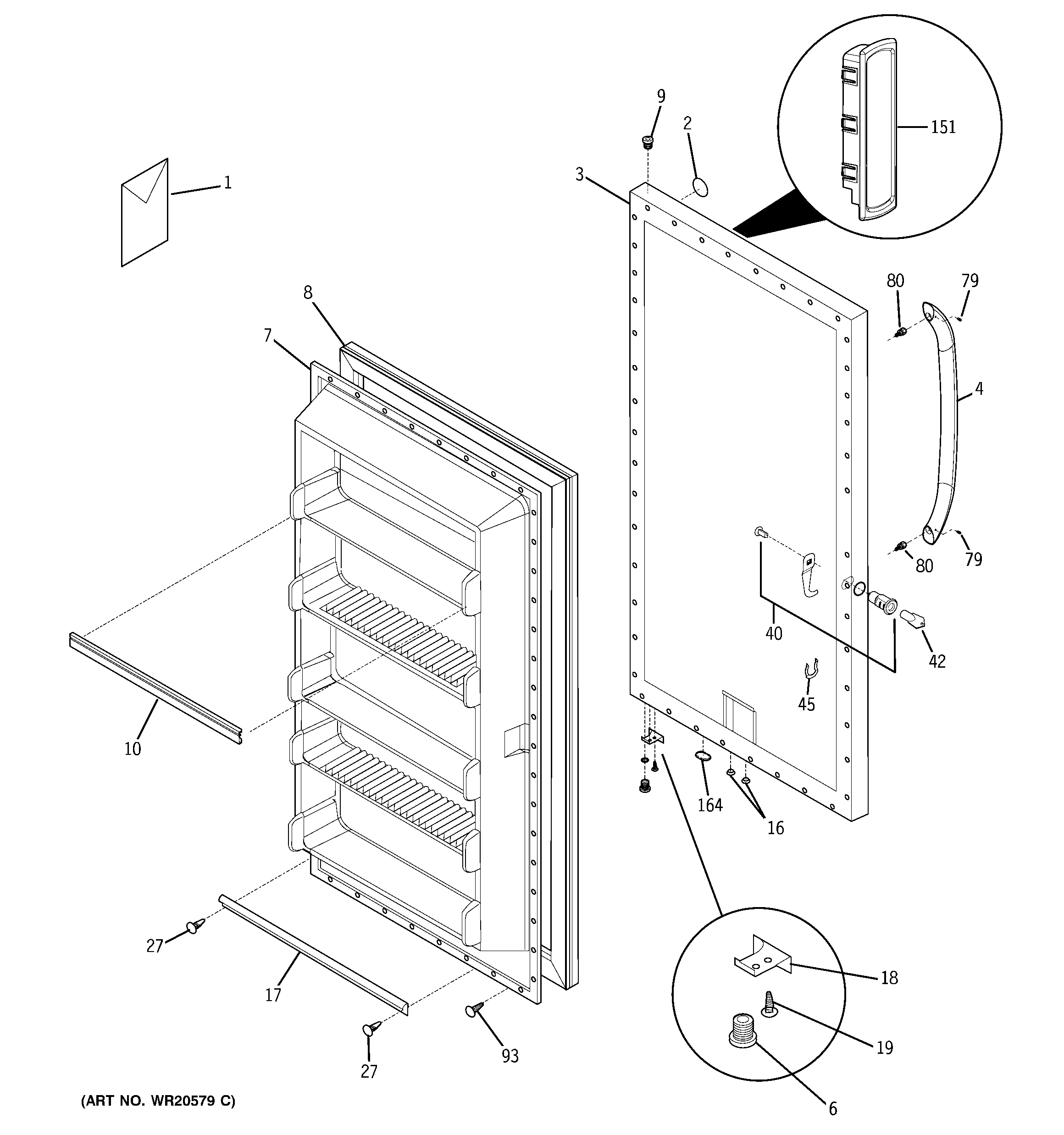

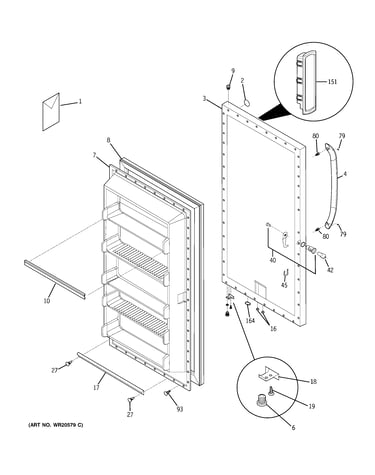

Freezer door diagram

Spring clip

Part #WR01X10870

This item is not returnable
$5.00
In Stock
Air Baffle WR17X12658
#68

Cabinet diagram

Air baffle

Part #WR17X12658

$23.14
In Stock
Condenser WR84X5007
#100

Unit parts diagram

Condenser

Part #WR84X5007

$279.53
In Stock
Screw,rwhd , WR02X12764
#86

Unit parts diagram

Screw,rwhd ,

Part #WR02X12764

$30.84 |
16% OFF Phone Price : $36.84
In Stock
Glide Basket WR02X11444
#56

Cabinet diagram

Glide basket

Part #WR02X11444

$81.57 |
7% OFF Phone Price : $87.57
In Stock
