Model # 1039337364 Official Kenmore 30" electric range with self-cleaning oven
Here are the diagrams and repair parts for Official Kenmore 1039337364 30" electric range with self-cleaning oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

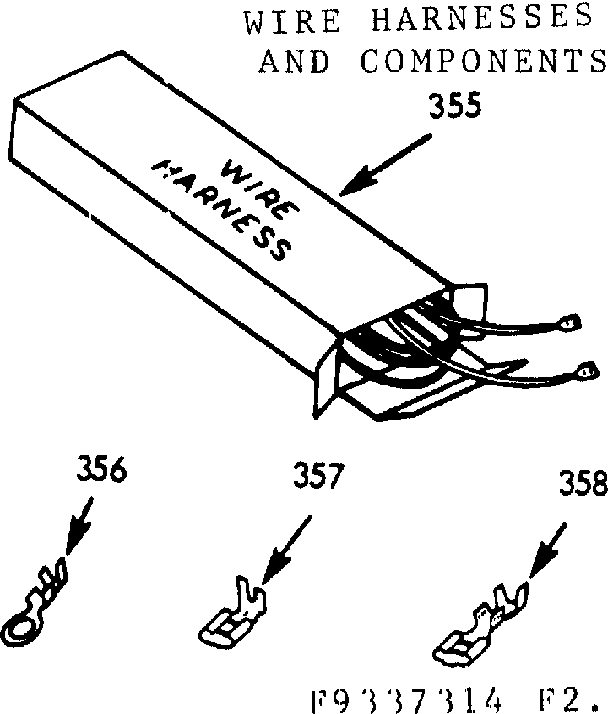

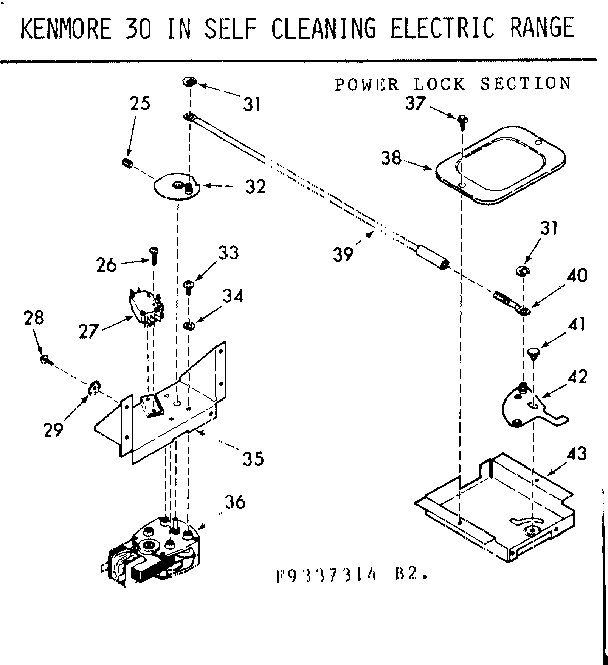

SELECT DIAGRAM
Browse Parts for1039337364 Ranges
- #330
Optional rotisserie diagram
ScrewPart #105771
Replaced by #WB1X1293
?Manufacturer substitutionThis part replaces 105771. Substitute parts can look different from the original.This item is not returnable$8.70 |10% OFF Phone Price : $9.70In Stock - #6

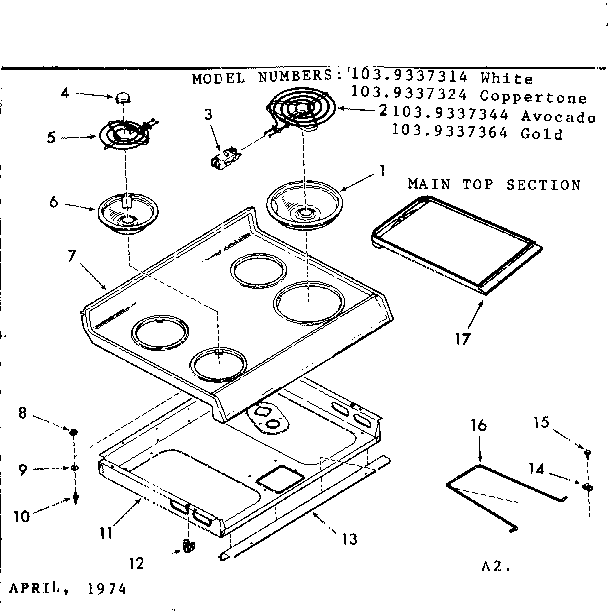

Main top section diagram
BowlPart #281348
Replaced by #WB32X107
?Manufacturer substitutionThis part replaces 281348. Substitute parts can look different from the original.$11.84 |14% OFF Phone Price : $13.84In Stock - #124A

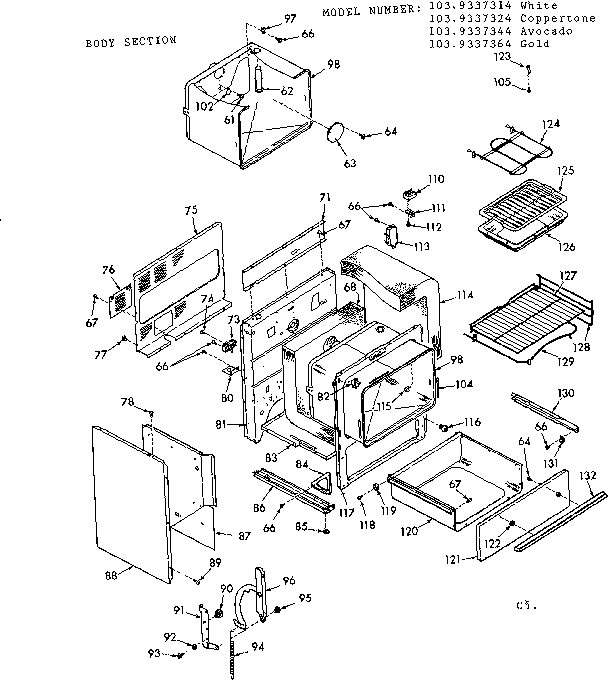

Body section diagram
Broil elementPart #293105
Replaced by #WB44M5
?Manufacturer substitutionThis part replaces 293105. Substitute parts can look different from the original.$70.53 |8% OFF Phone Price : $76.53In Stock - #193

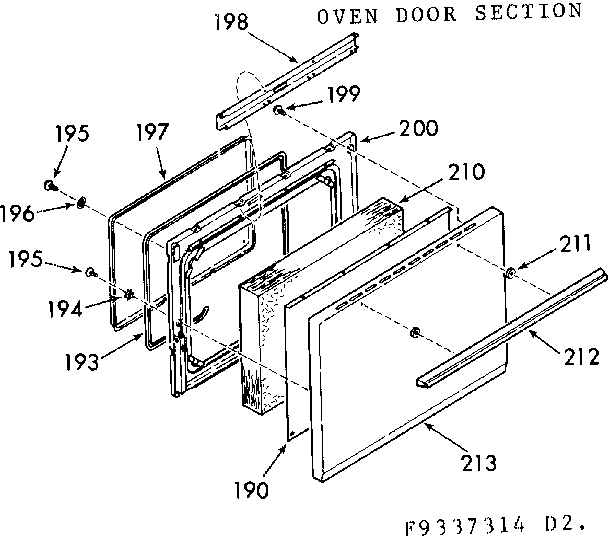

Oven door section diagram
GasketPart #292244
Replaced by #WB2X9373
?Manufacturer substitutionThis part replaces 292244. Substitute parts can look different from the original.$80.20 |7% OFF Phone Price : $86.20In Stock - #339
Optional rotisserie diagram
Cook top side trim kit spit supportPart #282922
$45.99In Stock - Heat control
Part #113751
The manufacturer no longer makes this part, and there's no substitute part
- Screw
Part #102430
Replaced by #WB1X1130
?Manufacturer substitutionThis part replaces 102430. Substitute parts can look different from the original.$8.70 |10% OFF Phone Price : $9.70In Stock - #2B
Main top section diagram
ElementPart #299463
The manufacturer no longer makes this part, and there's no substitute part
- #77
Body section diagram
Trim clipPart #70588
Replaced by #WB2X9573
?Manufacturer substitutionThis part replaces 70588. Substitute parts can look different from the original.$7.40 |12% OFF Phone Price : $8.40In Stock - #89
Body section diagram
ScrewPart #282634
Replaced by #WB01X32746
?Manufacturer substitutionThis part replaces 282634. Substitute parts can look different from the original.$9.51In Stock
