GE
Electric Cooktop

Model # JP389BD1BBC Official GE electric cooktop

Here are the diagrams and repair parts for Official GE JP389BD1BBC electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Cooktop Fan Switch WB24X10055
#19

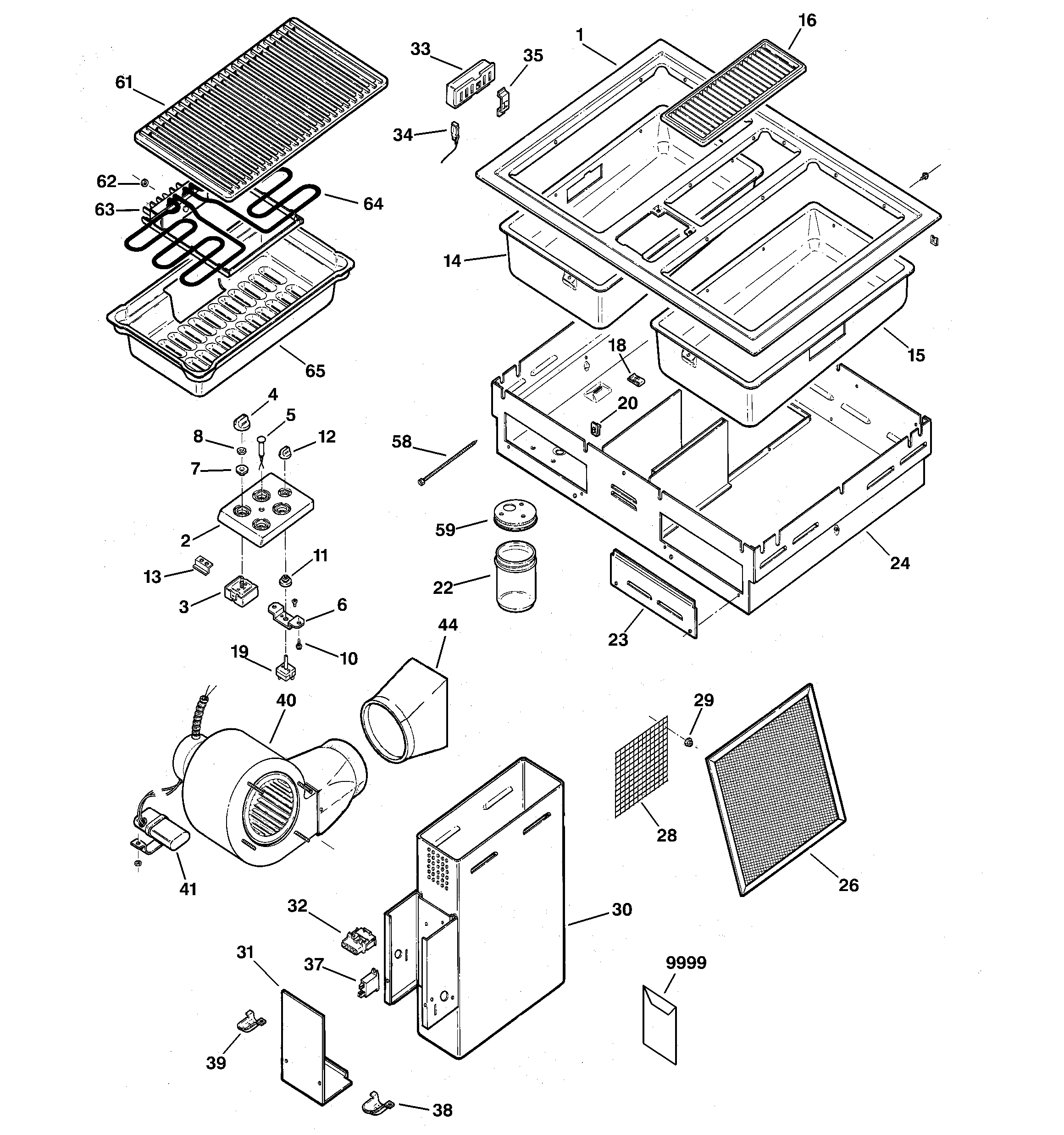

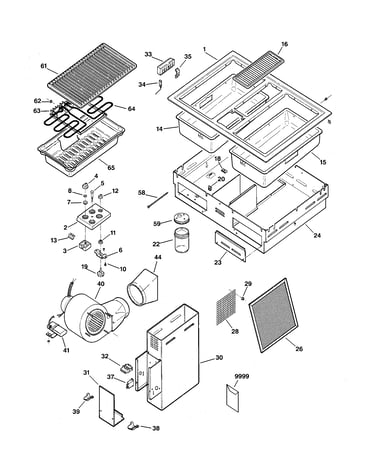

Cooktop diagram

Cooktop fan switch

Part #WB24X10055

$69.75 |
8% OFF Phone Price : $75.75
In Stock
Range Oven Selector Switch Knob (replaces Wb03x10322, Wb3t10035) WB03T10035
#12

Cooktop diagram

Range oven selector switch knob (replaces wb03x10322, wb3t10035)

Part #WB03T10035

This item is not returnable
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Weldment Box WB49X5481
#14

Cooktop diagram

Weldment box

Part #WB49X5481

$88.49
In Stock
Thumb Screw WB01X10080
Thumb screw

Part #WB01X10080

Replaced by #WB01X24463

?
Manufacturer substitution
This part replaces WB01X10080. Substitute parts can look different from the original.
$9.54
In Stock
Range Surface Burner Grate WB32X5058
Range surface burner grate

Part #WB32X5058

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Main Top Assembly WB62X5392
#1

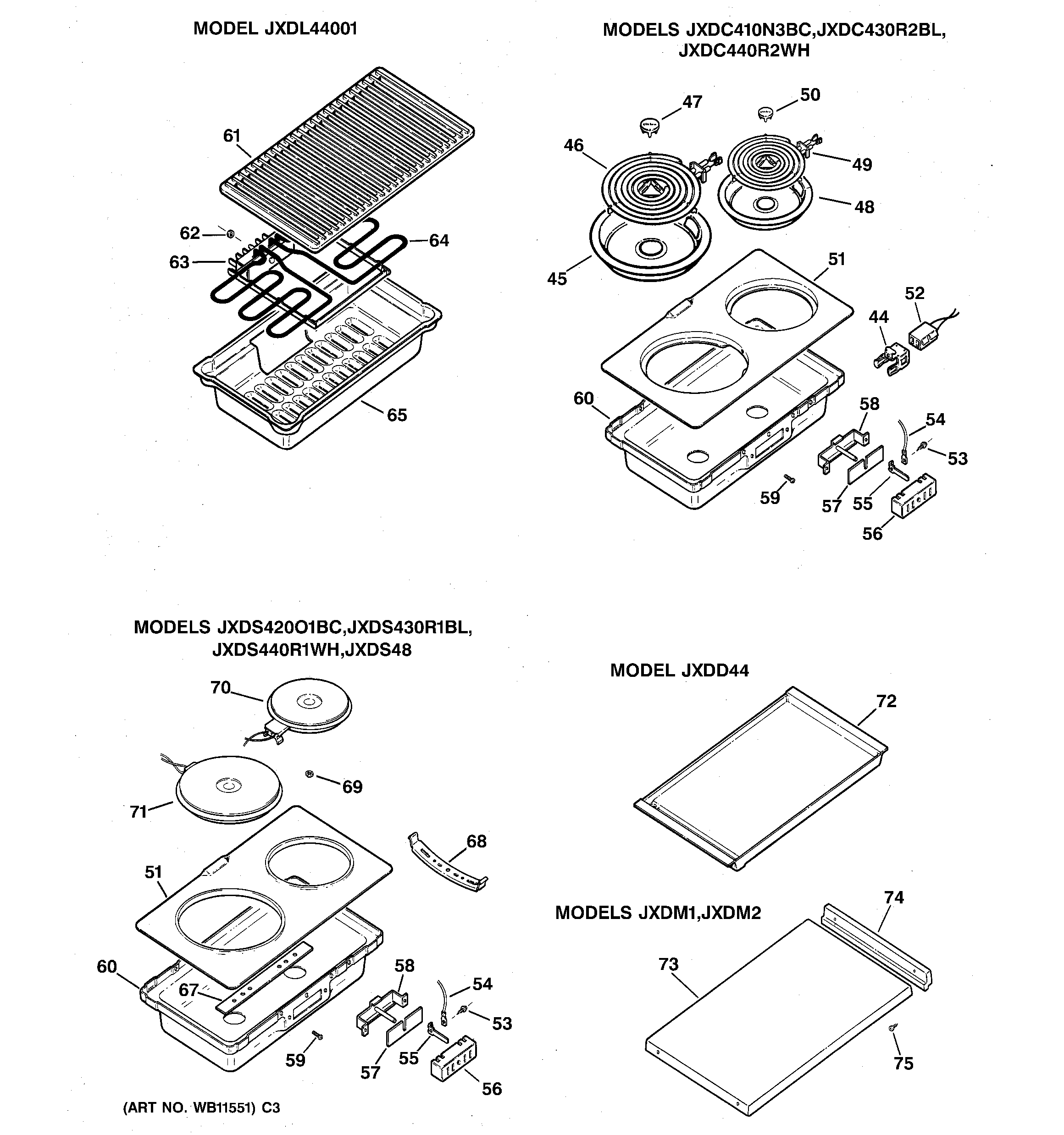

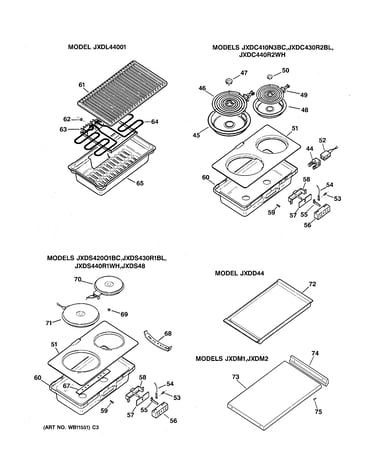

Cooktop diagram

Cooktop main top assembly

Part #WB62X5392

The manufacturer no longer makes this part, and there's no substitute part

Glass C.p. ( WB56X10368
#2

Cooktop diagram

Glass c.p. (

Part #WB56X10368

The manufacturer no longer makes this part, and there's no substitute part

T-washer Rub WB03X8138
#7

Cooktop diagram

T-washer rub

Part #WB03X8138

The manufacturer no longer makes this part, and there's no substitute part

Harn Asm C.p WB18X5132
#32

Cooktop diagram

Harn asm c.p

Part #WB18X5132

The manufacturer no longer makes this part, and there's no substitute part

Terminal Housing WB17X5096
#33

Cooktop diagram

Terminal housing

Part #WB17X5096

The manufacturer no longer makes this part, and there's no substitute part
