Kenmore
Mechanical Sewing Machine

Model # 3852049LX200 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 3852049LX200 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

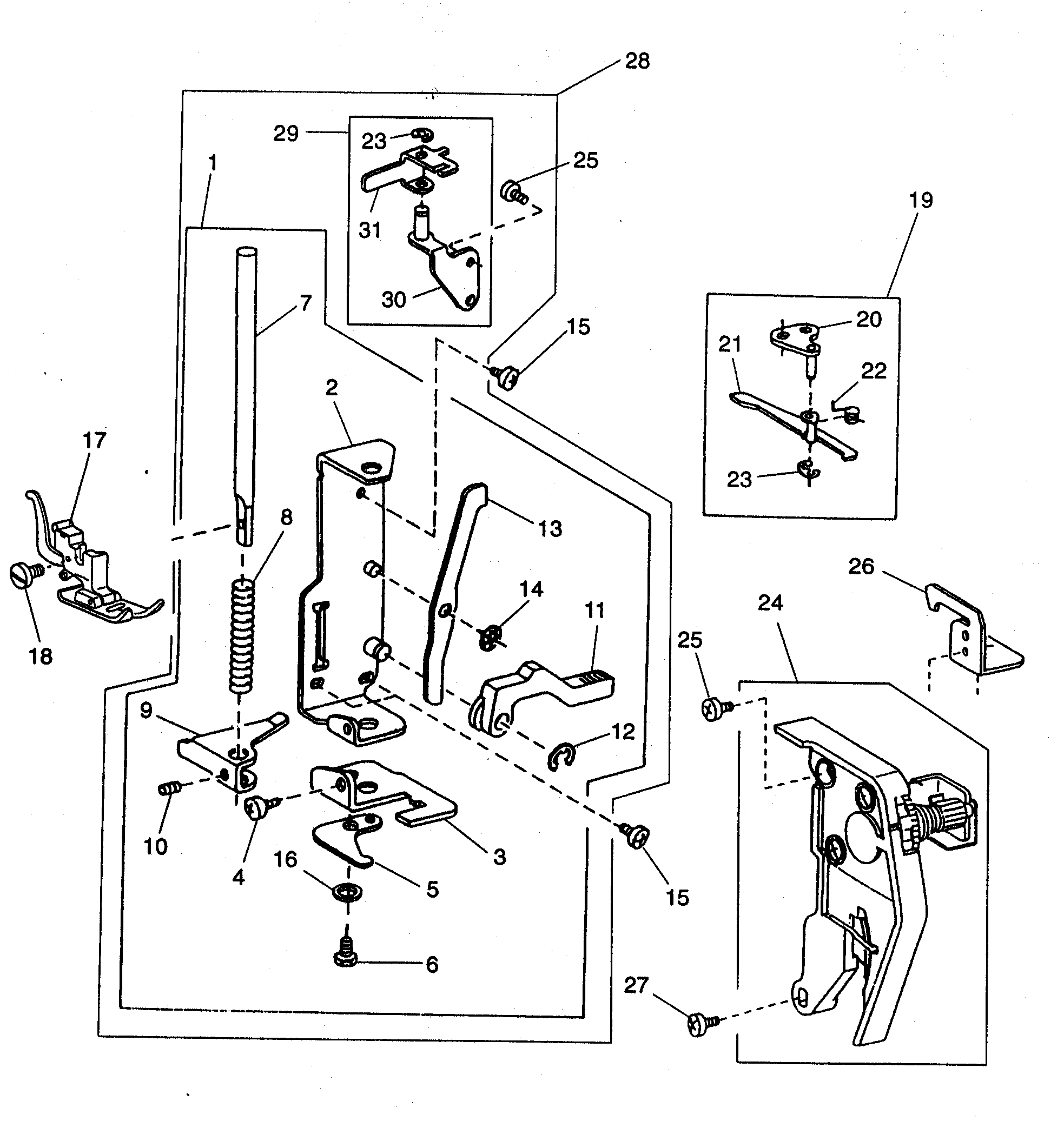

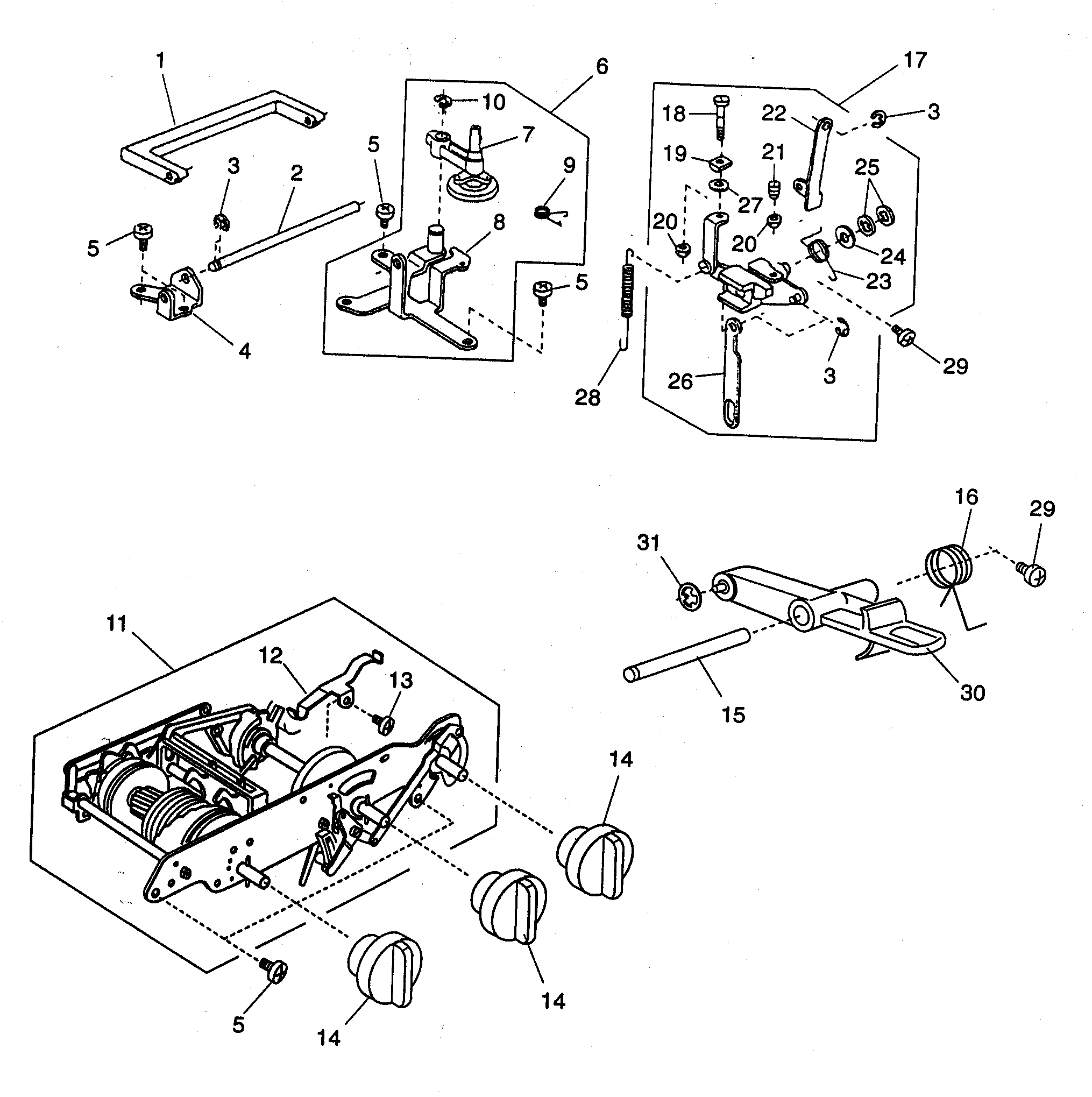

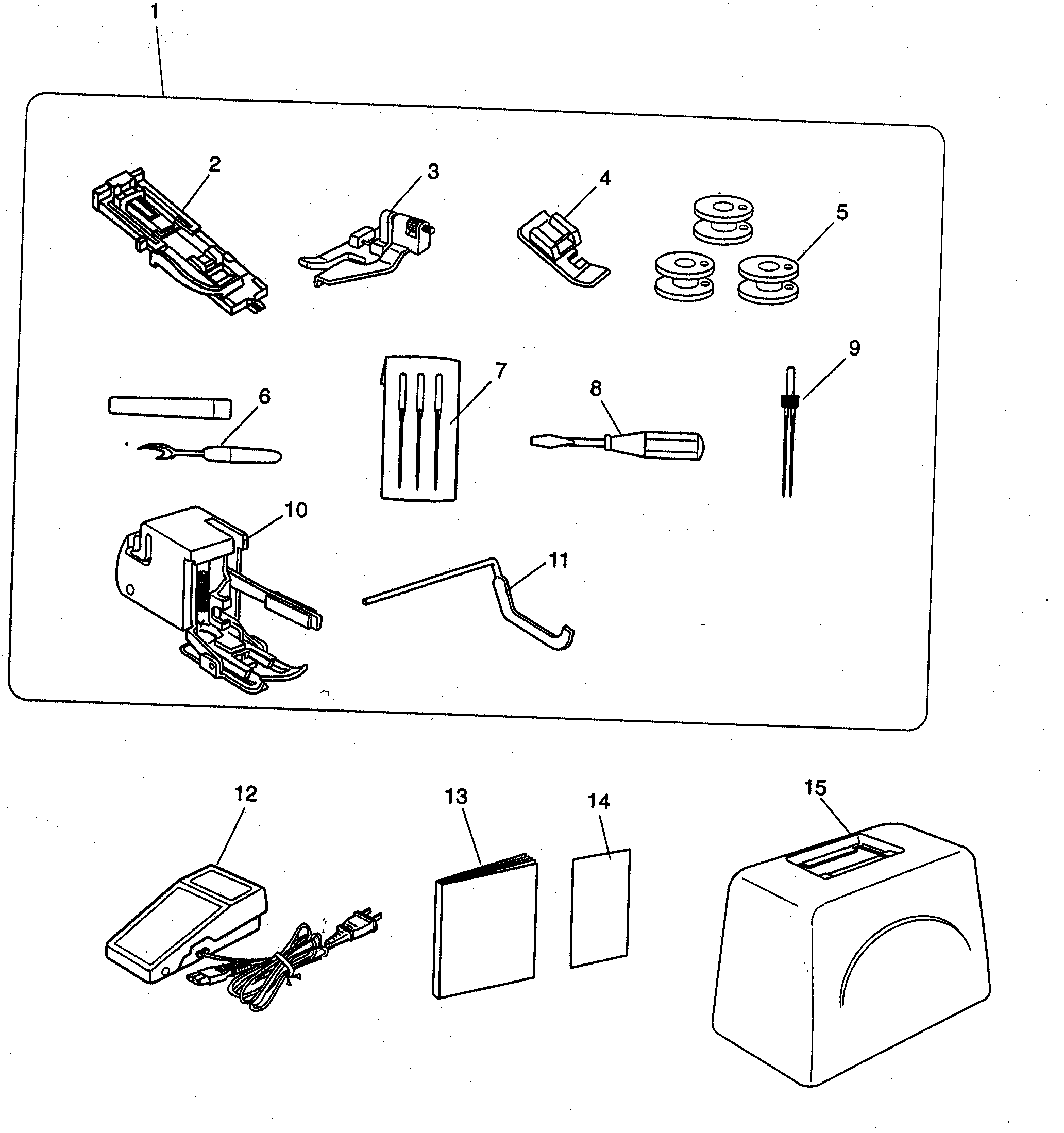

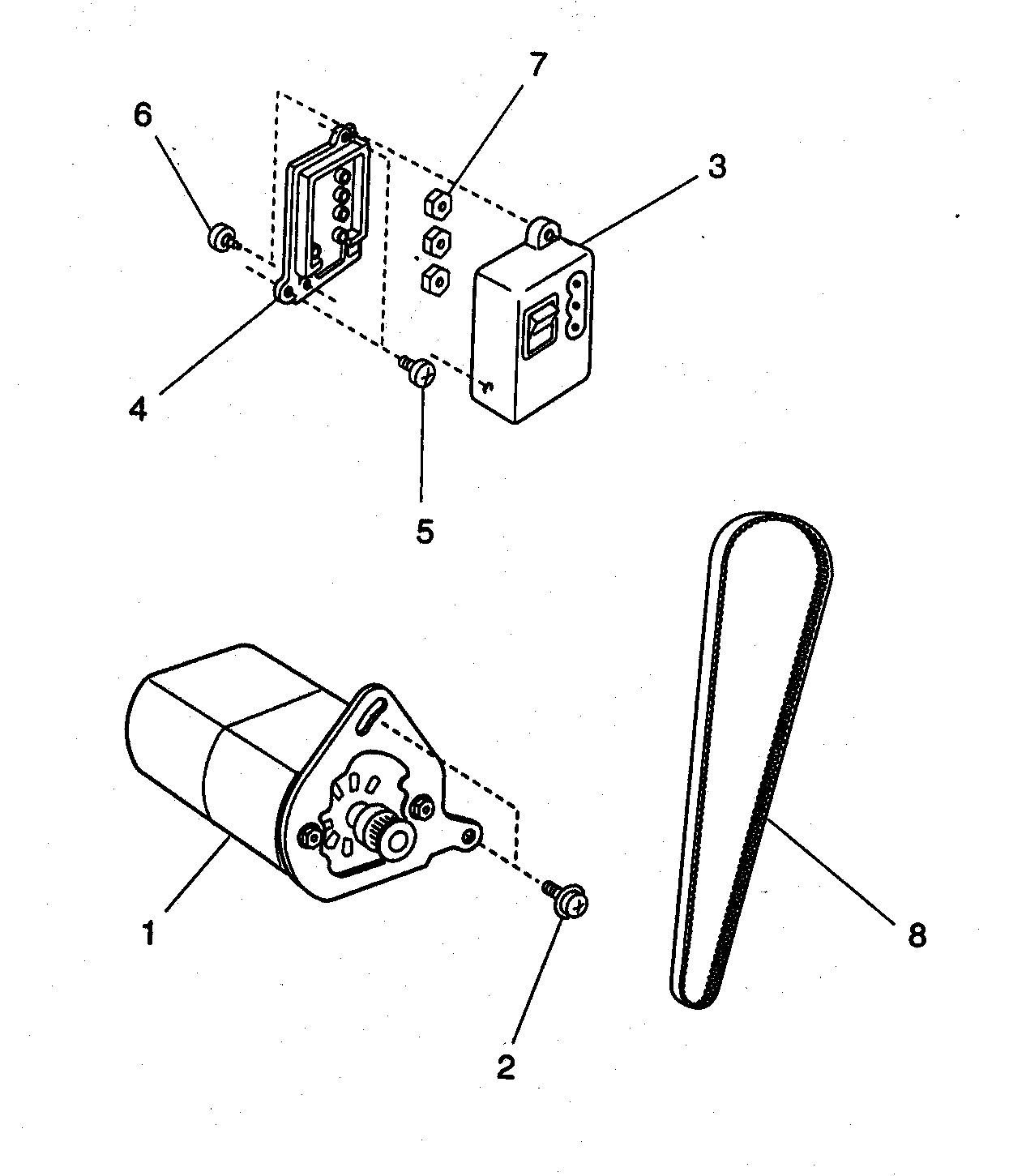

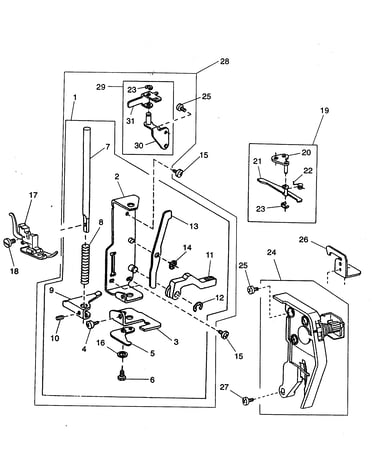

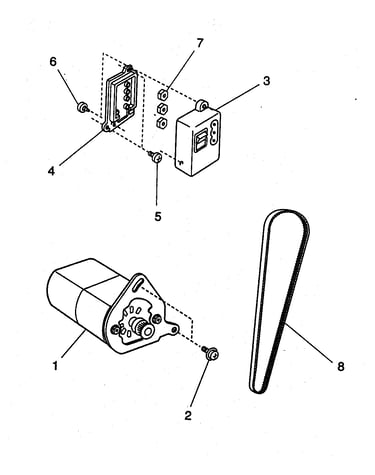

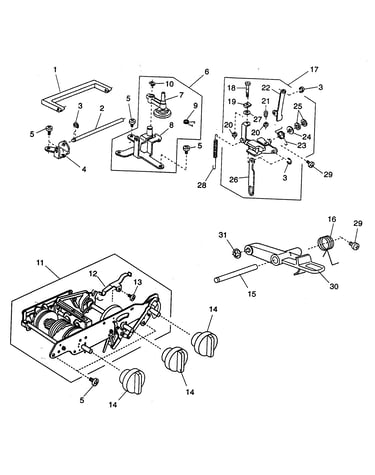

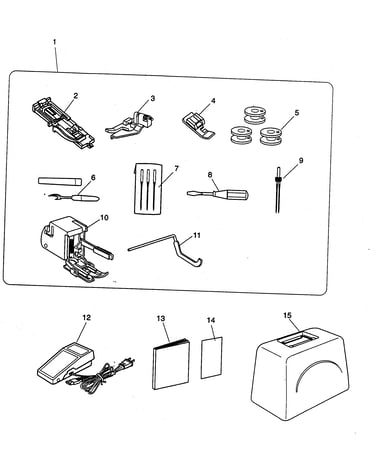

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 259 parts  |
Janome Spring Pin 000023803
#27

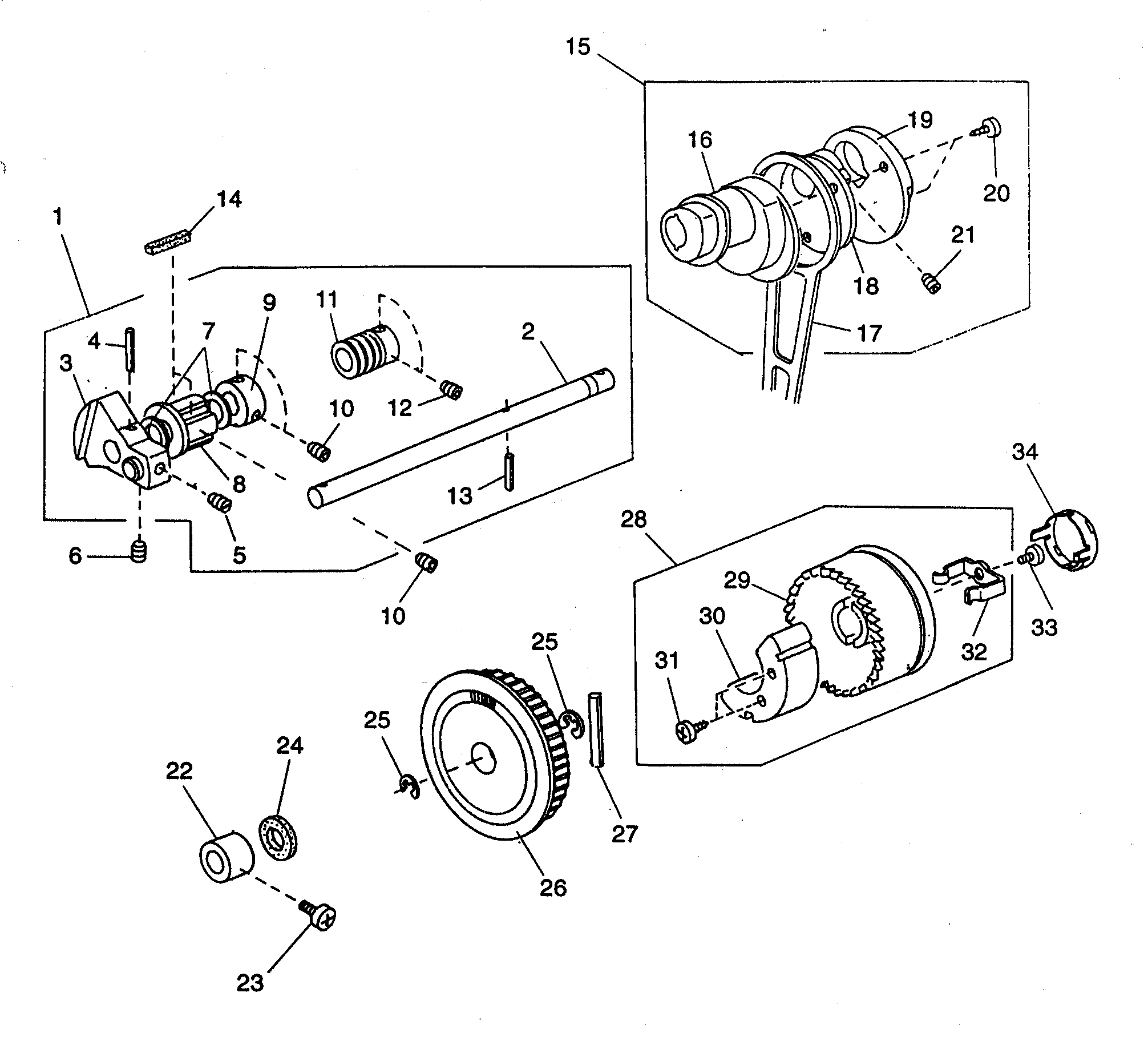

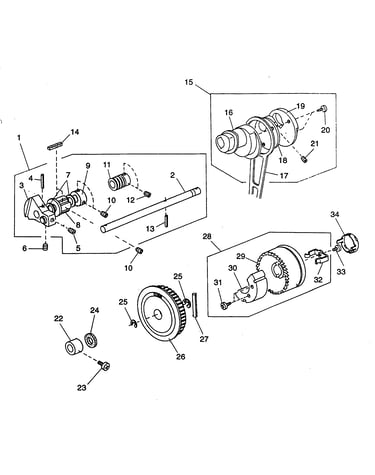

Handwheel assy diagram

Janome spring pin

Part #000023803

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Rubber Cushion 735616200
#37

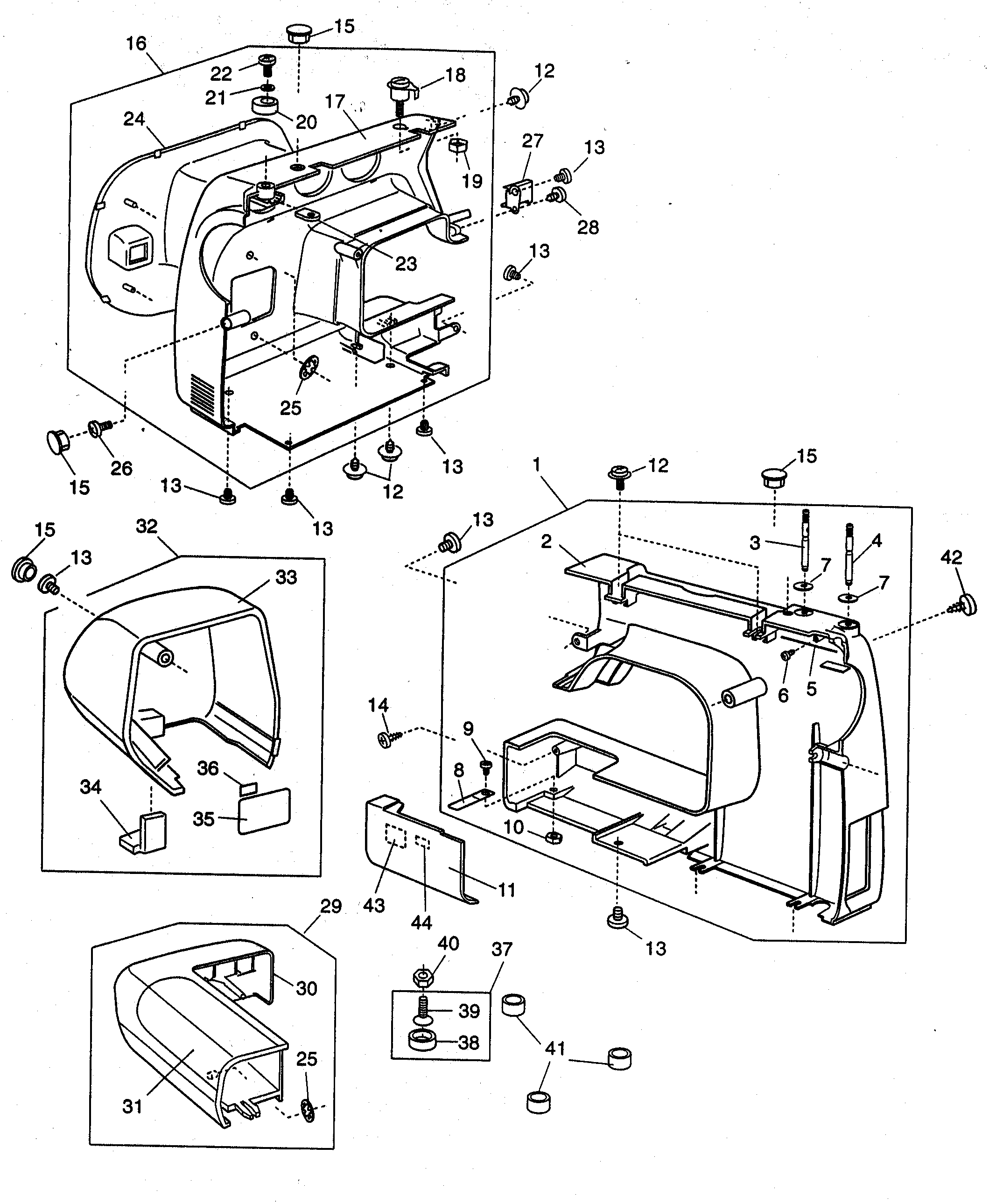

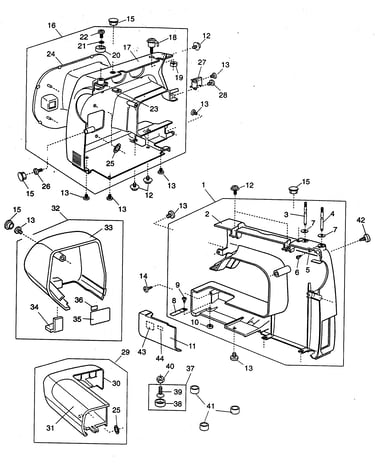

Outside cabinets diagram

Sewing machine rubber cushion

Part #735616200

The manufacturer no longer makes this part, and there's no substitute part

Bushing 732025001
#8

Handwheel assy diagram

Bushing

Part #732025001

The manufacturer no longer makes this part, and there's no substitute part

Janome Set Screw 735082005
#8

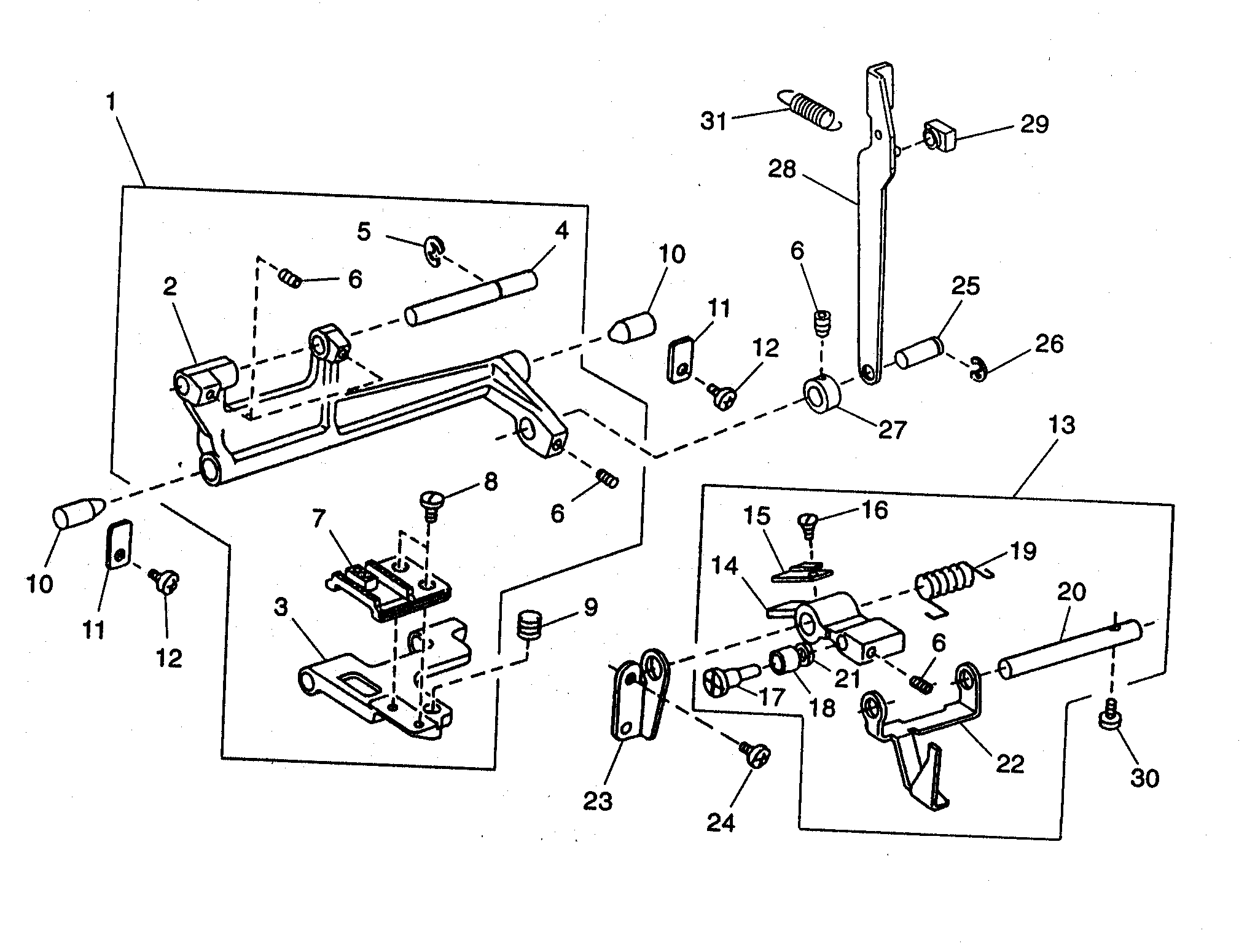

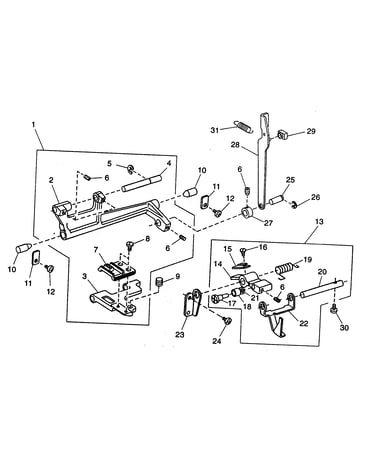

Feed shaft assy diagram

Janome set screw

Part #735082005

The manufacturer no longer makes this part, and there's no substitute part

Spring Plate 730006000
#8

Outside cabinets diagram

Spring plate

Part #730006000

The manufacturer no longer makes this part, and there's no substitute part

Face Cover 302603004
#32

Outside cabinets diagram

Face cover

Part #302603004

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Plate 735628009
#42

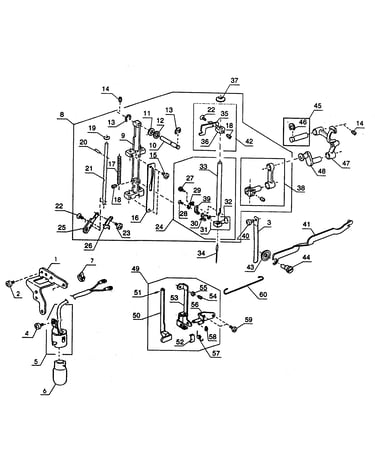

Needle bar assy diagram

Sewing machine plate

Part #735628009

The manufacturer no longer makes this part, and there's no substitute part

Janome Sewing Machine Screw 000097602
#22

Needle bar assy diagram

Janome sewing machine screw

Part #000097602

The manufacturer no longer makes this part, and there's no substitute part

Shtl Rc Ltch 605065006
#17

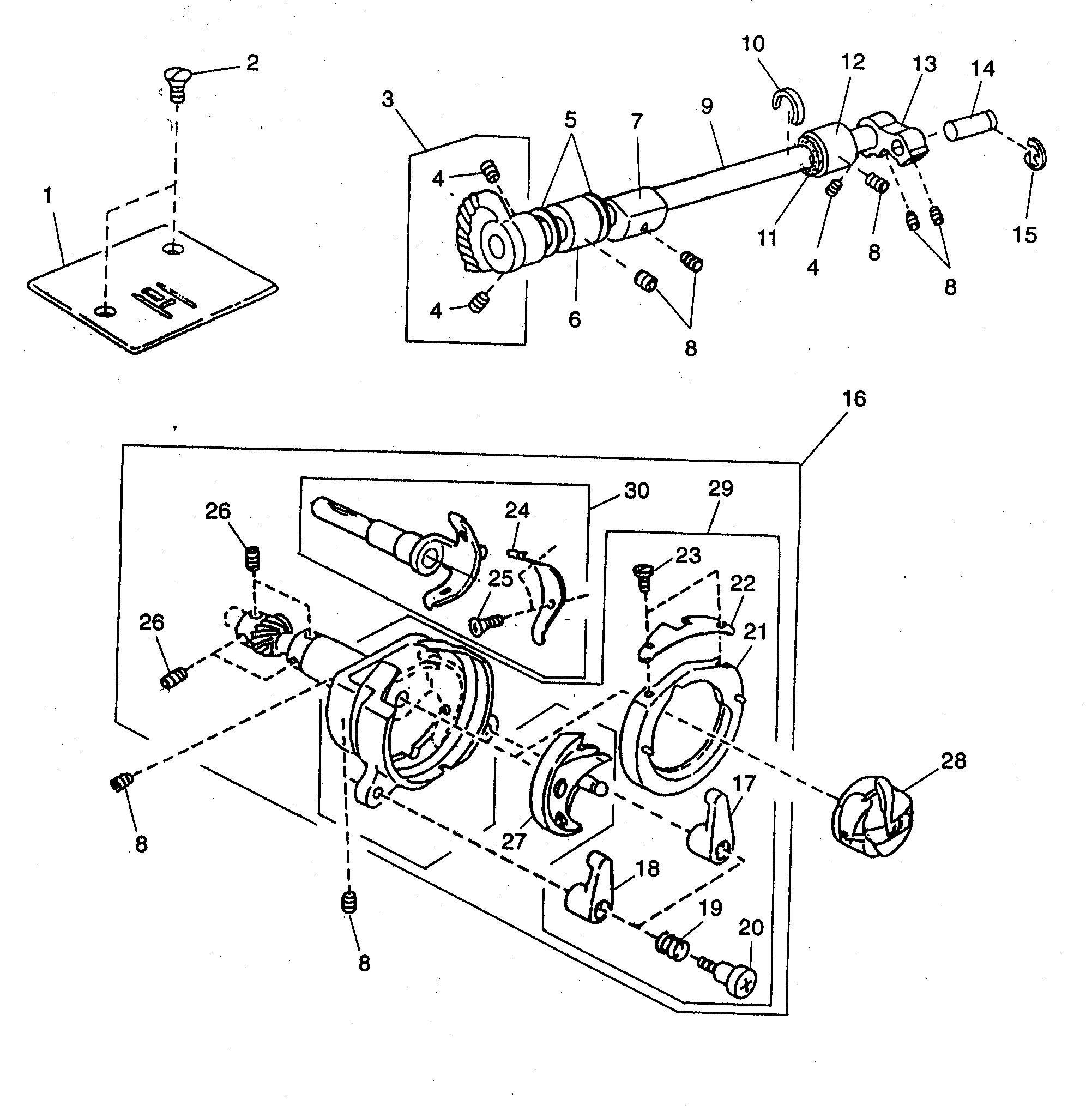

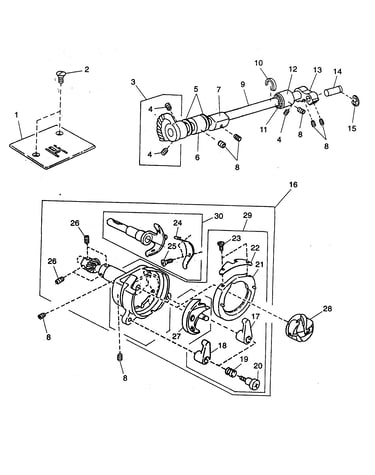

Lower shaft assy diagram

Shtl rc ltch

Part #605065006

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Plate 740007013
#1

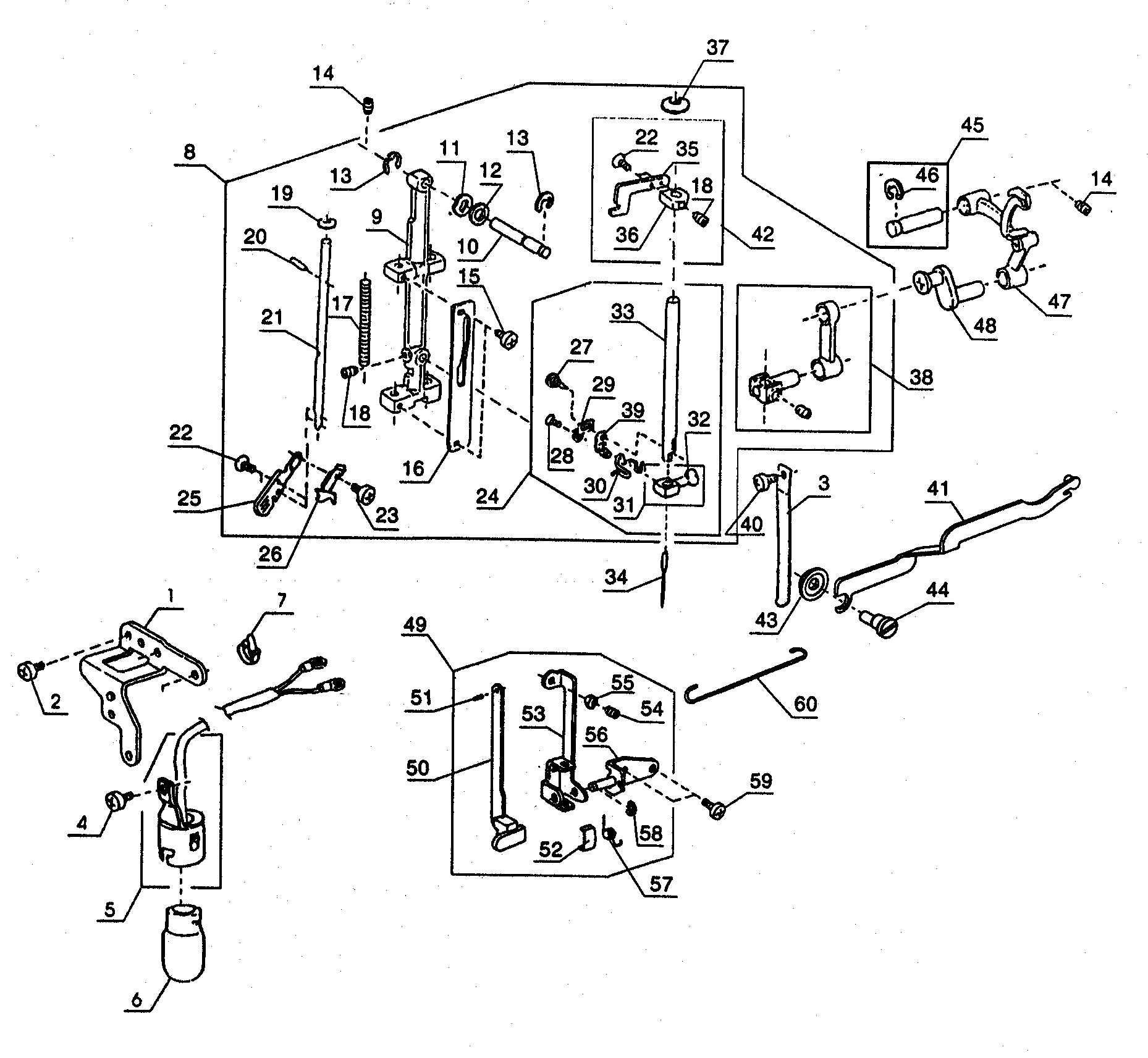

Needle bar assy diagram

Sewing machine plate

Part #740007013

The manufacturer no longer makes this part, and there's no substitute part
