Model # WFU09M2AW2 Official White-Westinghouse upright freezer - 5995242905

Here are the diagrams and repair parts for Official White-Westinghouse WFU09M2AW2 upright freezer - 5995242905, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forWFU09M2AW2 Freestanding Freezers

  • Filter 5308000027
    #30

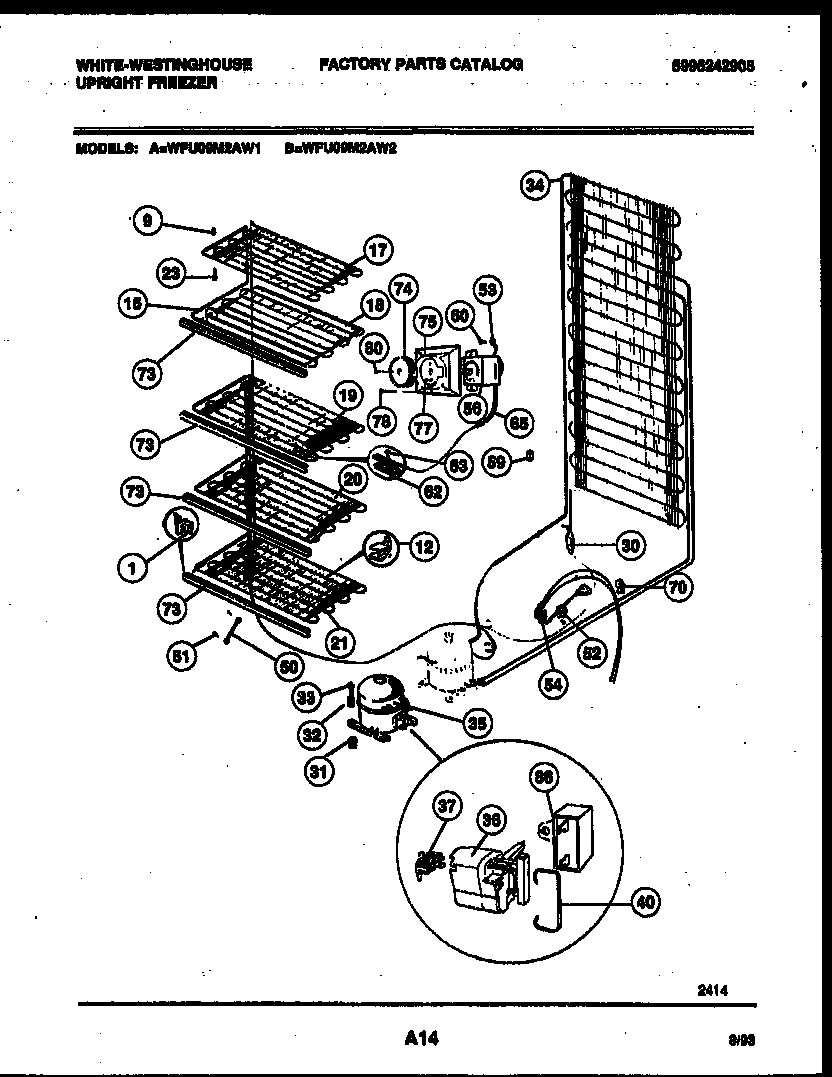

    System and electrical parts diagram

    Filter

    Part #5308000027

    Replaced by #5303305677

    ?
    Manufacturer substitution
    This part replaces 5308000027. Substitute parts can look different from the original.
    BEST SELLER
    $23.67
    20% OFF Phone Price : $29.67
    In Stock
  • Capacitor 216236300
    #86

    System and electrical parts diagram

    Capacitor

    Part #216236300

    Replaced by #5304464438

    ?
    Manufacturer substitution
    This part replaces 216236300. Substitute parts can look different from the original.
    BEST SELLER
    $28.67
    17% OFF Phone Price : $34.67
    In Stock
  • Sleeve 5308037932
    #65

    System and electrical parts diagram

    Sleeve

    Part #5308037932

    Replaced by #5303916855

    ?
    Manufacturer substitution
    This part replaces 5308037932. Substitute parts can look different from the original.
    $48.96
    11% OFF Phone Price : $54.96
    In Stock
  • Support 3091418
    #1

    System and electrical parts diagram

    Support

    Part #3091418

    Replaced by #297001600

    ?
    Manufacturer substitution
    This part replaces 3091418. Substitute parts can look different from the original.
    This item is not returnable
    $16.67
    11% OFF Phone Price : $18.67
    In Stock
  • Insulation 09950831
    Insulation

    Part #09950831

    Replaced by #5303925098

    ?
    Manufacturer substitution
    This part replaces 09950831. Substitute parts can look different from the original.
    $98.69
    11% OFF Phone Price : $110.69
    In Stock
  • Screw 5303161215
    #56

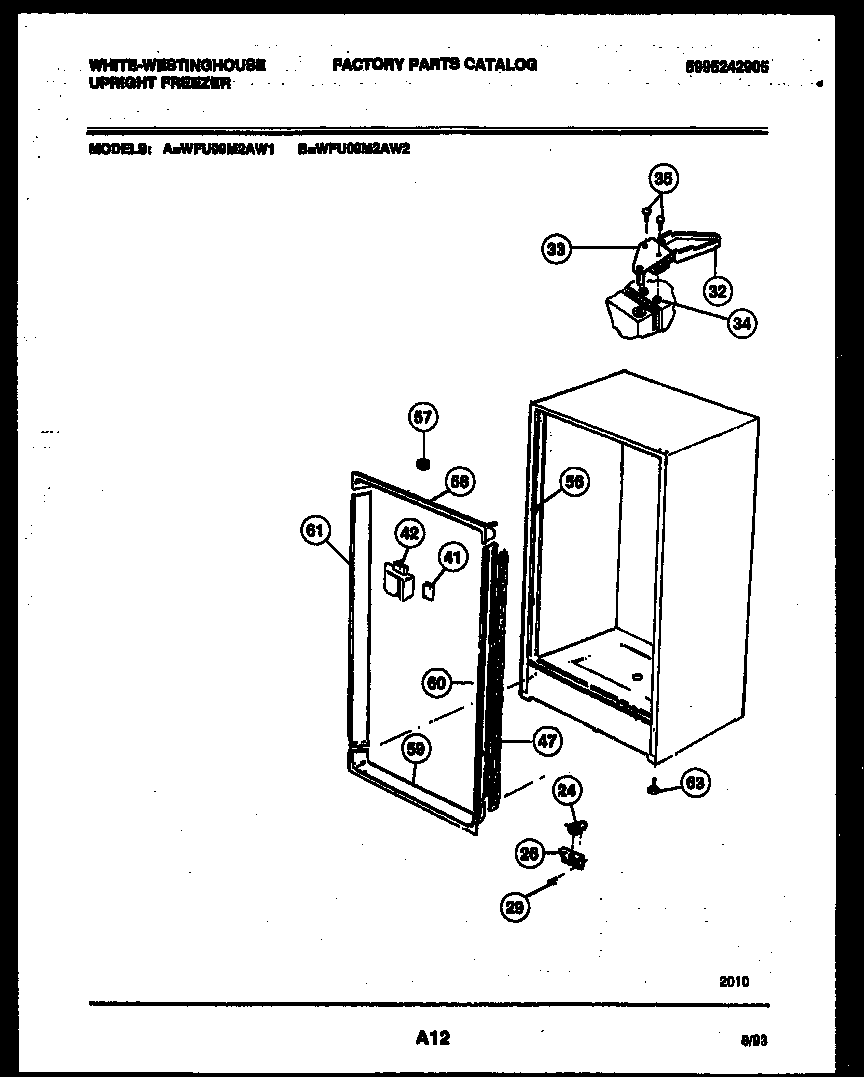

    Door parts diagram

    Screw

    Part #5303161215

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 08009412
    #60

    System and electrical parts diagram

    Screw

    Part #08009412

    Replaced by #216036601

    ?
    Manufacturer substitution
    This part replaces 08009412. Substitute parts can look different from the original.
    In Stock
  • Freezer Inner Door Panel Rivet 5303212828
    #59

    Door parts diagram

    Freezer inner door panel rivet

    Part #5303212828

    $18.88
    10% OFF Phone Price : $20.88
    In Stock
  • Freezer Wire Harness Clamp 5303212614
    #70

    System and electrical parts diagram

    Freezer wire harness clamp

    Part #5303212614

    This item is not returnable
    In Stock
  • Refrigeration Appliance Screw, 1/4-20 X 1-in 5303205738
    #29

    Cabinet parts diagram

    Refrigeration appliance screw, 1/4-20 x 1-in

    Part #5303205738

    Replaced by #154518001

    ?
    Manufacturer substitution
    This part replaces 5303205738. Substitute parts can look different from the original.
    In Stock
