Model # G-UA060S24A Official York evaporator coil

Here are the diagrams and repair parts for Official York G-UA060S24A evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |
Coil, Evaporator W/drain Pan G-UA060S24
#1

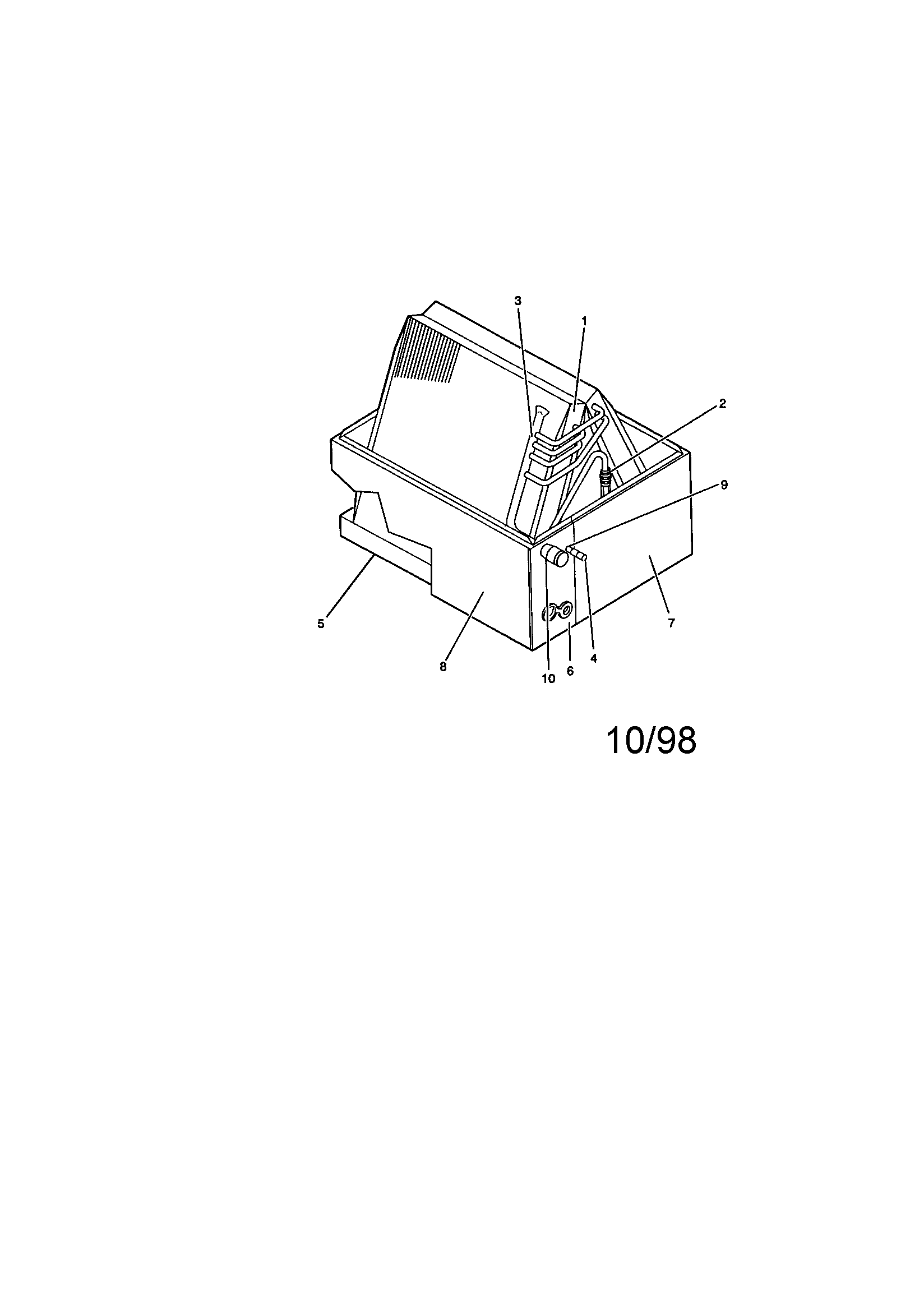

Indoor coils diagram

Coil, evaporator w/drain pan

Part #G-UA060S24

The manufacturer no longer makes this part, and there's no substitute part

Pan, Drain (g-ua Style "b" Units Are The Same As G-ua Style "a" Units Except For This Part) 373-16635-005
#5A

Indoor coils diagram

Pan, drain (g-ua style "b" units are the same as g-ua style "a" units except for this part)

Part #373-16635-005

The manufacturer no longer makes this part, and there's no substitute part

Cap Seal 023-10745-000
#4

Indoor coils diagram

Cap seal

Part #023-10745-000

The manufacturer no longer makes this part, and there's no substitute part

Front Panel 373-15703-001
#6

Indoor coils diagram

Front panel

Part #373-15703-001

The manufacturer no longer makes this part, and there's no substitute part

Wrapper, Coil 373-15705-004
#8

Indoor coils diagram

Wrapper, coil

Part #373-15705-004

The manufacturer no longer makes this part, and there's no substitute part

Access Panel 373-15704-004
#7

Indoor coils diagram

Access panel

Part #373-15704-004

The manufacturer no longer makes this part, and there's no substitute part

Grommet 028-13205-000
#10

Indoor coils diagram

Grommet

Part #028-13205-000

The manufacturer no longer makes this part, and there's no substitute part

Pan 373-16635-001
#5

Indoor coils diagram

Pan

Part #373-16635-001

The manufacturer no longer makes this part, and there's no substitute part

Grommet 028-13209-000
#9

Indoor coils diagram

Grommet

Part #028-13209-000

The manufacturer no longer makes this part, and there's no substitute part

Manifold Assembly 373-15762-001
#3

Indoor coils diagram

Manifold assembly

Part #373-15762-001

The manufacturer no longer makes this part, and there's no substitute part
