Model # 919153011 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919153011 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 64 parts |

#7A

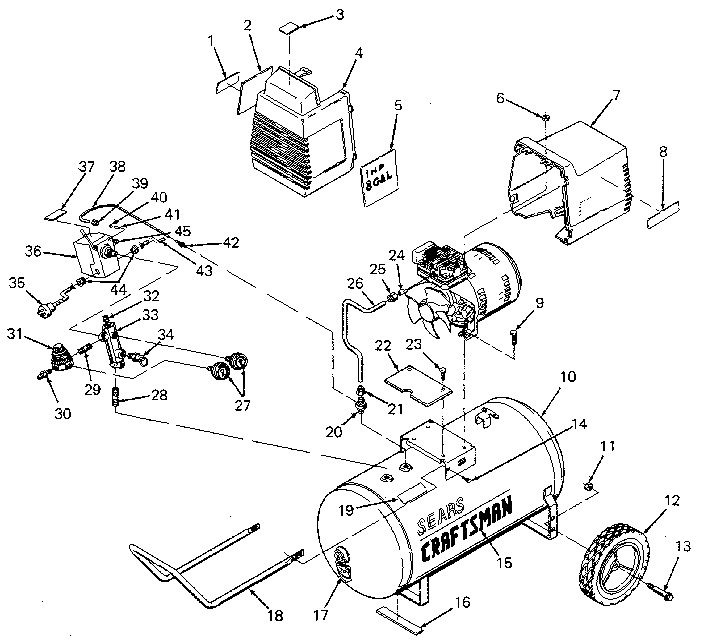

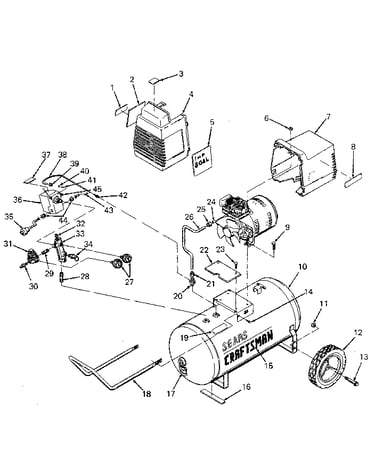

Unit parts diagram

Shroud bracket

Part #CAC-1121

The manufacturer no longer makes this part, and there's no substitute part

#22

Unit parts diagram

Devilbiss plate

Part #CAC-333-1

The manufacturer no longer makes this part, and there's no substitute part

#23

Unit parts diagram

Fastener

Part #SSN-8001

The manufacturer no longer makes this part, and there's no substitute part

#48

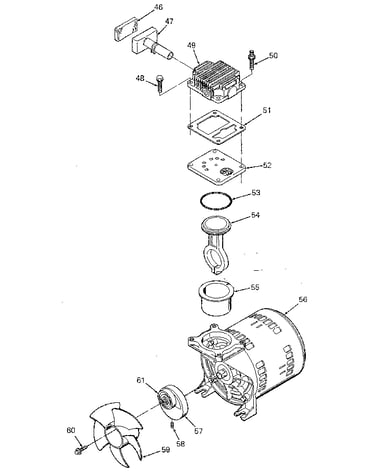

Compressor pump diagram

Screw

Part #SSF-990

The manufacturer no longer makes this part, and there's no substitute part

#21

Unit parts diagram

Air compressor compression nut

Part #SSP-7813

The manufacturer no longer makes this part, and there's no substitute part

Tower Air Compressor Valve Plate O-ring (replaces Stg-8156) SSG-8156

#53

Compressor pump diagram

Tower air compressor valve plate o-ring (replaces stg-8156)

Part #SSG-8156

The manufacturer no longer makes this part, and there's no substitute part

#13

Unit parts diagram

Companion air compressor screw

Part #CAC-60

The manufacturer no longer makes this part, and there's no substitute part

#32

Unit parts diagram

Unknown brand name #696 pipe plug

Part #SS-3222-CD

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Unknown brand name #696 screw

Part #SSF-928

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Pressure Relief Valve KK-4315

#45

Unit parts diagram

Air compressor pressure relief valve

Part #KK-4315

The manufacturer no longer makes this part, and there's no substitute part
