Here are the diagrams and repair parts for Official Frigidaire CGEH3047VFB free standing electric range, as well as links to manuals and error code tables, if available.

Installation guide

Owner’s manual

Error Codes

By Schematic

By Part

SELECT DIAGRAM

Browse Parts forCGEH3047VFB Ranges

#54

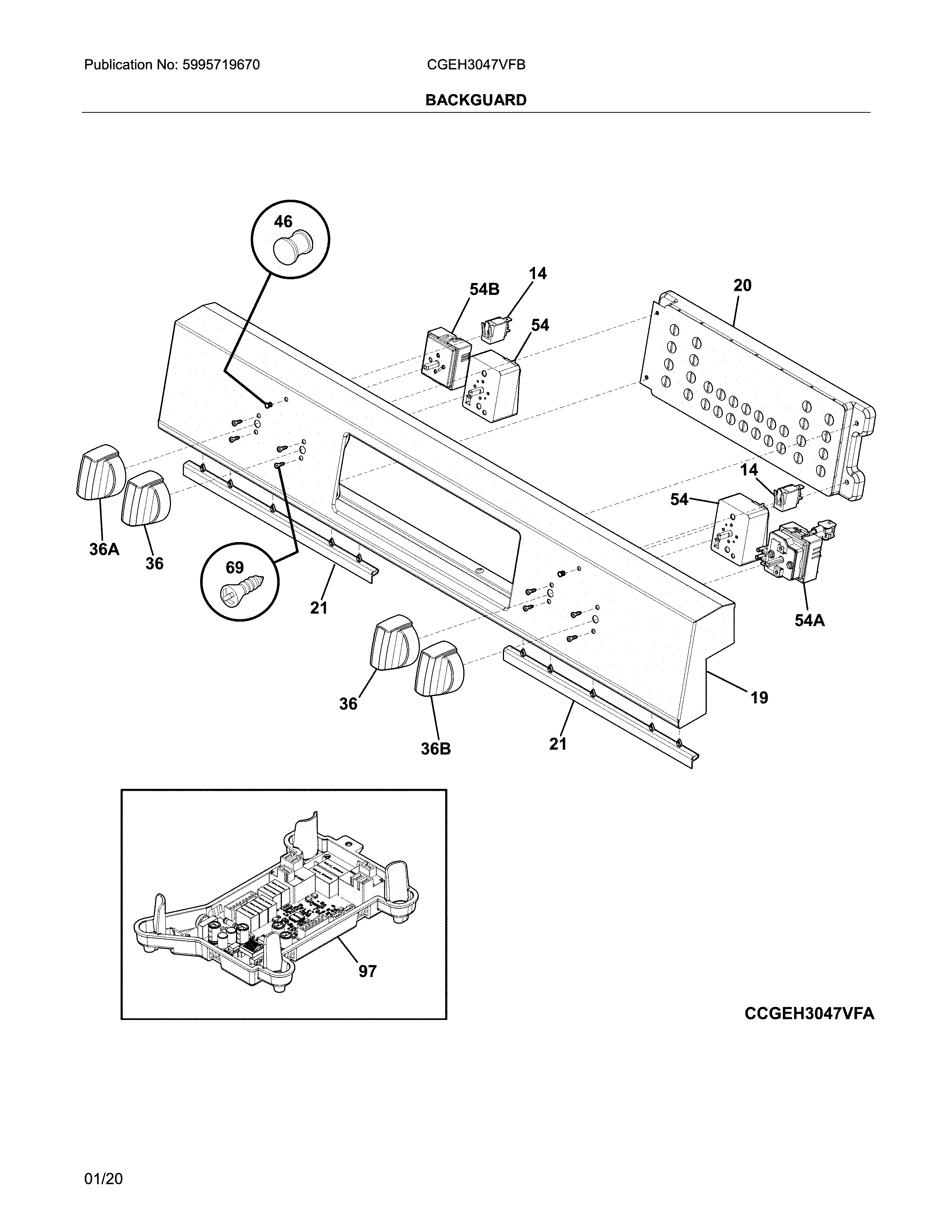

Backguard diagram
Frigidaire range small surface element control switch
Part #316436000
4 (31)
$51.00 |
11% OFF Phone Price : $57.00
In Stock
Qty
#15

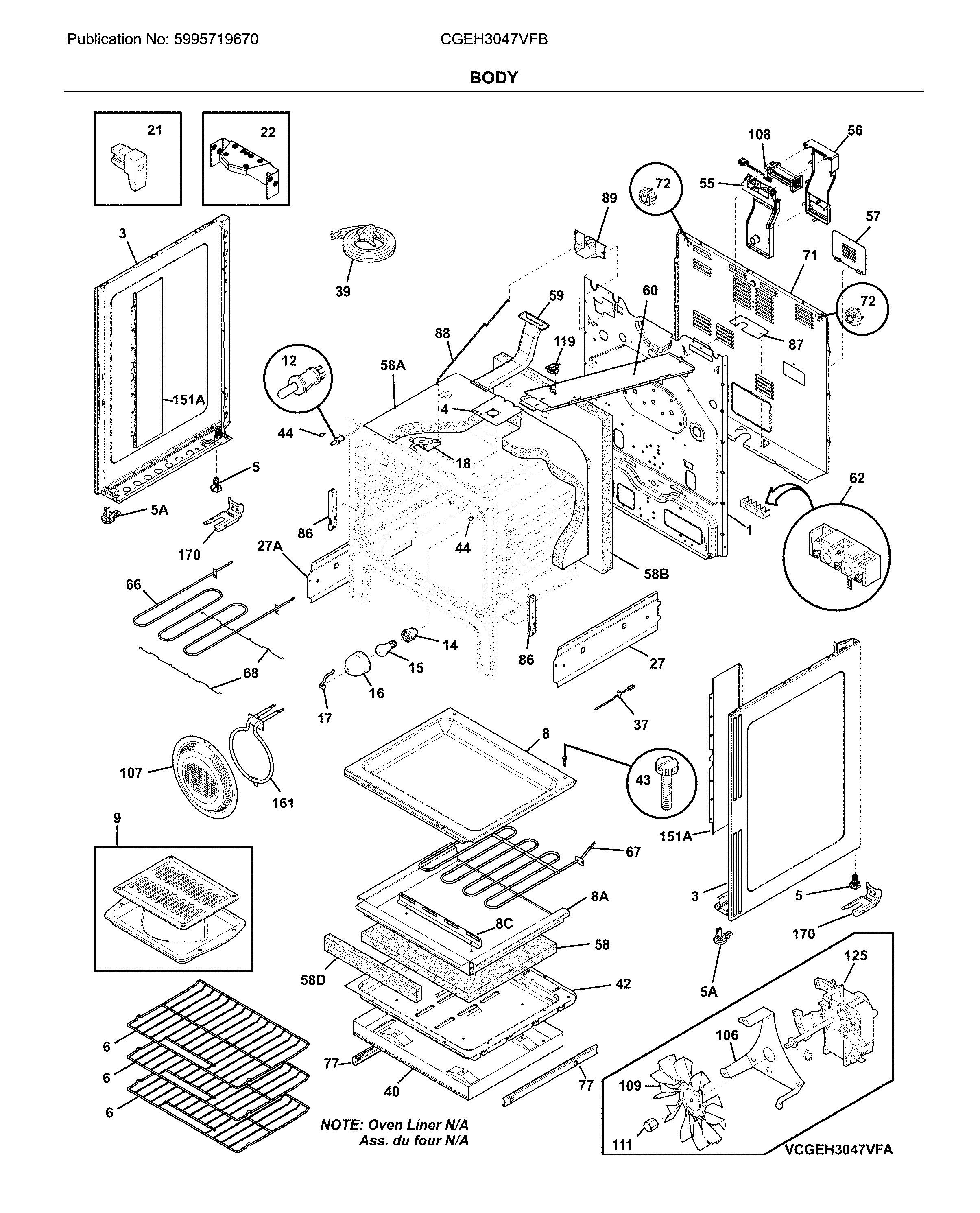

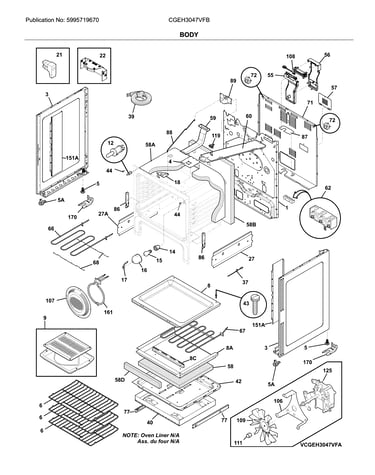

Body diagram
Frigidaire range oven light bulb
Part #316538904
5 (2)
$17.25 |
10% OFF Phone Price : $19.25
In Stock
Qty
#15

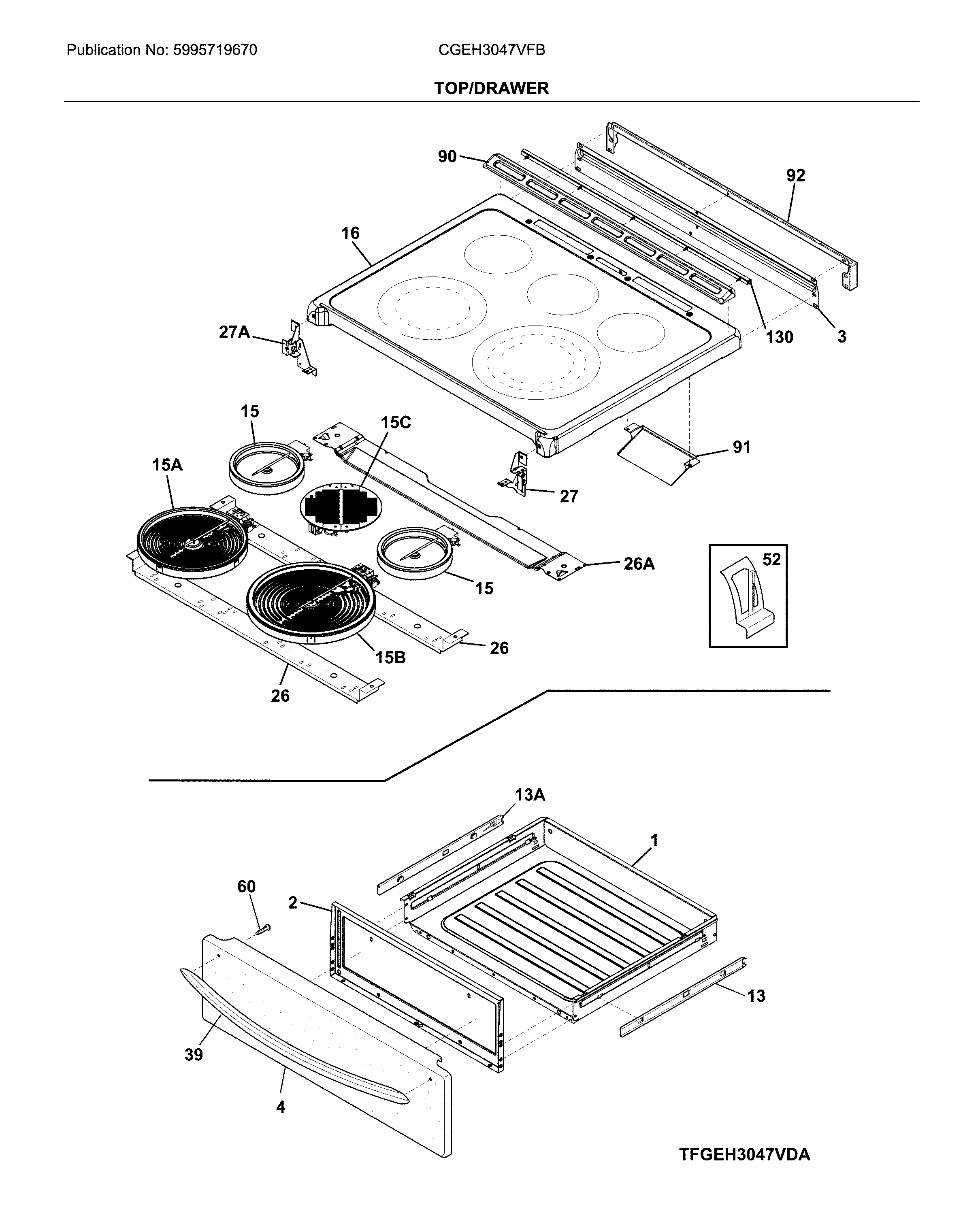

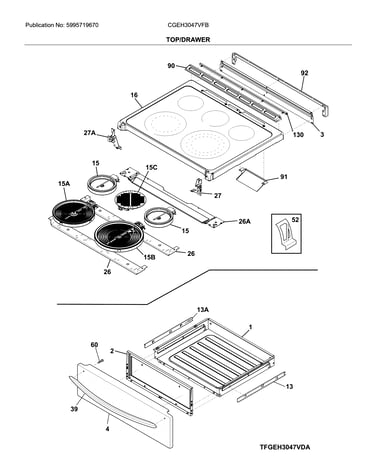

Top/drawer diagram
Frigidaire range radiant surface element, 6-in
Part #318178110
4.35 (20)
$97.52 |
11% OFF Phone Price : $109.52
In Stock
Qty
#66
Body diagram
Frigidaire range broil element
Part #316203301
4.4 (25)
$118.26 |
9% OFF Phone Price : $130.26
In Stock
Qty
#8

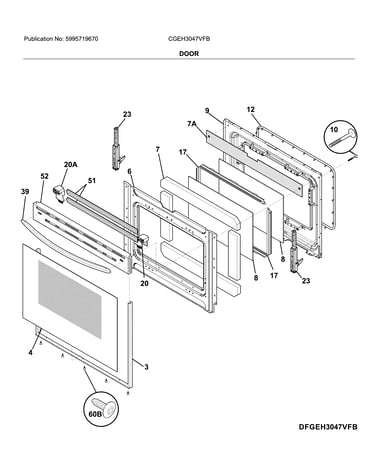

Door diagram
Glass,oven door ,inner
Part #316117506
Replaced by #5304503232
?
Manufacturer substitution
This part replaces 316117506. Substitute parts can look different from the original.
5 (8)
$72.95 |
8% OFF Phone Price : $78.95
In Stock
Qty
#119
Body diagram
Frigidaire range high-limit thermostat
Part #318578506
3.25 (8)
$36.19 |
14% OFF Phone Price : $42.19
In Stock
Qty
#97
Backguard diagram
Frigidaire range oven relay control board
Part #5304516862
This item is not returnable
$206.24 |
5% OFF Phone Price : $218.24
In Stock
Qty
#62
Body diagram
Terminal block
Part #5303935061
Replaced by #5304409888
?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
4.5 (12)
$22.93 |
21% OFF Phone Price : $28.93
In Stock
Qty
#46
Backguard diagram
Range indicator light lens
Part #316557300
5 (2)
$12.82 |
13% OFF Phone Price : $14.82
In Stock
Qty
#89
Body diagram
Range oven door lock motor and switch assembly
Part #316464300
Replaced by #5304528973
?
Manufacturer substitution
This part replaces 316464300. Substitute parts can look different from the original.
$37.77 |
14% OFF Phone Price : $43.77
In Stock
Qty
