Craftsman
Band Saw

Model # 351224500 Official Craftsman band saw

Here are the diagrams and repair parts for Official Craftsman 351224500 band saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

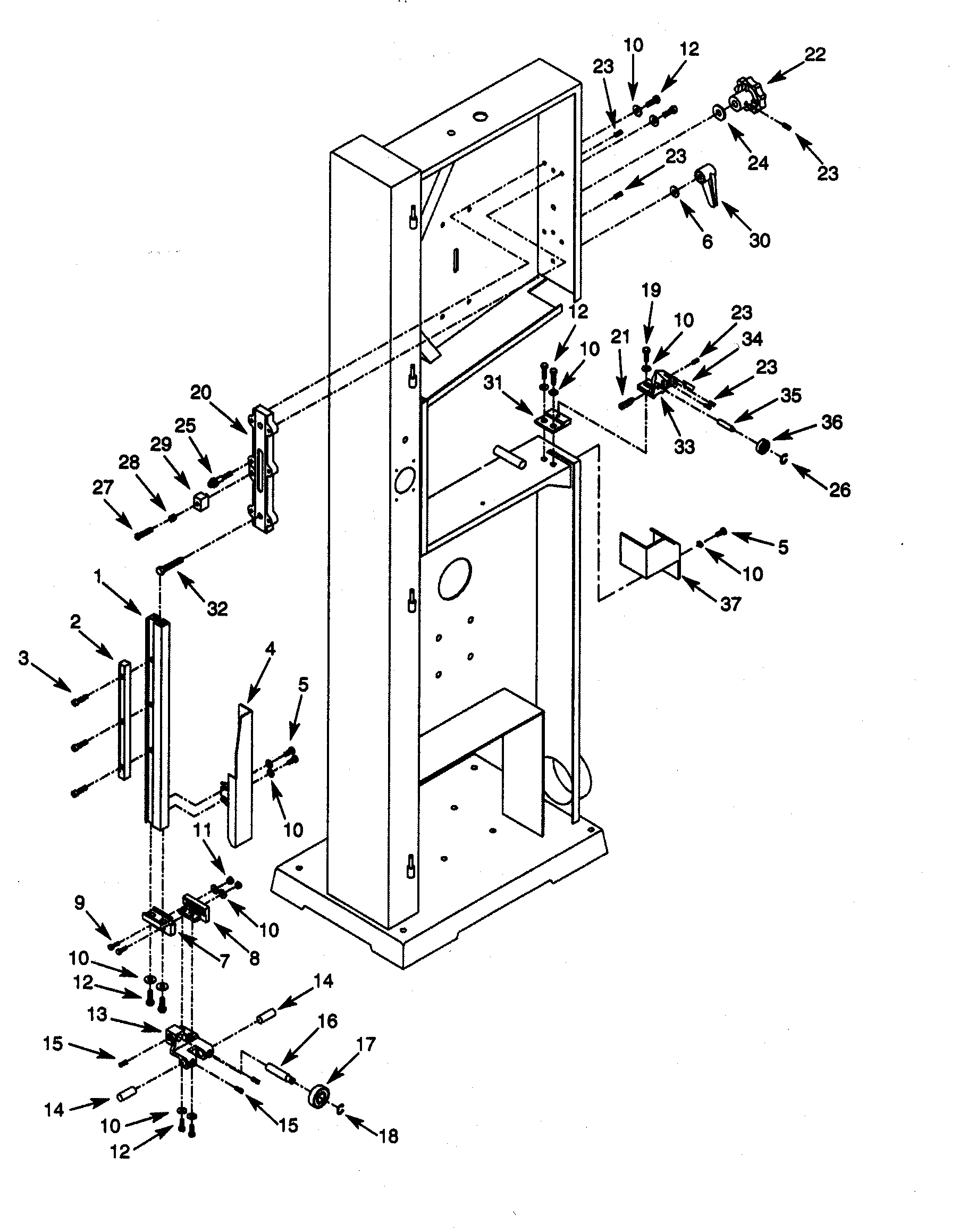

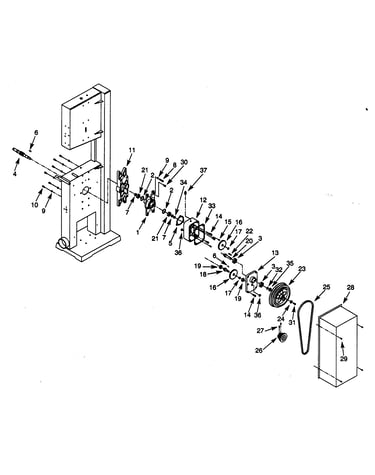

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |

Hex Head Bolt, 5/16-18 X 3/4-in, 5-pack STD523107
#3

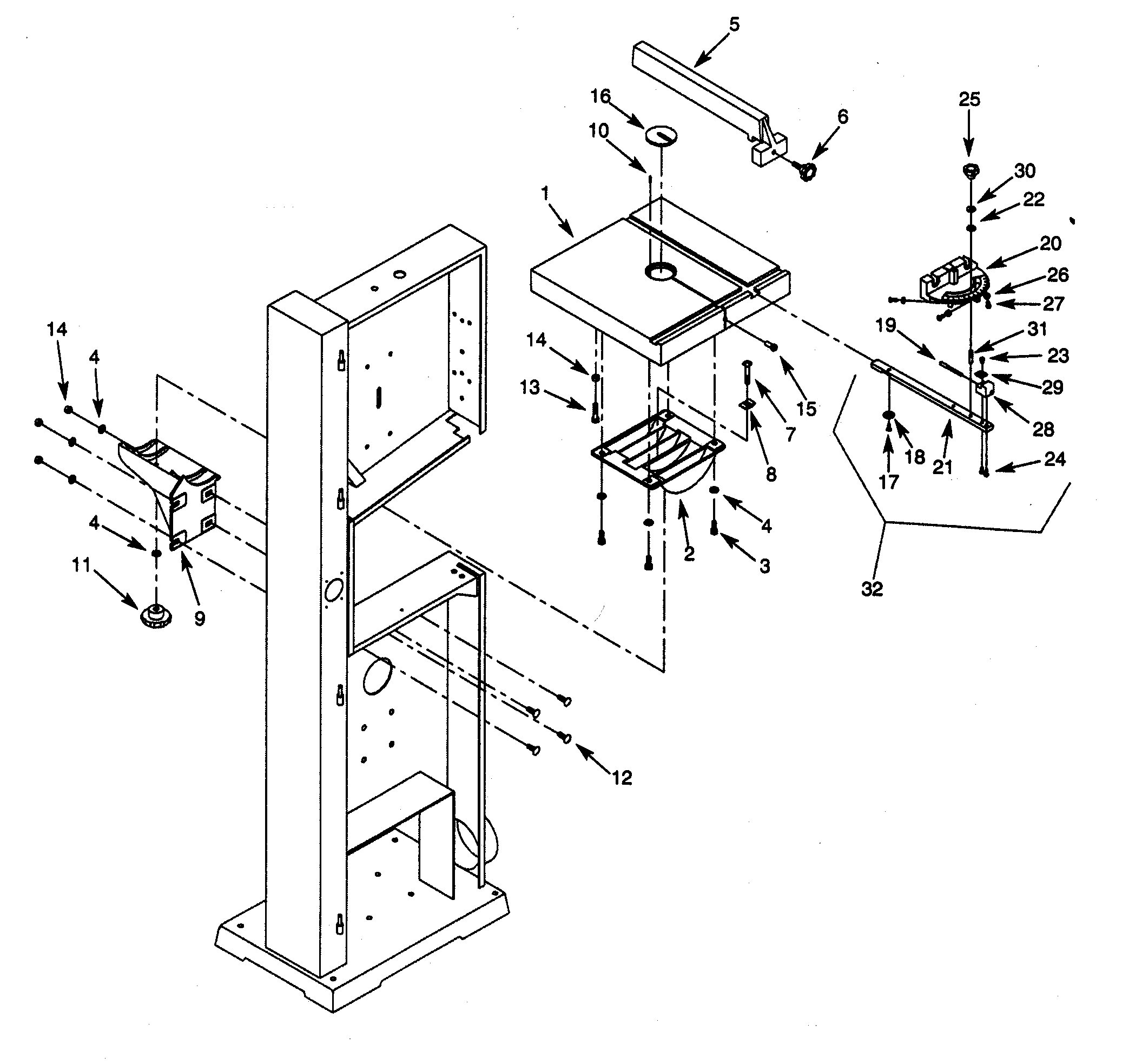

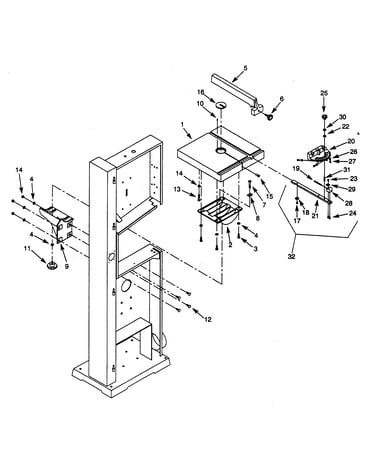

Table diagram

Hex head bolt, 5/16-18 x 3/4-in, 5-pack

Part #STD523107

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551031
Washer

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551037
#12

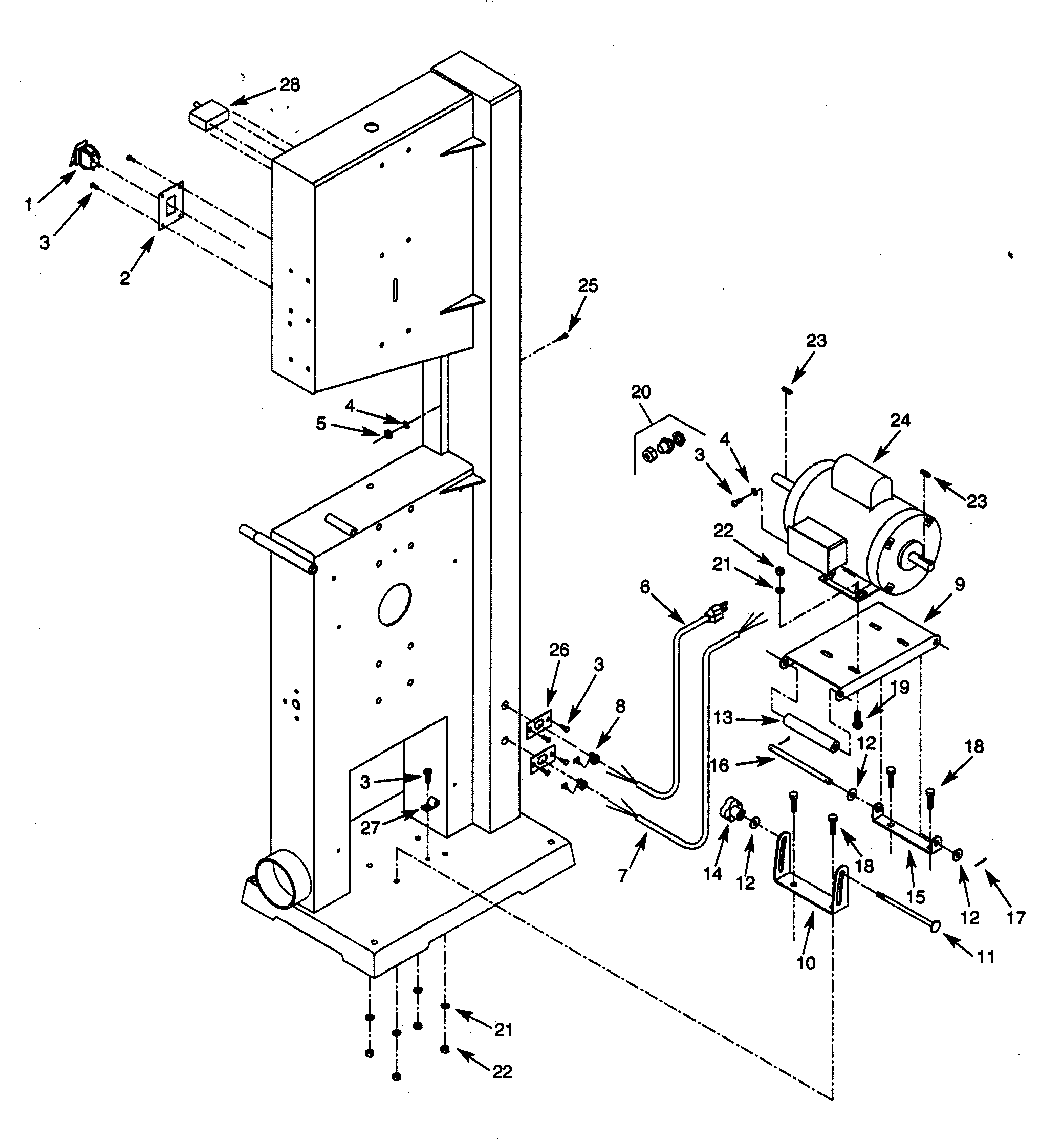

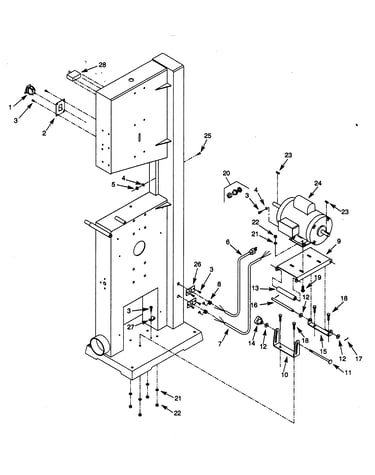

Motor diagram

Washer

Part #STD551037

The manufacturer no longer makes this part, and there's no substitute part

Ring 01434.00
#18

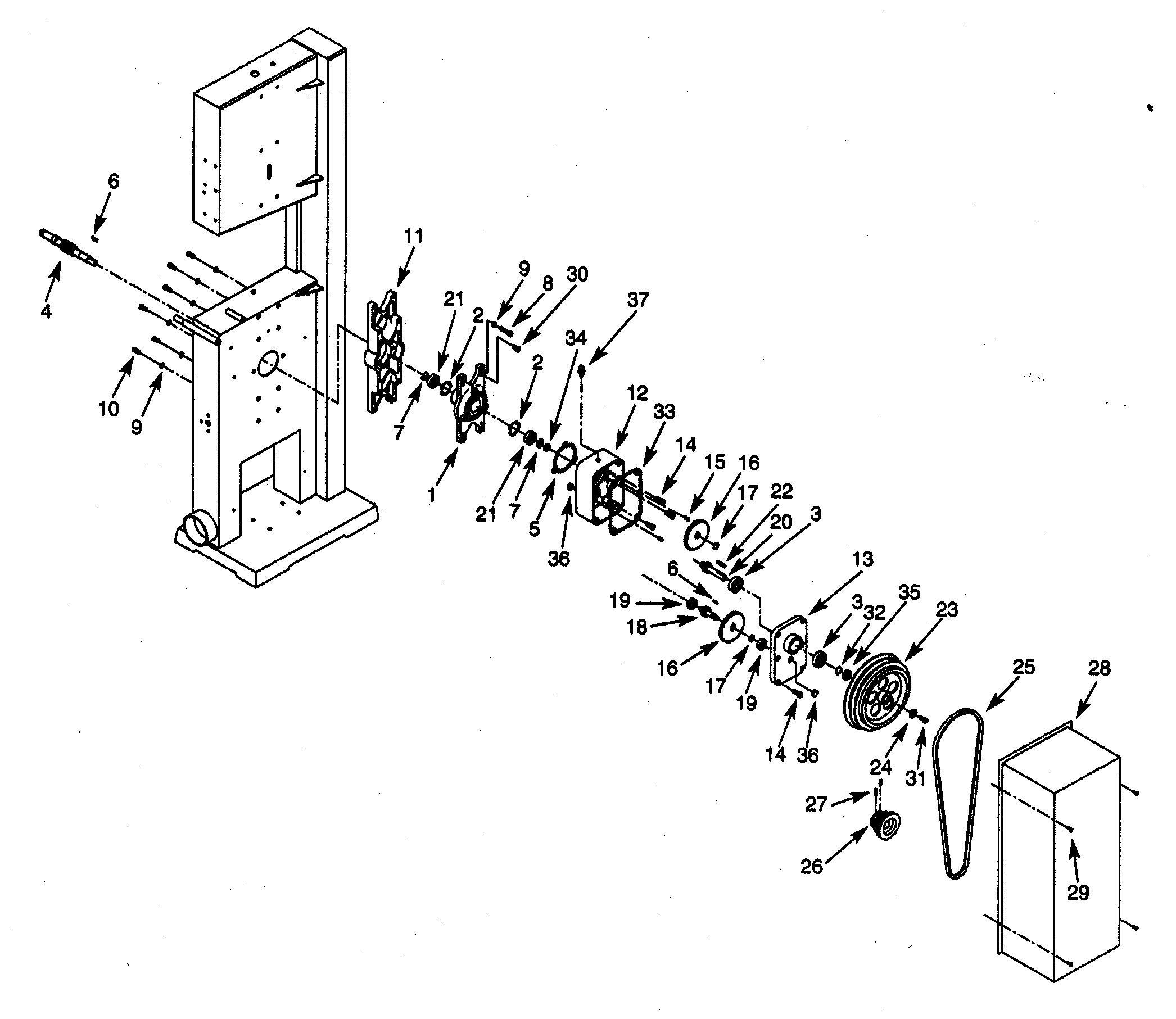

Blade guides diagram

Ring

Part #01434.00

The manufacturer no longer makes this part, and there's no substitute part

Bolt,soc H 06045.00
#3

Blade guides diagram

Bolt,soc h

Part #06045.00

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin STD561210
#17

Motor diagram

Cotter pin

Part #STD561210

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Switch 16080.00
#1

Motor diagram

Power tool power switch

Part #16080.00

The manufacturer no longer makes this part, and there's no substitute part

Bolt 02681.00
#59

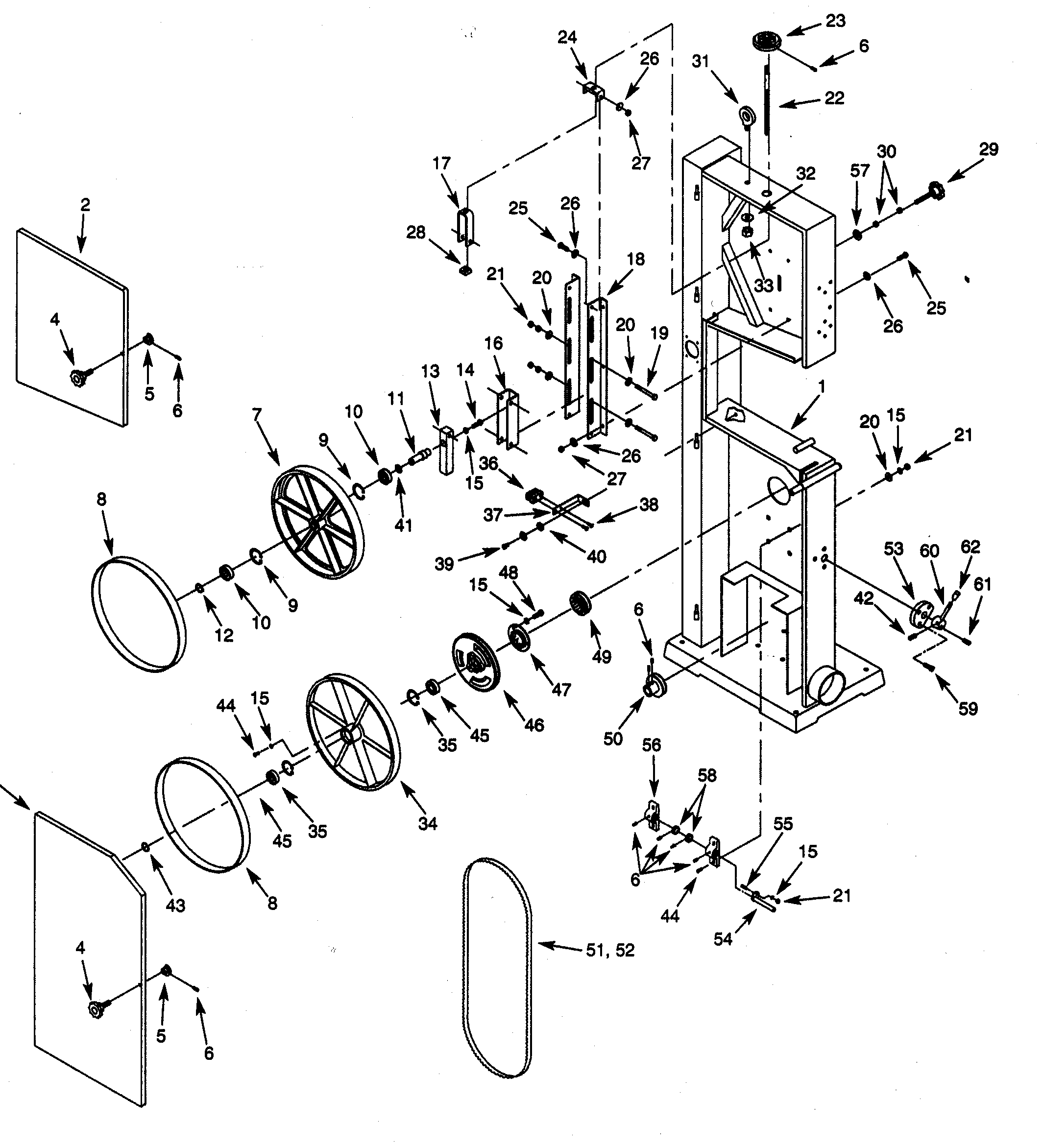

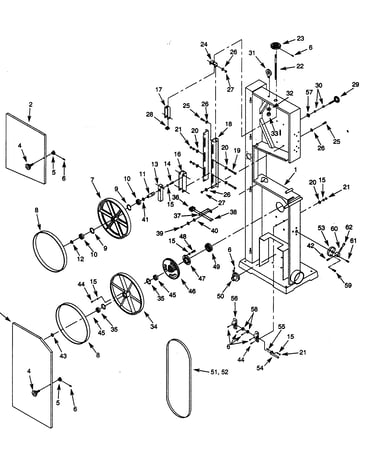

Front assy diagram

Bolt

Part #02681.00

The manufacturer no longer makes this part, and there's no substitute part

Stand 9-21417
#NI

Front assy diagram

Stand

Part #9-21417

The manufacturer no longer makes this part, and there's no substitute part

Spring Pin 08634.00
#10

Table diagram

Spring pin

Part #08634.00

The manufacturer no longer makes this part, and there's no substitute part
