Maytag
Electric Range

Model # MER5511BAW Official Maytag range

Here are the diagrams and repair parts for Official Maytag MER5511BAW range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

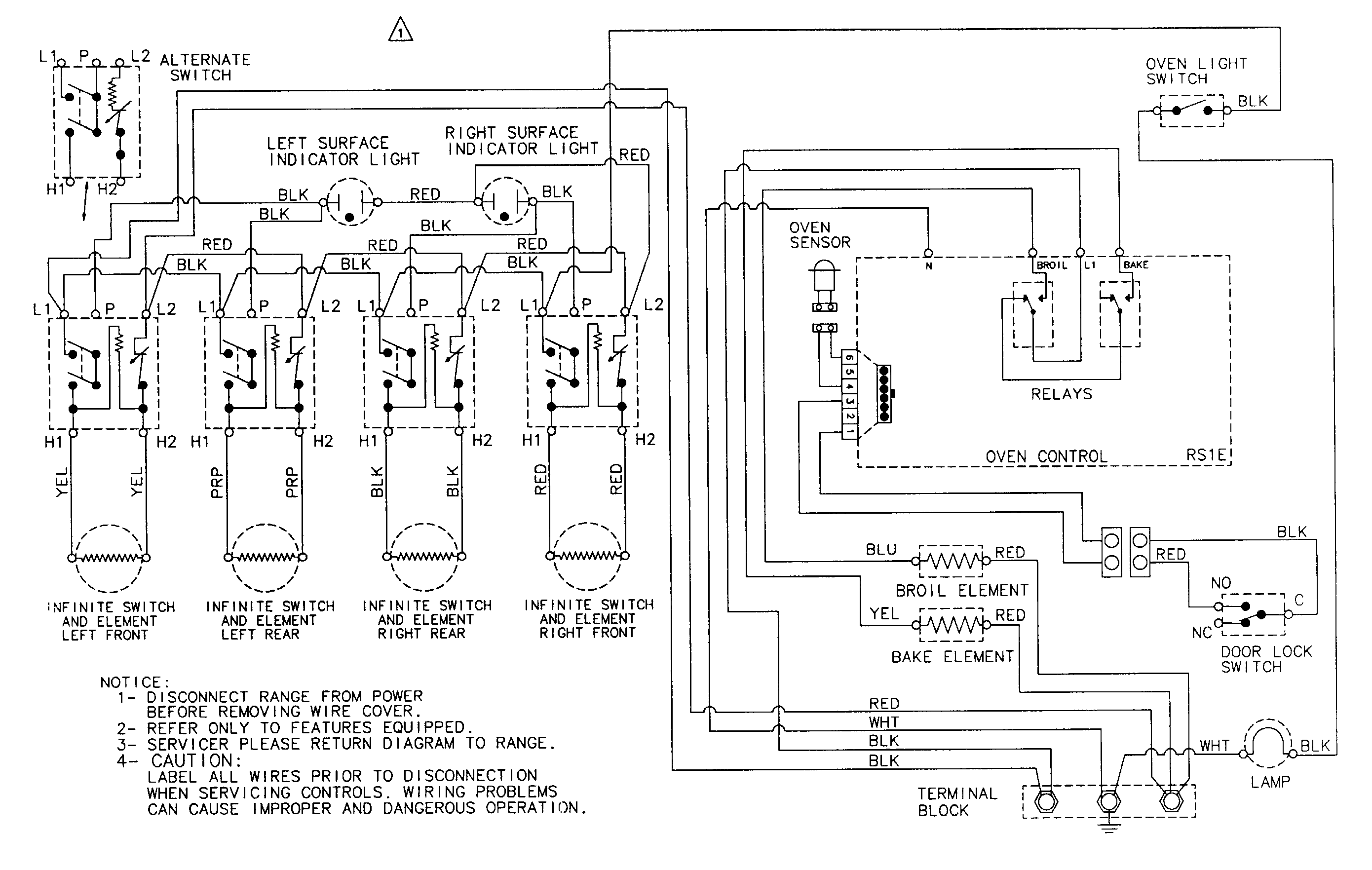

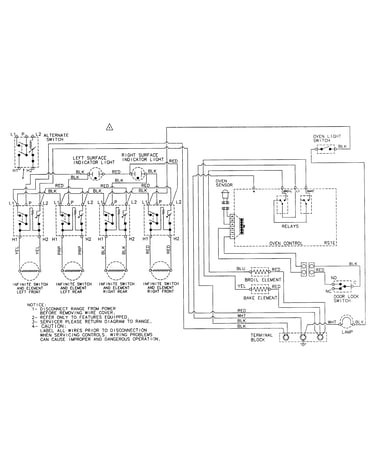

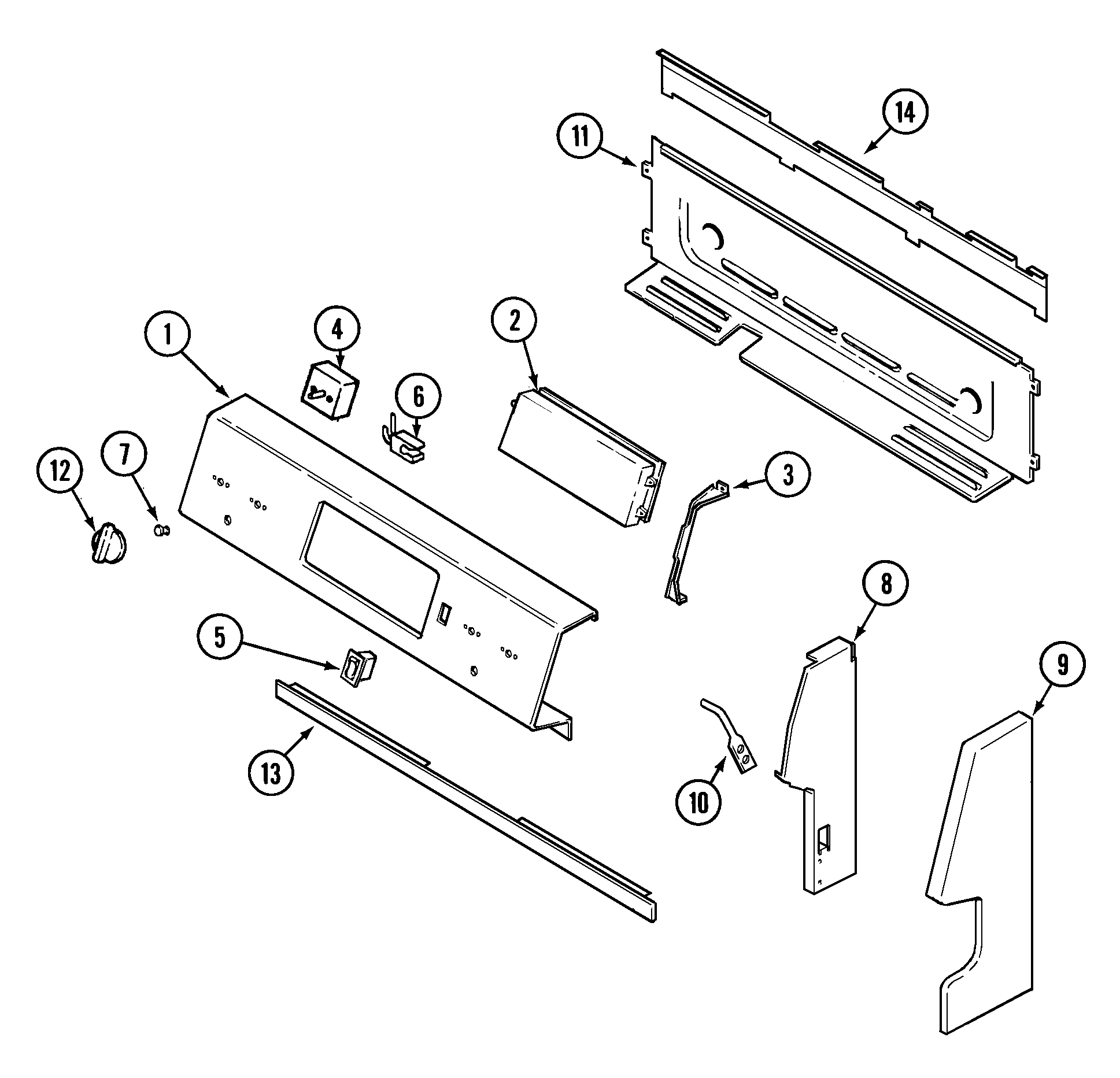

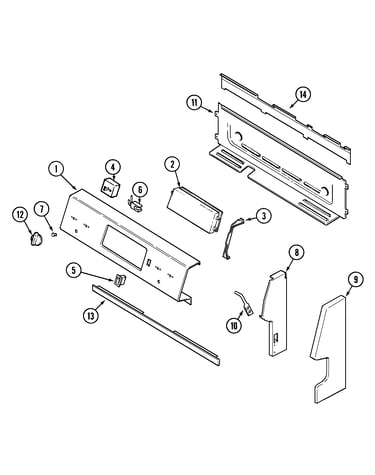

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Terminal Block 7401P039-60
#17

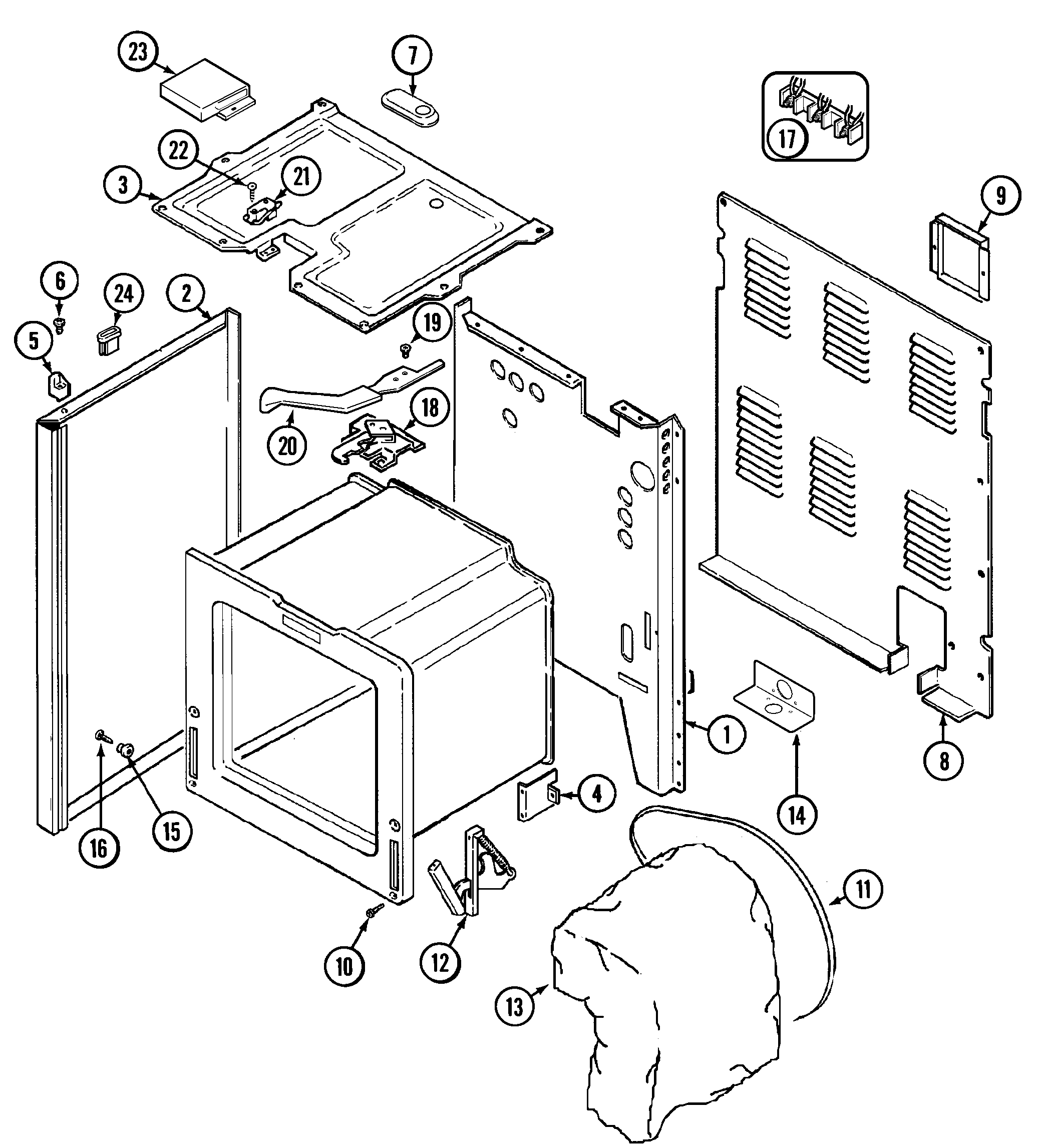

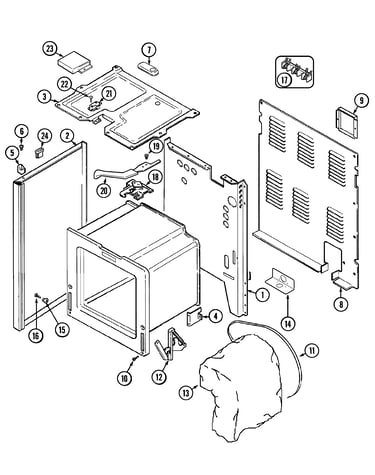

Body diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Oven Sensor 74004943
#5

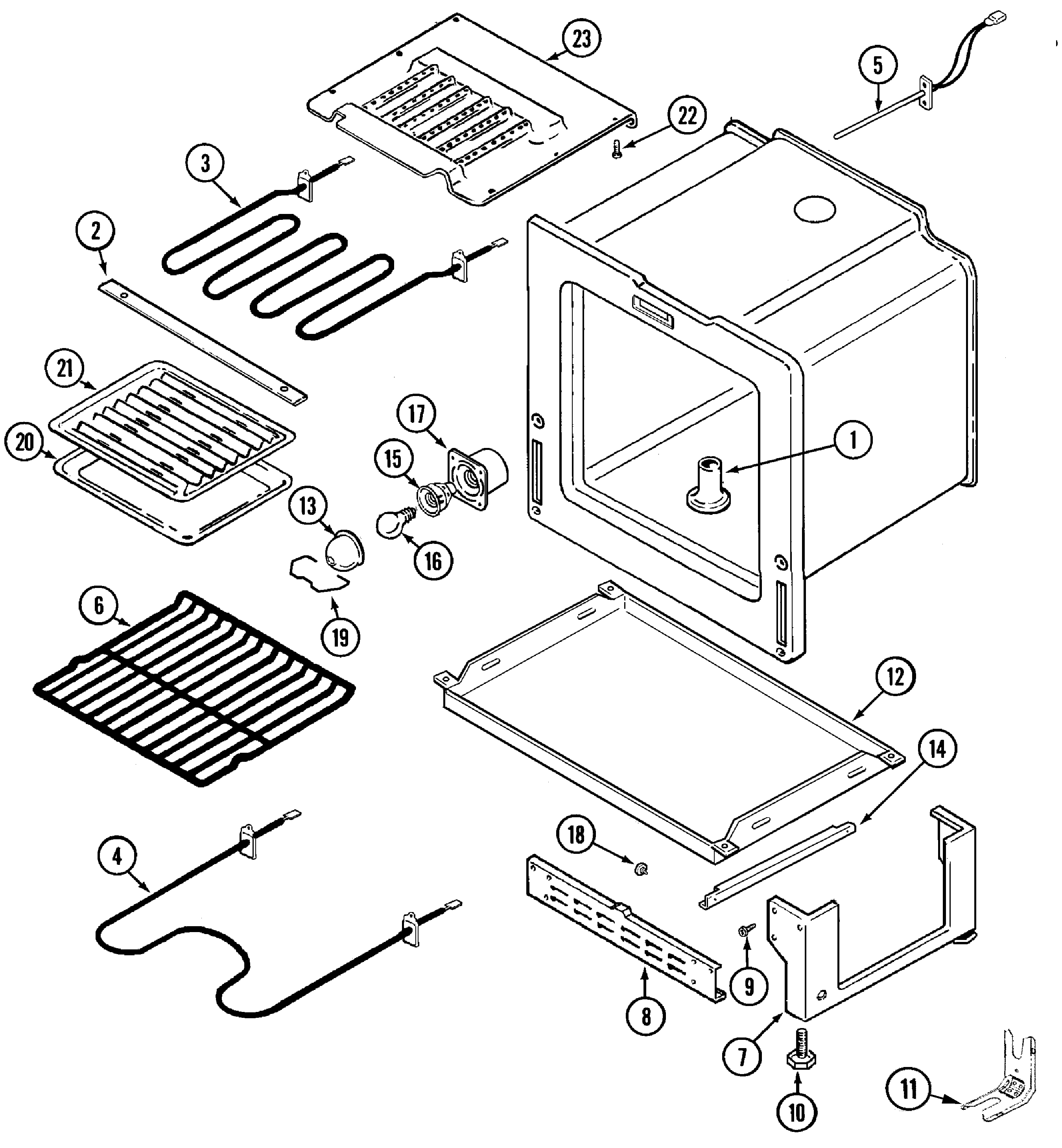

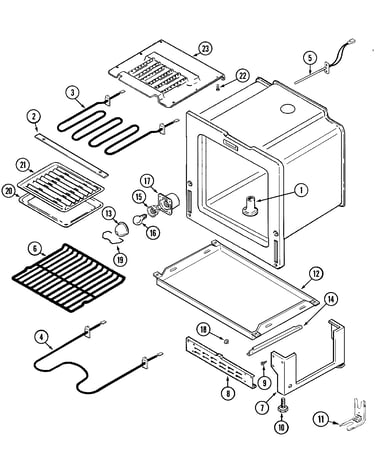

Oven/base diagram

Oven sensor

Part #74004943

Replaced by #12001656

?
Manufacturer substitution
This part replaces 74004943. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Bake Element 74003039
#4

Oven/base diagram

Bake element

Part #74003039

Replaced by #WP74010750

?
Manufacturer substitution
This part replaces 74003039. Substitute parts can look different from the original.
BEST SELLER
$39.90 |
13% OFF Phone Price : $45.90
In Stock
Drip Bowl 7725P015-60
#1A

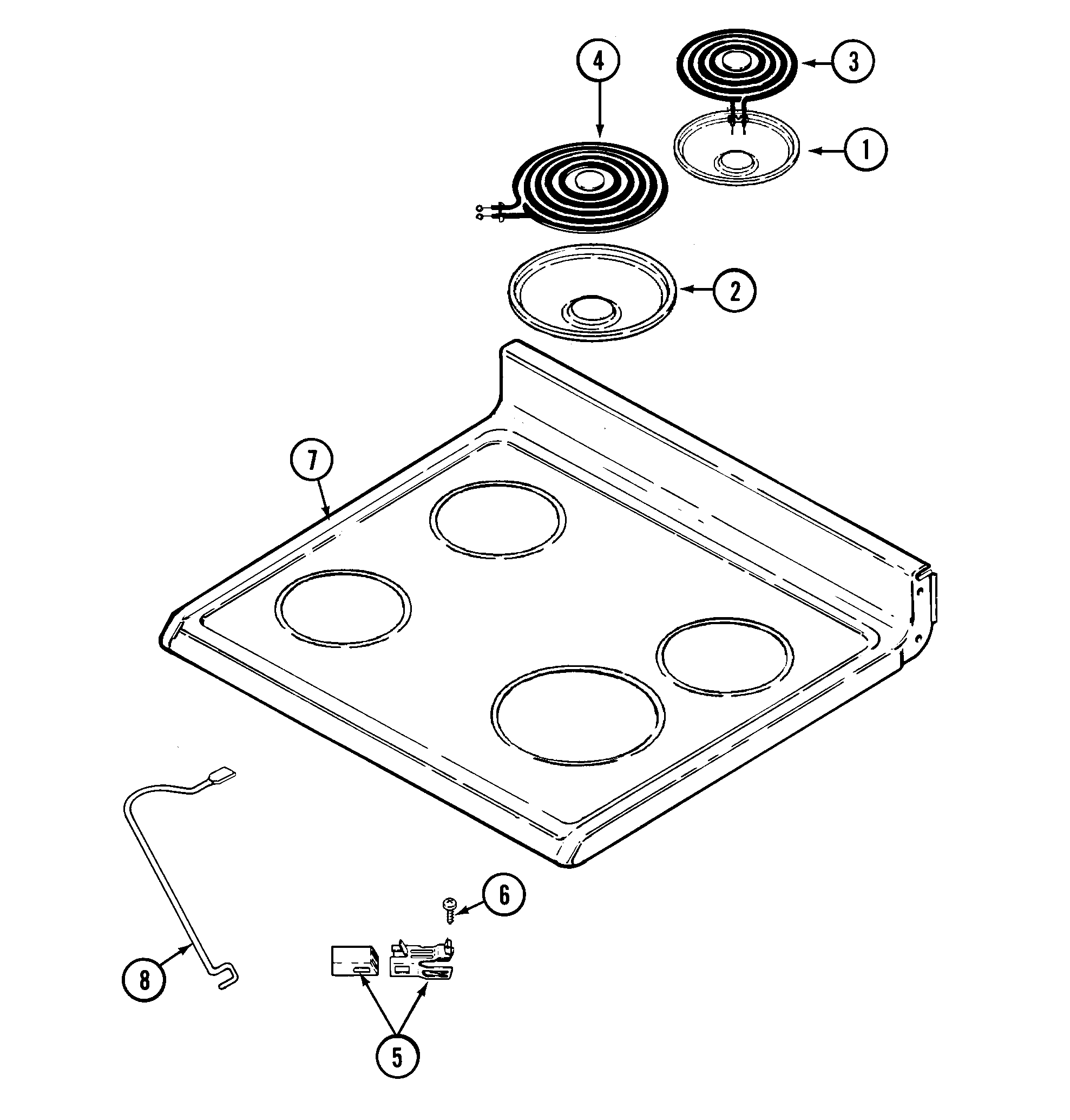

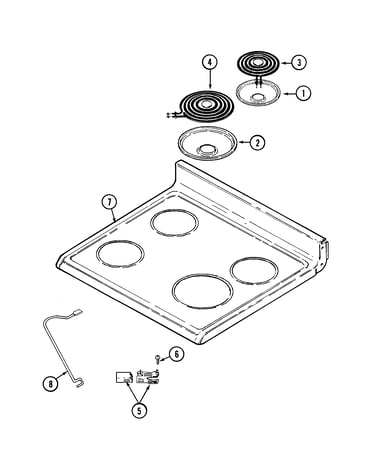

Top assembly diagram

Drip bowl

Part #7725P015-60

Replaced by #WPW10196406

?
Manufacturer substitution
This part replaces 7725P015-60. Substitute parts can look different from the original.
$7.46 |
12% OFF Phone Price : $8.46
In Stock
Door Gasket 7201P046-60
#15

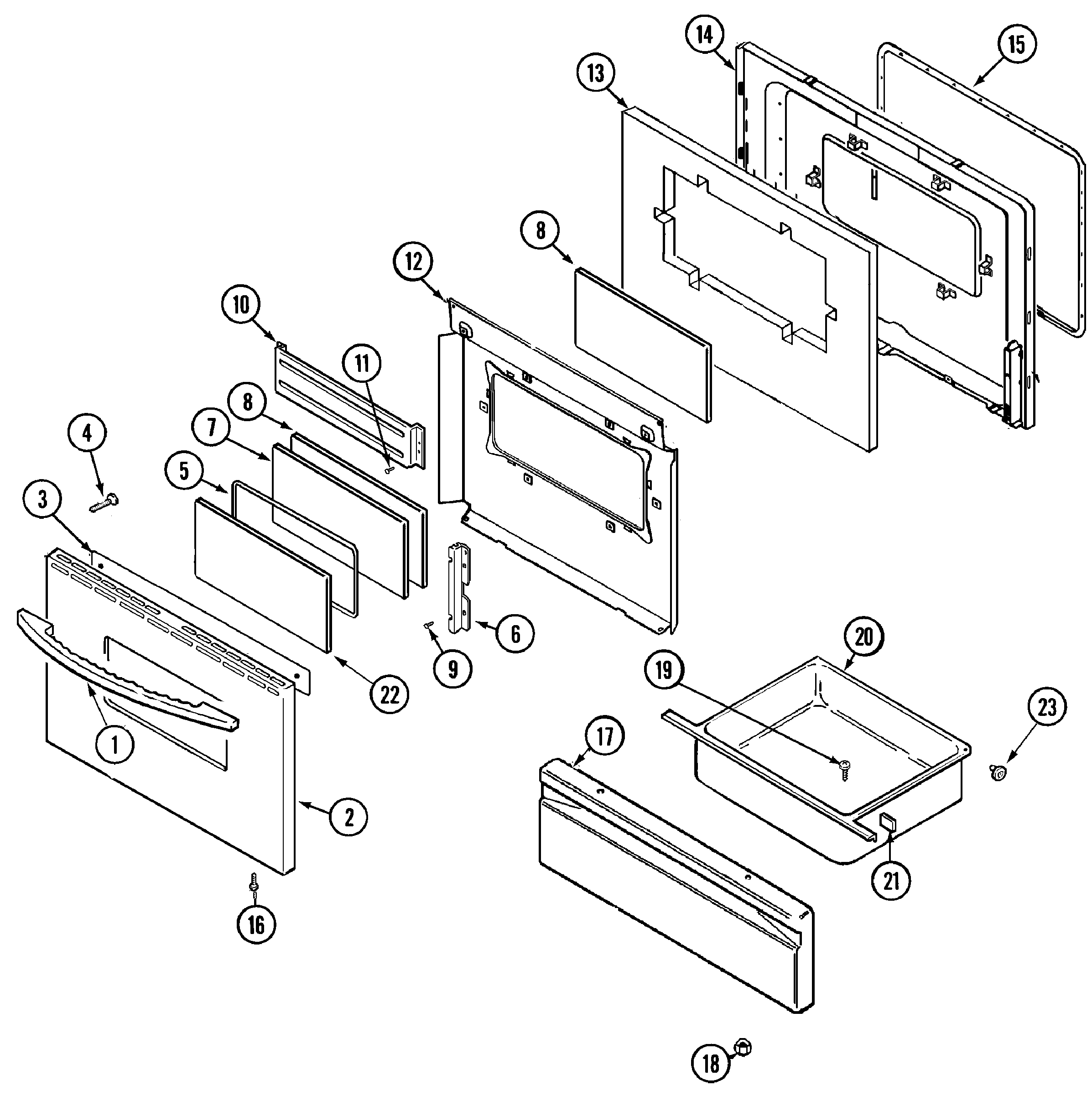

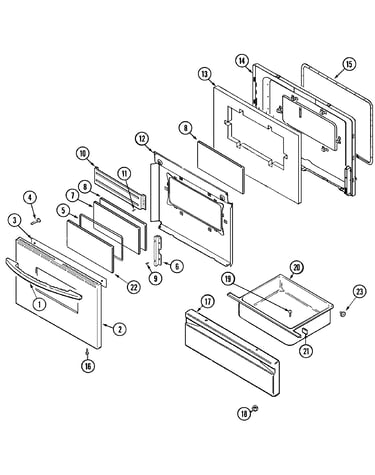

Door/drawer diagram

Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Receptacle 1430306K
#5

Top assembly diagram

Receptacle

Part #1430306K

Replaced by #12001676

?
Manufacturer substitution
This part replaces 1430306K. Substitute parts can look different from the original.
$10.73 |
16% OFF Phone Price : $12.73
In Stock
Drip Bowl 74001212
#1

Top assembly diagram

Drip bowl

Part #74001212

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 74001212. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Surface Element 74007157
#3A

Top assembly diagram

Surface element

Part #74007157

Replaced by #WPW10259868

?
Manufacturer substitution
This part replaces 74007157. Substitute parts can look different from the original.
$76.43 |
7% OFF Phone Price : $82.43
In Stock
Oven Rack 74001757
#6

Oven/base diagram

Oven rack

Part #74001757

Replaced by #WPW10282492

?
Manufacturer substitution
This part replaces 74001757. Substitute parts can look different from the original.
$56.89 |
10% OFF Phone Price : $62.89
In Stock
Terminal Nut 7103P027-60
#17B

Body diagram

Terminal nut

Part #7103P027-60

Replaced by #WP7103P027-60

?
Manufacturer substitution
This part replaces 7103P027-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
