Kenmore
Electric Cooktop

Model # 79041212903 Official Kenmore cooktop

Here are the diagrams and repair parts for Official Kenmore 79041212903 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

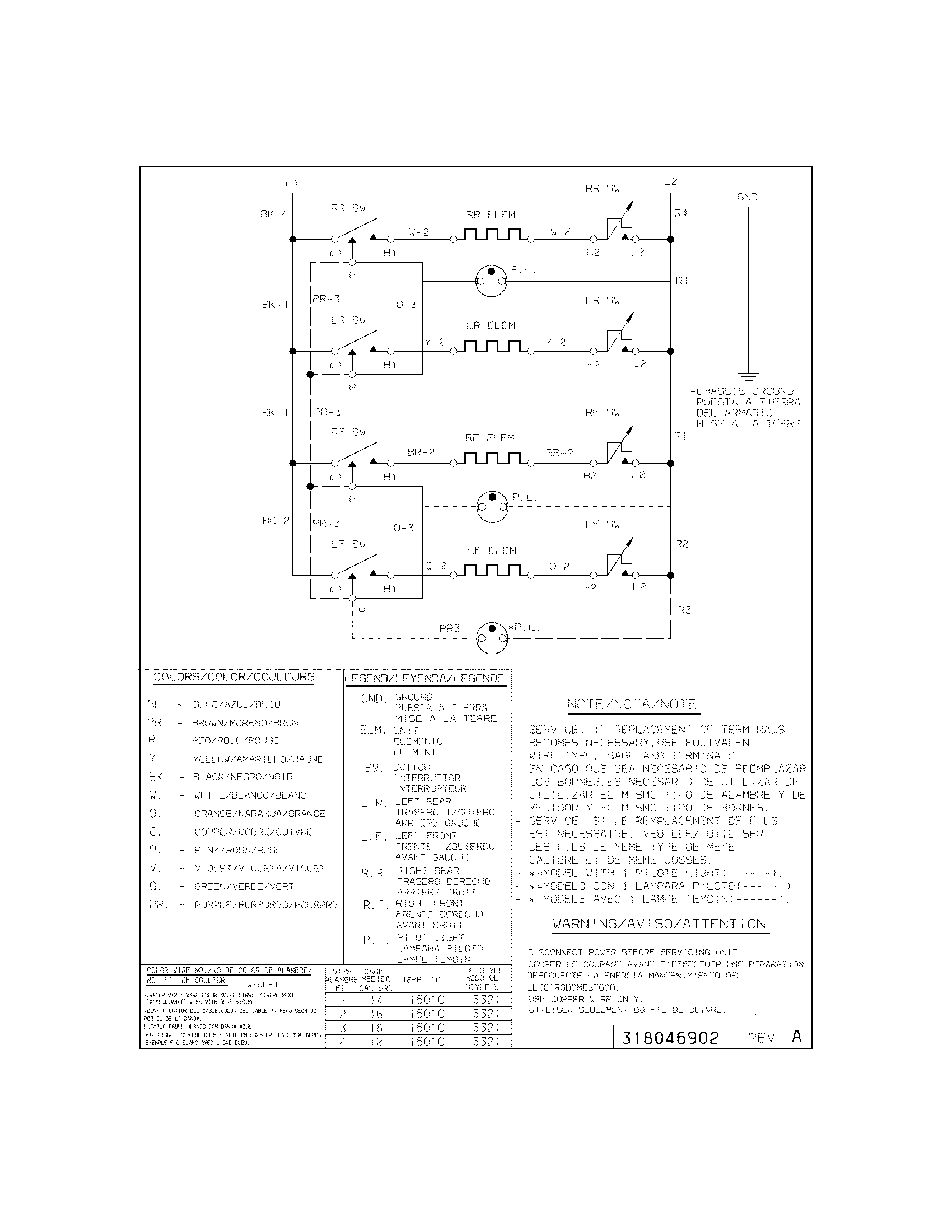

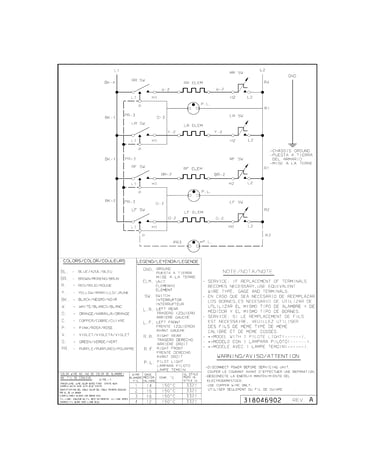

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Cooktop Element Control Switch (replaces 318293918, 318369612) 318293818
#54

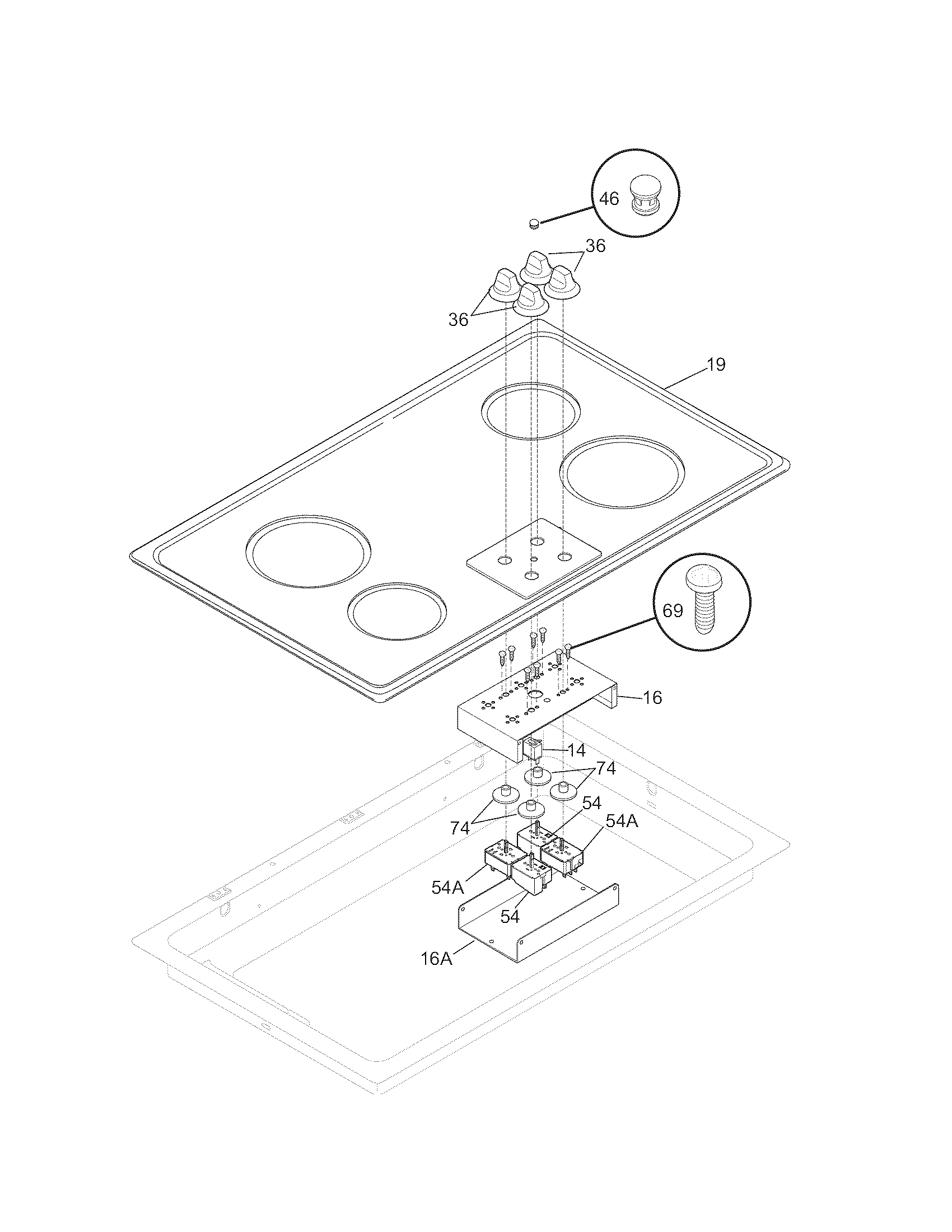

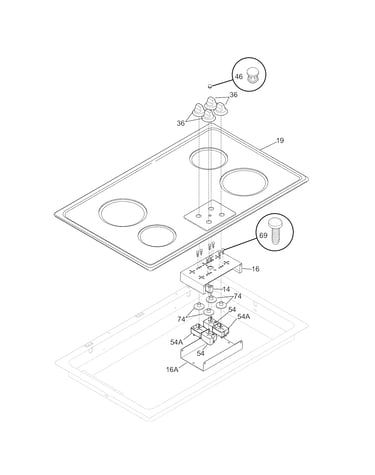

Control panel diagram

Cooktop element control switch (replaces 318293918, 318369612)

Part #318293818

$63.74 |
9% OFF Phone Price : $69.74
In Stock
Element 5304437242
#15

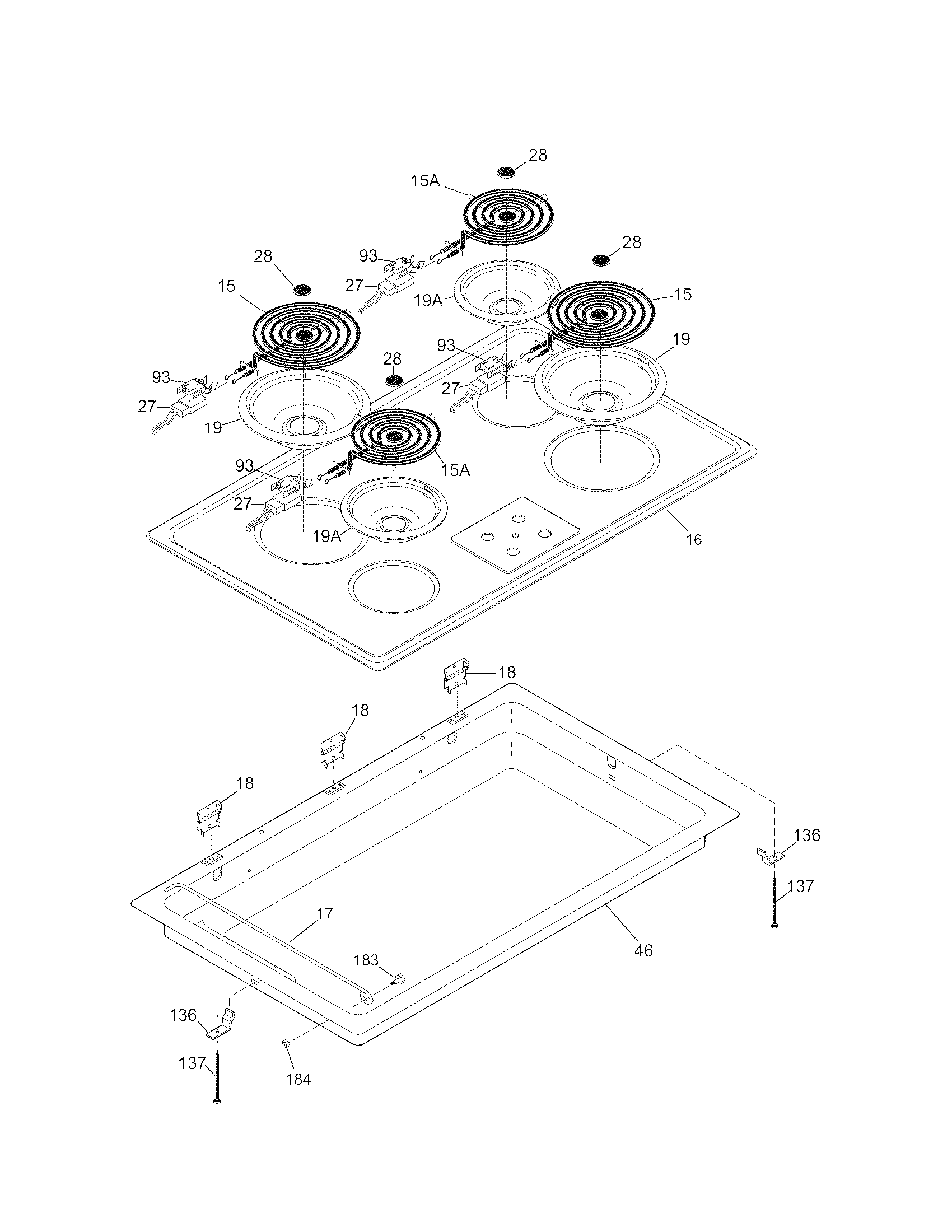

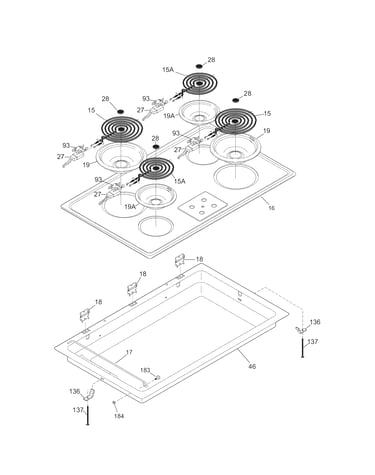

Maintop diagram

Element

Part #5304437242

Replaced by #316442303

?
Manufacturer substitution
This part replaces 5304437242. Substitute parts can look different from the original.
$172.03 |
7% OFF Phone Price : $184.03
In Stock
Element 5304437241
#15A

Maintop diagram

Element

Part #5304437241

Replaced by #316439802

?
Manufacturer substitution
This part replaces 5304437241. Substitute parts can look different from the original.
$141.55 |
8% OFF Phone Price : $153.55
In Stock
Cooktop Element Control Knob Bushing 318146010
#74

Control panel diagram

Cooktop element control knob bushing

Part #318146010

$18.86
In Stock
Range Screw 5303323140
Range screw

Part #5303323140

$11.17
In Stock
Electrolux Range Indicator Light 318369501
#14

Control panel diagram

Electrolux range indicator light

Part #318369501

$51.16
In Stock
Range Surface Element Control Switch (replaces 318293821, 318369613) 318293827
#54A

Control panel diagram

Range surface element control switch (replaces 318293821, 318369613)

Part #318293827

$65.86 |
8% OFF Phone Price : $71.86
In Stock
Gibson Cooktop Element Center Medallion 5303301461
#28

Maintop diagram

Gibson cooktop element center medallion

Part #5303301461

$54.40
In Stock
Cooktop Screw 5303311532
#NI

Maintop diagram

Cooktop screw

Part #5303311532

Replaced by #316524400

?
Manufacturer substitution
This part replaces 5303311532. Substitute parts can look different from the original.
This item is not returnable
$12.60
In Stock
Range Screw 5303300195
Range screw

Part #5303300195

Replaced by #5300803416

?
Manufacturer substitution
This part replaces 5303300195. Substitute parts can look different from the original.
This item is not returnable
$6.26
In Stock
