Dacor
Dishwasher

Model # DDWF24S Official Dacor dishwasher

Here are the diagrams and repair parts for Official Dacor DDWF24S dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

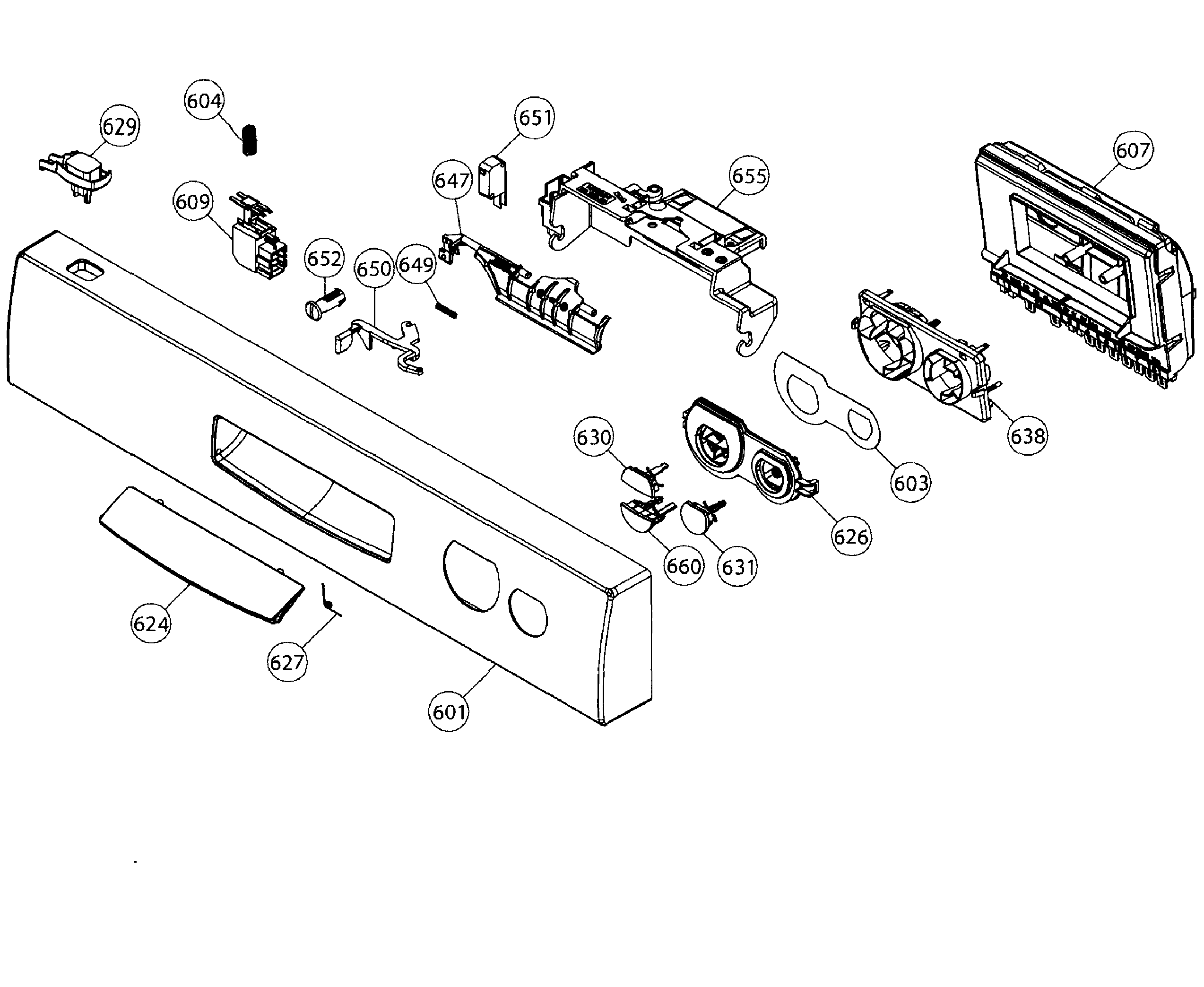

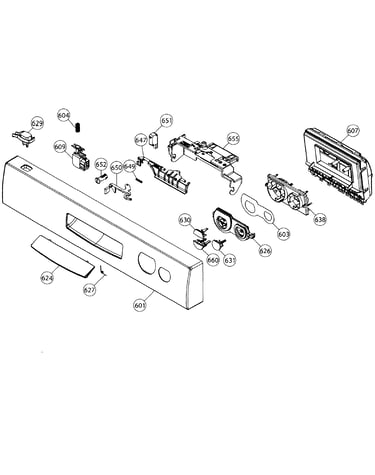

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Door Strip 105108
#227

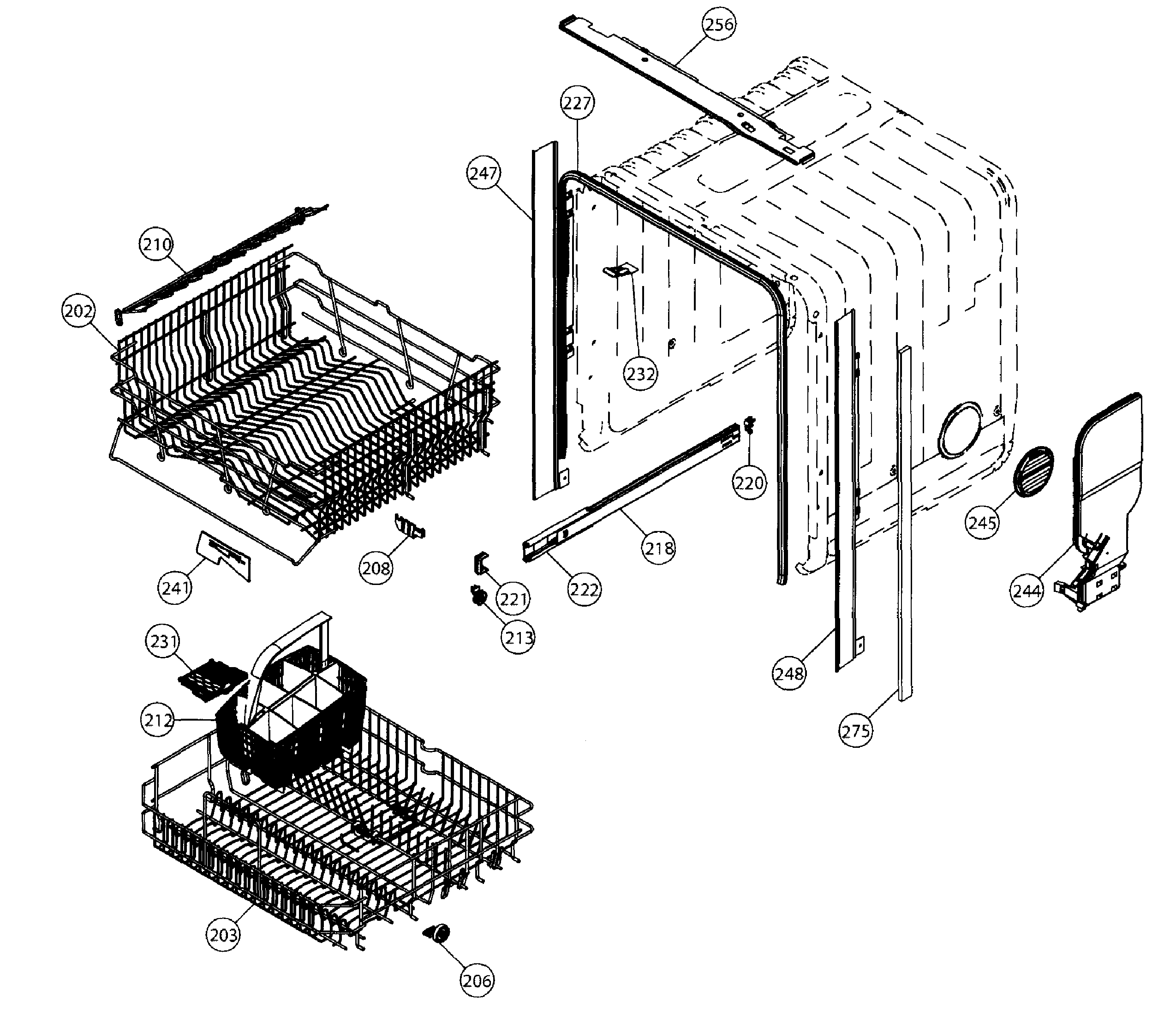

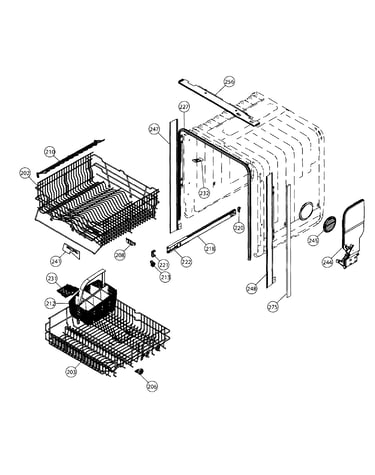

Baskets diagram

Door strip

Part #105108

$93.49
In Stock
Hose Kit 105221
#310

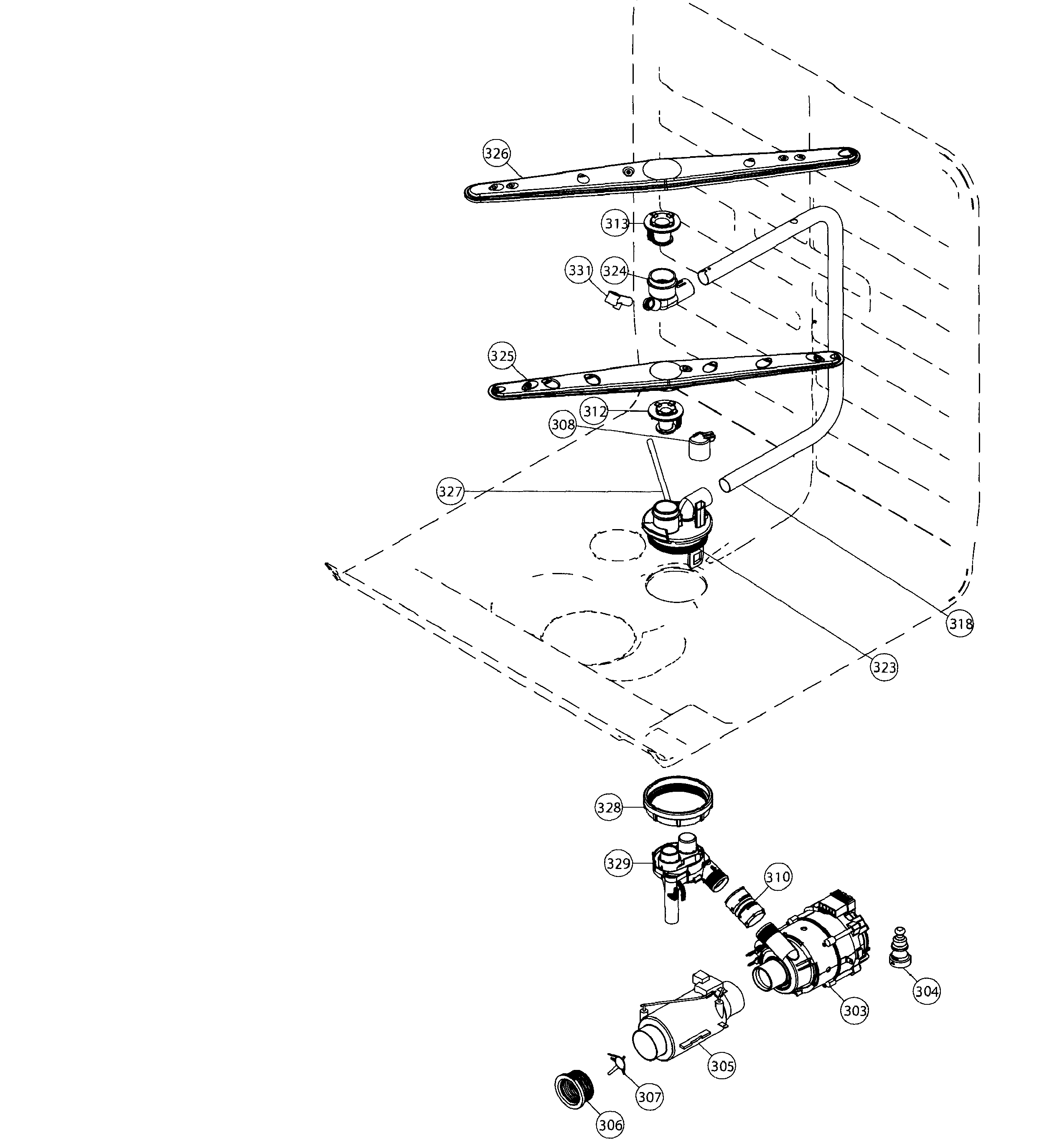

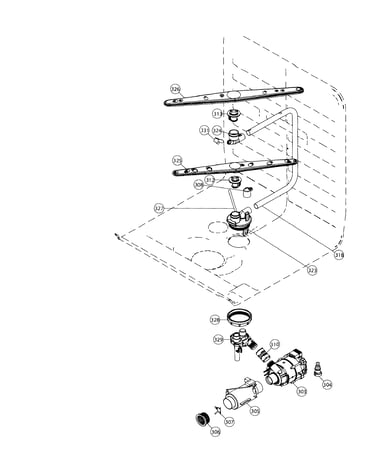

Wash system diagram

Hose kit

Part #105221

$65.49
In Stock
Wine Shelf 105122
#210

Baskets diagram

Wine shelf

Part #105122

$68.49
In Stock
Bottom Out 105220
#101

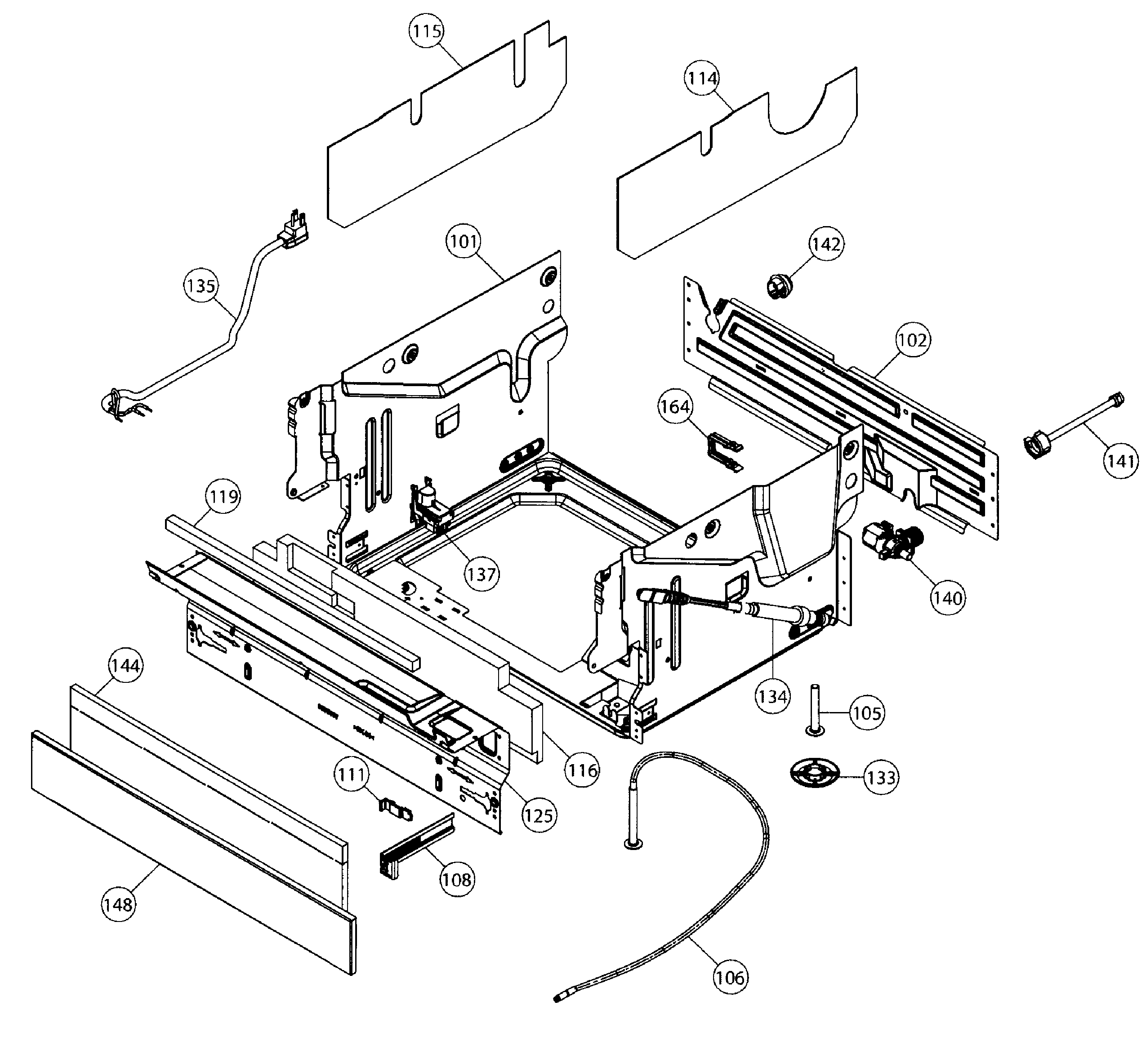

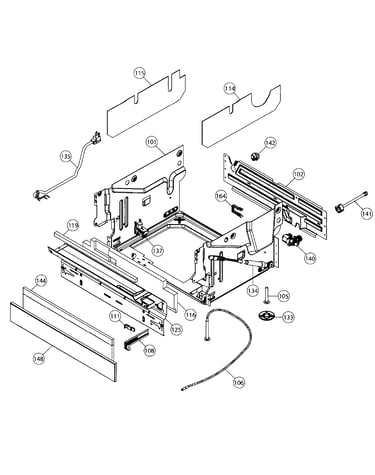

Base assy diagram

Bottom out

Part #105220

$391.99
In Stock

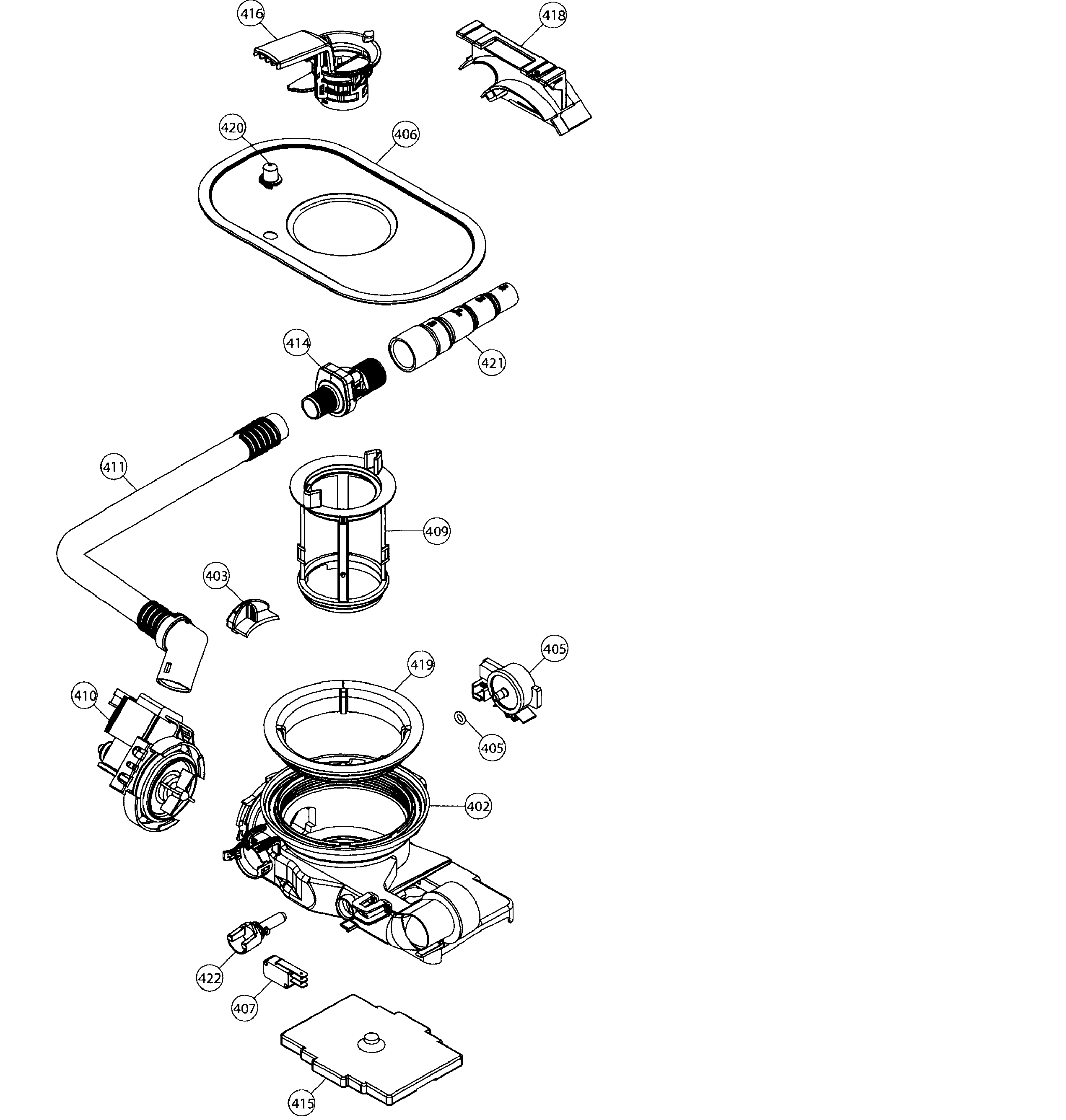

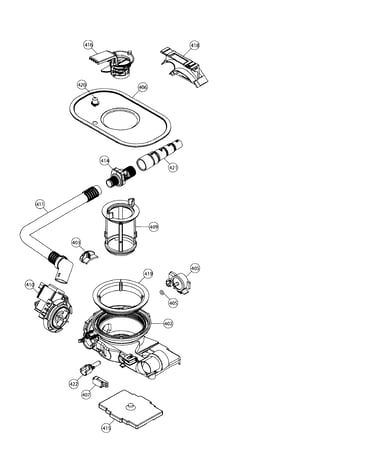

Circulating Pump 105180
#303

Wash system diagram

Circulating pump

Part #105180

$435.99
In Stock
Dispenser Kit 105219
#504

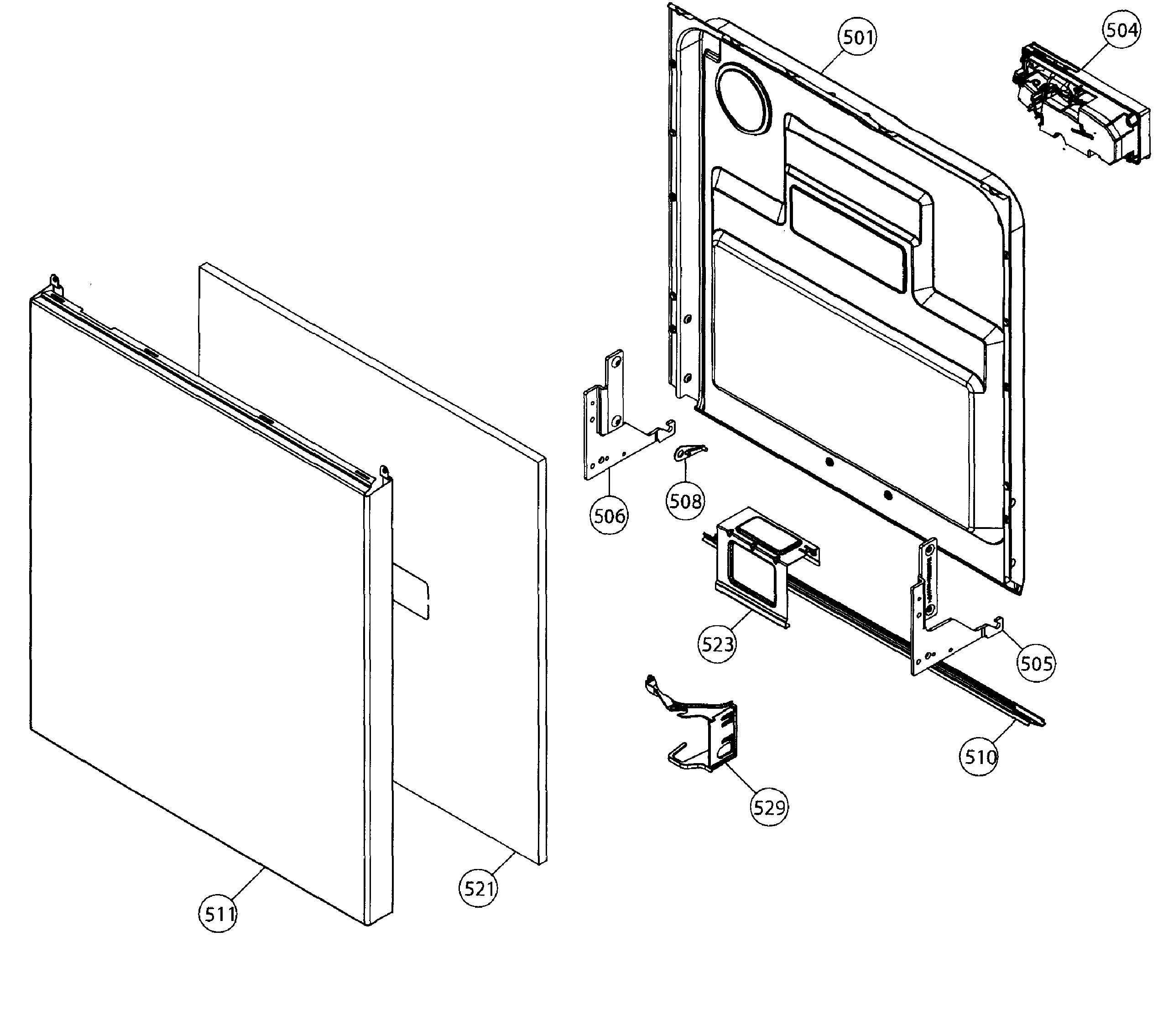

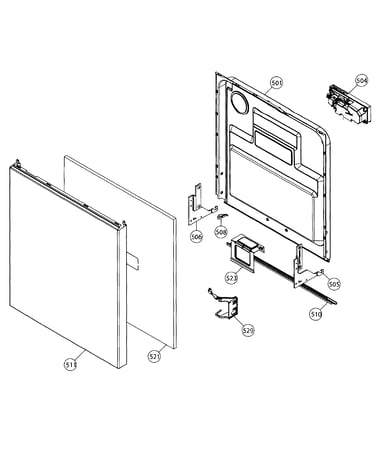

Door assy diagram
