Model # JVM1490WD03 Official GE microwave
Here are the diagrams and repair parts for Official GE JVM1490WD03 microwave, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
JVM1490WD03 Microwave
#1446

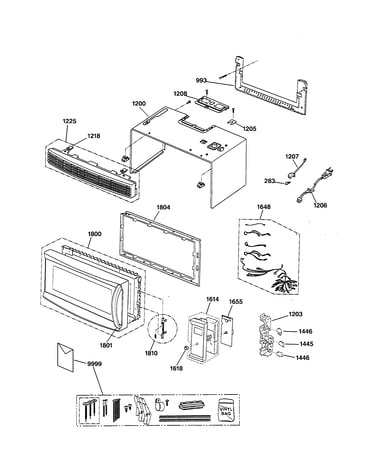

Control panel, door, grill & case diagram
Microwave primary interlock switch (replaces wb24x10029, wb24x10113)
Part #WB24X10047
$30.84 |
16% OFF Phone Price : $36.84
In Stock
#1439

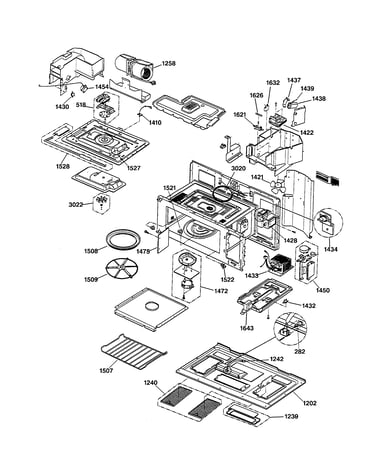

Unit parts & base diagram
Microwave high-voltage diode (replaces wb18x10286, wb27x1033, wb27x10330)
Part #WB27X10037
$25.62 |
19% OFF Phone Price : $31.62
In Stock
#1445
Control panel, door, grill & case diagram
Monitor switch
Part #WB24X0817
Replaced by #WB24X25397
?
Manufacturer substitution
This part replaces WB24X0817. Substitute parts can look different from the original.
$28.49 |
17% OFF Phone Price : $34.49
In Stock
#1522
Unit parts & base diagram
Microwave cooking rack support
Part #WB02X10750
This item is not returnable
$8.67 |
10% OFF Phone Price : $9.67
In Stock
#1810
Control panel, door, grill & case diagram
Microwave door latch and spring
Part #WB10X10021
This item is not returnable
$12.63 |
14% OFF Phone Price : $14.63
In Stock
#282
Unit parts & base diagram
Lamp 12v 20w
Part #WB36X10176
Replaced by #WB01X10239
?
Manufacturer substitution
This part replaces WB36X10176. Substitute parts can look different from the original.
$27.25 |
18% OFF Phone Price : $33.25
In Stock
#1430
Unit parts & base diagram
Microwave thermal cut-off
Part #WB21X10046
$26.84 |
18% OFF Phone Price : $32.84
In Stock
#1508
Unit parts & base diagram
Glass tray
Part #WB49X10074
Replaced by #WB49X10129
?
Manufacturer substitution
This part replaces WB49X10074. Substitute parts can look different from the original.
$78.33 |
7% OFF Phone Price : $84.33
In Stock
#1240
Unit parts & base diagram
Microwave grease filter
Part #WB06X10309
$101.77 |
11% OFF Phone Price : $113.77
In Stock
#1410
Unit parts & base diagram
Microwave convection element thermistor
Part #WB18X10126
$48.06 |
11% OFF Phone Price : $54.06
In Stock
