Model # 11077102310 Official Kenmore gas dryer

Here are the diagrams and repair parts for Official Kenmore 11077102310 gas dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

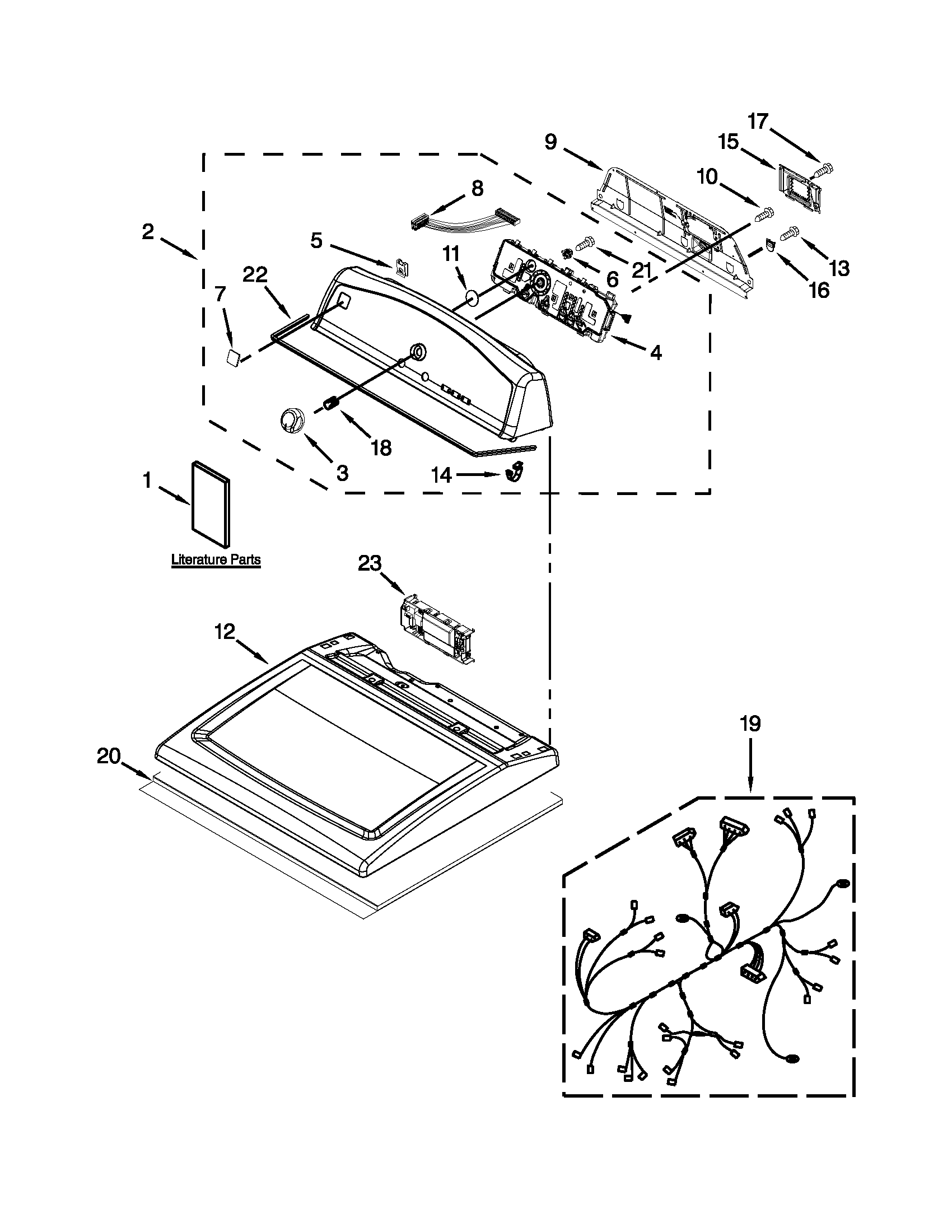

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
11077102310 Gas Dryer
Dryer Thermal Fuse 3392519
#33

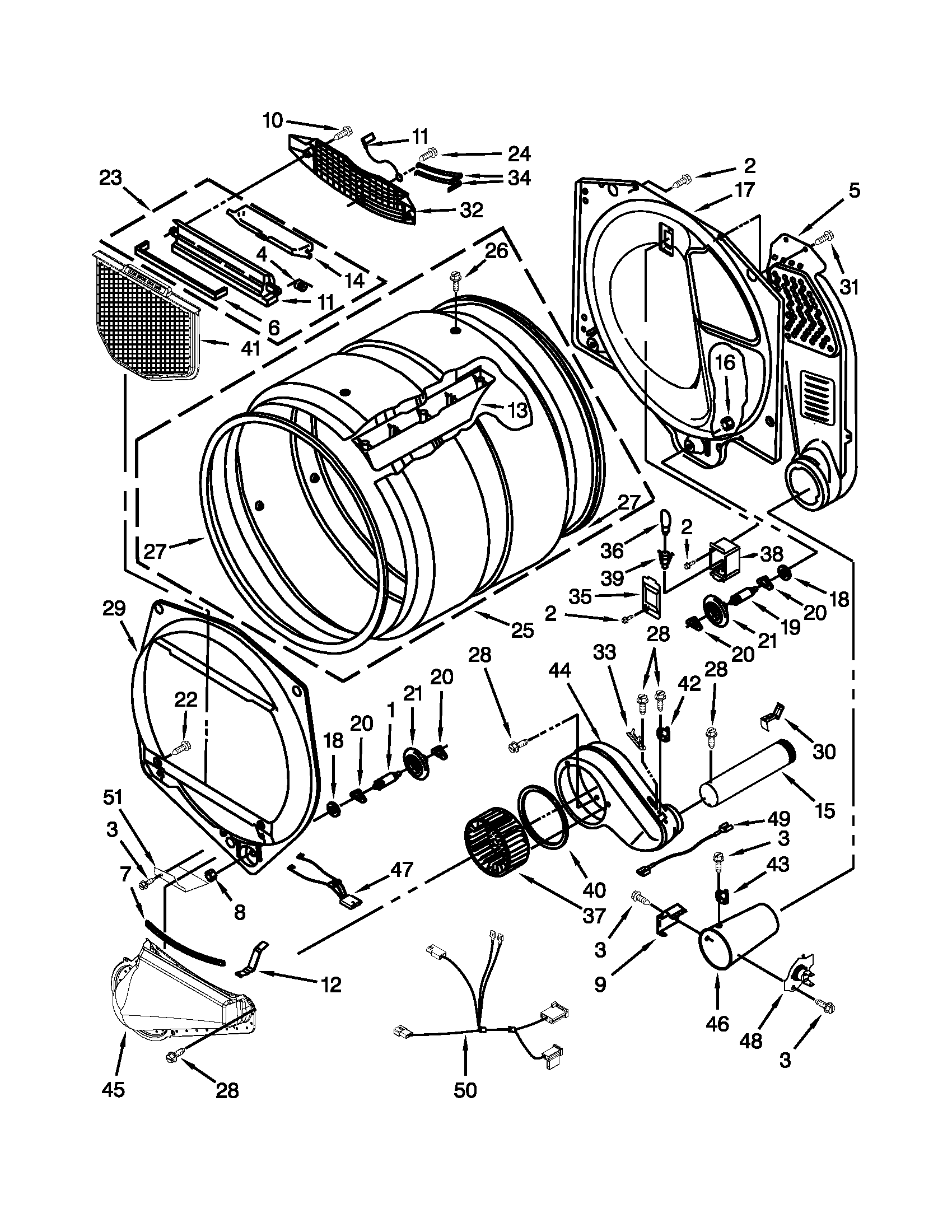

Bulkhead parts diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
4.65 (152)
BEST SELLER
$16.15 |
11% OFF Phone Price : $18.15
In Stock
Dryer Idler Pulley W10468057
#13

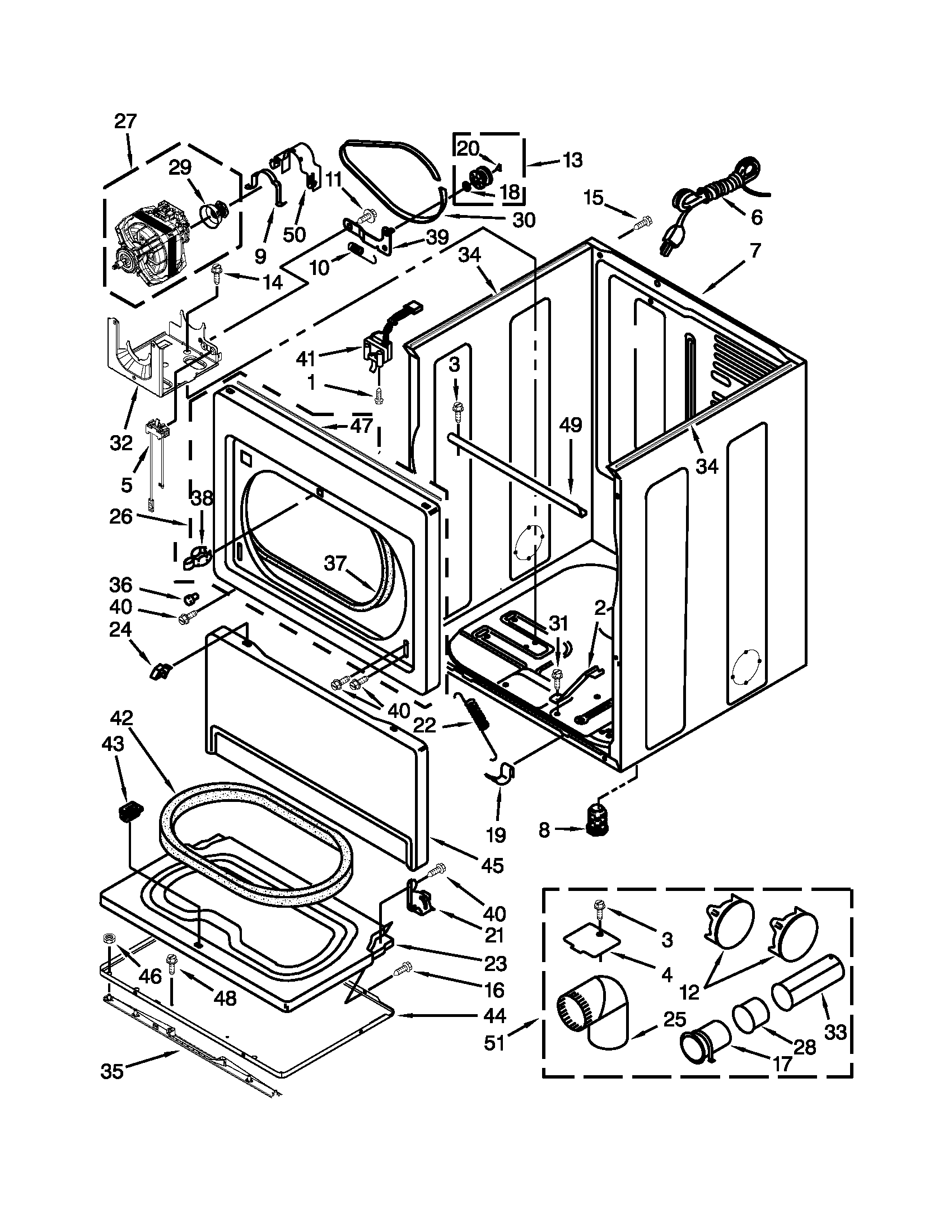

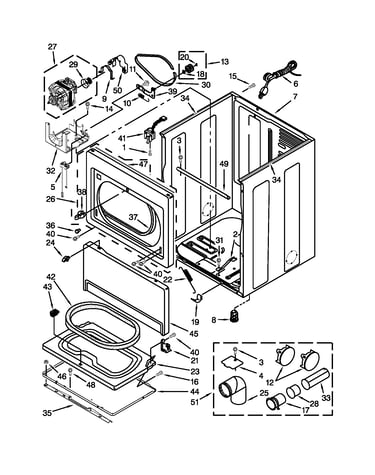

Cabinet parts diagram

Dryer idler pulley

Part #W10468057

The manufacturer no longer makes this part, and there's no substitute part

Dryer Drum Support Roller W10314171
#21

Bulkhead parts diagram

Dryer drum support roller

Part #W10314171

Replaced by #WPW10314173

?
Manufacturer substitution
This part replaces W10314171. Substitute parts can look different from the original.
4.19 (21)
BEST SELLER
$14.88 |
12% OFF Phone Price : $16.88
In Stock
Bracket 3388674
#39

Cabinet parts diagram

Bracket

Part #3388674

Replaced by #W10837240

?
Manufacturer substitution
This part replaces 3388674. Substitute parts can look different from the original.
4.48 (42)
BEST SELLER
$17.31 |
10% OFF Phone Price : $19.31
In Stock
Dryer Valve Coil Kit 694540
#13

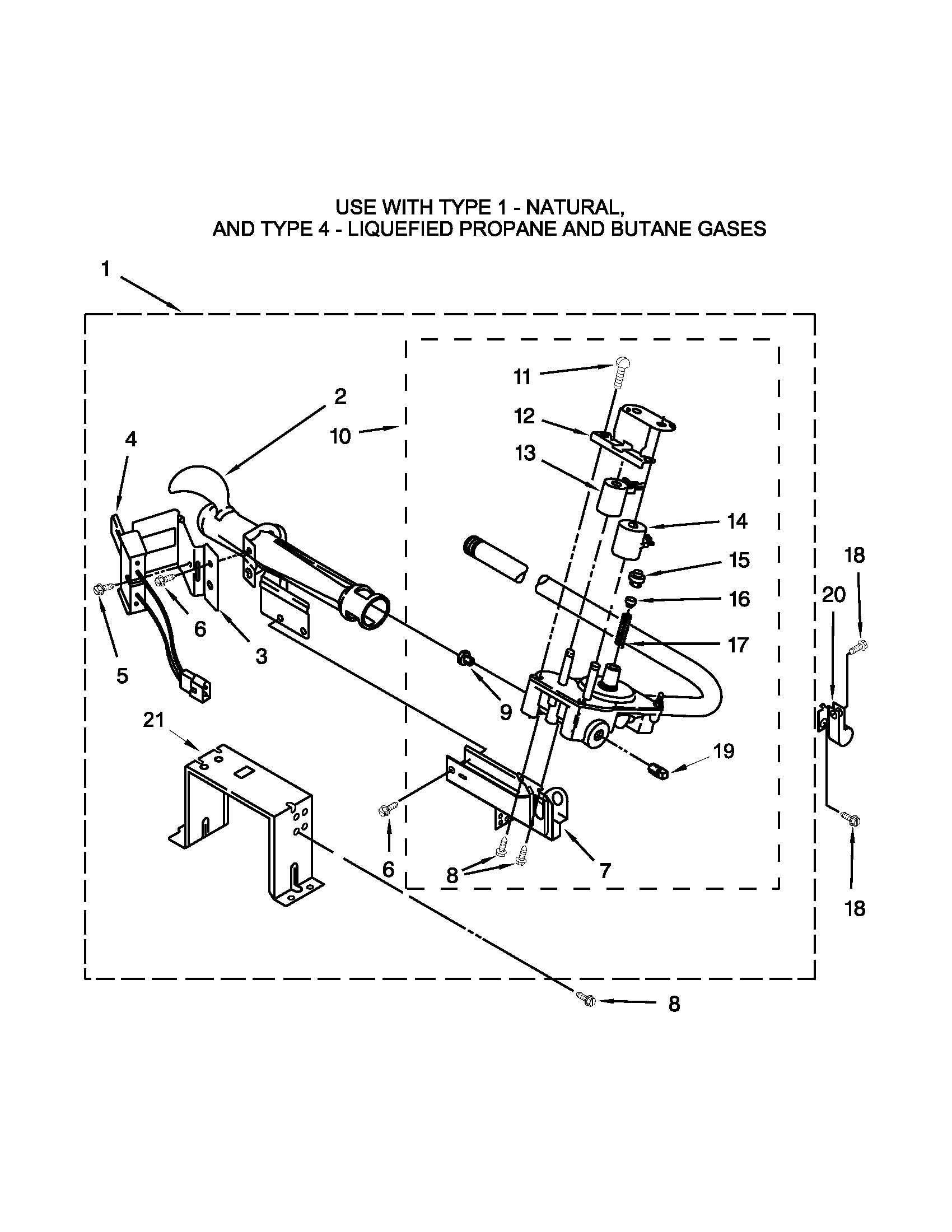

8576353 burner assembly parts diagram

Dryer valve coil kit

Part #694540

Replaced by #279834

?
Manufacturer substitution
This part replaces 694540. Substitute parts can look different from the original.
4.67 (57)
BEST SELLER
$27.24 |
18% OFF Phone Price : $33.24
In Stock
Dryer Gas Valve Coil Kit 694539
#14

8576353 burner assembly parts diagram

Dryer gas valve coil kit

Part #694539

Replaced by #279834

?
Manufacturer substitution
This part replaces 694539. Substitute parts can look different from the original.
4.67 (57)
BEST SELLER
$27.24 |
18% OFF Phone Price : $33.24
In Stock
Dryer Thermistor 8577274
#42

Bulkhead parts diagram

Dryer thermistor

Part #8577274

Replaced by #WP8577274

?
Manufacturer substitution
This part replaces 8577274. Substitute parts can look different from the original.
3.7 (33)
BEST SELLER
$29.72 |
17% OFF Phone Price : $35.72
In Stock
Dryer Repair Kit 80047
#NI

Optional parts (not included) diagram

Dryer repair kit

Part #80047

Replaced by #4392067

?
Manufacturer substitution
This part replaces 80047. Substitute parts can look different from the original.
3.77 (74)
BEST SELLER
$43.17 |
12% OFF Phone Price : $49.17
In Stock
Igniter 686590
#4

8576353 burner assembly parts diagram

Igniter

Part #686590

Replaced by #279311

?
Manufacturer substitution
This part replaces 686590. Substitute parts can look different from the original.
4.38 (37)
BEST SELLER
$26.95 |
18% OFF Phone Price : $32.95
In Stock
Strike 696144
#38

Cabinet parts diagram

Strike

Part #696144

Replaced by #279570

?
Manufacturer substitution
This part replaces 696144. Substitute parts can look different from the original.
4.48 (102)
BEST SELLER
This item is not returnable
$4.01 |
20% OFF Phone Price : $5.01
In Stock
