Model # FUF14DMARWH Official GE freezer - a series

Here are the diagrams and repair parts for Official GE FUF14DMARWH freezer - a series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Drawers & Bins

ALL PARTS

Showing 10 of 92 parts |

#740

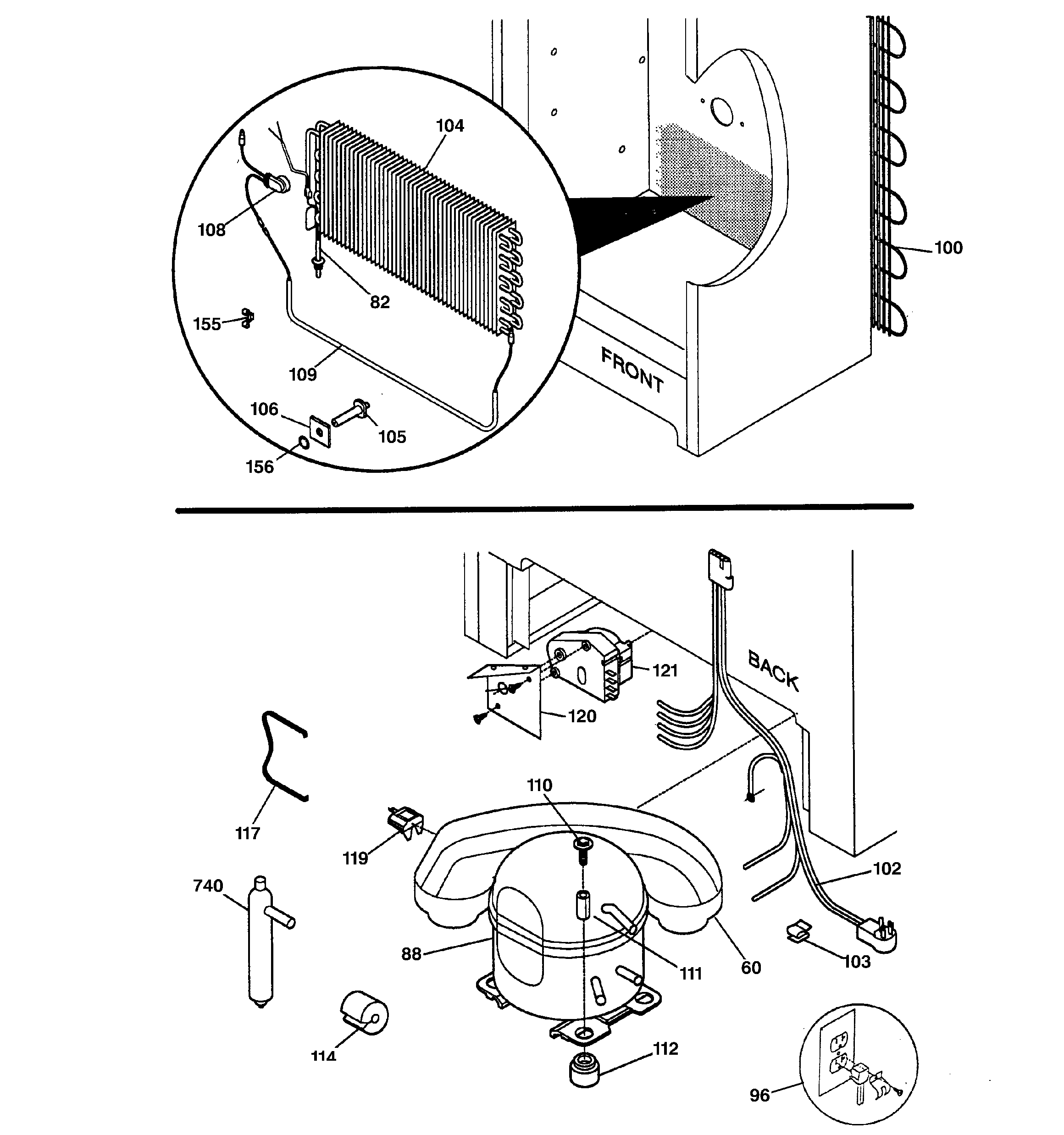

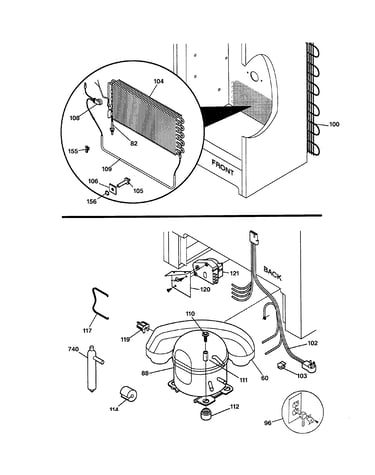

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

$79.18 |

7% OFF Phone Price : $85.18

In Stock

Qty

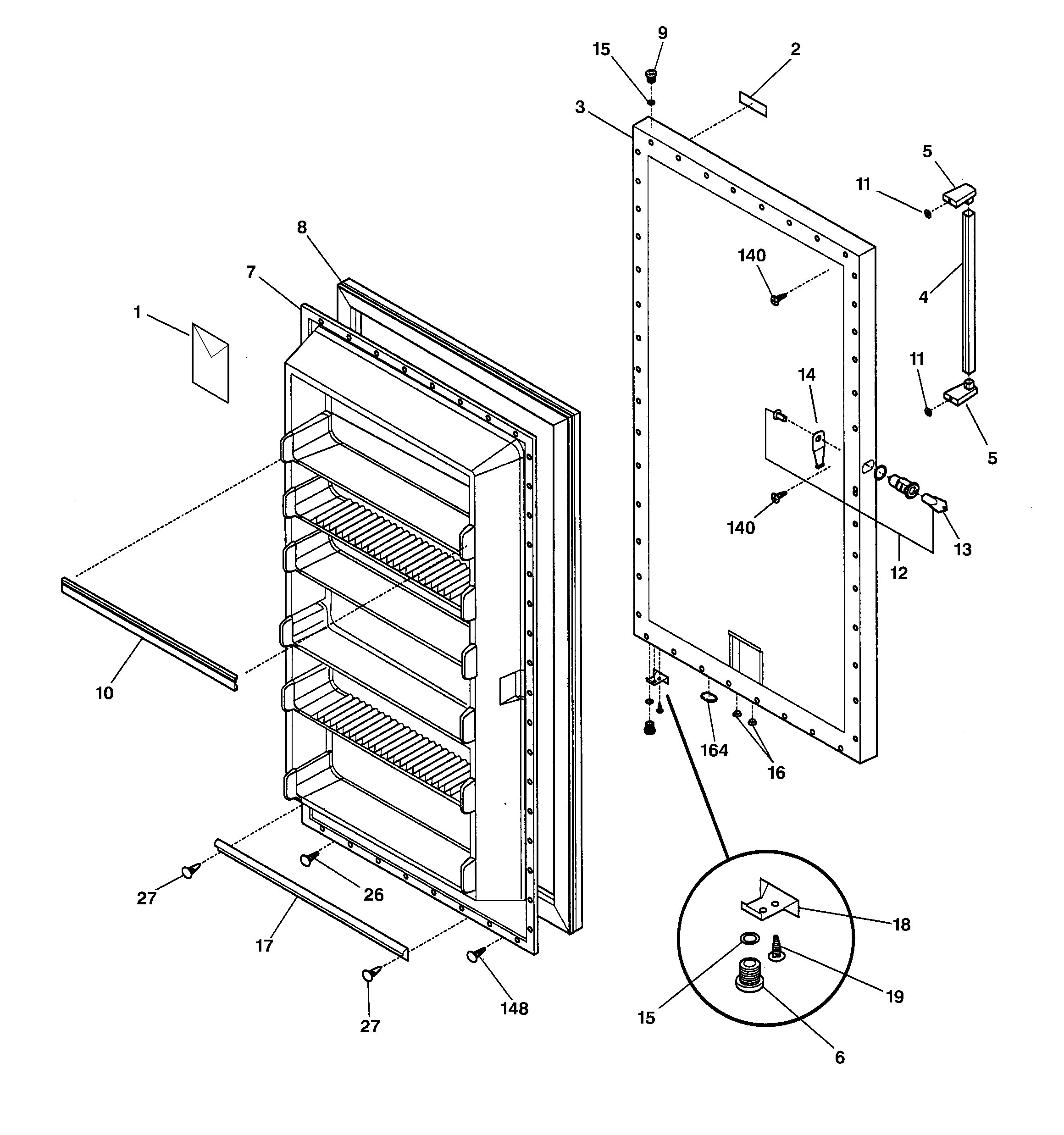

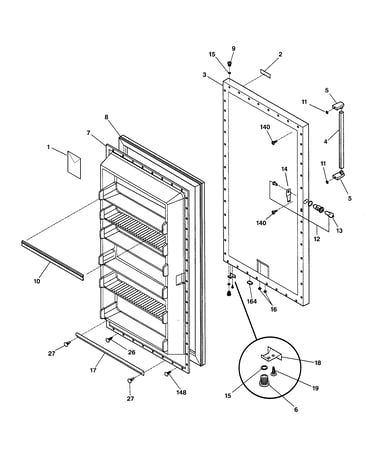

Door diagram

Freezer door gasket

Part #WR24X10011

Replaced by #WR14X27587

$213.14

In Stock

Qty

#58

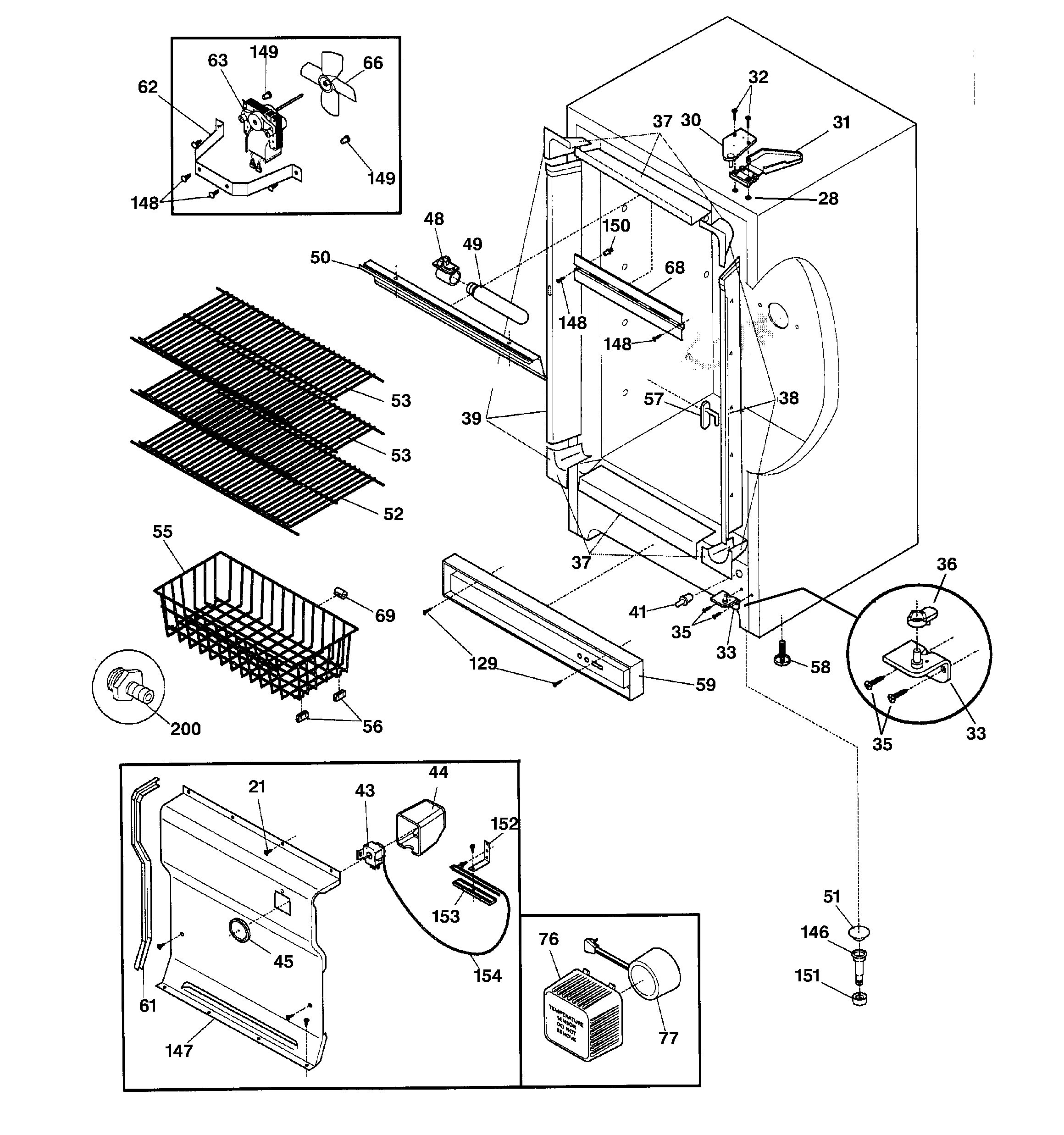

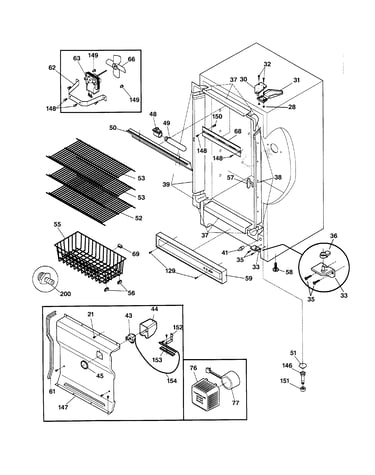

Cabinet diagram

Adjustment foot

Part #WR02X9485

Replaced by #WR2X9485

$20.43 |

23% OFF Was : $26.64

In Stock

Qty

#105

Unit parts diagram

Support evaporator

Part #WR02X6206

This item is not returnable

$2.99

In Stock

Qty

#45

Cabinet diagram

Temperature complete knob

Part #WR02X10860

$38.89 |

13% OFF Phone Price : $44.89

In Stock

Qty

#100

Unit parts diagram

Condenser

Part #WR84X5007

$279.53

In Stock

Qty

#82

Unit parts diagram

Heat exchanger

Part #WR86X10007

$92.03

In Stock

Qty

#63

Cabinet diagram

Freezer evaporator fan blade

Part #WR60X10066

The manufacturer no longer makes this part, and there's no substitute part

#26

Door diagram

Shoulder screw

Part #WR01X5405

Replaced by #WR01X10623

$8.11

In Stock

Qty

#102

Unit parts diagram

Power cord

Part #WR23X0108

Replaced by #WR23X10300

$22.68 |

21% OFF Phone Price : $28.68

In Stock

Qty
