Model # ALW540RAW Official Amana washer

Here are the diagrams and repair parts for Official Amana ALW540RAW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

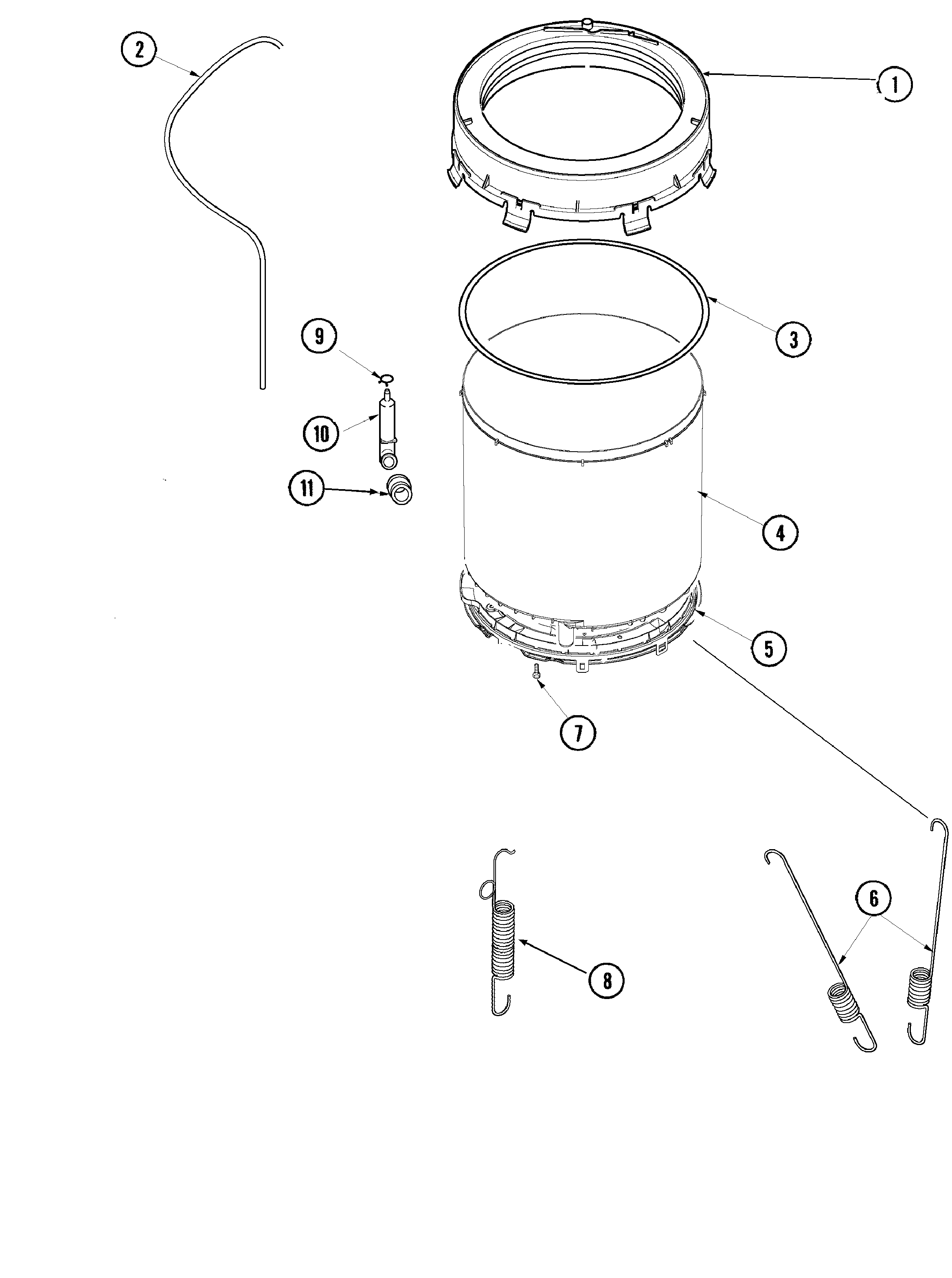

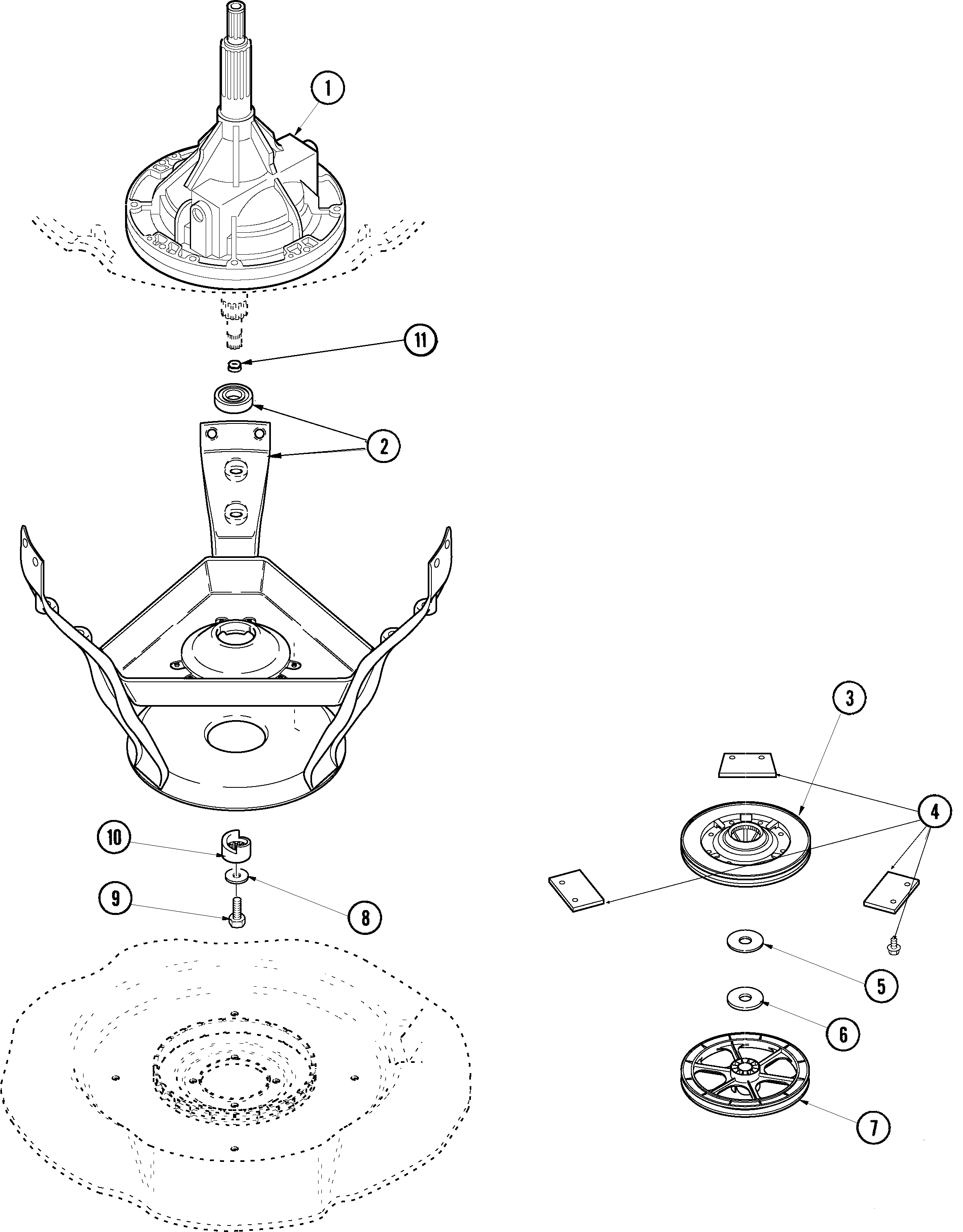

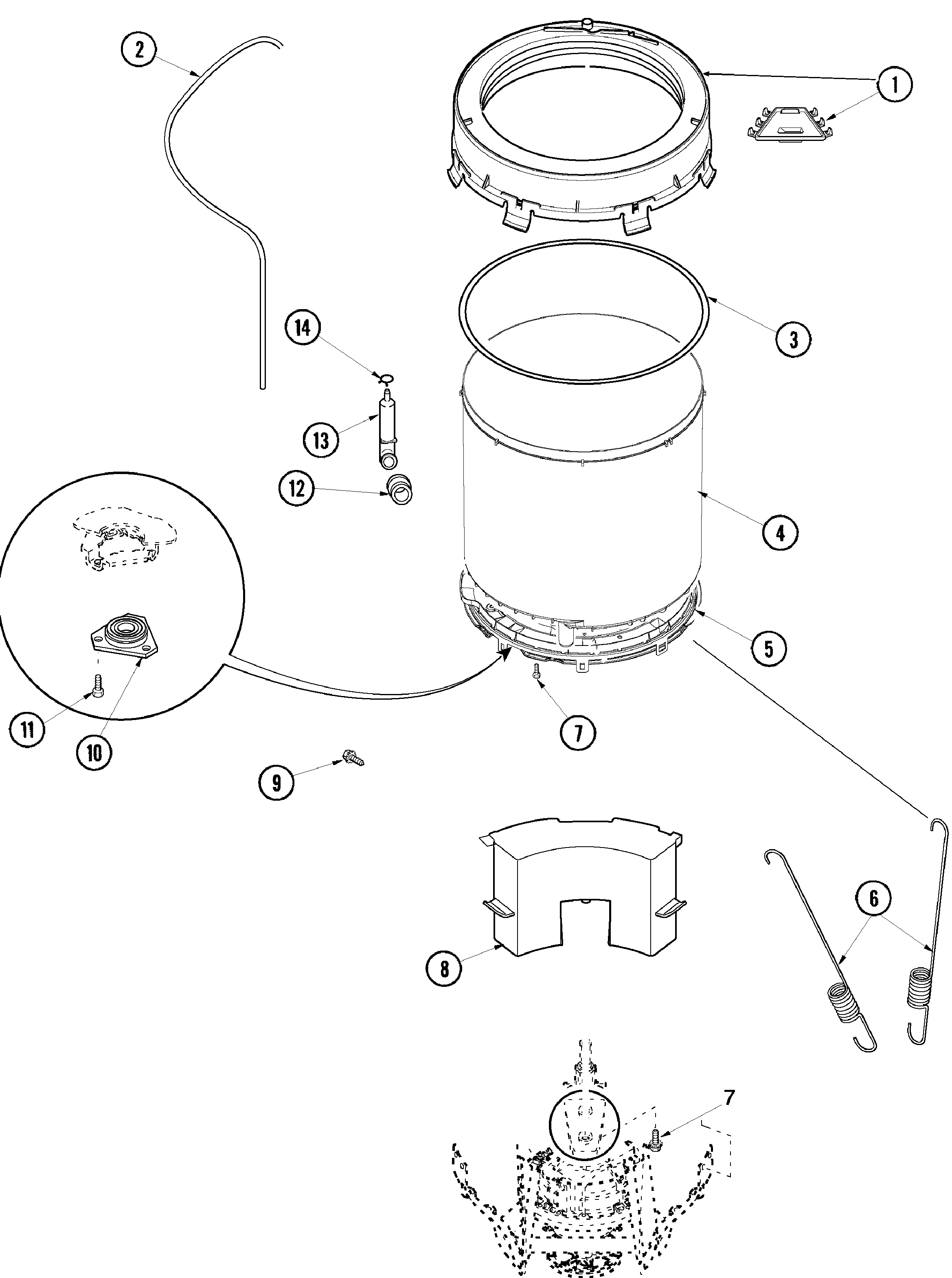

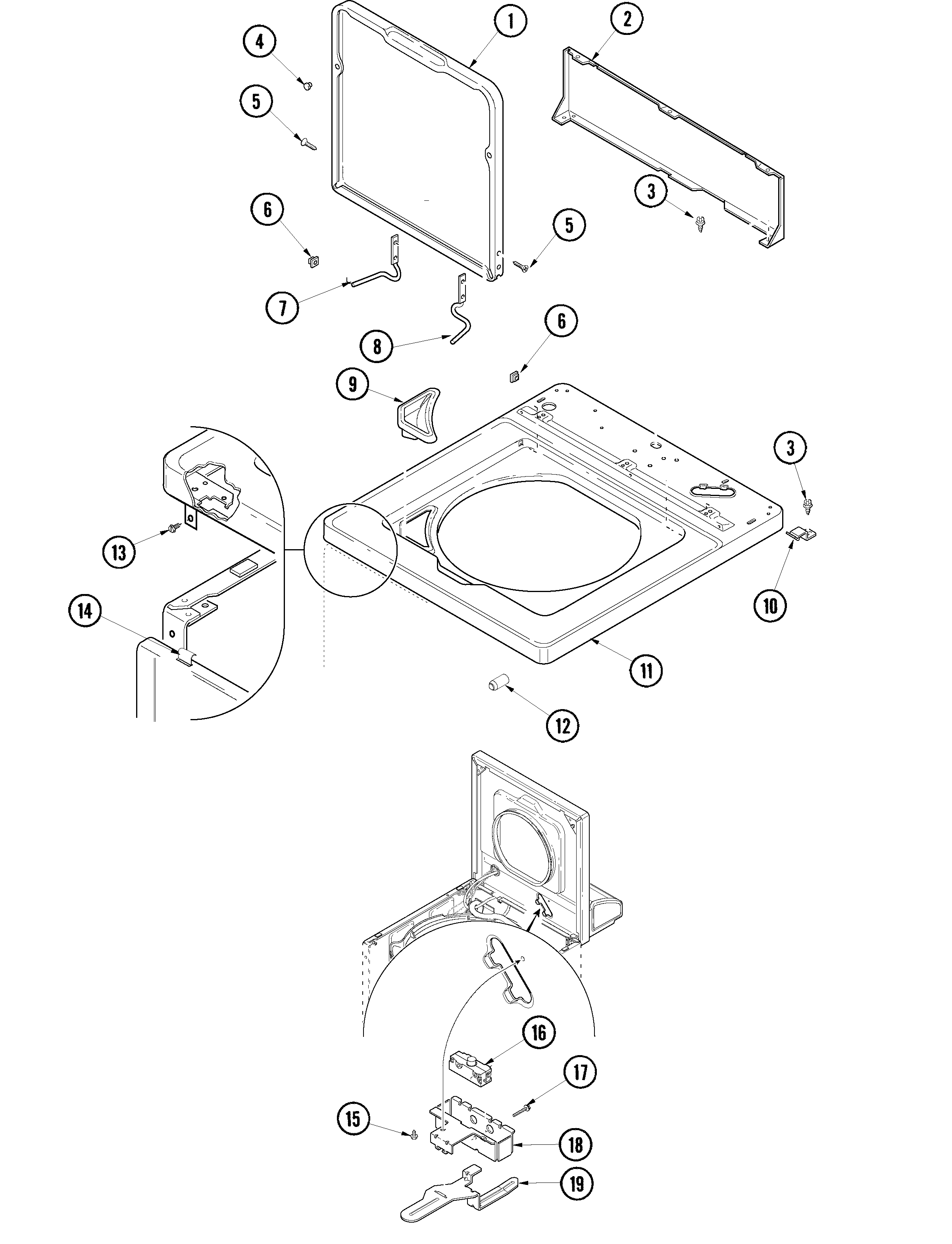

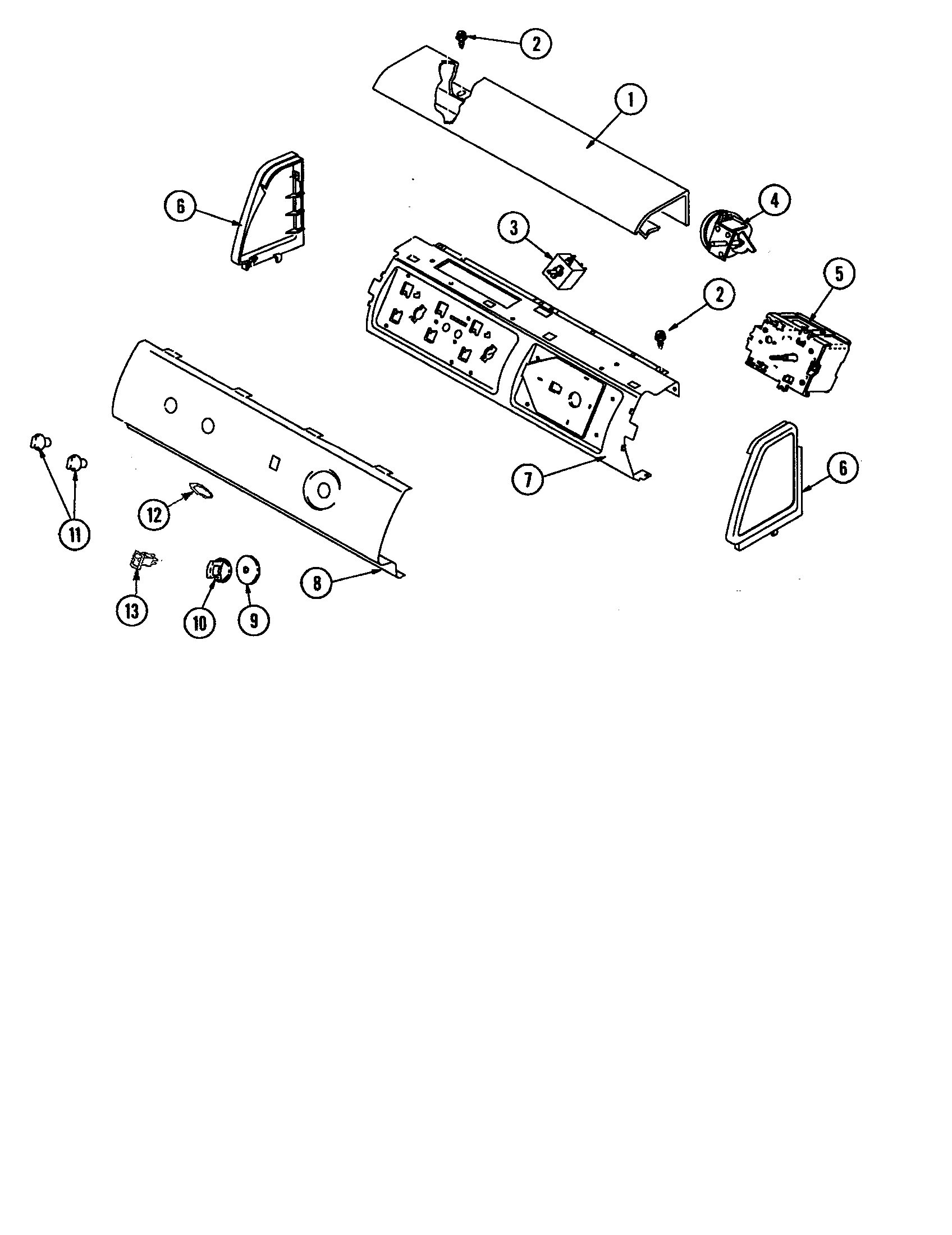

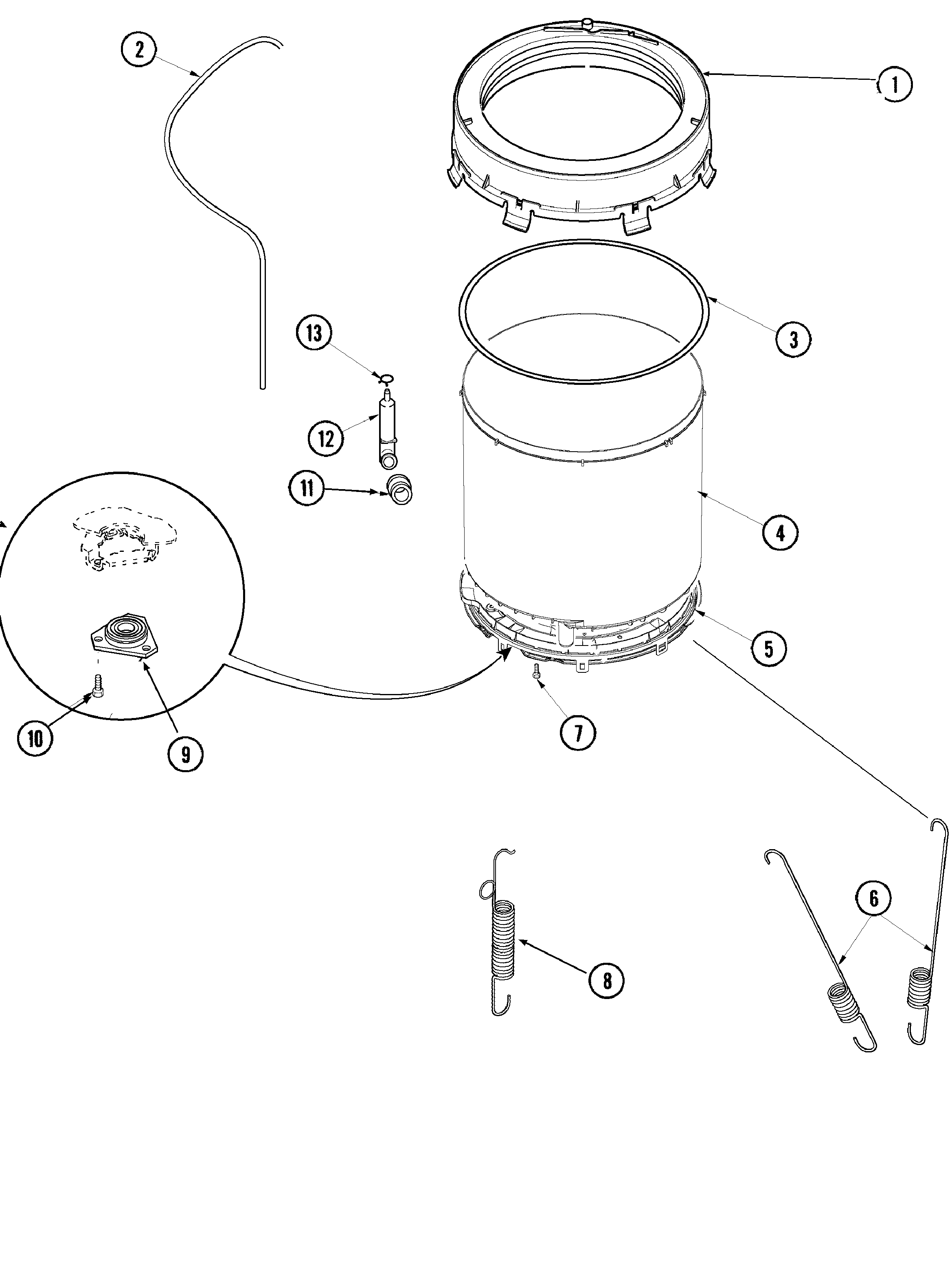

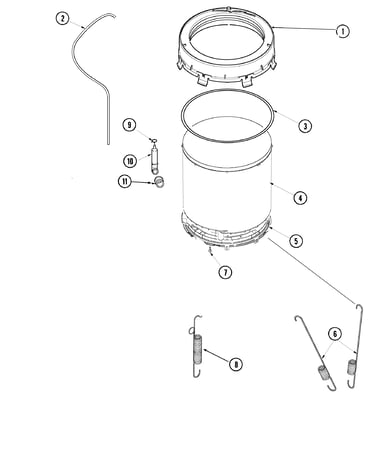

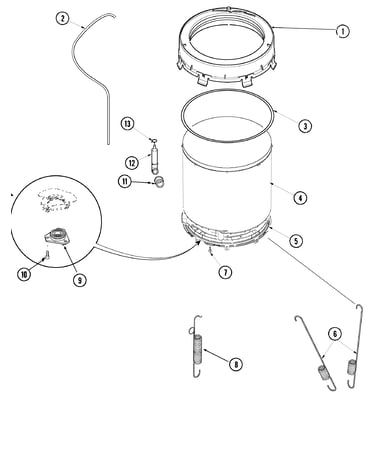

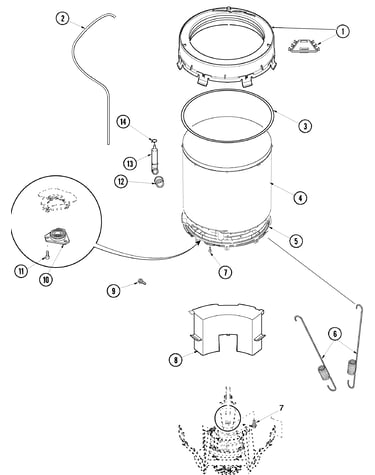

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Hose Clamp 36801
#3

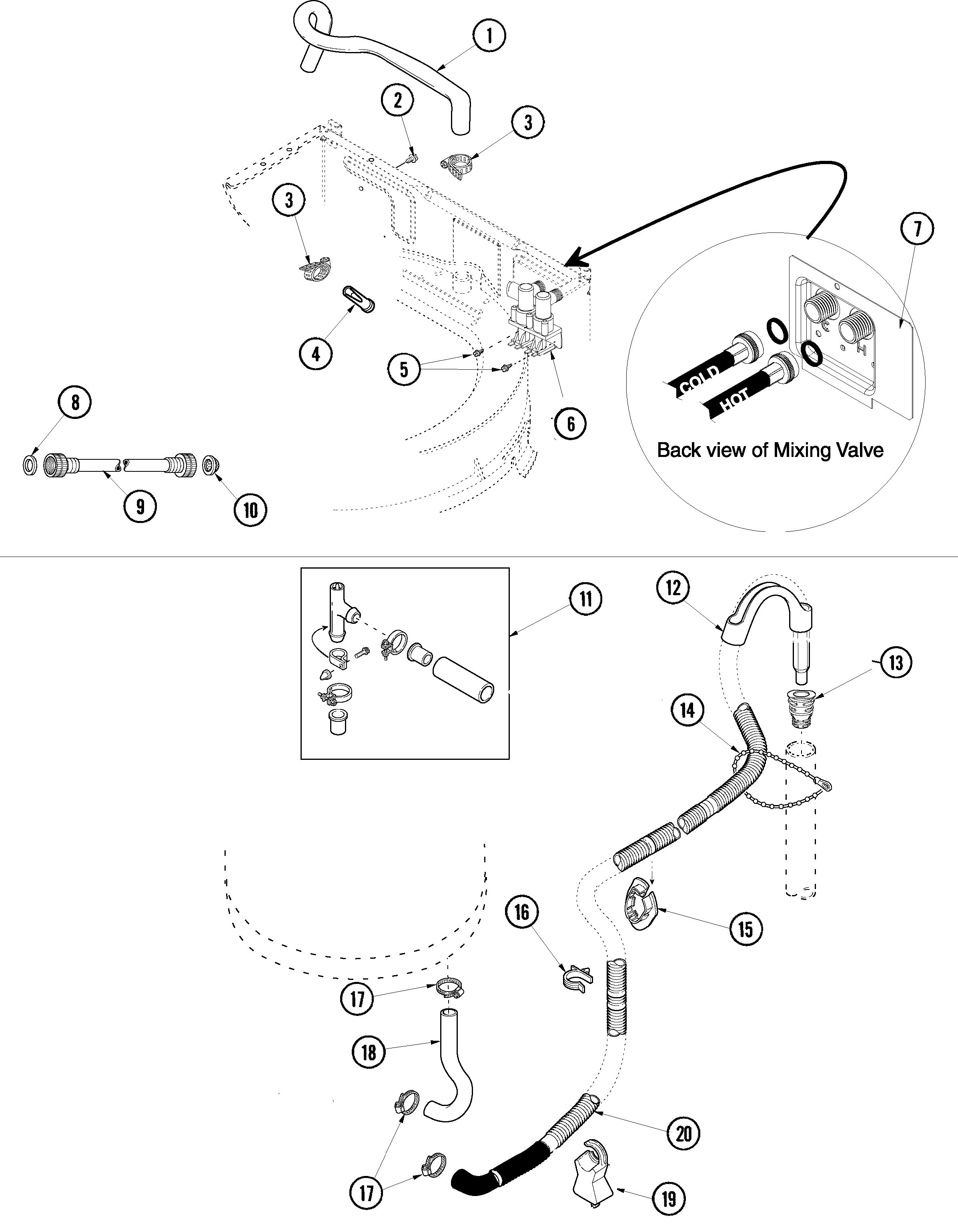

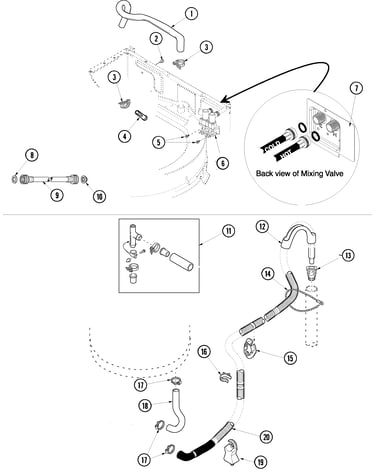

Mixing valve and hoses diagram

Hose clamp

Part #36801

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 36801. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 40064801
#4

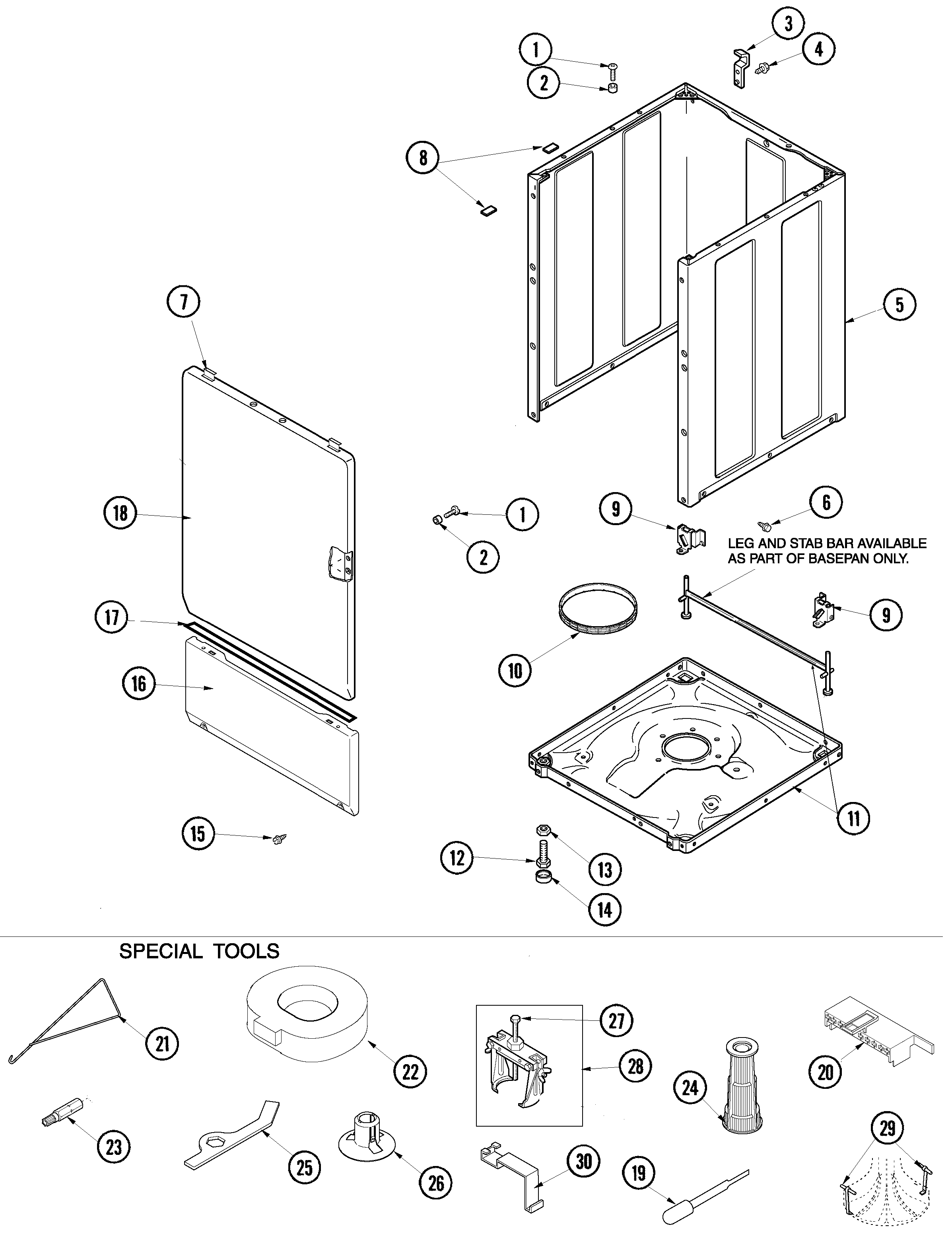

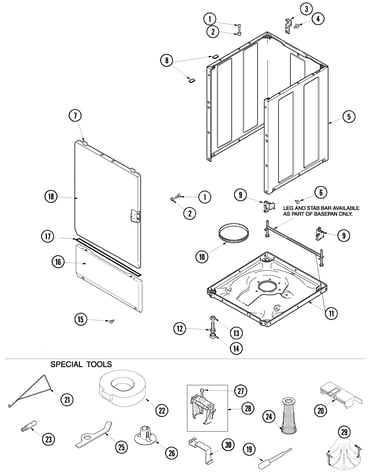

Cabinet, base & special tools diagram

Screw

Part #40064801

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces 40064801. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Seal Nut Assembly 21001533
#9

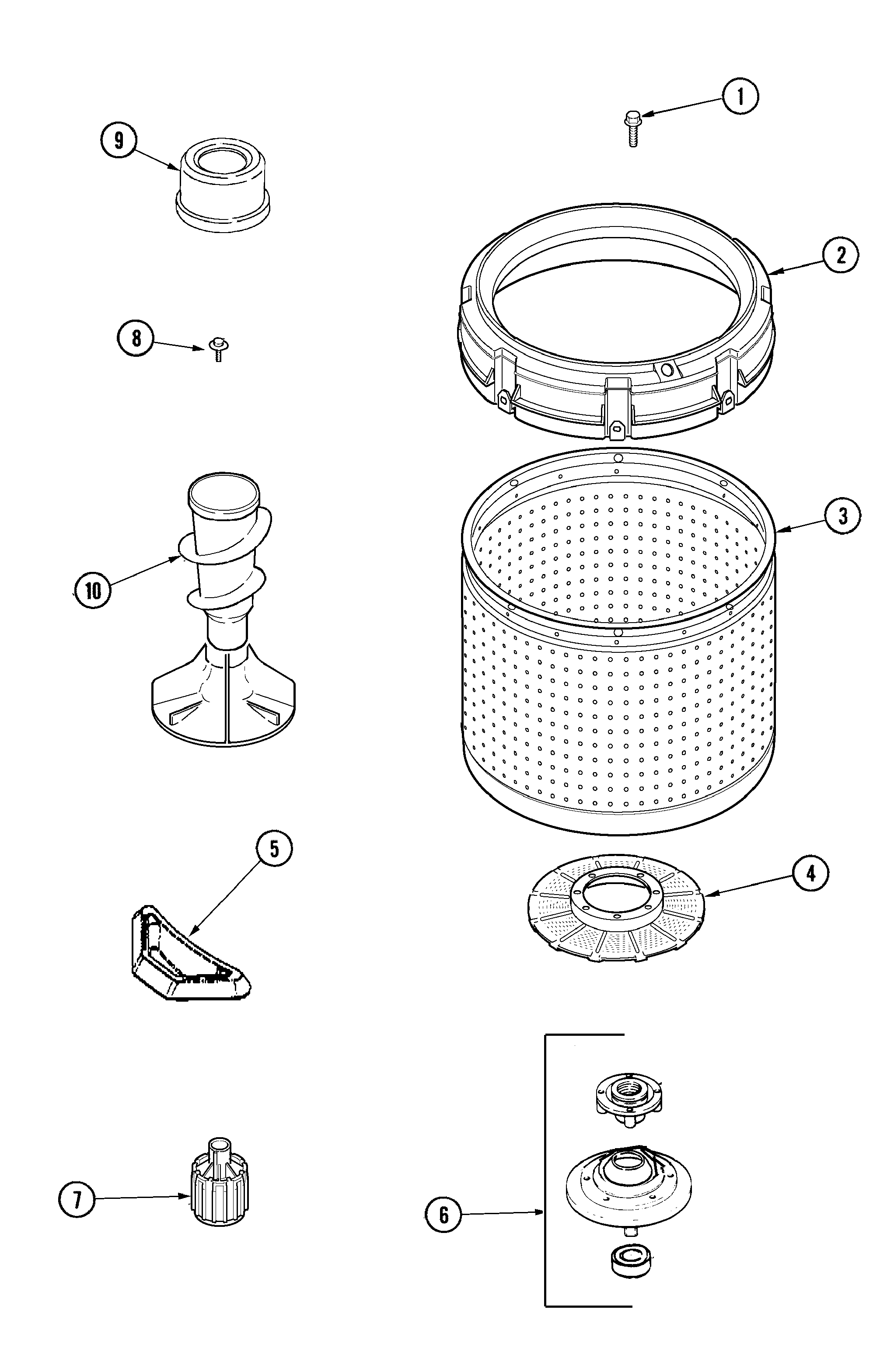

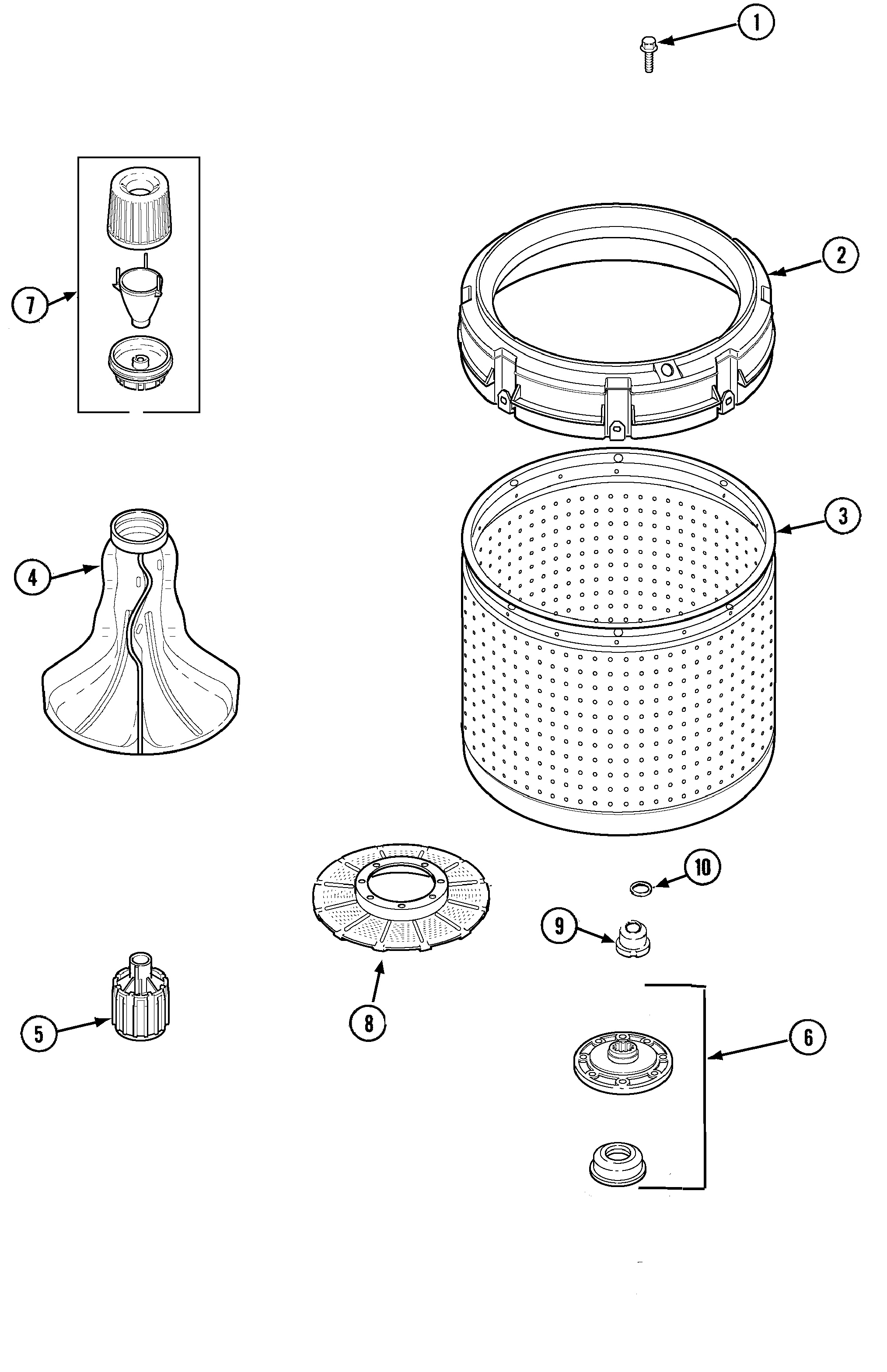

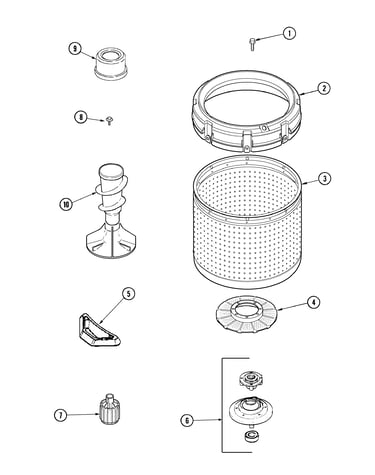

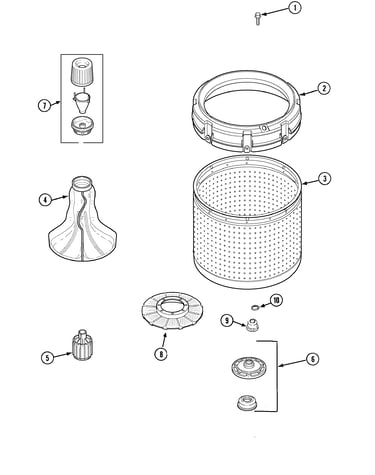

Inner tub (series 15) diagram

Seal nut assembly

Part #21001533

The manufacturer no longer makes this part, and there's no substitute part

Spin Belt 27001007
#15

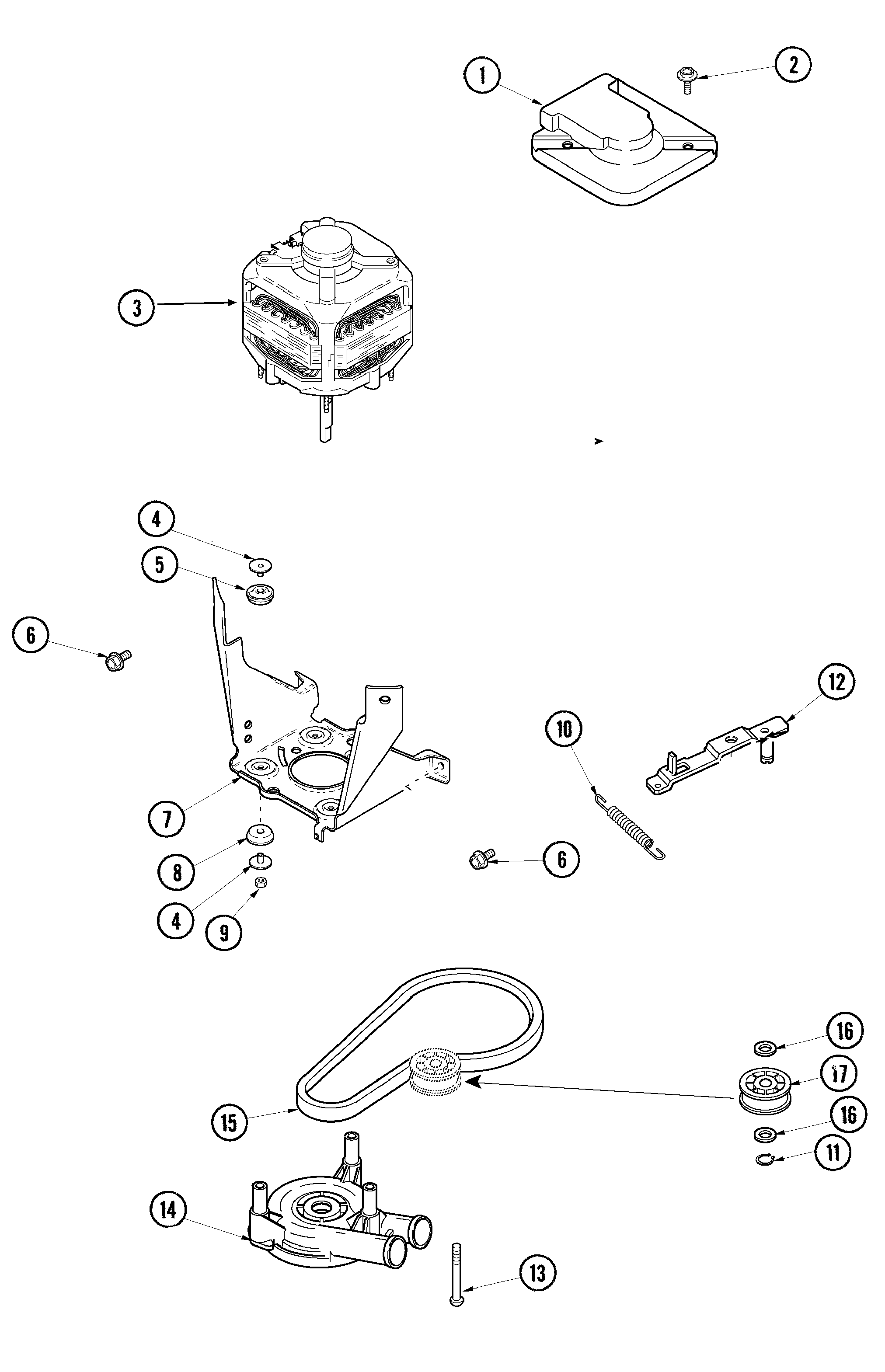

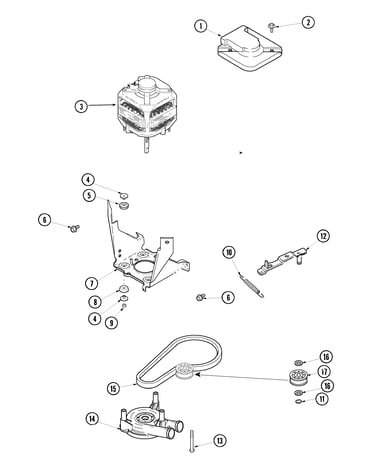

Motor, pump and idler assembly diagram

Spin belt

Part #27001007

The manufacturer no longer makes this part, and there's no substitute part

Screw 40039001
#12

Cabinet, base & special tools diagram

Screw

Part #40039001

Replaced by #22003428

?
Manufacturer substitution
This part replaces 40039001. Substitute parts can look different from the original.
This item is not returnable
$11.39 |
15% OFF Phone Price : $13.39
In Stock
Washer 20290
#8

Mixing valve and hoses diagram

Washer

Part #20290

Replaced by #Y013783

?
Manufacturer substitution
This part replaces 20290. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Tubing 40065001
Tubing

Part #40065001

Replaced by #WP21001748

?
Manufacturer substitution
This part replaces 40065001. Substitute parts can look different from the original.
This item is not returnable
$5.84 |
15% OFF Phone Price : $6.84
In Stock
Bearing 40004201P
Bearing

Part #40004201P

Replaced by #WP40004201P

?
Manufacturer substitution
This part replaces 40004201P. Substitute parts can look different from the original.
$38.70 |
13% OFF Phone Price : $44.70
In Stock
Locknut, 10- 40095101
#9

Motor, pump and idler assembly diagram

Locknut, 10-

Part #40095101

Replaced by #WPY707702

?
Manufacturer substitution
This part replaces 40095101. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Clip 56080
Clip

Part #56080

Replaced by #WP22001650

?
Manufacturer substitution
This part replaces 56080. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
