Model # 11063952102 Official Kenmore electric dryer
Here are the diagrams and repair parts for Official Kenmore 11063952102 electric dryer, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
By Part

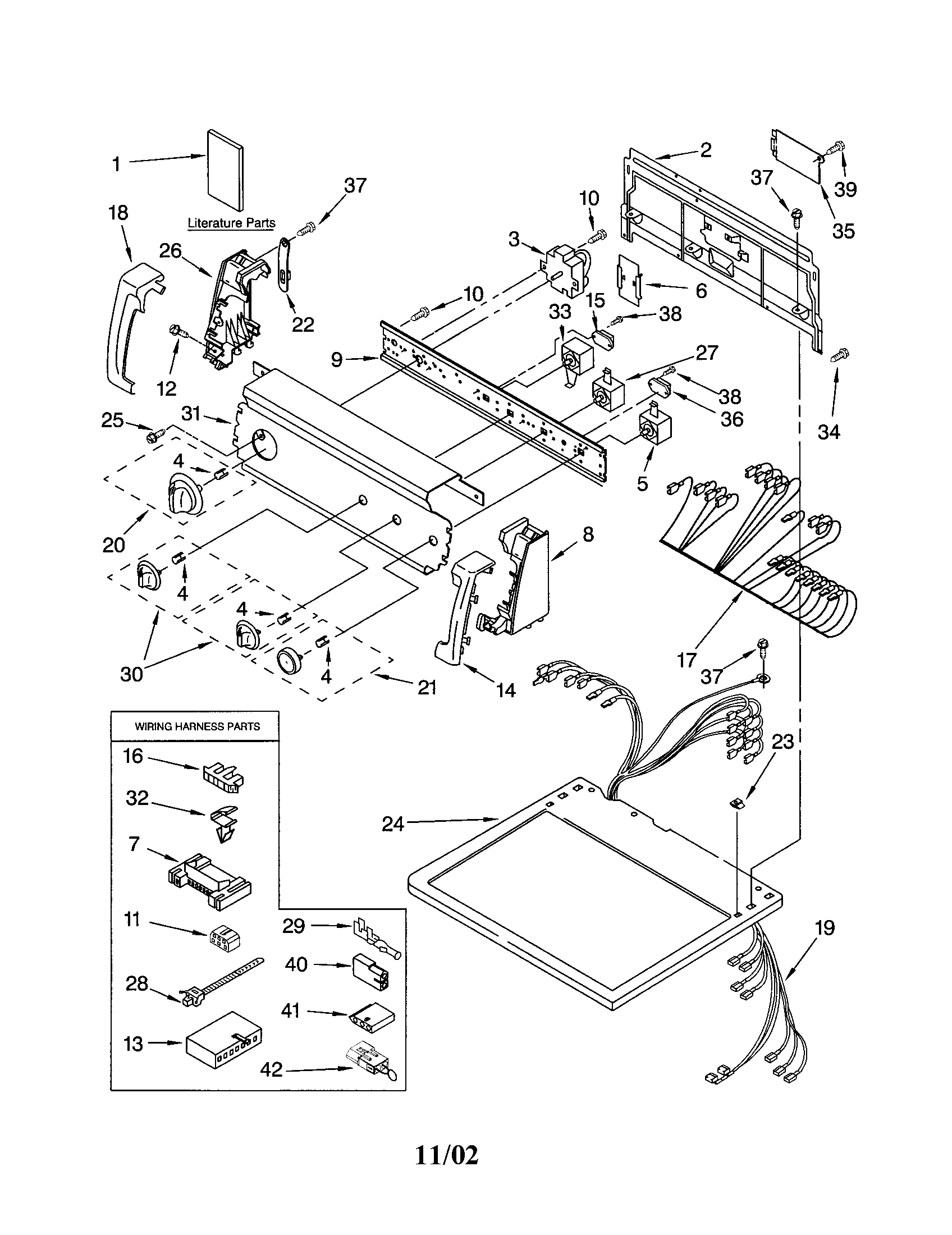

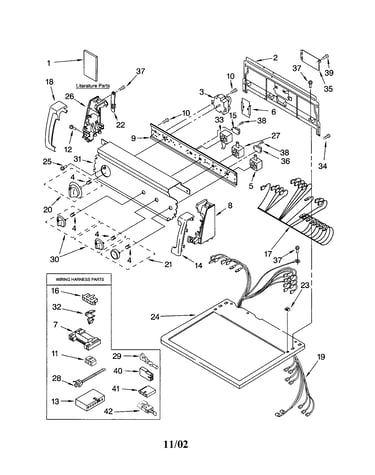

SELECT DIAGRAM
Browse Parts for11063952102 Electric Dryer
- #13
Cabinet diagram
Dryer idler pulleyPart #3388672
Replaced by #279640
?Manufacturer substitutionThis part replaces 3388672. Substitute parts can look different from the original.$27.53 |18% OFF Phone Price : $33.53In Stock - #21

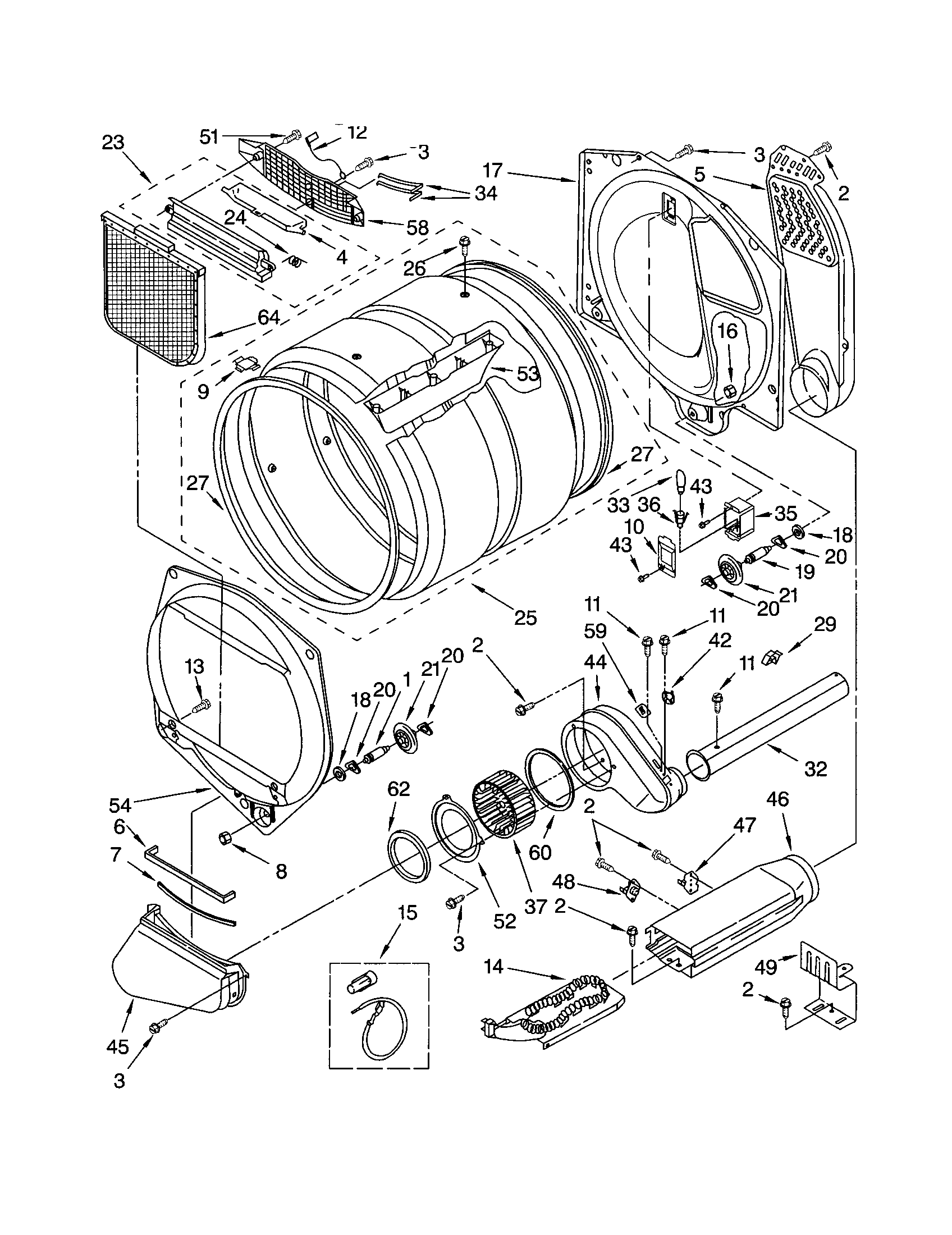

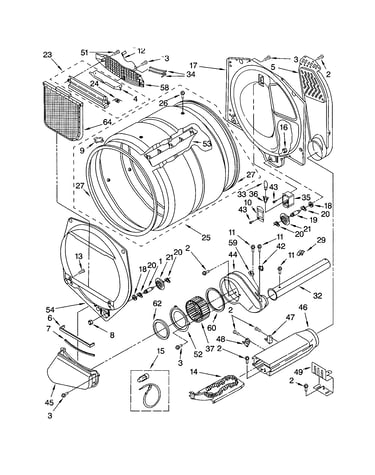

Bulkhead diagram
SupportPart #8536973
Replaced by #WPW10314173
?Manufacturer substitutionThis part replaces 8536973. Substitute parts can look different from the original.$11.76 |15% OFF Phone Price : $13.76In Stock - #39

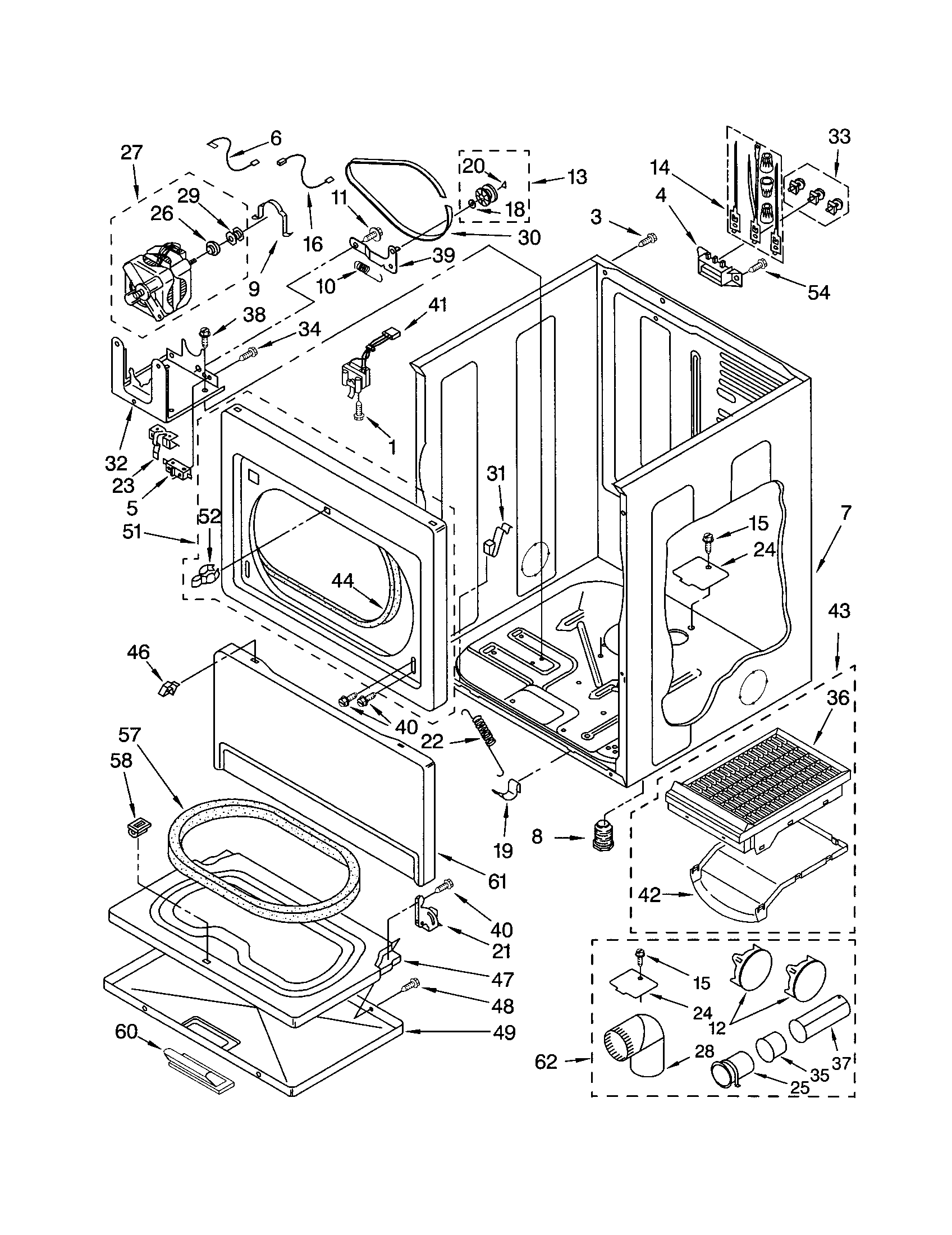

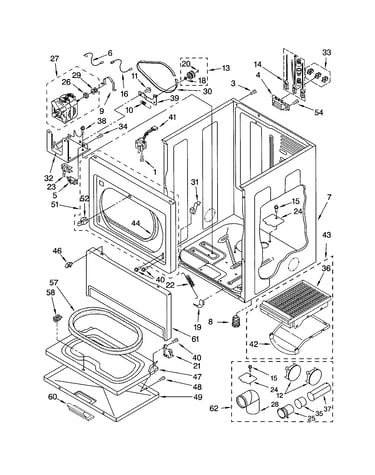

Cabinet diagram
BracketPart #3388674
Replaced by #W10837240
?Manufacturer substitutionThis part replaces 3388674. Substitute parts can look different from the original.$17.72 |10% OFF Phone Price : $19.72In Stock #NI01
All parts diagram
Dryer repair kitPart #80047
Replaced by #4392067
?Manufacturer substitutionThis part replaces 80047. Substitute parts can look different from the original.$41.05 |13% OFF Phone Price : $47.05In Stock- #42
Bulkhead diagram
Dryer thermistorPart #3976615
Replaced by #WP8577274
?Manufacturer substitutionThis part replaces 3976615. Substitute parts can look different from the original.$26.52 |18% OFF Phone Price : $32.52In Stock - #37
Bulkhead diagram
Dryer blower wheelPart #697772
Replaced by #WP697772
?Manufacturer substitutionThis part replaces 697772. Substitute parts can look different from the original.$33.87 |15% OFF Phone Price : $39.87In Stock - #52
Cabinet diagram
StrikePart #696144
Replaced by #279570
?Manufacturer substitutionThis part replaces 696144. Substitute parts can look different from the original.This item is not returnable$4.25 |19% OFF Phone Price : $5.25In Stock - #58
Cabinet diagram
CatchPart #690081
Replaced by #279570
?Manufacturer substitutionThis part replaces 690081. Substitute parts can look different from the original.This item is not returnable$4.25 |19% OFF Phone Price : $5.25In Stock - #47
Bulkhead diagram
Cut-off kitPart #3977394
Replaced by #279769
?Manufacturer substitutionThis part replaces 3977394. Substitute parts can look different from the original.$36.60 |14% OFF Phone Price : $42.60In Stock - #27
Cabinet diagram
Drive motorPart #8538263
Replaced by #279787
?Manufacturer substitutionThis part replaces 8538263. Substitute parts can look different from the original.$172.19 |7% OFF Phone Price : $184.19In Stock
