Electric Range

Model # 79090911400 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 79090911400 electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

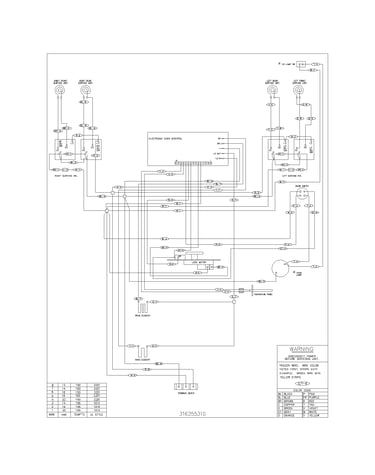

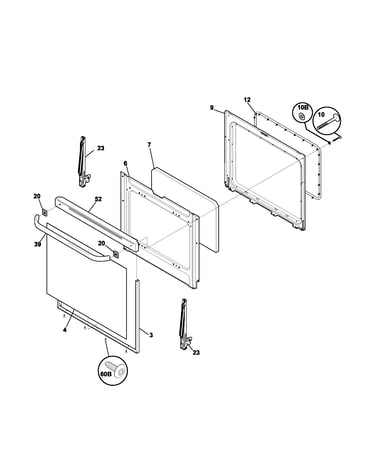

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
79090911400 Ranges
Range Surface Element Control Switch 316021501
#54A

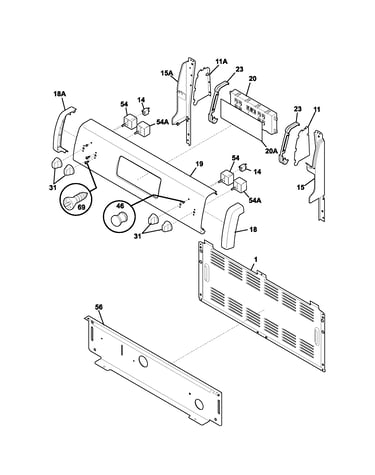

Backguard diagram

Range surface element control switch

Part #316021501

Replaced by #316436001

?
Manufacturer substitution
This part replaces 316021501. Substitute parts can look different from the original.
4.55 (113)
BEST SELLER
$35.24 |
15% OFF Phone Price : $41.24
In Stock
Frigidaire Range Bake Element (replaces 316075104) 316075103
#67

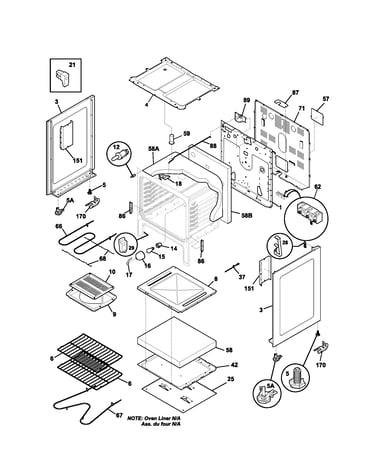

Body diagram

Frigidaire range bake element (replaces 316075104)

Part #316075103

4.67 (242)
BEST SELLER
$22.18 |
21% OFF Phone Price : $28.18
In Stock
Oven Switch 316021500
#54

Backguard diagram

Oven switch

Part #316021500

Replaced by #316436000

?
Manufacturer substitution
This part replaces 316021500. Substitute parts can look different from the original.
4.1 (30)
BEST SELLER
$52.61 |
10% OFF Phone Price : $58.61
In Stock
Range Oven Light Bulb 5303013071
#15

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
5 (2)
BEST SELLER
$16.47 |
11% OFF Phone Price : $18.47
In Stock
Block 5303912666
#27

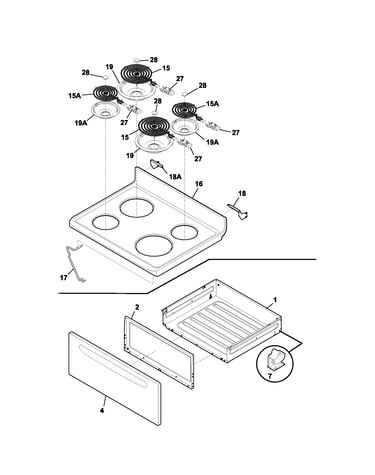

Top/drawer diagram

Block

Part #5303912666

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5303912666. Substitute parts can look different from the original.
3.91 (23)
BEST SELLER
$8.00 |
11% OFF Phone Price : $9.00
In Stock
Range Control Overlay 316419109
#20A

Backguard diagram

Range control overlay

Part #316419109

Replaced by #316419141

?
Manufacturer substitution
This part replaces 316419109. Substitute parts can look different from the original.
5 (3)
BEST SELLER
$36.45 |
14% OFF Phone Price : $42.45
In Stock
Frigidaire Range Broil Element (replaces 316199900) 316203200
#66

Body diagram

Frigidaire range broil element (replaces 316199900)

Part #316203200

4.75 (4)
BEST SELLER
$111.35 |
10% OFF Phone Price : $123.35
In Stock
Burner 3051450
#15

Top/drawer diagram

Burner

Part #3051450

Replaced by #316442300

?
Manufacturer substitution
This part replaces 3051450. Substitute parts can look different from the original.
4.19 (27)
BEST SELLER
$22.49 |
21% OFF Phone Price : $28.49
In Stock
Range Indicator Light 316022500
#14

Backguard diagram

Range indicator light

Part #316022500

4.33 (6)
BEST SELLER
$43.73 |
12% OFF Phone Price : $49.73
In Stock
Probe 316217001
#37

Body diagram

Probe

Part #316217001

Replaced by #316490001

?
Manufacturer substitution
This part replaces 316217001. Substitute parts can look different from the original.
2.55 (20)
BEST SELLER
$53.02 |
10% OFF Phone Price : $59.02
In Stock
