Model # 921169530 Official Craftsman air compressor
Here are the diagrams and repair parts for Official Craftsman 921169530 air compressor, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for921169530 Power Tools
- #NI

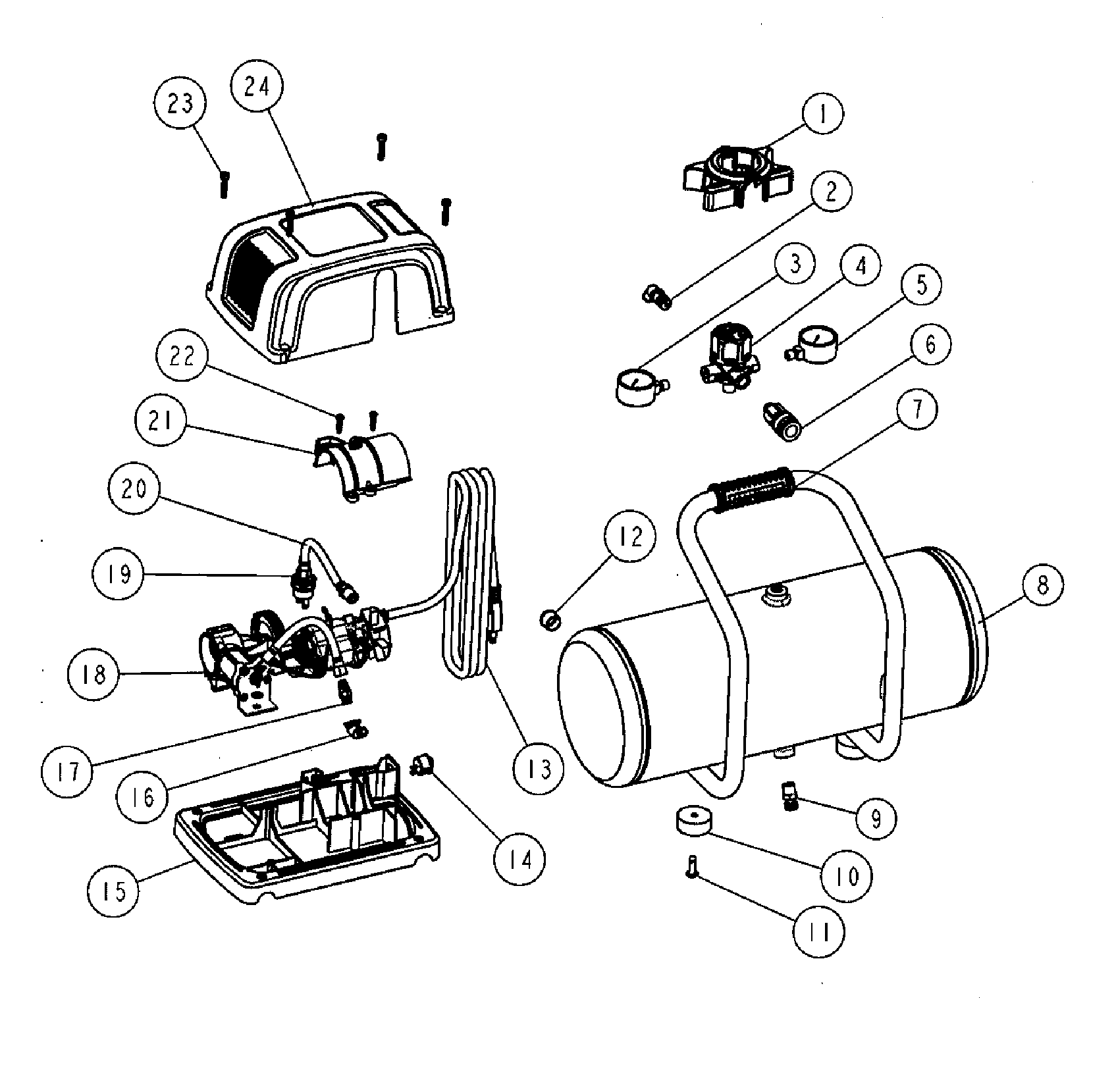

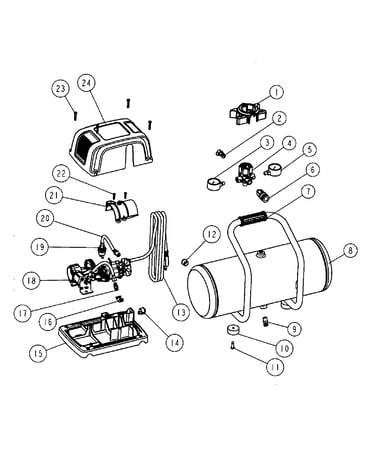

Compressor asy diagram
Craftsman owner's manualPart #E109568
The manufacturer no longer makes this part, and there's no substitute part
- #14
Compressor asy diagram
Craftsman rocker swiPart #E102422
The manufacturer no longer makes this part, and there's no substitute part
- #1
Compressor asy diagram
Craftsman coverPart #E107388
The manufacturer no longer makes this part, and there's no substitute part
- #5
Compressor asy diagram
Craftsman air compressor pressure gaugePart #E107913
The manufacturer no longer makes this part, and there's no substitute part
- #6
Compressor asy diagram
Air compressor quick-connect hose couplerPart #E102822
The manufacturer no longer makes this part, and there's no substitute part
- #3
Compressor asy diagram
Craftsman air compressor pressure gaugePart #E107912
The manufacturer no longer makes this part, and there's no substitute part
- #19
Compressor asy diagram
Craftsman switchPart #E103848
The manufacturer no longer makes this part, and there's no substitute part
- #2
Compressor asy diagram
Craftsman sfty valvePart #E103436
The manufacturer no longer makes this part, and there's no substitute part
- #17
Compressor asy diagram
Craftsman check valvePart #E103849
The manufacturer no longer makes this part, and there's no substitute part
- #24
Compressor asy diagram
Craftsman shroud-topPart #E107681
The manufacturer no longer makes this part, and there's no substitute part
